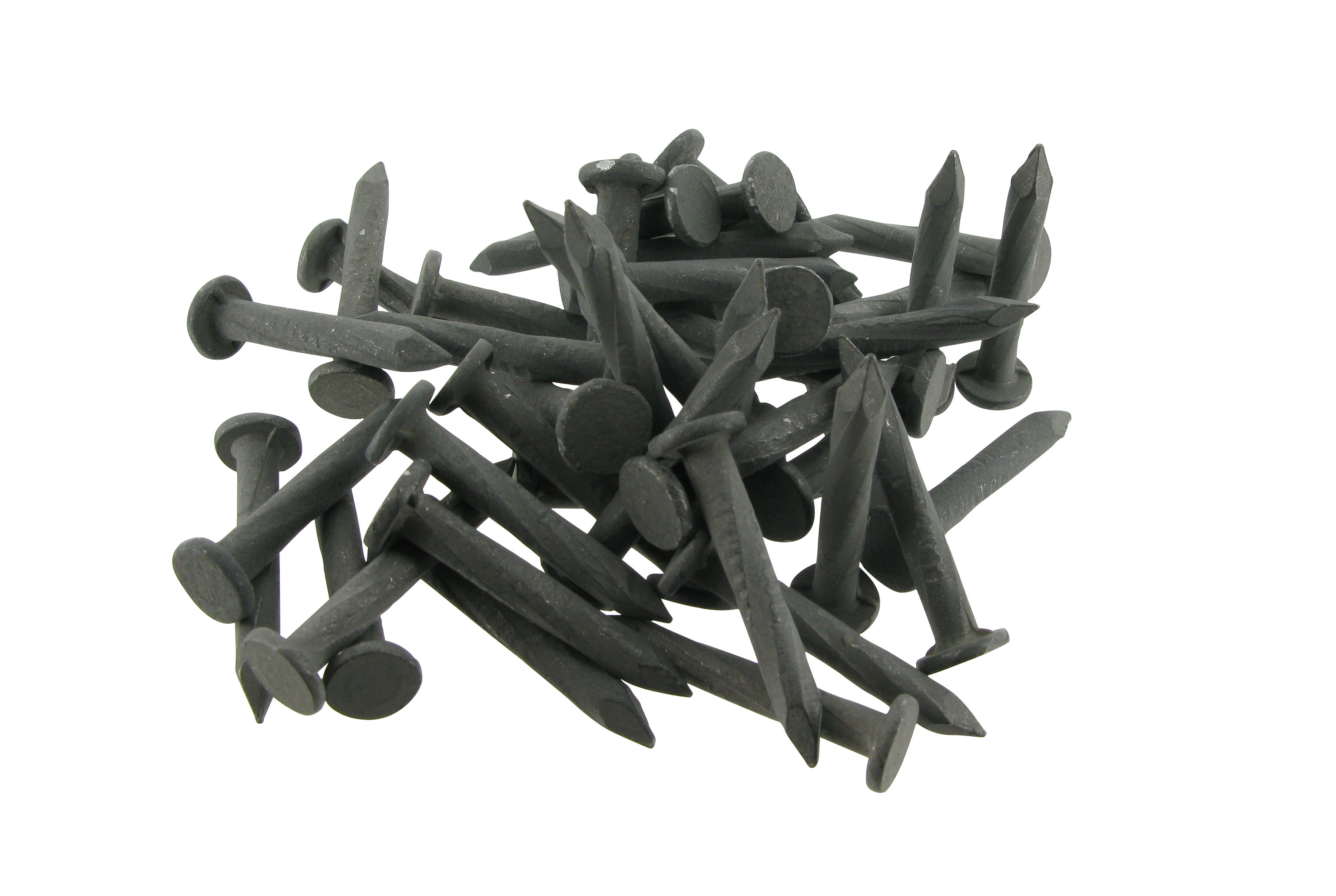

N3.75SH

Square Twist Nail Sheradised

N3.75 square twist nails are tested and approved for use when installing Simpson Strong-Tie connectors including joist hangers, brackets and straps. CE marked to EN14592.

Sheradised coating suitable for service class 2 environments.

Technical Data Sheet

CE Marking

Service class 2

Shérardisé

Solid Wood

Product Details

Images

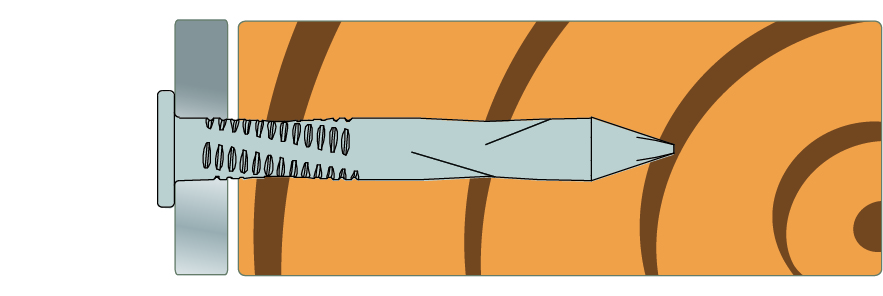

Fixation d'un sabot à bretelle avec N3.75

Features

Material

Steel - sheradised coating

Features

CE marked to EN14592
Square twist profile
Sheradised coating

Application

Suitable On

Fastening hangers with straps
Fastening hangers with top flanges
Fastening ZS clip for I-beams

Common Applications

Fastening connectors to timber including solid wood, composite lumber and glued-laminated timber.

Joist hanger fastening
Angle brackets
Straps
Nail plates

Technical Data

Dimensions

Product Dimensions

References	Fastener dimensions [mm]			Weight
References	d	l	d_h	Weight
N3.75X30SH/1KG	3.75	30	8	1kg
N3.75X30SH/2.5KG	3.75	30	8	2.5kg
N3.75X30SH/5KG	3.75	30	8	5kg
N3.75X30SH/25KG	3.75	30	8	25kg

Performance Values

References	Characteristic Yield Moment - M_y,k [Nm]	Characteristic Withdrawal Parameter - f_ax,k [N/mm2]	Characteristic Head Pull Through - F_head,k [N/mm2]	Characteristic Tensile Capacity - f_tens,k [kN]
N3.75X30SH	5.2	4.8	24.5	5.8
