ADAPTER

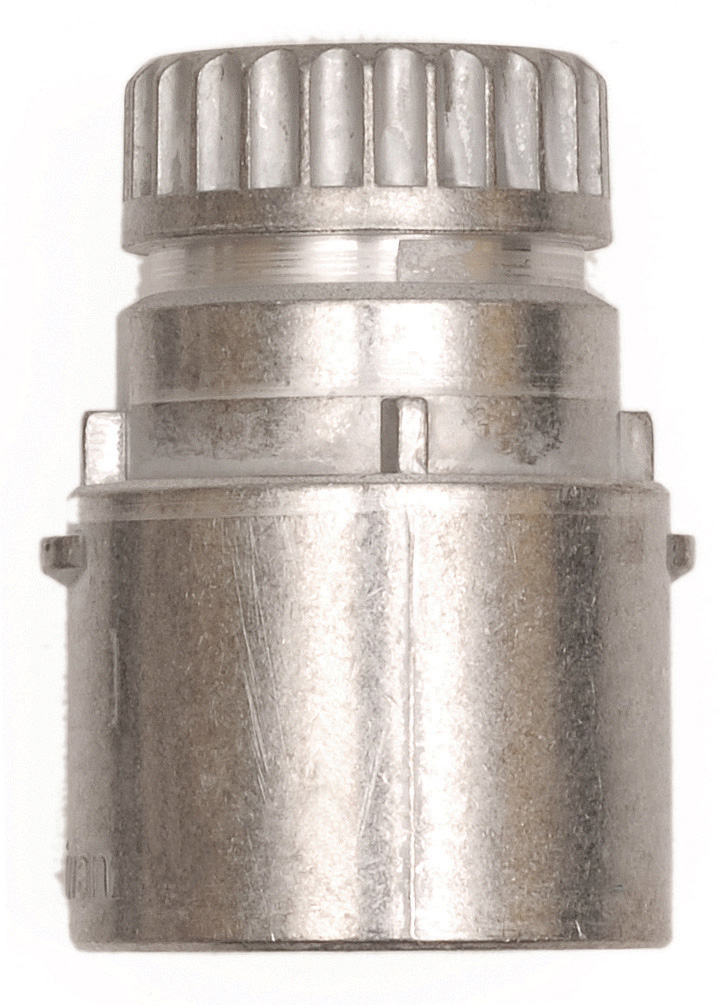

Adapter for Quik Drive System

An adapter is required to connect any drywall screwdriver motor to a Quik Drive attachment or extension pole.

There are a variety of adapters available to suit most drywall screwdrivers. The table below shows which model adapter is suitable for which particular screwdriver motor.

Technical Data Sheet
Aluminium
Aluminium

Product Details

Images

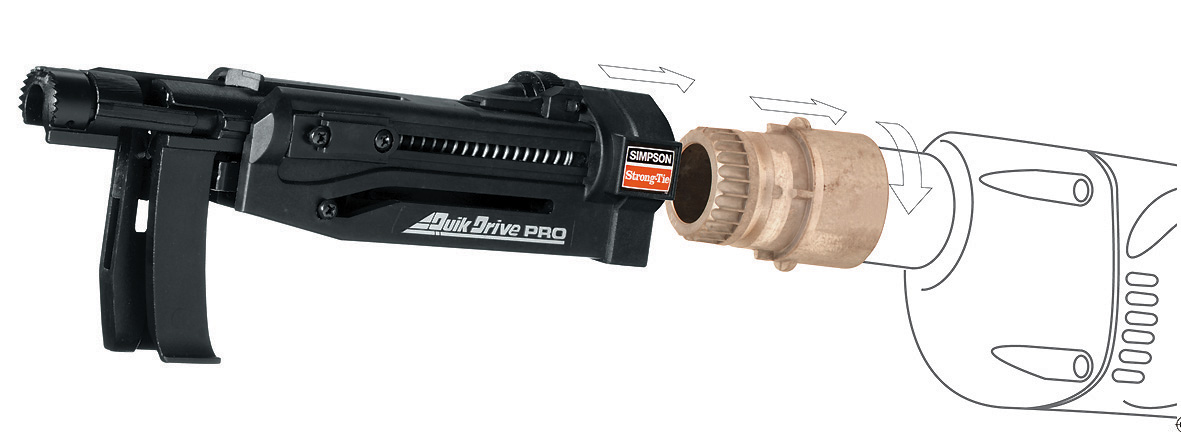

adaptor setting in the tool
Install the adaptor.
Insert the mandrel.

Features

Material

  • Aluminum

Benefits

  • Allen key included
  • Quick and easy to install
  • Suitable for most drywall screwdriver motors

Application

For Use With

  • All Quik Drive attachments to connect to screwdriver motor

Technical Data

Adapters

ReferenceFasteners Dimensions
QD information
Compatible screwdriver motor (corded)Compatible screwdriver motor (cordless)Compatible with extension pole
ABO1E-RCBosch® GSR 6-25, GSR 6-45Bosch® GSR 10,8V-EC, GSR 18V-EC TEYes
AHT2E-RCHilti® SF4000, SD2500, SD5000, SD6000Hilti® SF4000A, SD5000ANo
AHIE-RCHitachi® W8VB, W8VB2, W6VB2, W6VB3, W6VA3, W6VA4, W6V3, W6V4, W6VMMetabo® SE18LTX25000, SE18LTX4000, SE18LTX6000Yes
AMAE-RC*Makita® 6822 - 6824--
AMA9E-RC*Makita® FS2300, FS2500, FS4000, FS43000, FS6300*Makita® BFS451, DFS250, DFS251, DFS451, DFS452Yes
AHTE-RCHilti® ST1800, ST2500Hilti® ST1800-A22No
DWA7G2-DeWalt® DCF620N, DCF621NNo
ADWE-RC---
AMA4E-RC--No
DWA3G2-DeWalt® DCF622Yes - Modification Required*

*For modification tutorial click here

*For Makita Screwguns remove Circlips before connecting adapter - for video click here

Installation

Installation

Installation

  • Allen key included
  • Quick and easy to install
  • Suitable for most drywall screwdriver motors

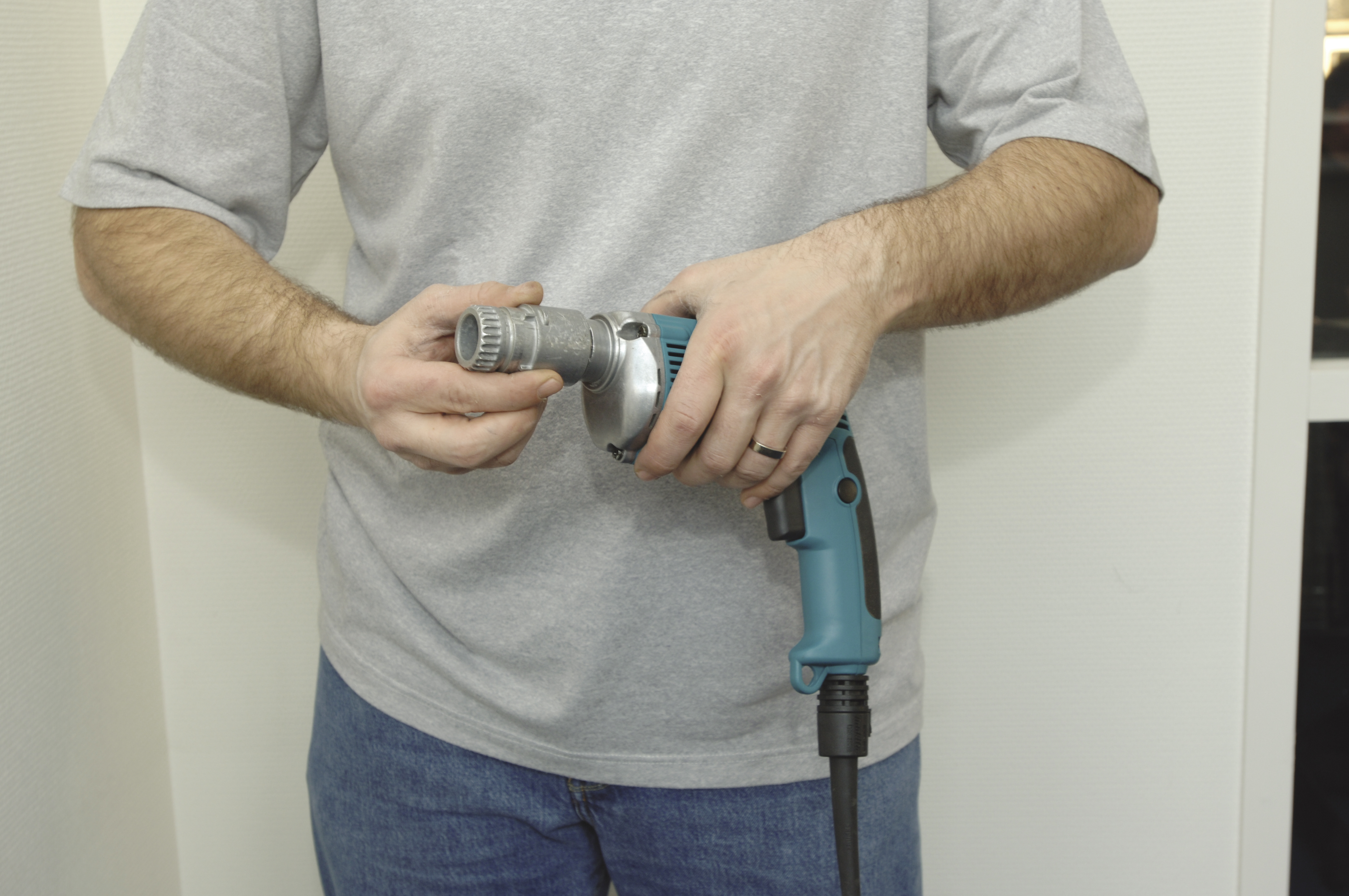

Remove screw driver sleeve.

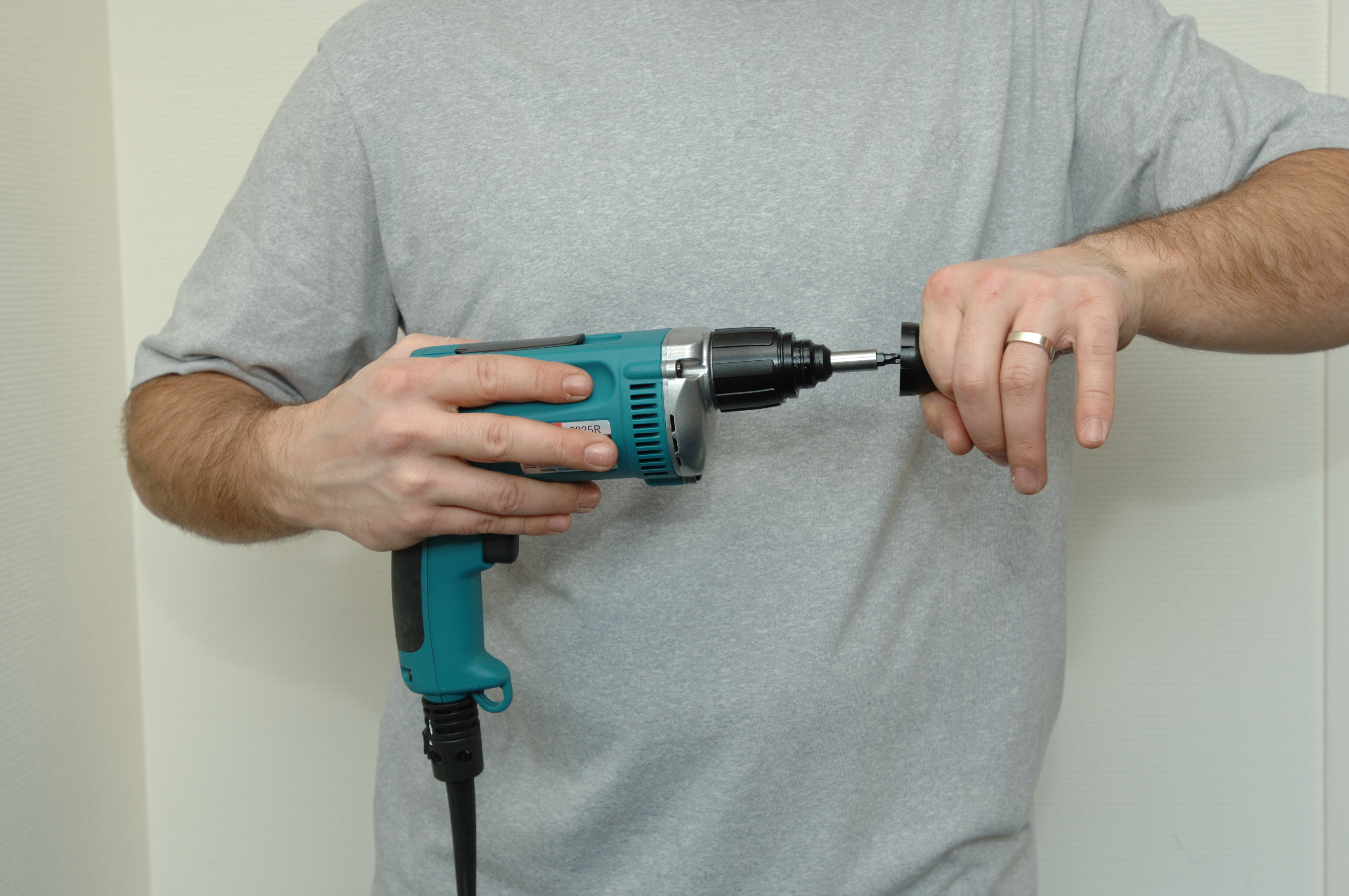

Then remove the cap.

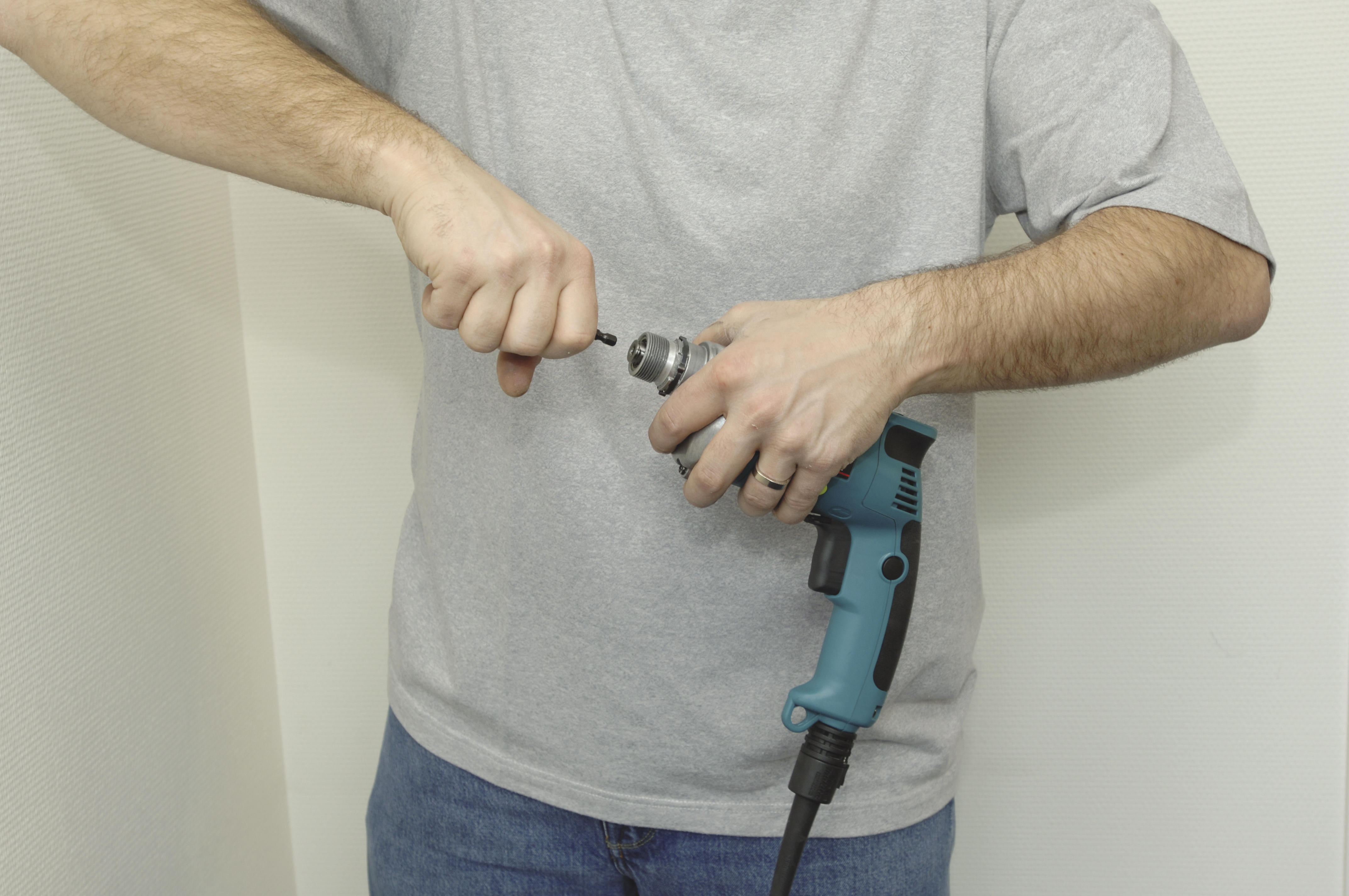

Install the adaptor.

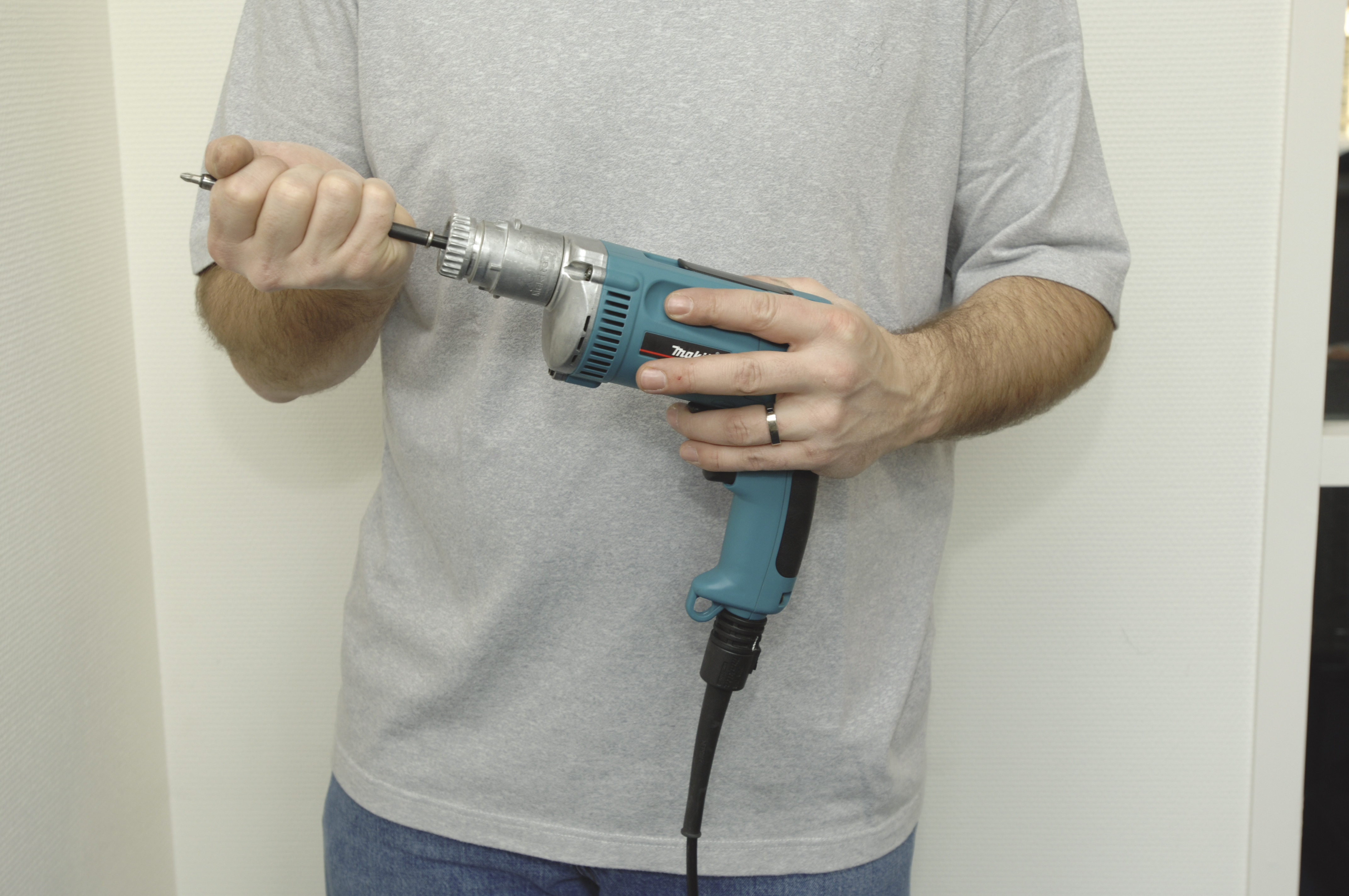

Insert the mandrel.

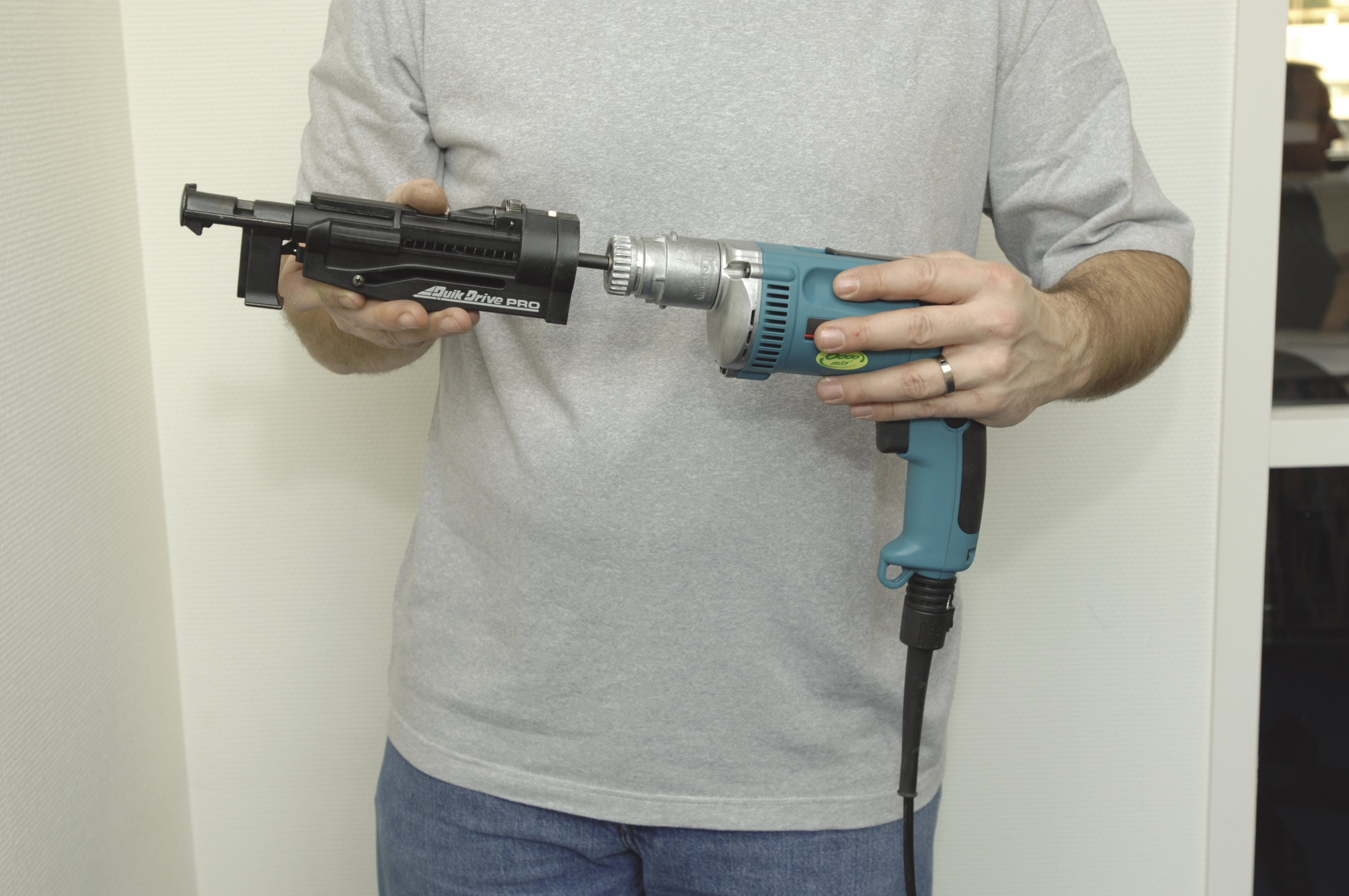

Engage the gun with the mandrel and snap it onto the adapter.

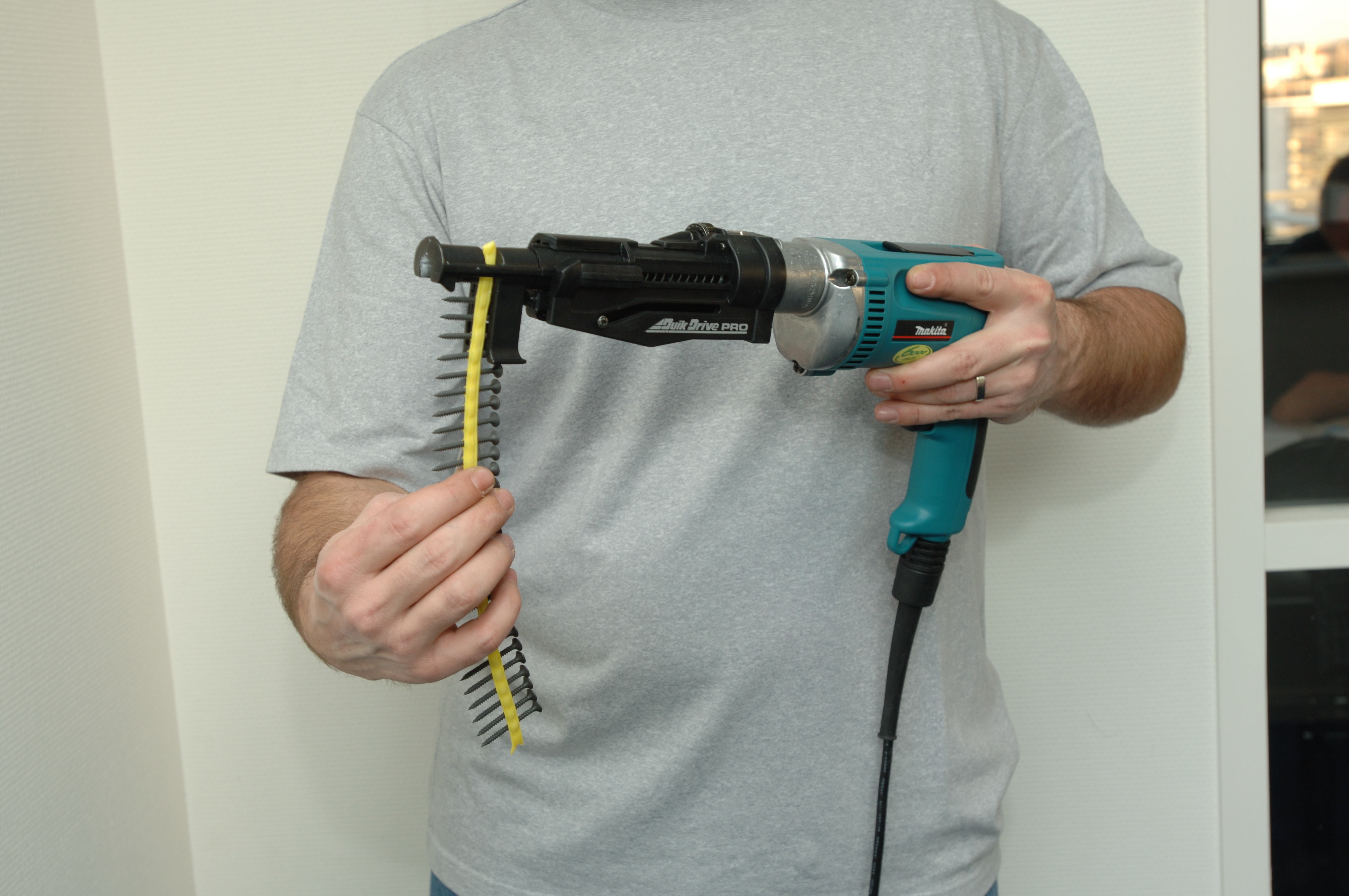

Insert the tape screw tip pointed up: your screwdriver is ready!
adaptor setting in the tool
