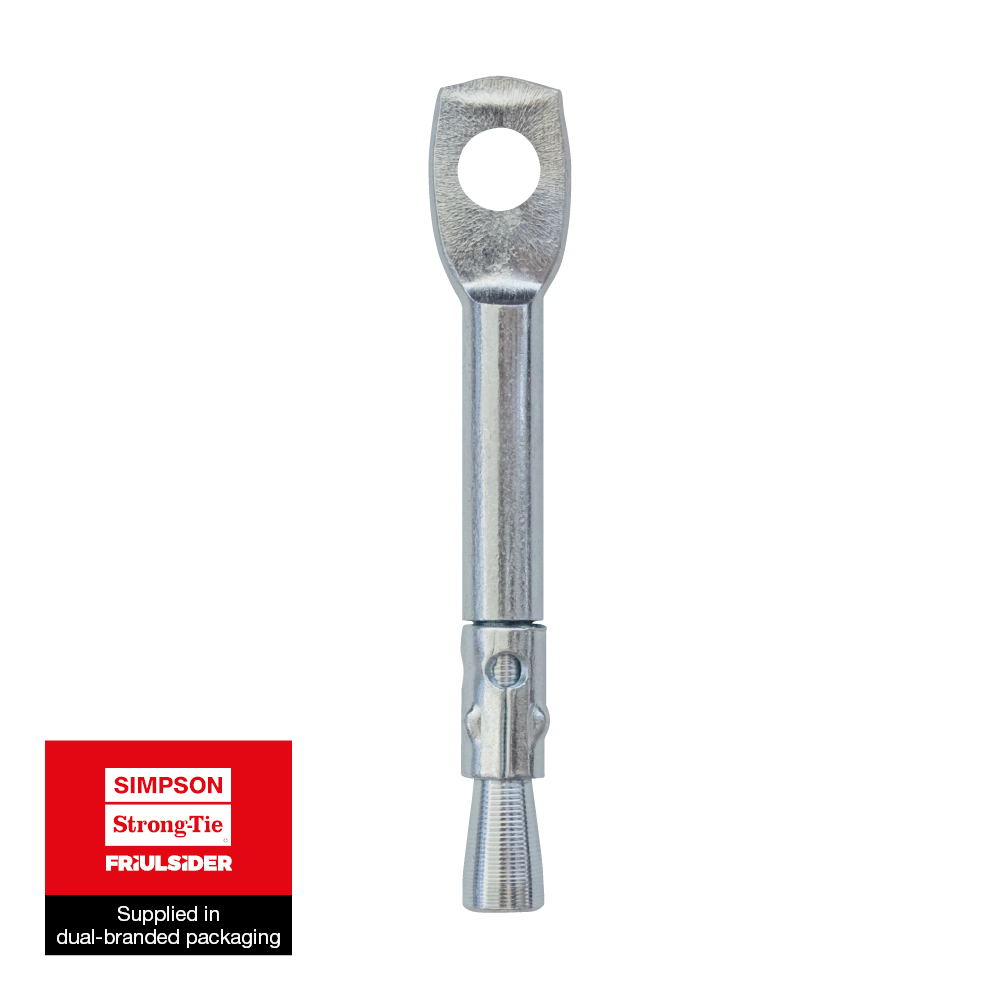

TW
Anchor for Suspended Ceiling
The TW is a Ø6.0 mm wedge anchor for suspended ceilings.
New
Electro-galvanized steel
Service class 2
Product Details
Images
Features

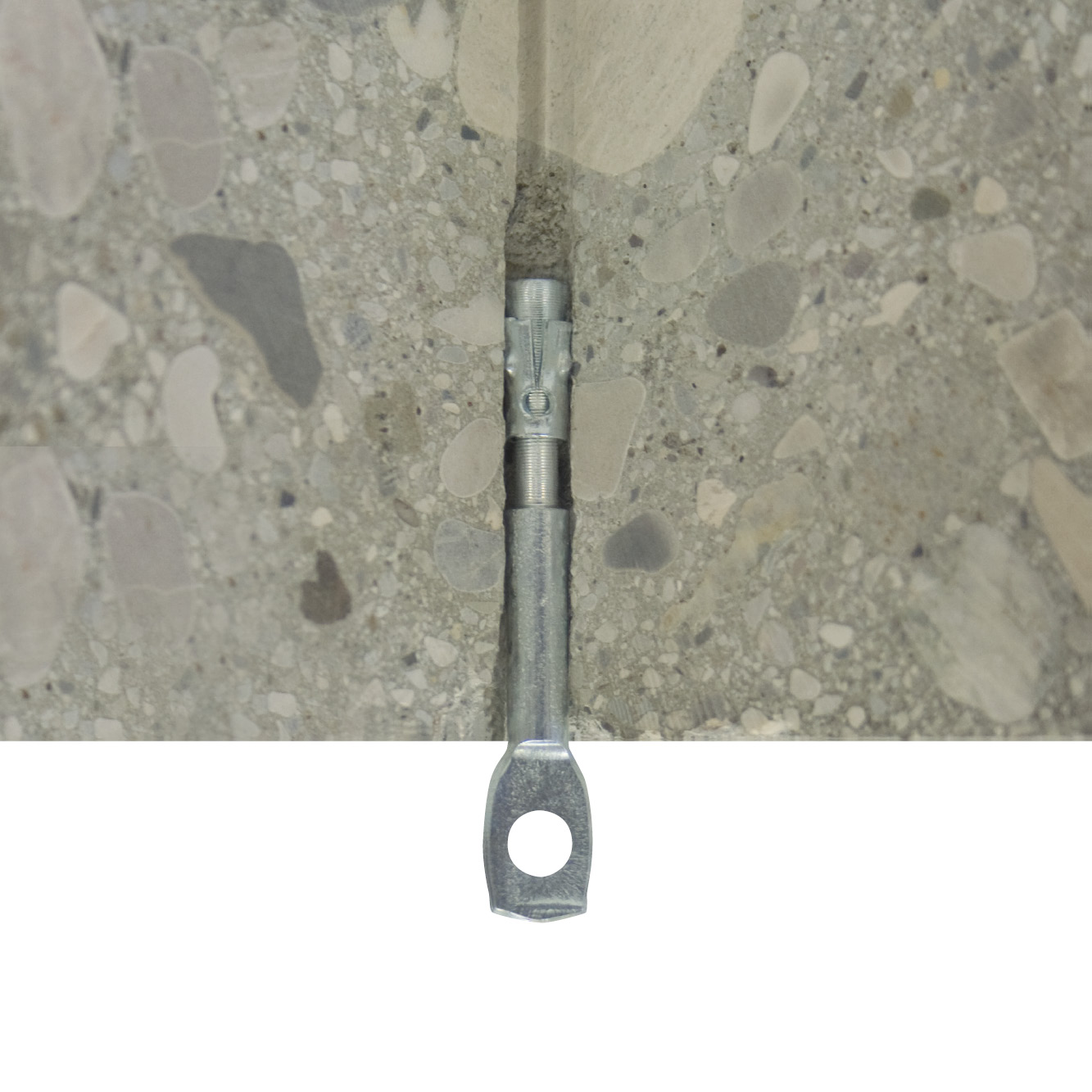

Application
Technical Data
Product Dimensions
Dimensions
| Reference | Metallic fixings dimensions | Installation data | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Other | Product Reference | Product Dimensions[mm] | Installation data | Spacing and edge distances | ||||||
| Hole diameter [dₒ] x depth [h₁] in substrate[mm] | Min. setting depth [hₑf][mm] | Qty per box[stk] | Qty per outer box | Weight[kg] | Internal eye[mm] | Min. hole depth [h₁][mm] | Nominal embedment depth [hₙₒₘ][mm] | Min. support thickness[mm] | ||
| TW6.0x60 | Ø6x60 | 35 | 100.0 | 1600 | 0.011 | TW | 6 | >=50 | 45 | 100 |

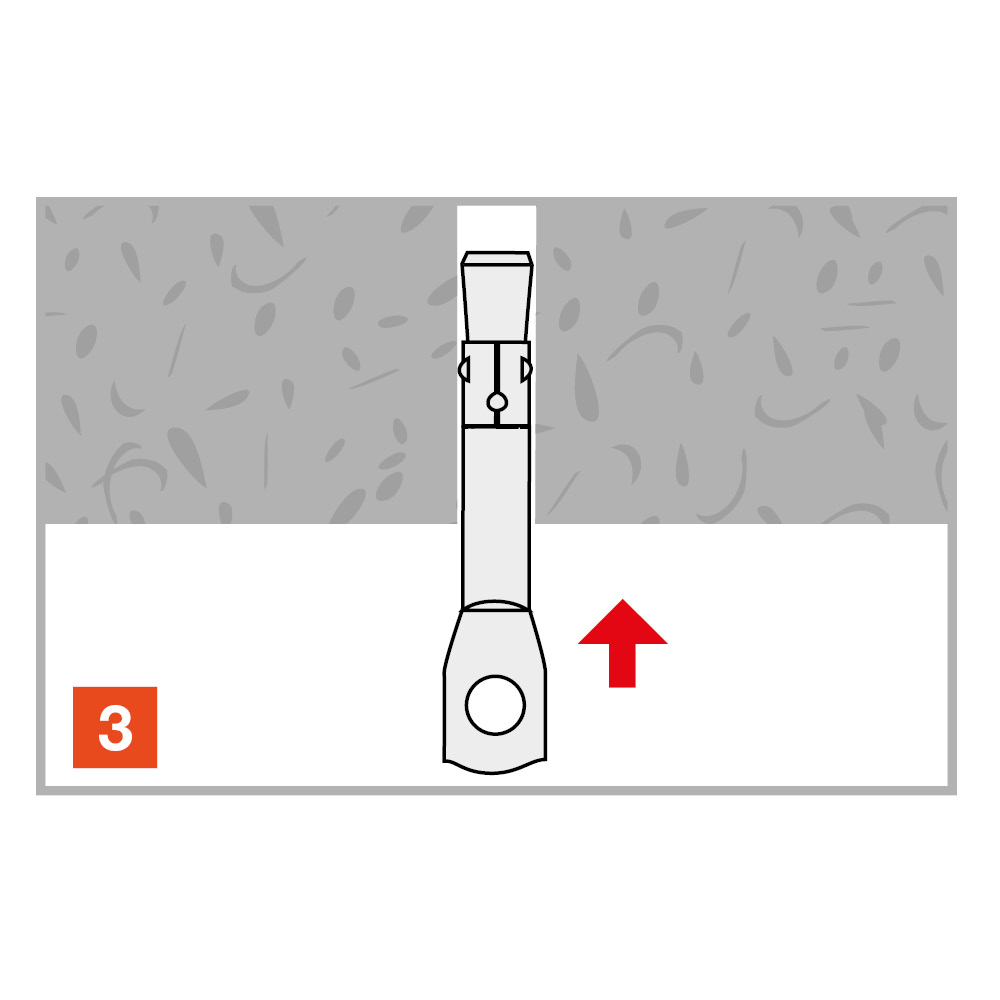

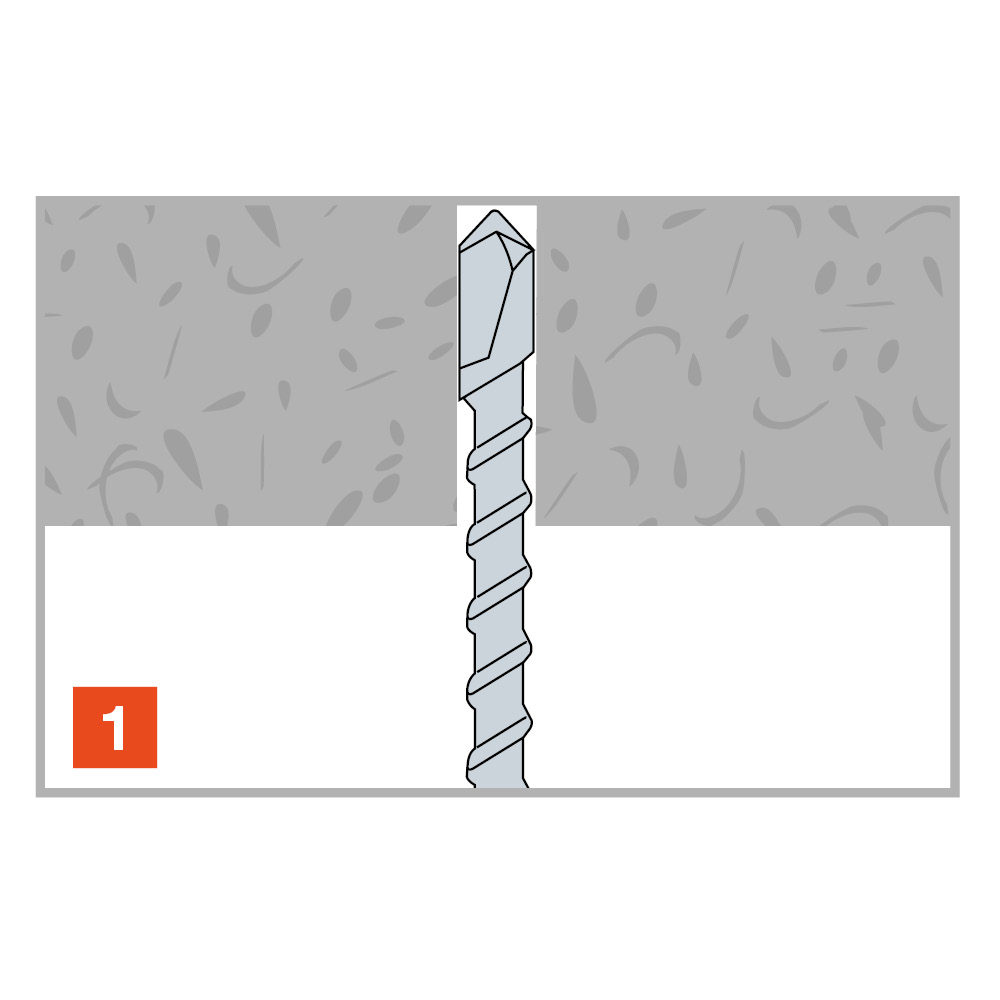

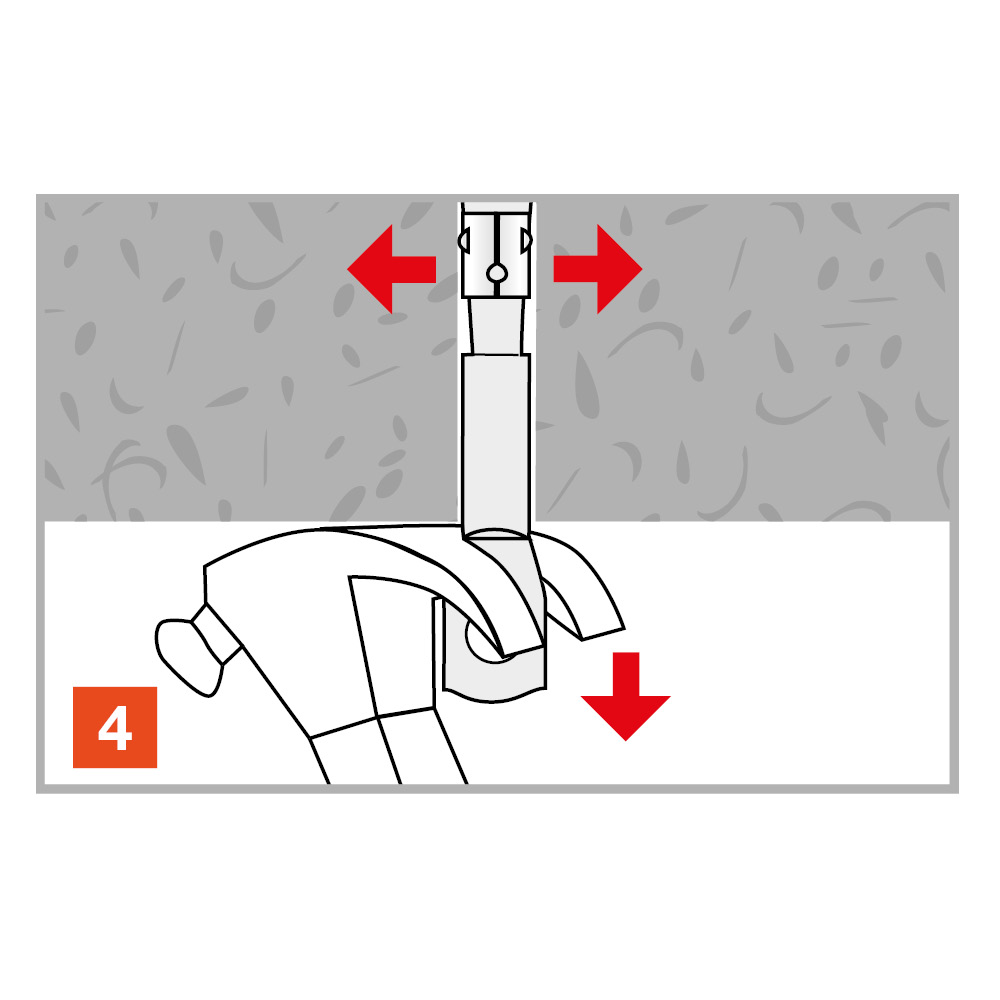

Installation
Installation
