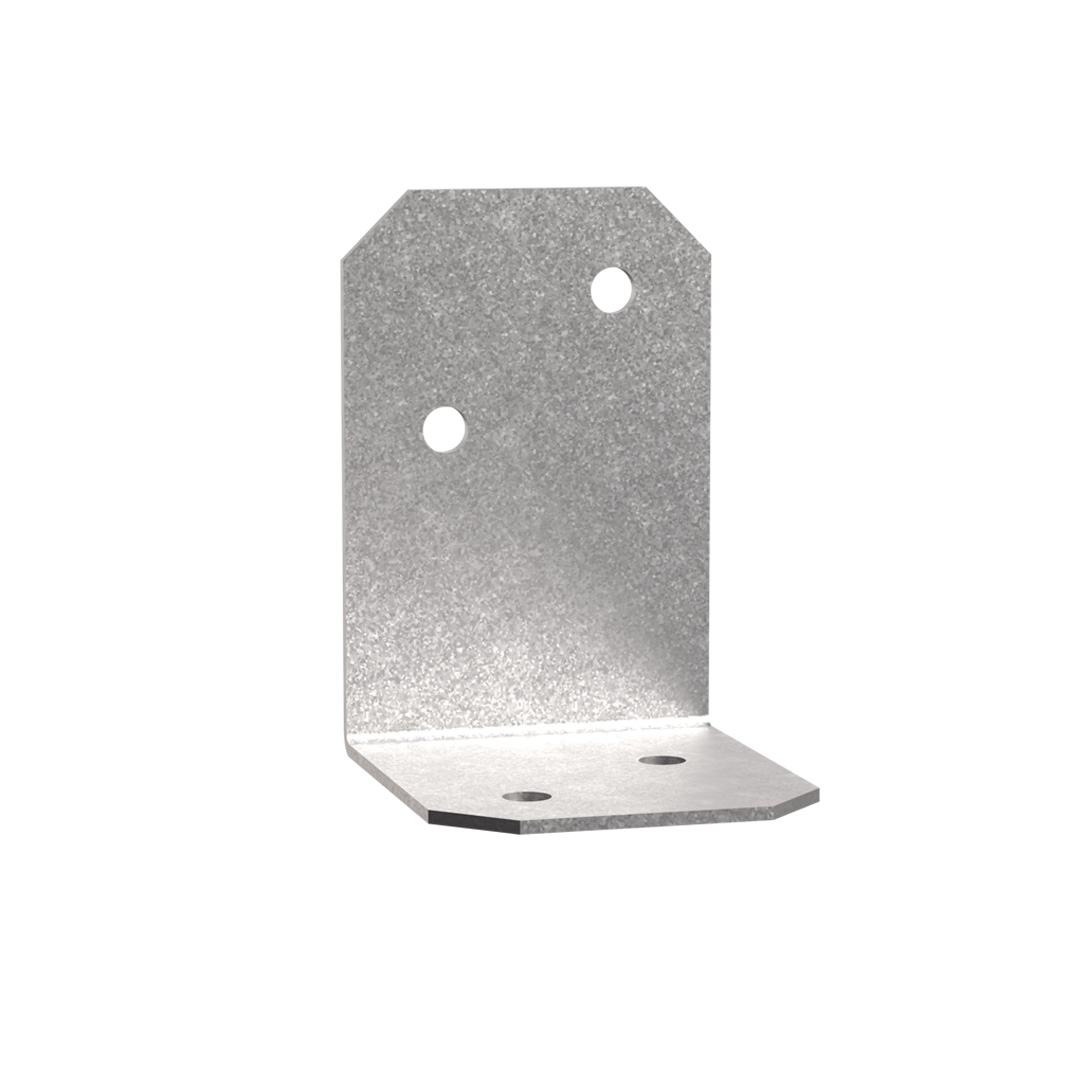

A

Angles

The ‘A’ angles versatility means it can be used in many applications requiring 90° fixing.

Product Details

Images

Features

Material

  • Pre-galvanised mild steel.

Technical Data

Dimensions

A Product Dimensions

References Dimensions and drill holes [mm] Holes
A B C Thickness Flange A Flange B
Ø4.3 Ø4.0 Ø11 Ø4.3 Ø4.0 Ø11
A21 50 38 35 1.2 2 - - 2 - -
A23 50 38 70 1.2 4 - - 4 - -
A33 75 75 38 2.5 - 4 - - 4 -
A88 200 200 50 2.5 - 4 3 - 4 3

Performance Values

References Number of Fasteners Safe Working Loads [kN]
onto Post onto Beam R5, SWL, Long Term R= R4, SWL, Long Term
M10 N3.75x30 N3.75x75 M10 N3.75x30 N3.75x75
A21 - 2 - - 2 - 0.6 0.5
A23 - 4 - - 4 - 1.2 1.2
A33 - - 4 - - 4 1.8 1.8
A88 3 - - 3 - - - -
