IUBS
Backer Free Metal Web Joist Hanger (with adjustable skew)
The IUBS solves the problem of skewed hangers for metal web to metal web
connections. It can be handed left or right on site, by the carpenter, removing
confusion when the floor is built opposite to the drawing.
The IUBS is fully adjustable from 5° to 67.5° degrees skew, reducing the need
for “special” skew hangers.
- Standard 45° skew, with site adjustable skew from 5° to 67.5° degrees.
- Non-handed hanger, can be left or right skewed - adjusted on site removing any handing confusion and reduce stocking.
- Use SDS25212 for enhanced download capacity.
- Can be used on metal web joist or solid joist headers.
- Optional nail holes for additional download.
CE Marking
Product Details
Images
Step 6: Locate the floor joist into the stirrup ensuring the joist is set tight to the back of the stirrup. The joist should be secured into the stirrup with all specified nails on the open face of the stirrup. (Note: For enhanced download capacity use SDS25212 screws.)
Features
Technical Data

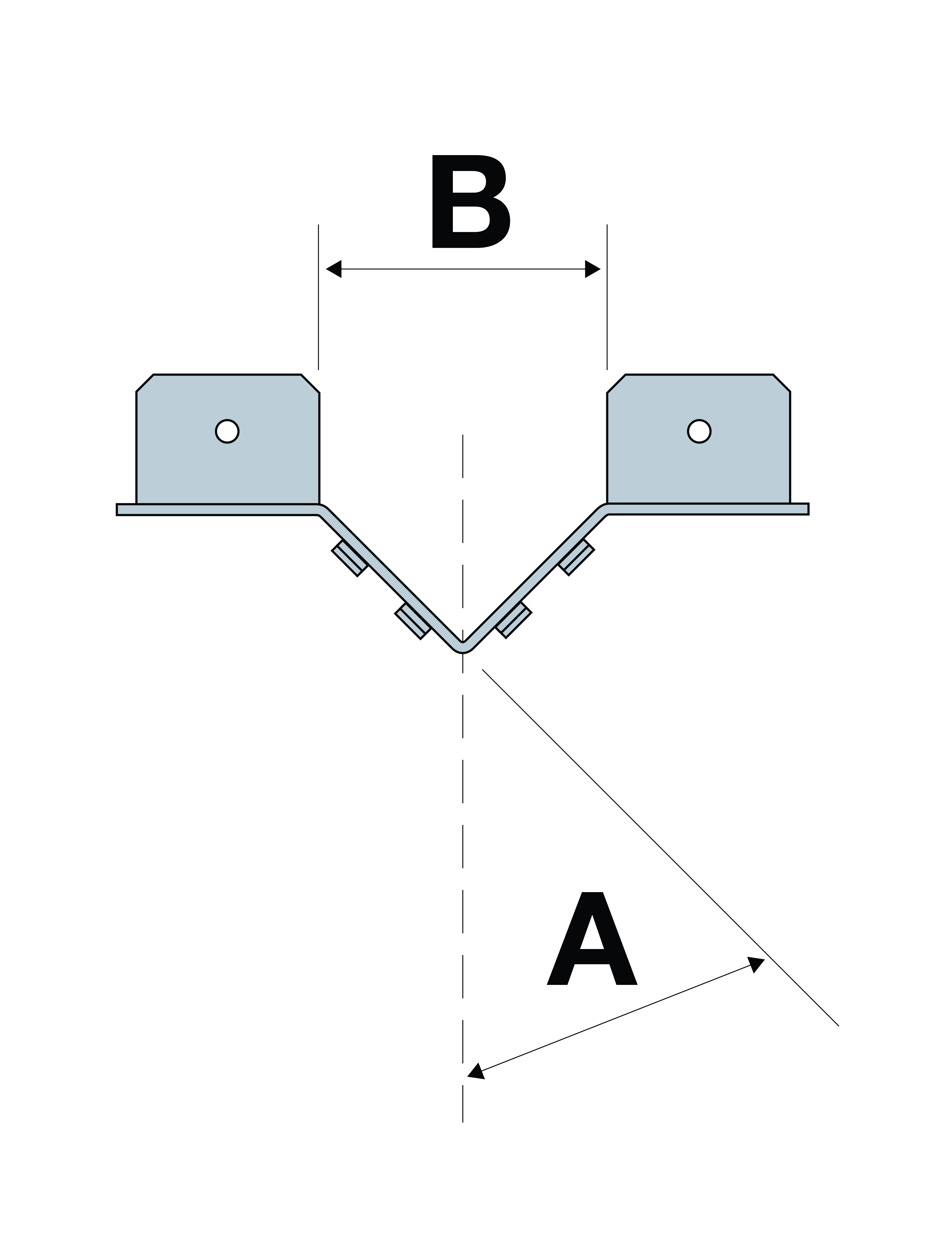

Dimensions
Product dimensions
| References | Joist dimensions | Product dimensions [mm] | Header holes | Joist holes | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Width | Height | A | B | C | D | F | t | Ø4 [mm] | Ø6.4 [mm] | Ø4 [mm] | |
| IUBS195/75 | 72 | 195 | 75 | 195 | 64 | 56 | - | 1.5 | 10 | 4 | 2 |
| IUBS200/75 | 72 | 200 | 75 | 200 | 64 | 56 | - | 1.5 | 10 | 4 | 2 |
| IUBS220/75 | 72 | 220 | 75 | 220 | 64 | 56 | - | 1.5 | 10 | 4 | 2 |
| IUBS225/75 | 72 | 225 | 75 | 225 | 64 | 56 | - | 1.5 | 10 | 4 | 2 |
| IUBS253/75 | 72 | 253 | 75 | 253 | 64 | 56 | - | 1.5 | 10 | 4 | 2 |
| IUBS304/75 | 72 | 304 | 75 | 304 | 64 | 56 | - | 1.5 | 10 | 4 | 2 |
| IUBS200/99 | 97 | 200 | 99 | 200 | 64 | 56 | - | 1.5 | 10 | 4 | 2 |
| IUBS220/99 | 97 | 220 | 99 | 220 | 64 | 56 | - | 1.5 | 10 | 4 | 2 |
| IUBS253/99 | 97 | 253 | 99 | 253 | 64 | 56 | - | 1.5 | 10 | 4 | 2 |
| IUBS304/99 | 97 | 304 | 99 | 304 | 64 | 56 | - | 1.5 | 10 | 4 | 2 |
Product Capacities - Timber to timber - Standard Installation
| References | Fasteners | Product characteristic capacities - Timber C24 [kN] | Safe Working Load [kN] | |||
|---|---|---|---|---|---|---|
| Header | Joist | R1,k | R2,k | R1,SWL,Medium Term | R2,SWL,Short term | |
| Qty | Qty | N3.75x30 | N3.75x30 | Metal Web header | Metal Web Joist | |
| N3.75x30 | N3.75x30 | |||||
| IUBS | 10 | 2 | 12.72 | 1.3 | 5.3 | 0.7 |
Product Capacities - Timber to timber - Enhanced Installation
| References | Fasteners | Product characteristic capacities - Timber C24 [kN] | Safe Working Load [kN] | |||||
|---|---|---|---|---|---|---|---|---|
| Header | Joist | R1.k | R2.k | R1,SWL,Long term | R2,SWL,Short term | |||
| Qty | Type | Qty | Type | Metal Web header | Metal Web Joist | |||
SDS25212 | N3.75x30 | |||||||
| IUBS | 4 | SSH6.0x60 | 2 | 3.75x30 | 17.18 | 1.3 | 7.2 | 0.7 |
N3.75x30 refers to a Square Twist Nail
Installation
Installation

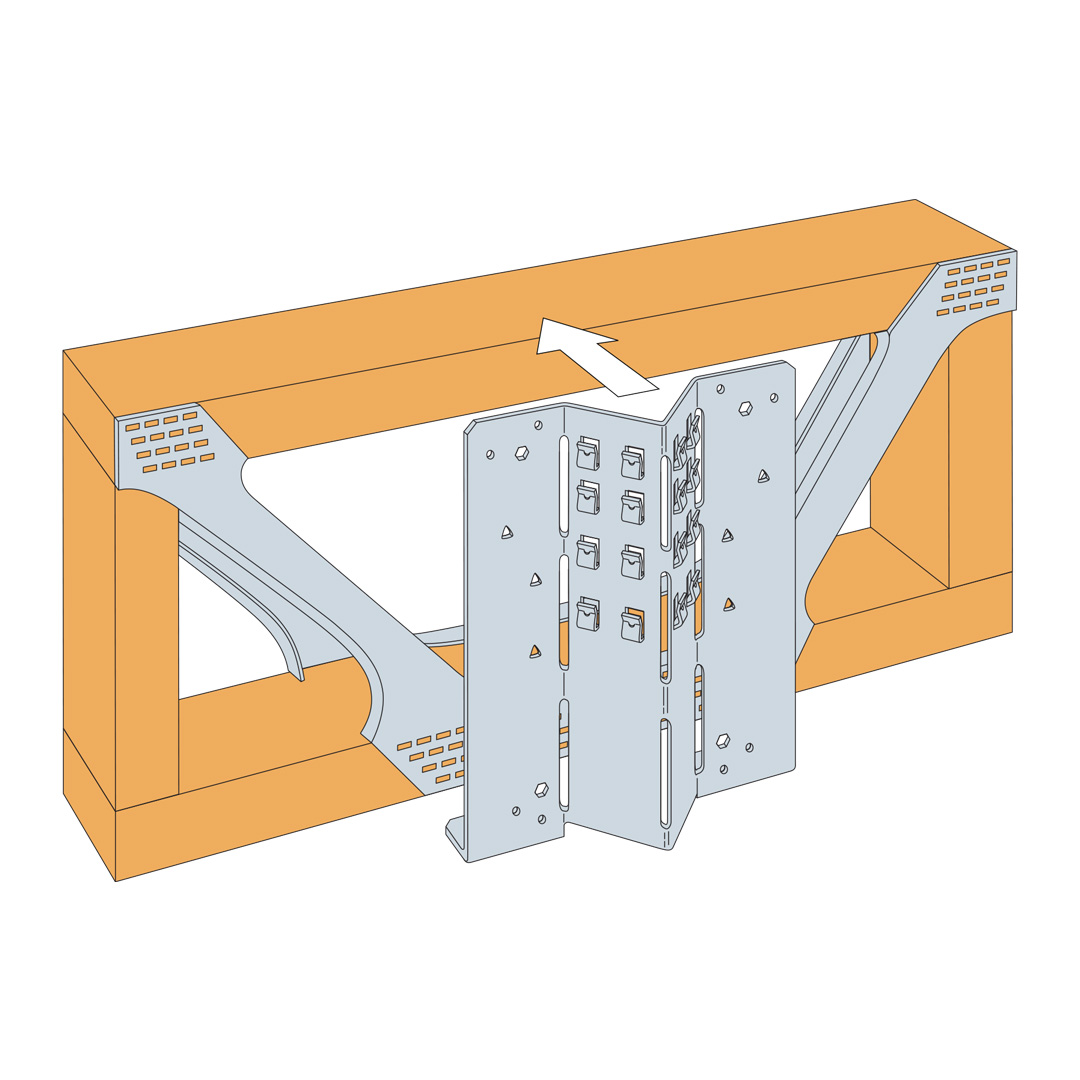

Step 1: Position the back plate onto the header in the required position.
Step 2: Secure the back plate (inside angle) with the specified nails.
Step 4: Secure the obtuse side of the back plate onto the header with all the specified nails, ensuring the face of the back plate is tight against the header.
Step 5: Offer the stirrup to the back plate ensuring it is located on the correct side (which can be either left or right hand side). Once all of the hooks (on the back plate) are clearly through the apertures (on stirrup) slide in a downward direction ensuring all hooks engage onto the stirrup and click into position.
Step 6: Locate the floor joist into the stirrup ensuring the joist is set tight to the back of the stirrup. The joist should be secured into the stirrup with all specified nails on the open face of the stirrup. (Note: For enhanced download capacity use SDS25212 screws.)
