Bracket Screw

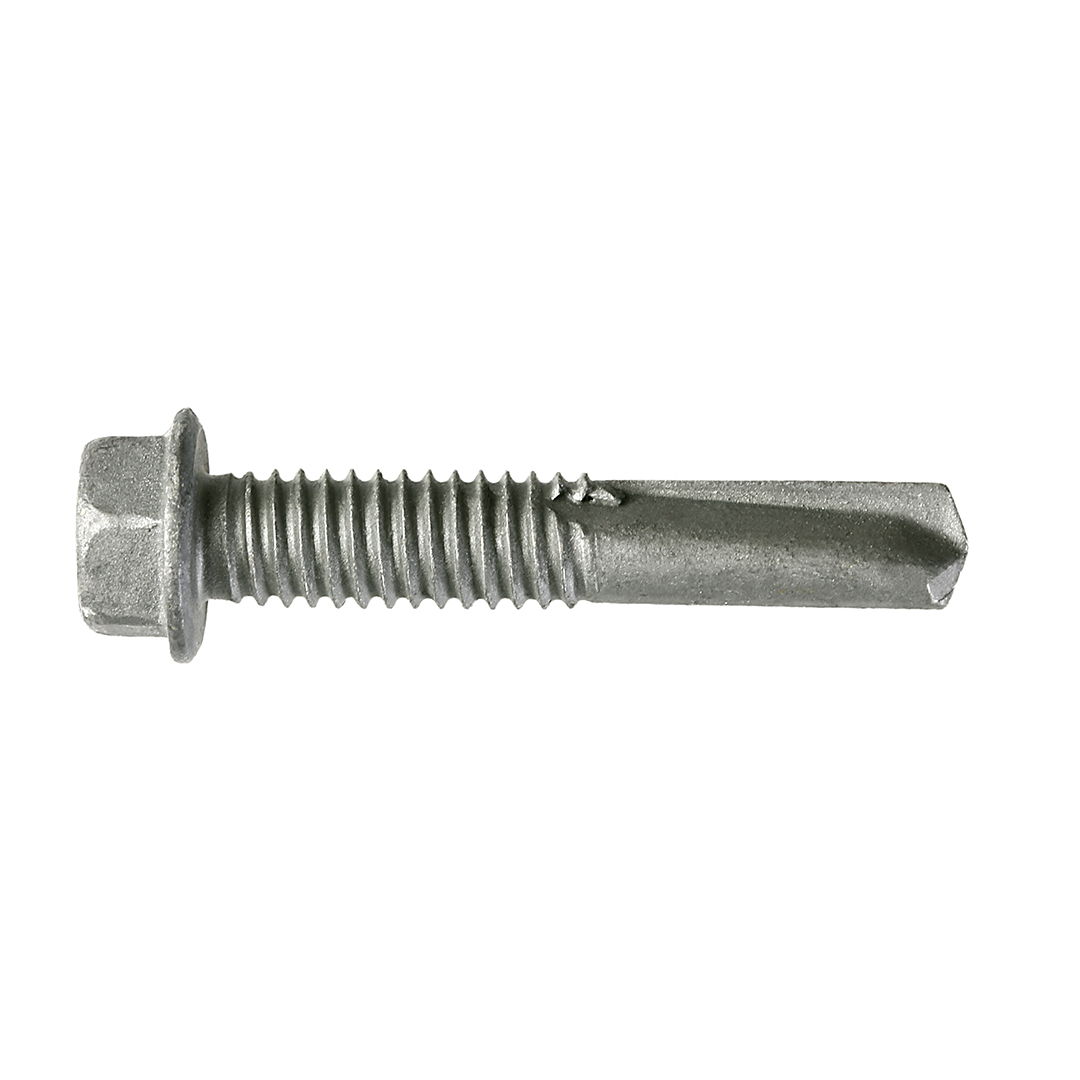

The XLQ is a self-drilling screw with a #5 drill point and hex washer head. It has an integral large washer, 15.9mm. Commonly used for connecting movement brackets, including the IDCB/ SCHA and LGSSC to hot rolled steel sections.

Driver bit not included.

Technical Data Sheet

Service class 2

Indoor

Product Details

Features

Material

Steel - Quik Guard coating

Features

5.8mm x 32mm
5/16" hex washer head
15.9mm integral washer
#5 drill point
Suitable for hot rolled steel sections up to 12.5mm

Application

Common Applications

Fixing to hot rolled steel section
Ideal for use with IDCB, SCHA and LGSSC connectors when fixing to hot rolled steel section

Technical Data

Product Dimensions

References	Fastener dimensions [mm]				TPI	Suitable Material Thickness [mm]	Drill Point	Box Quantity
References	Head	d_w	d	l	TPI	Suitable Material Thickness [mm]	Drill Point	Box Quantity
XLQ114B1224/1	5/16" Hex	15.5	5.8	32	24	3.5 - 12.5	#5	1
XLQ114B1224-250	5/16" Hex	15.5	5.8	32	24	3.5 - 12.5	#5	250

Shear Performance Values

References	Shear Performance Values / Member Thickness [mm] [mm]
	Safe Working Load [kN]		Characteristic Load [kN]
	1.2	1.6	1.2	1.6
XLQ114B1224	4.5	5	7.2	8.1

Pull-out Performance Values

References	Pull-out Performance Values / Member Thickness [mm]
	Safe Working Load [kN]				Characteristic Load [kN]
	3.2	4.8	6.4	9.5	3.2	4.8	6.4	9.5
XLQ114B1224	1.7	2.6	3.4	5.1	2.6	3.8	5.1	7.7
