BTS

Brick to Timber Tie

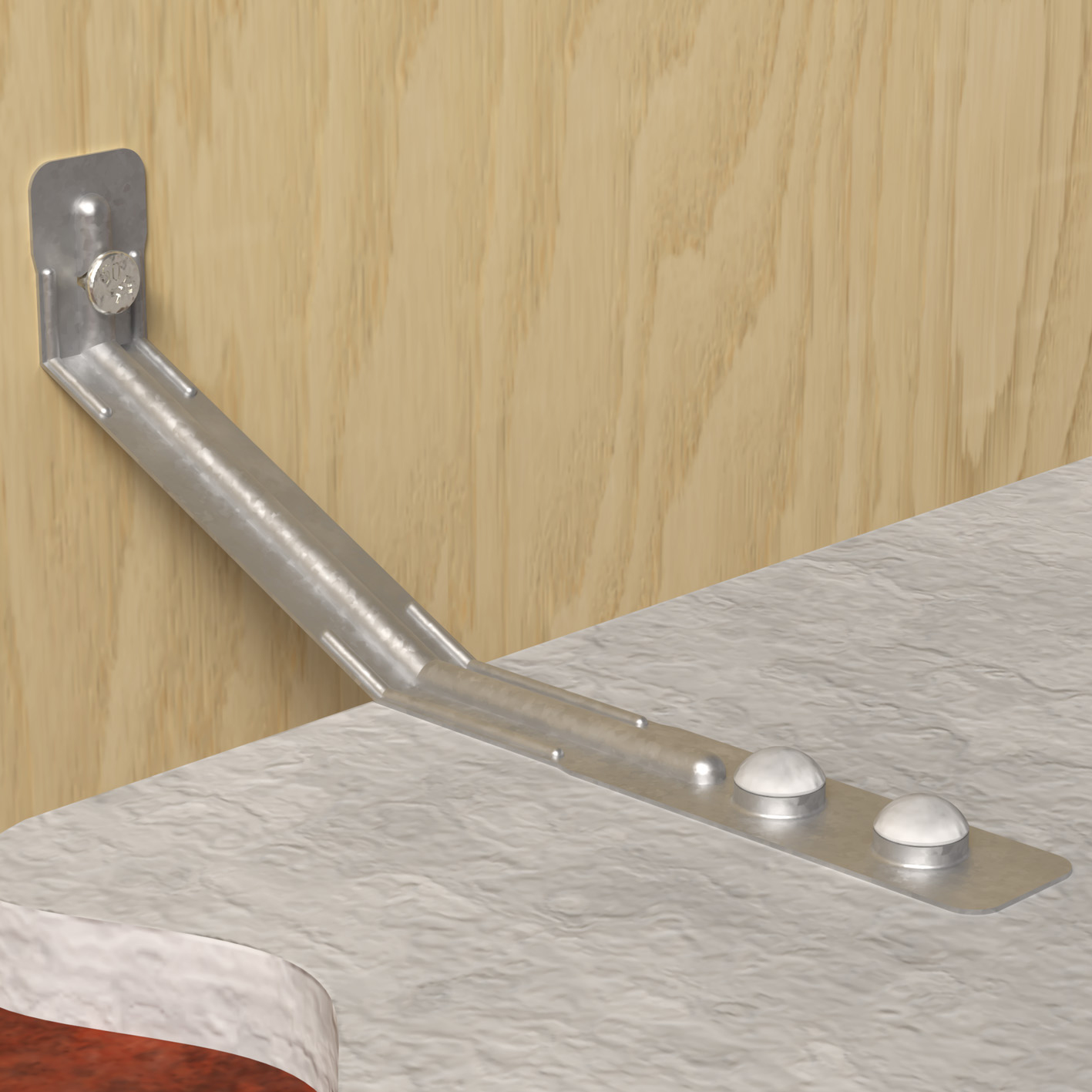

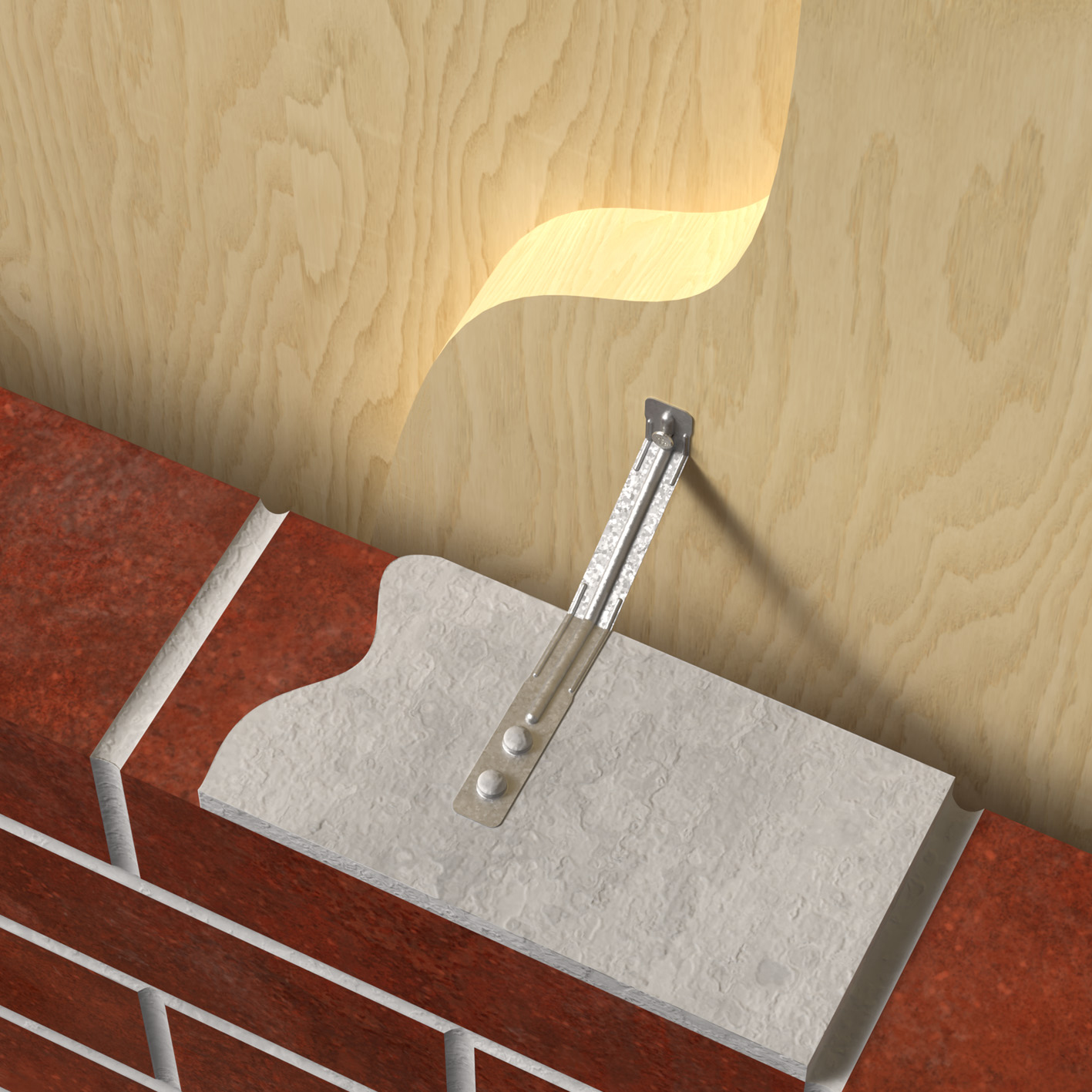

The BTS wall ties are used to restrain external brickwork back to timber frame building structures.
The BTS offers an outstanding combination of performance and cost in a wall tie for use with timber frame.

Allows up to 24mm of differential movement.

Technical Data Sheet

CE Marking

EPD

Product Details

Images

Features

Material

Austenitic stainless steel

Technical Data

BTS Product Dimensions

Reference	Connector Dimensions					Straps capacity
	Other			Header dimensions	Dimensions[mm]	Declared Compressive Load Capacity[N]	Declared Tensile Load Capacity[N]
	Application	Type Classification	Weight[kg]	Cavity Width[mm]	B[mm]	Declared Compressive Load Capacity[N]	Declared Tensile Load Capacity[N]
BTS50N	Timber Frame Cavity Wall Tie	Type 6	0.011	50	124	440.0	630.0
BTS75N	Timber Frame Cavity Wall Tie	Type 6	0.021	75	149	440.0	630.0
BTS100N	Timber Frame Cavity Wall Tie	Type 6	0.024	100	174	440.0	630.0

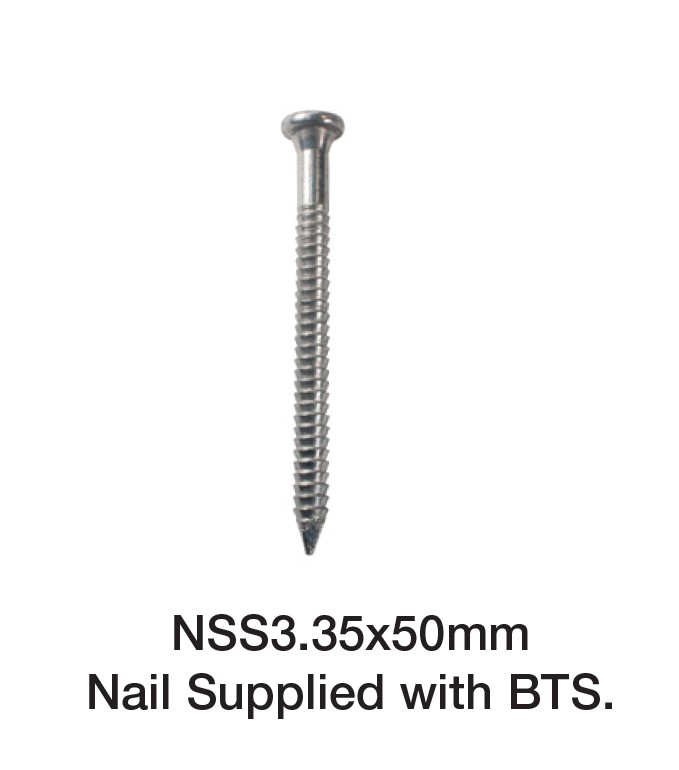

BTS Installed with 3.35x50mm Stainless steel annular ring shank nail (supplied with tie)

Performance is based upon nailing through 9mm OSB sheathing into C16 studwork
