SSB

Bypass Framing Movement Clip Strut Connector

The SSB framing movement clip is a versatile strut connector commonly used at the bottom of a steel beam to accommodate large over sail structures

Product Details

Images

Features

Benefits

  • Provides a full 25mm of both upward and downward movement.
  • Manufactured from 1.4mm pre-galvanised steel.
  • Supplied with Ø6 shouldered screws (XSH34B1414-83).

Application

Suitable For

  • Light Gauge Steel Construction

Technical Data

Dimensions

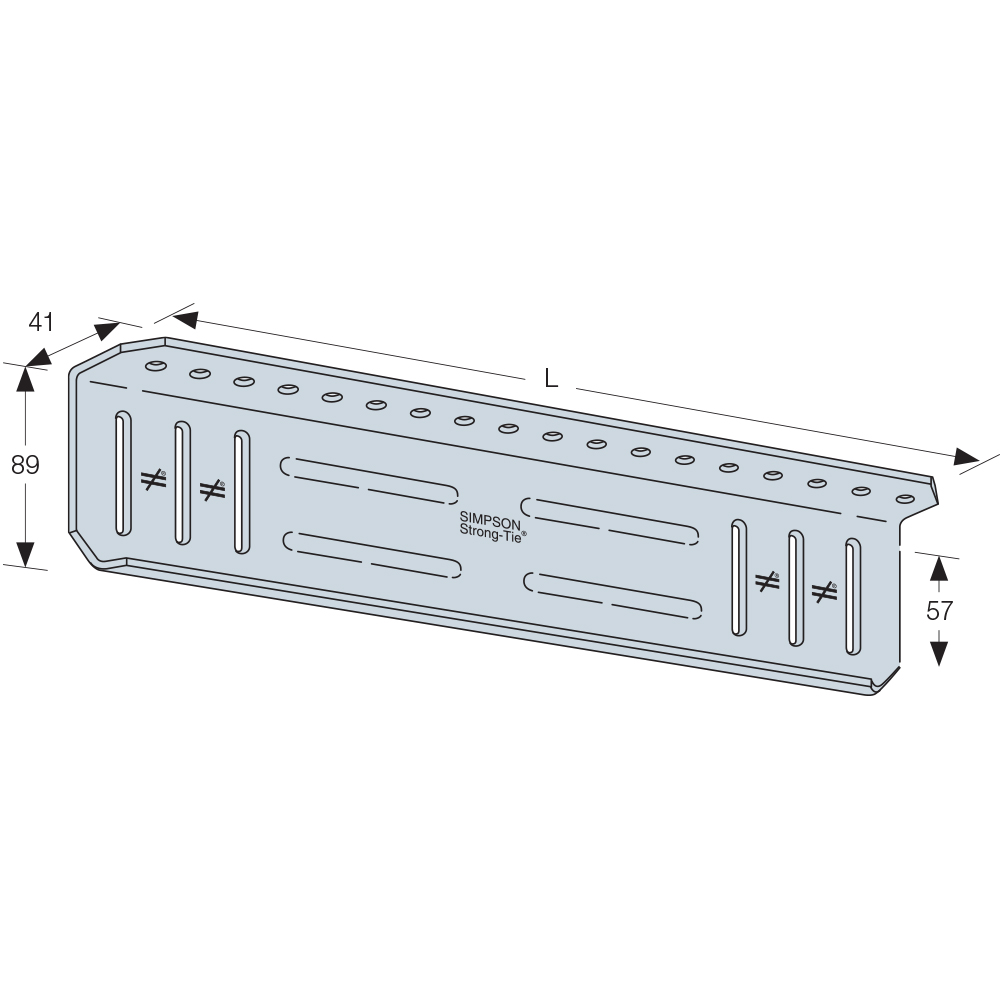

Product Dimensions

References Dimensions and drill holes [mm] Holes
A B C Thickness [mm] Flange A Flange B
Ø5.5 Ø6.4x57 Slot
SSB3.518-KT41457891.6--

Performance Values - SSB to Stud

References 2x Fasteners (XLSH34B1414-83) 3x Fasteners (XLSH34B1414-83)
Fasteners qty Characteristic Capacities [kN] Safe Working Load [kN] Fasteners qty Characteristic Capacities [kN] Safe Working Load [kN]
0.9 mm Stud 1.2 mm Stud 1.4 mm Stud 1.6 mm Stud 1.2 mm Stud 1.6 mm Stud 0.9 mm Stud 1.2 mm Stud 1.4 mm Stud 1.6 mm Stud 1.2 mm Stud 1.6 mm Stud
R2,k R3,k R2,k R3,k R2,k R3,k R2,k R3,k R2,SWL R3,SWL R2,SWL R3,SWL R2,k R3,k R2,k R3,k R2,k R3,k R2,k R3,k R2,SWL R3,SWL R2,SWL R3,SWL
SSB3.518-KT2 - ø63.73.74.94.97.66.8------3 - ø65.85.87.77.79.58.7------

1. When the SSB connector is used with twp shoulder screws, the screws may be installed in any two slots

2. The capacity of the connection will be the minimum of the performance values for SSB to stud, or SSB to steel

3. The maximum stand-off for SSB with (2) screws and (3) screws is 310mm and 280mm respectively
