CLNA4

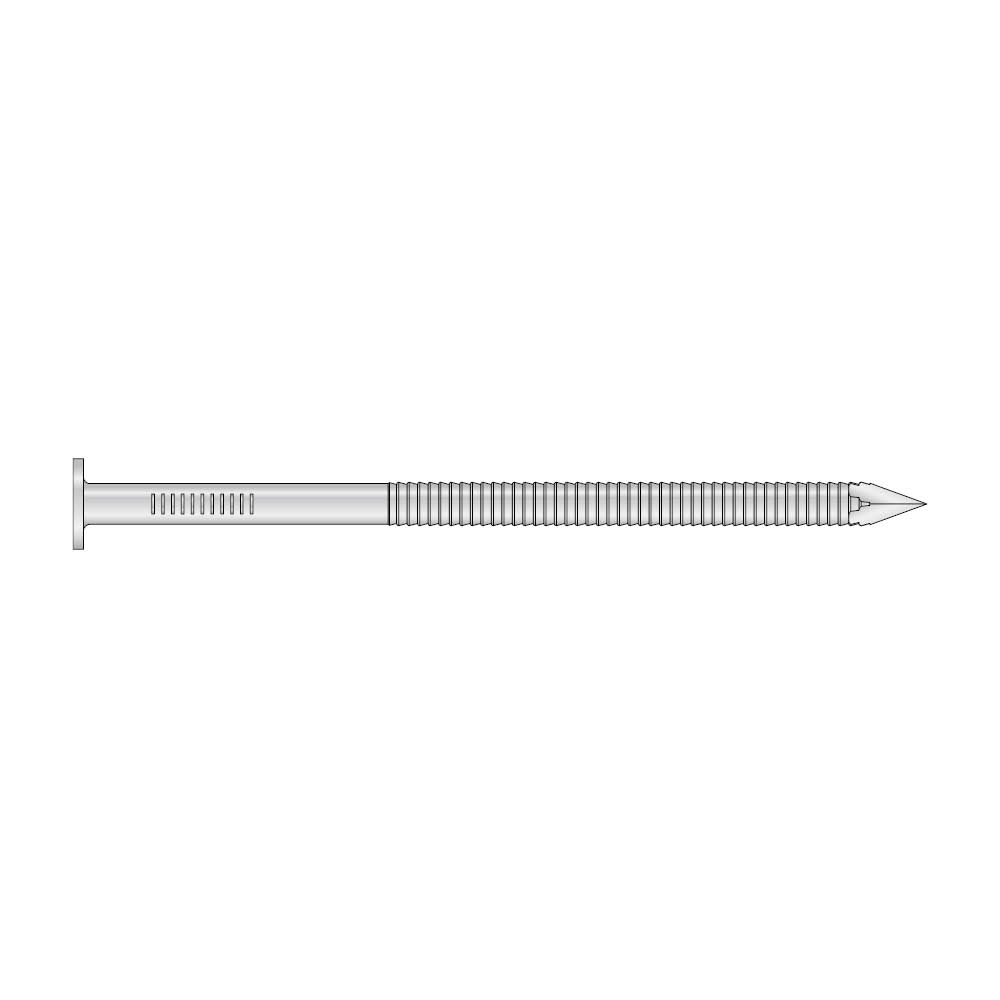

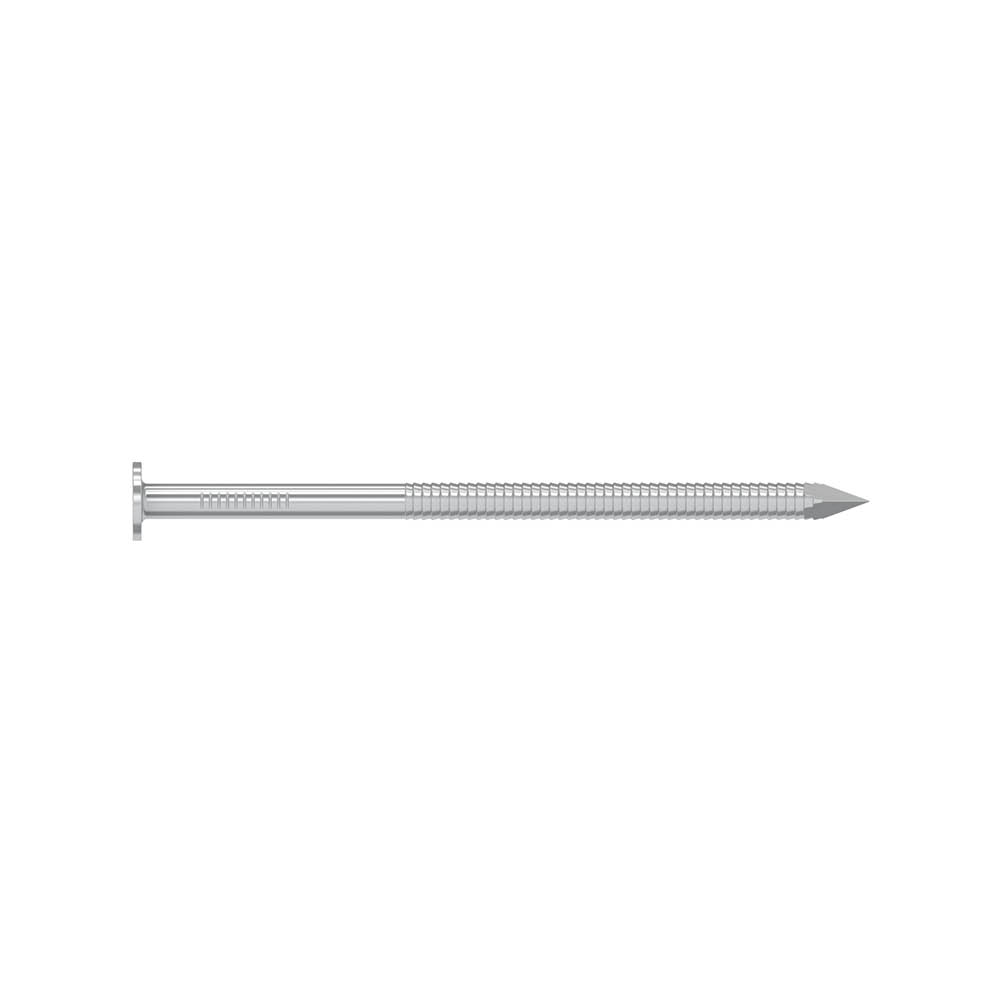

Cladding Nail - Stainless Steel A4
The cladding nail in stainless steel can be used in severe environments,
mainly used for unpainted facades or noble wood materials such as thermowood and cedar.
The length of the nail is developed to not penetrate the wind shield/protection behind the facade and the flat head covers the opened wood fibre after insertion. The ring shank increase the withdrawal performance and the 60 degree diamond point prevents splitting.

CE Marking

Service class 3
EPD

Stainless steel A4

Severe

Fastener Designer
Technical Data
Product dimensions
| Reference | Fasteners Dimensions | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item Code | Other | Product Dimensions[mm] | |||||||||||||
| Tun / DB nr. | NOB nr. | Box Quantity | Weight[kg] | d[mm] | l[mm] | dh[mm] | d1[mm] | Aₕ[mm] | ht[mm] | lg[mm] | lp[mm] | tfix[mm] | bit[mm] | ||
| CLNA42.8x48 | 75650 | 2056004 | 55841974 | 500.0 | 0.002 | 2.8 | 47 | 6.9 | - | 36.6 | 0.6 | 26 | 2.5 | 24.6 | - |
| CLNA42.8x65 | 75651 | 2056005 | 55841985 | 250.0 | 0.003 | 2.8 | 63.5 | 6.2 | - | 30.2 | 0.6 | 50 | 2.5 | 41.1 | - |
Product characteristic properties
| Reference | Nail characteristic parameters | |||||
|---|---|---|---|---|---|---|
| Characteristic parameters | ||||||
| Characteristic Yield Moment My,k[Nm] | Characteristic Withdrawal Parameter fax,k,90°[N/mm²] | Characteristic Head Pull-Through Parameter fhead,k[N/mm²] | Characteristic tensile capacity - fₜₑₙₛ,ₖ[kN] | Characteristic torsional strength - ftor,k[Nm] | Torsional ratio | |
| CLNA42.8x48 | 3.2 | 8.9 | 29.4 | 3.4 | - | - |
| CLNA42.8x65 | 3.2 | 8.9 | 29.4 | 3.4 | - | - |
Certification
Environmental Product Declarations (EPD)
CAD and BIM Library
2D
CLNA42.8x48
-
-
-
-
CLNA42.8x65
-
-
-
-
3D
CLNA42.8x48
-
-
-
-
-
