CLR6
Concrete Screw for Medium-Light Fixings

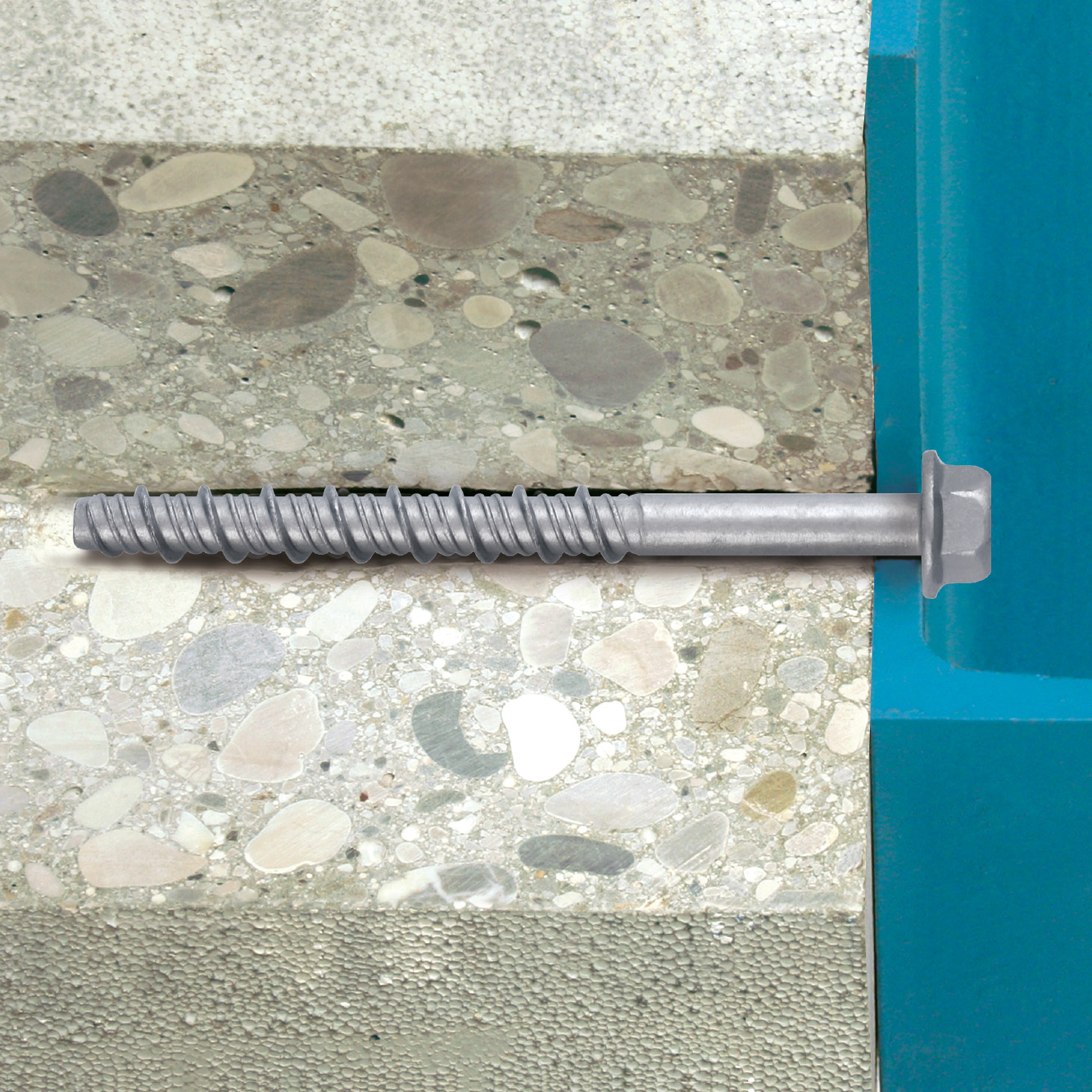

The CLR6-H is a hex head concrete screw made of carbon steel. The anchor is made in size Ø7.5, and is screwed into a predrilled cylindrical drill hole. The special thread of the anchor cuts an internal thread into the member while setting. The anchorage is interlock in the special thread.
CE Marking
ETA
Fire resistance R 120
Fix Calc
Product Details
Images
Features
Application
Technical Data
Product Dimension - CLR6 - H
Dimensions
| Reference | Metallic fixings dimensions | Metallic fixings Installation data | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Dimensions[mm] | Title | Other | Installation data | Spacing and edge distances | |||||||
| Dim[mm] | Washer[mm] | Wrench size - SW[mm] | Hole diameter [dₒ][mm] | Fixture thickness [tfᵢₓ] (¹)[mm] | Qty per box[pcs] | Qty per outer box | Nominal embedment depth [hₙₒₘ][mm] | Min. hole depth [h₁>][mm] | Min. support thickness [hₘᵢₙ][mm] | ||
| 72009B0804500 | 7,5x45* | 14 | 10 | CLR6 - H | 6 | 15 | 100.0 | 1200 | 30 | 40 | 100 |
| 72009B0806000 | 7,5x60 | 14 | 10 | CLR6 - H | 6 | 5 | 100.0 | 1200 | 55 | 65 | 100 |
| 72009B0808000 | 7,5x80 | 14 | 10 | CLR6 - H | 6 | 25 | 100.0 | 1200 | 55 | 65 | 100 |
| 72009B0810000 | 7,5x100 | 14 | 10 | CLR6 - H | 6 | 45 | 50.0 | 600 | 55 | 65 | 100 |
* Not covered by CE certification
