CLR

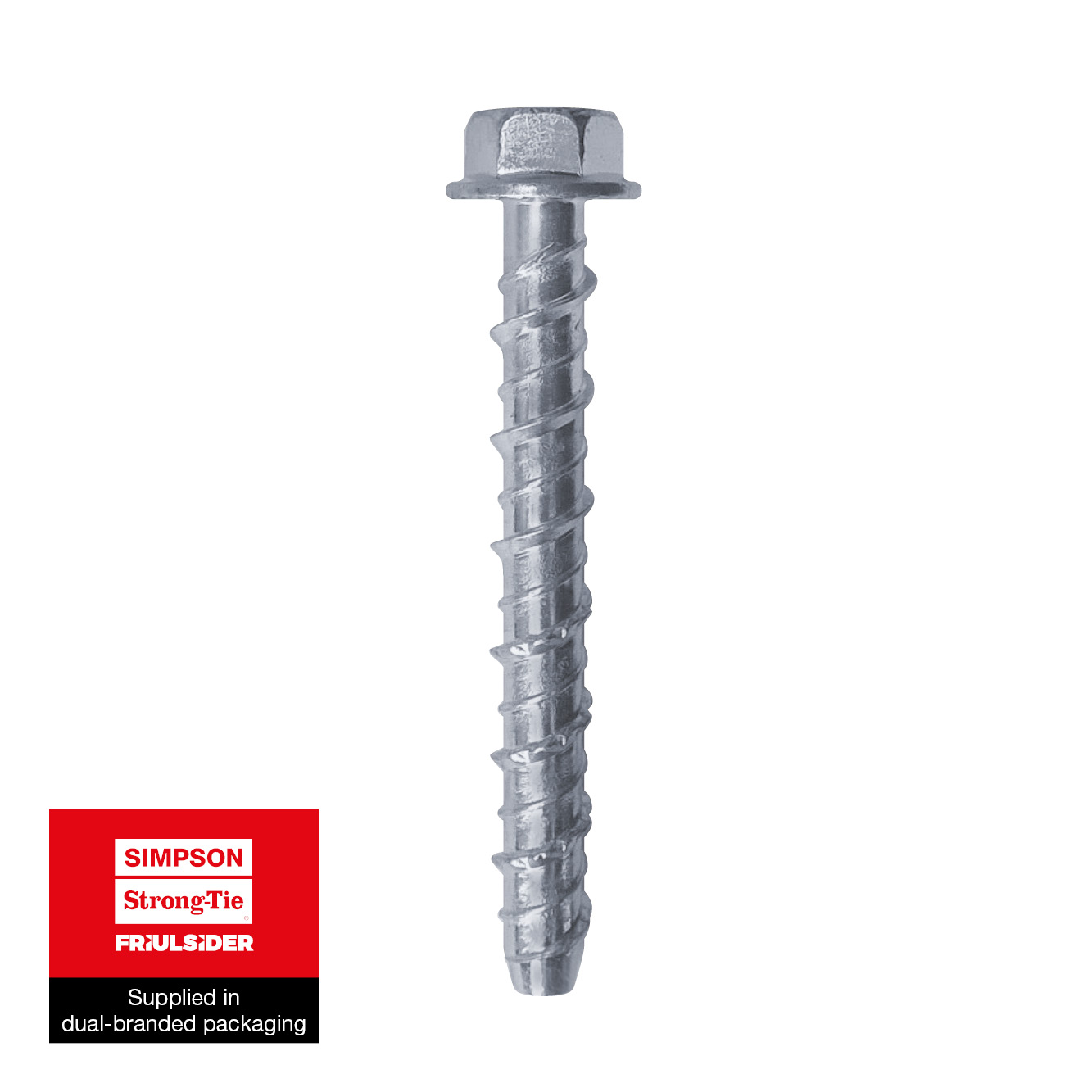

Concrete screw for structural fixings

The ideal anchor for reduced spacing and edge distances, as it does not generate tension in the base material: the special cutting thread enables quick installation, the built-in washer with knurling provides a complete and effective blocking, and the three certified installation depths increase the versatility of use. The A4 bimetal stainless steel version is designed for use in aggressive environments, while the CLR6 is available in four variants to meet all the requirements of installation systems and light carpentry.

CE Marking
CE Marking
ETA
ETA
Fire resistance R 120
Fire resistance R 120
Fix Calc
Fix Calc

Product Details

Technical Data

Other

Product Dimension

ReferenceMetallic fixings dimensions
Product Dimensions[mm]OtherTitle
Dim[mm]Wrench size - SW[mm]Hole diameter [dₒ][mm]Fixing thickness (tfix) for extra reduced embedment depthFixing thickness (tfix) for reduced embedment depth (hef,r)Fixture thickness [tfᵢₓ] (¹)[mm]Qty per box[pcs]Qty per outer boxWeight[kg]
72005B100600010x601381510-100.06000.033CLR
72005B100750010x75138302510100.05000.039CLR
72005B101000010x100138555035100.04000.05CLR
72005B101300010x13013885806550.03000.064CLR
72005B101500010x1501381051008550.03000.066CLR
72005B120600012x60151010--50.03000.053CLR
72005B120750012x7515102515-50.03000.063CLR
72005B121000012x100151050402550.02000.08CLR
72005B121300012x130151080705525.01500.1CLR
72005B121500012x1501510100907525.01500.12CLR
72005B140750014x7516122515-50.02000.082CLR
72005B141000014x10016125040550.01500.1CLR
72005B141300014x130161280703520.01200.13CLR
72005B160800016x8018142010-20.01600.13CLR
72005B161000016x10018144030-25.01500.15CLR
72005B161300016x1301814▲70601520.01200.2CLR
72005B161500016x1501814▲90803510.0600.23CLR

▲ Quantity and delivery terms to be agreed
