CSA-T

Connector Screw

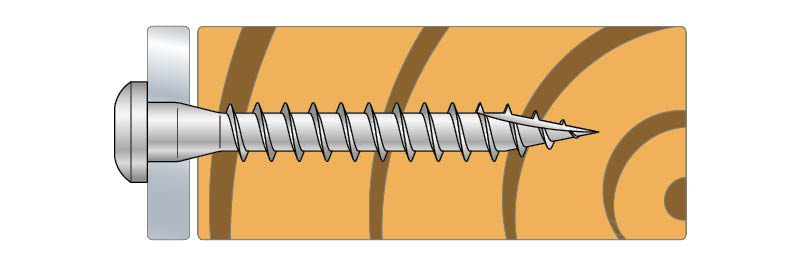

The CSA-T screw is CE marked and designed to faciliate the installation of angle brackets and connectors. It has a flat pan head and conical shape underneath to ensure full contact with the connector which enhances force transmission. The Type 17 point eliminates the need for pre drilling and reduces the risk of splitting the timber.

CE Marking
ETA
Service class 2
Electro-galvanized steel
Indoor

Product Details

Images

Features

Material

  • Carbon steel - Electro galvanised clear zinc coating

Benefits

  • CE marked
  • Flat pan head
  • Conical shape under head to ensure full contact with connector
  • Type 17 point
  • Torx 20 drive (BITLTX20E)

Application

Support

  • Fastening connectors to timber

Common Applications

  • Fixing joist hangers to timber
  • Fixing angle brackets to timber
  • Fixing connectors to timber

Technical Data

Dimensions

Product Dimensions UK

References Fastener Dimensions [mm] Qty per Strip Qty per Box Recommended RPM Quik Drive Attachment
dh d l lg
CSA5.0X35T8.34.8535292515002500QDBPC50E
CSA5.0X40T8.34.8540342515002500QDBPC50E
CSA5.0X50T8.34.8550442510002500QDBPC50E

Performance Values UK

References Characteristic capacities - Timber C24 acc to ETA-04/0013 [kN]

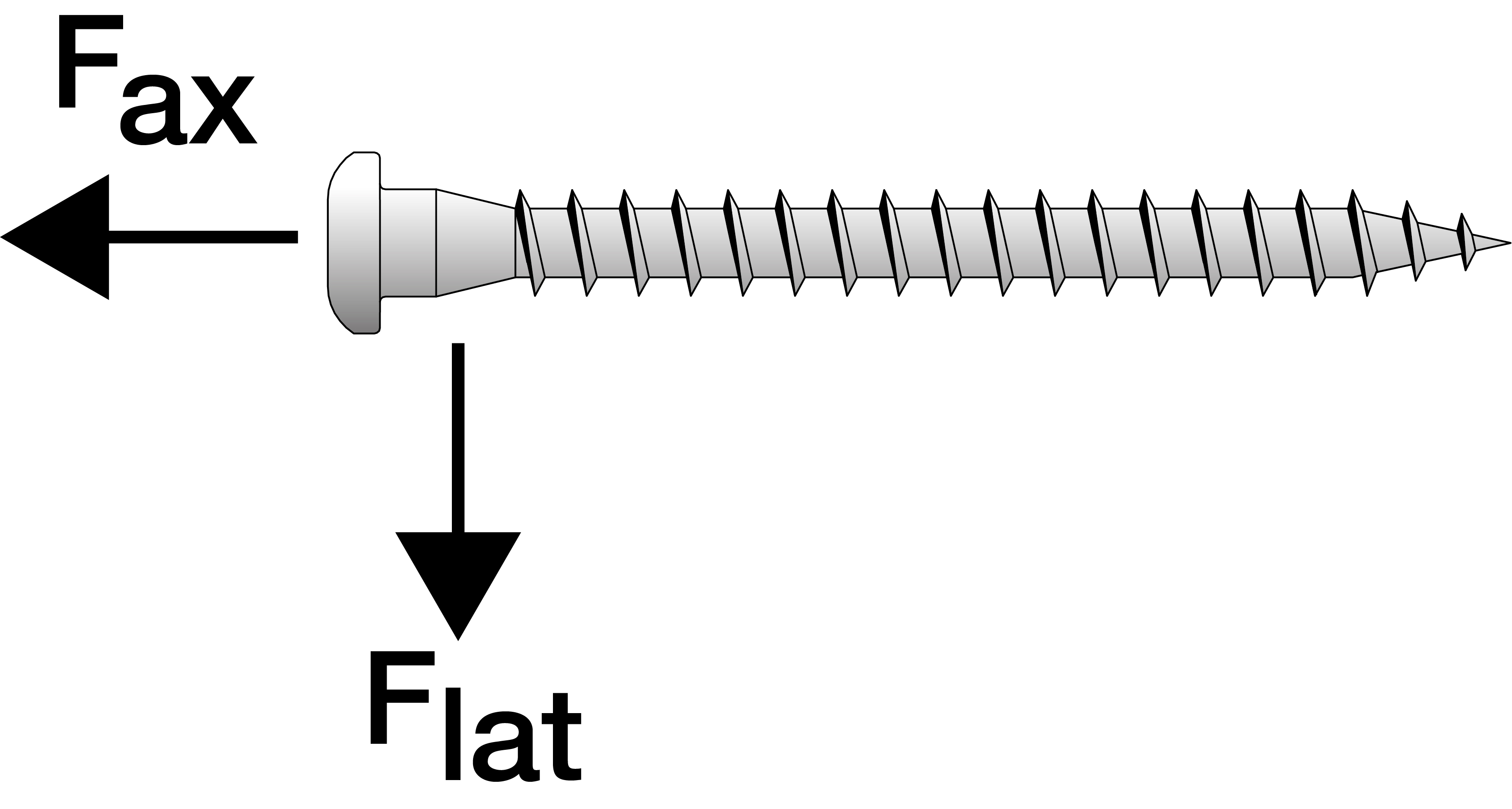

Rlat.k Rax.k
CSA5.0X35T1.992.11
CSA5.0X40T2.252.47
CSA5.0X50T2.633.2

Capacities are given for 2mm steel plate thickness and C24 timber. To determine the capacities for other steel thickness and/or timber grades, please refer to ETA-04/0013

Certification

Declaration of Performance (DoP)

European Technical Assessment (ETA)
