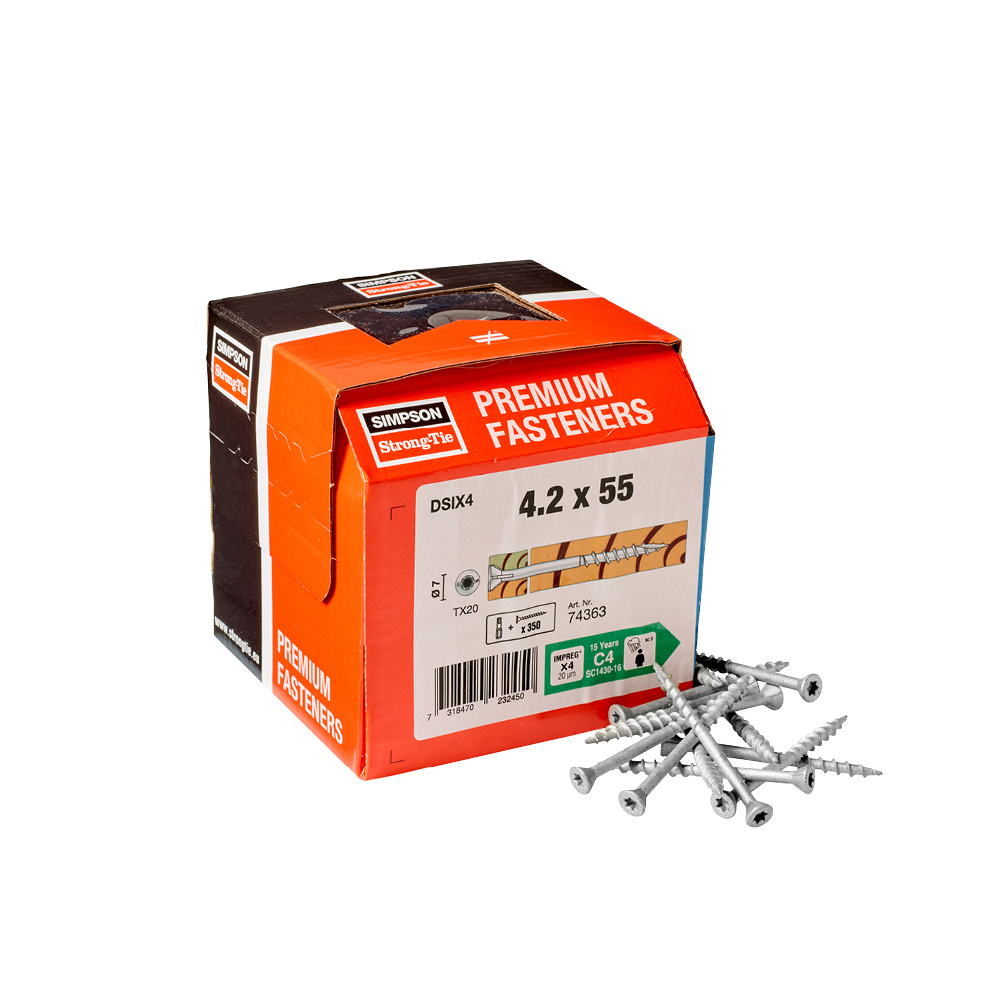

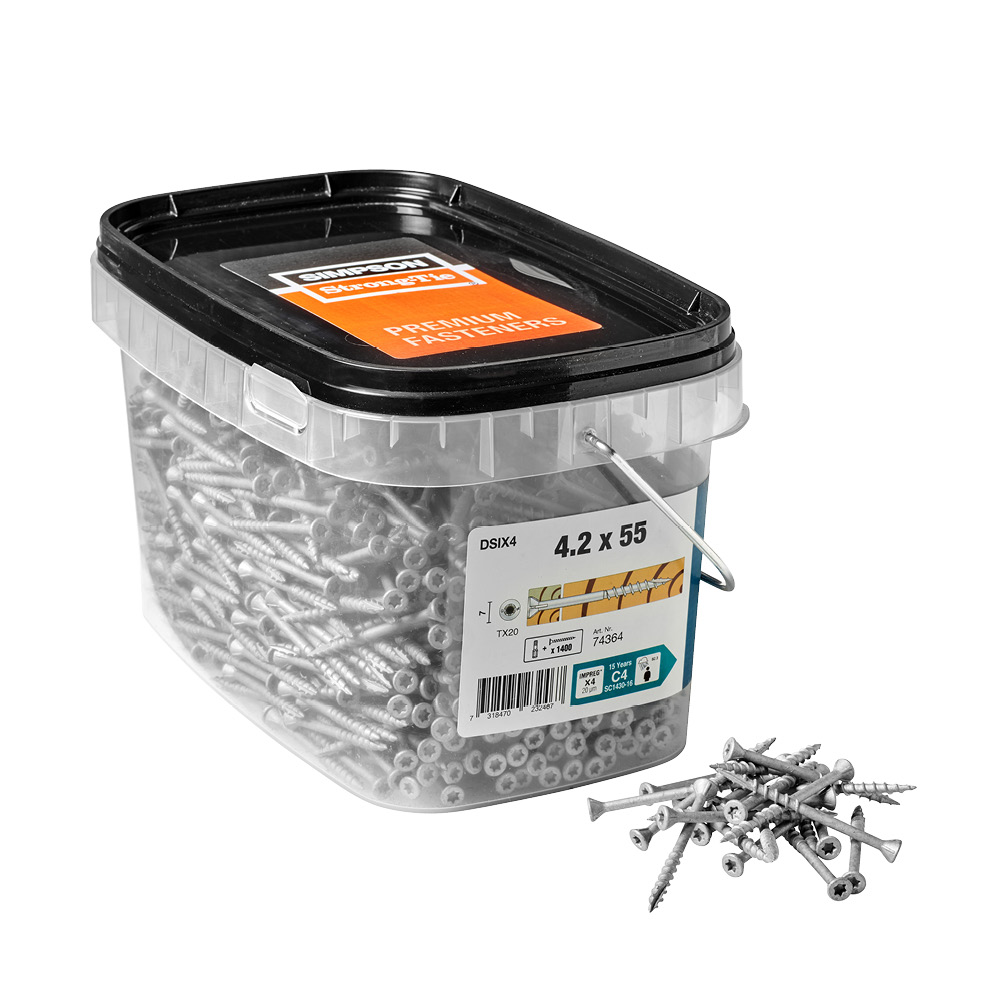

DSIX4
Decking Screw - Impreg®X4

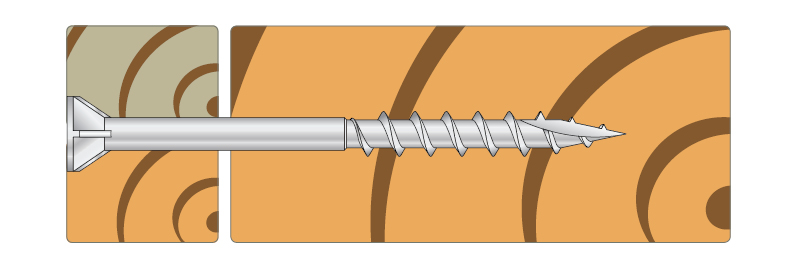

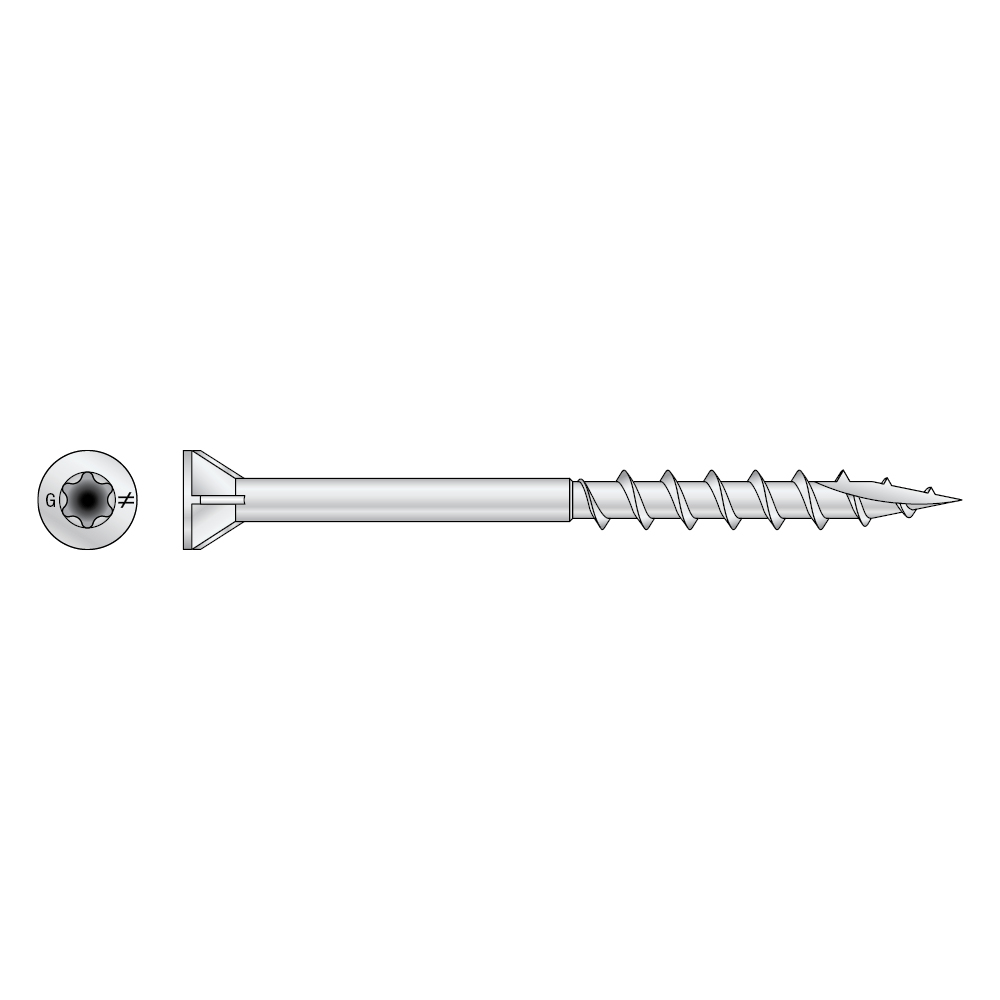

The DSIX4 decking screw features the new Impreg®X4 coating designed for treated timber and outdoor environments. It has a 6 lobe recess to ensure good grip which drives the screw efficiently. The type 17 point prevents the timber from splitting when it is inserted. It has a coarse thread and ribbed countersunk flat head which allows it to be countersunk in the timber and ensures a neat finish. The DSIX4 is CE marked to EN14592.

CE Marking

Impreg® x4

Service class 2

Outdoor
EPD

Fastener Designer
Technical Data

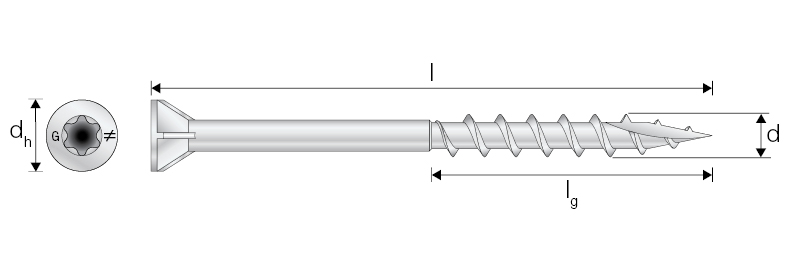

Product Dimensions
| Reference | Fasteners Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|
| Item Code | Other | Product Dimensions[mm] | ||||||
| Packaging | Weight[kg] | d[mm] | l[mm] | dₕ[mm] | lg[mm] | Driver Bit[mm] | ||
| DSIX44.2X35T-20 | 74361 | 250 | 0.002 | 4.2 | 35 | 7.3 | 20 | T-20 |
| DSIX44.2X45T-20 | 74362 | 400 | 0.003 | 4.2 | 45 | 7.3 | 23.5 | T-20 |
| DSIX44.2X55T-20 | 74363 | 350 | 0.003 | 4.2 | 55 | 7.3 | 27.5 | T-20 |
| DSIX44.2X75T-20 | 74365 | 300 | 0.004 | 4.2 | 75 | 7.3 | 40.5 | T-20 |
Characteristic Capacities
| Reference | Screw Parameters | |||
|---|---|---|---|---|
| Characteristic parameters | ||||
| Characteristic Yield Moment – My,ₖ[Nm] | Characteristic withdrawal parameter - fₐₓ,ₖ,₉₀°[N/mm²] | Characteristic head pull-through parameter - fₕₑₐd,ₖ[N/mm²] | Characteristic tensile capacity - fₜₑₙₛ,ₖ[kN] | |
| DSIX44.2X35T-20 | 4295 | 13.9 | 14.4 | 6 |
| DSIX44.2X45T-20 | 4295 | 13.9 | 14.4 | 6 |
| DSIX44.2X55T-20 | 4295 | 13.9 | 14.4 | 6 |
| DSIX44.2X75T-20 | 4749 | 22.9 | 17.1 | 6 |
| DSIX44.2X45PH2 | 4295 | 13.9 | 14.4 | 6 |
Certification
Environmental Product Declarations (EPD)
CAD and BIM Library
2D
DSIX44.2X55T-20
-
-
-
-
DSIX44.2X45PH2
-
-
-
-
DSIX44.2X45T-20
-
-
-
-
DSIX44.2X75T-20
-
-
-
-
DSIX44.2X35T-20
-
-
-
-
3D
DSIX44.2X55T-20
-
-
-
-
-
DSIX44.2X45PH2
-
-
-
-
-
DSIX44.2X45T-20
-
-
-
-
-
DSIX44.2X75T-20
-
-
-
-
-
