Deflector Screw

The SDPW Deflector Screw from Simpson Strong-Tie is a premium structural fastening solution that provides a time-saving solution for connecting non-load-bearing walls to joists and trusses.

With tested lateral-load ratings, the SDPW screw is value engineered for strength, installation speed and safety.

The SDPW’s screw and polymer sleeve permit the naturally occurring differential deflection between the wall and the supporting member without squeaking.

Technical Data Sheet

Product Details

Images

Features

Why use the SDPW Deflector Screw

To allow vertical differential movement, internal load bearing walls require a 15mm gap between the top of the wall plate and the underside of floor joists or roof trusses.

Features & Benefits

Pre-drill bit bores its own hole eliminating the screw from following the timber grain that could cause a miss-installation into the joist / truss.
Polymer sleeve allows for sliding during deflection, preventing squeaks.
E-Coat® finish for dry service applications which is compatible with treated timber.
Drill bit (3/8") and driver bit (T25 or T40 6 lobe) supplied in each box.

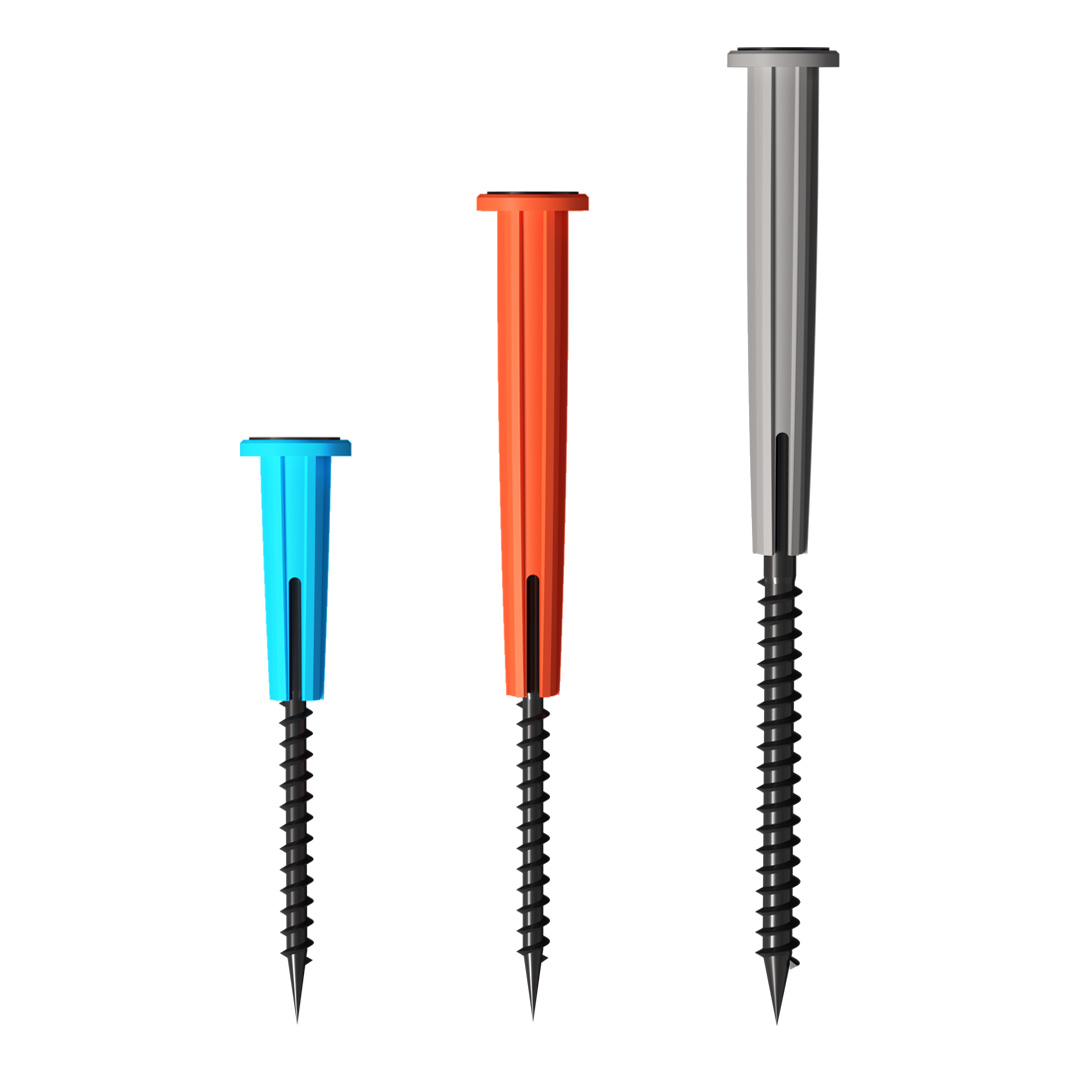

Available in three lengths to suit various scenarios

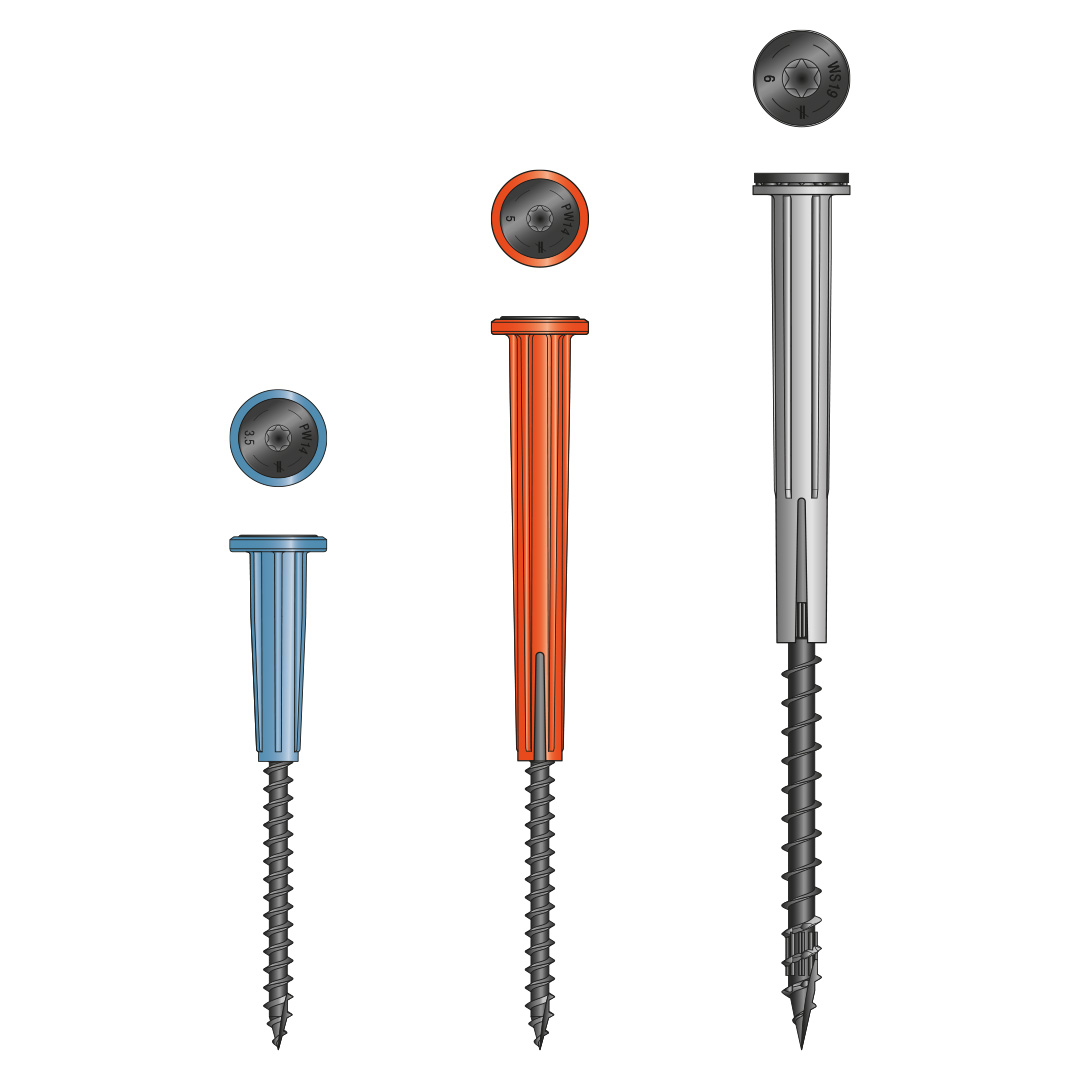

Colour coded polymer sleeves for easy and quick identification

Other

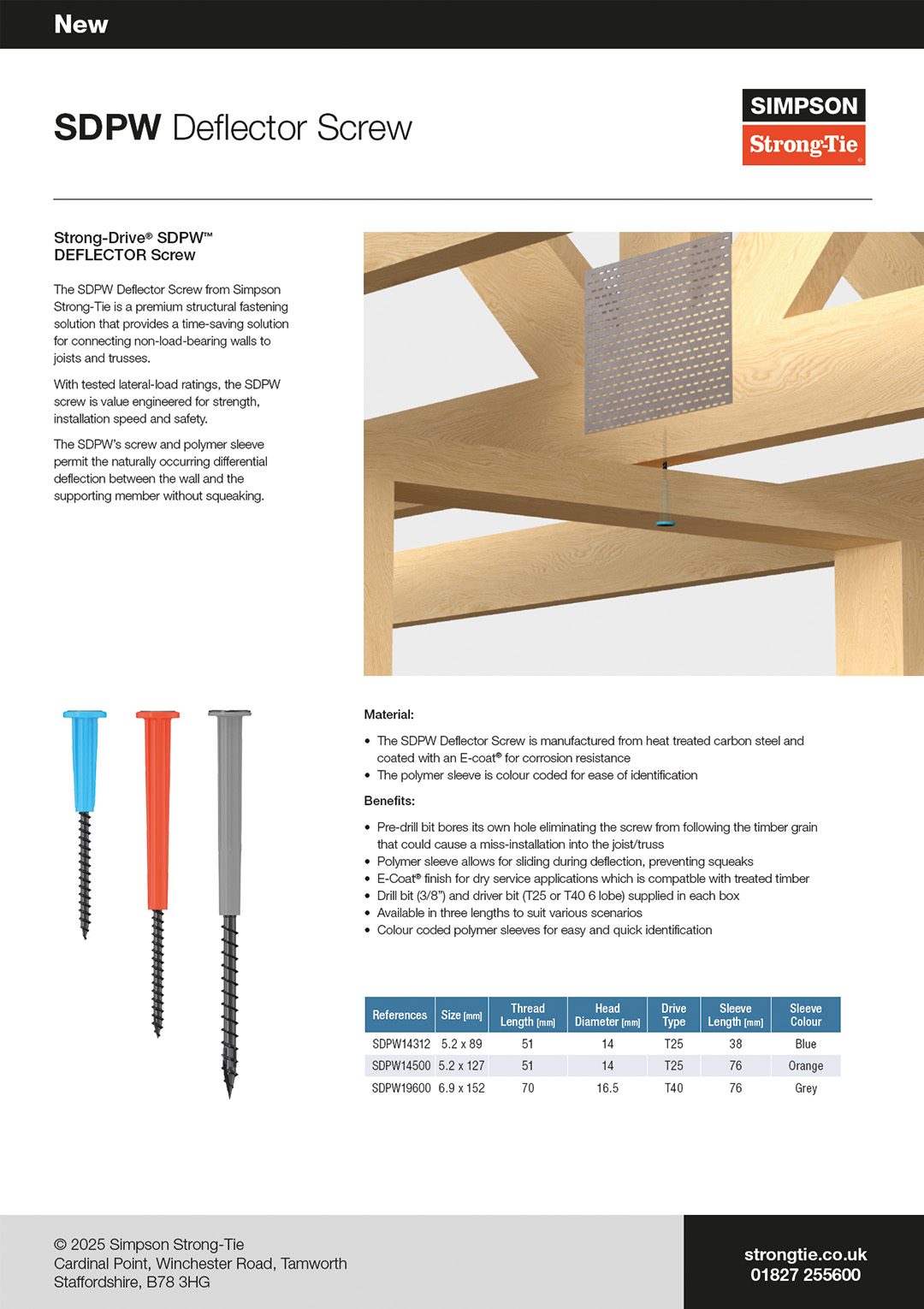

c-uk-sdpw-flyer-2025.pdf

Application

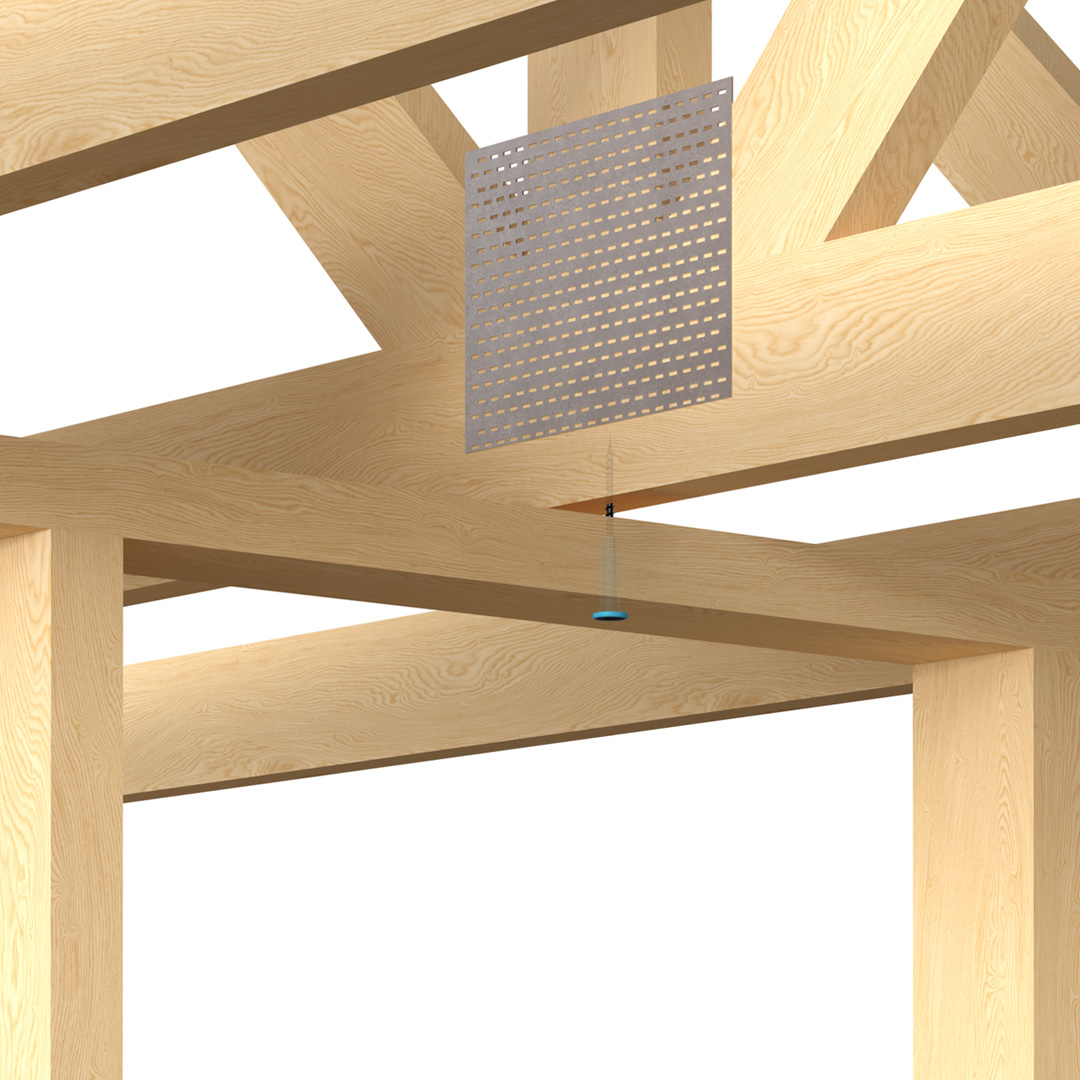

Non-load bearing wall connections to joist or truss

Material

The SDPW Deflector Screw is manufactured from heat treated carbon steel and coated with E-coat® for corrosion resistance.
The polymer sleeve is colour coded for ease of identification.

Technical Data

Product Dimensions

Reference	Fasteners Dimensions[mm]
	Product Dimensions[mm]
	Size[mm]	Thread Length[mm]	Head Diameter[mm]	Driver Bit[mm]	Sleeve Length[mm]	Sleeve Colour[mm]
SDPW14312	5.2 x 89	51	14	T25	38	Blue
SDPW14500	5.2 x 127	51	14	T25	76	Orange
SDPW19600	6.9 x 152	70	16.5	T40	76	Grey

Product Capacities

Reference	Screw Loads
	Characteristic Capacities[N]
	R₁ & ₂,ₖ
SDPW	1300

Notes:

SDPW Deflector Screw performance values are determined from testing with a 15mm gap
Characteristic Loads determnined in accordance to EN14358 with minimum C16 graded timber
Safe Working Loads are determined by applying relevant safety factors to the declared Characteristic Load

Installation

Installation Instructions

1. Determine the correct SDPW for your application:

SDPW14312: 38 - 47mm Top Plate with up to 15mm Gap

SDPW14500: Double 38mm Top Plate with up to 15mm Gap

SDPW19600: Double 47mm Top Plate with up to 15mm Gap

2. Drill completely through the top plate(s) with a 3/8" drill bit (supplied), ensuring the hole goes through the centre of the top plate and aligns with the centre of the joist/truss. Be careful not to drill into the joist / truss

3. Push the SDPW Deflector Screw solution into the drilled hole. Drive the screw until the underside of the polymer sleeve is in contact with the underside of the top plate.

4. Final installation

Note:

When installed, the polymer sleeve of the SDPW Deflector Screw should be tight to the underside of the non-load bearing partitions top plate whilst maintaining the required gap between the top side of the top plate and the underside of the joist/truss. The polymer sleeve shall not penetrate into the supporting member.

The SDPW Deflector Screw solution comes with a 3/8" drill bit and a T25 or T40 6 lobe driver bit with "offset" cup attached. The "offset" cup must be removed from the 6 lobe driver bit prior to use.

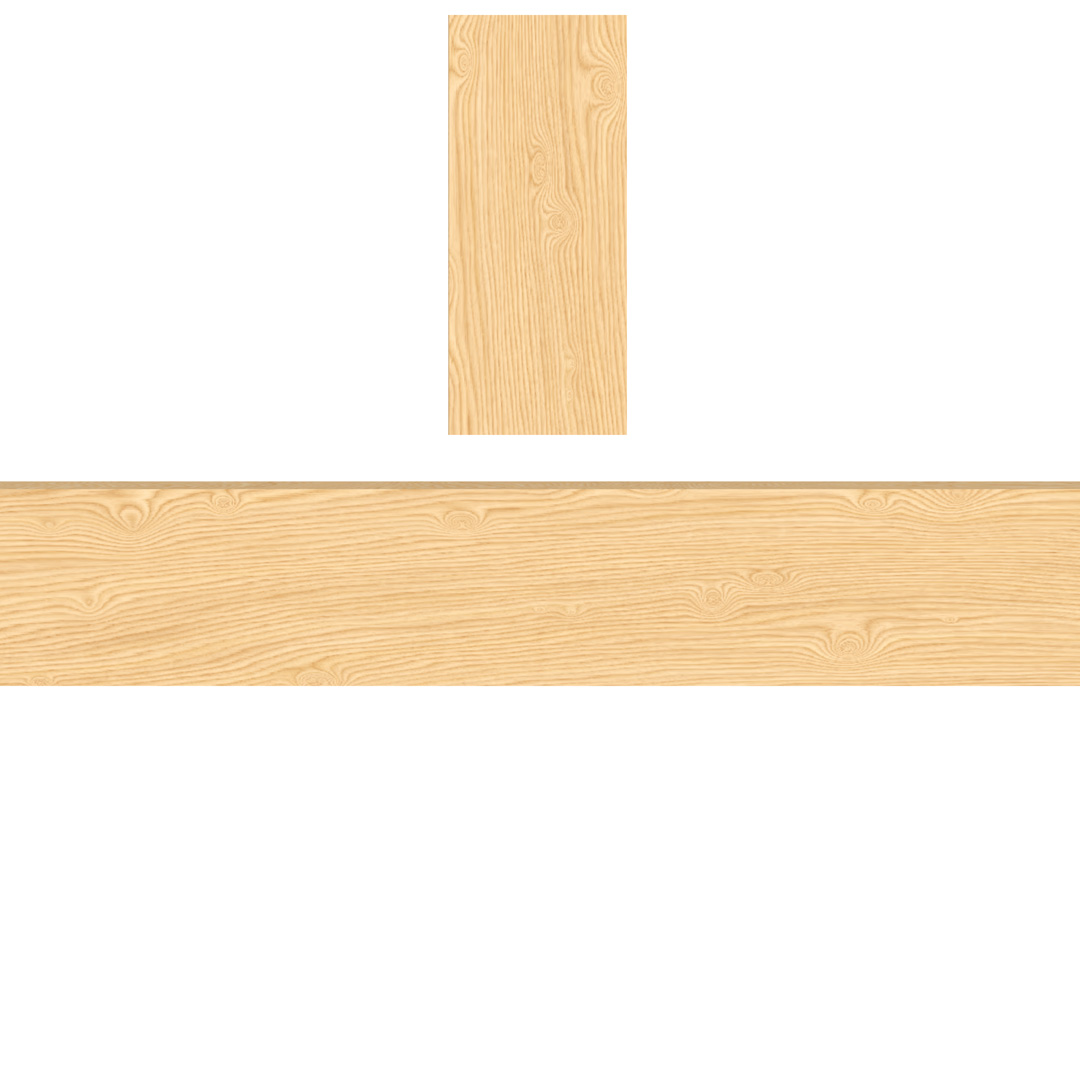

STEP 1: 38 to 47mm Single Top Plate

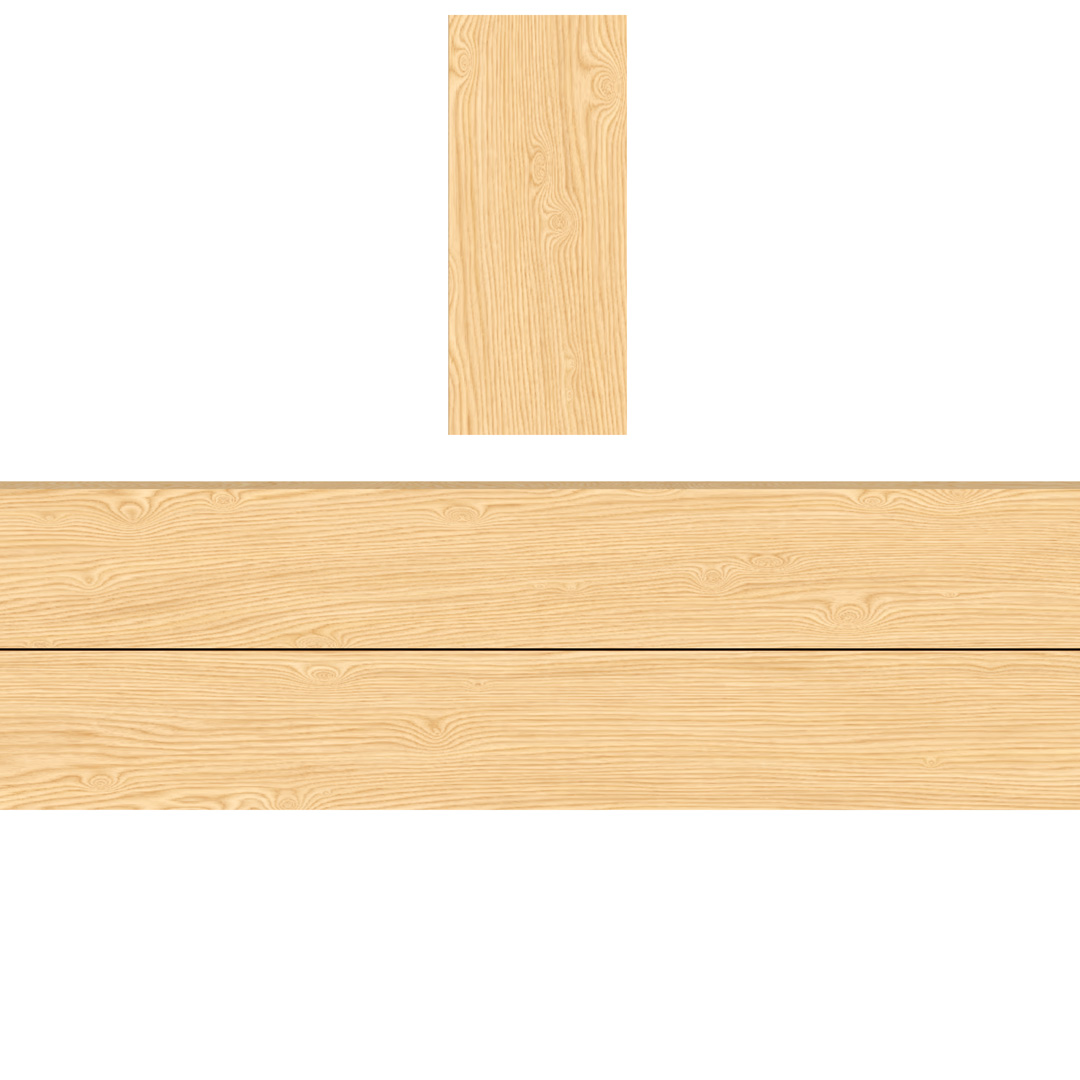

STEP 1: Double 38mm Top Plate

STEP 1: Double 47mm Top Plate

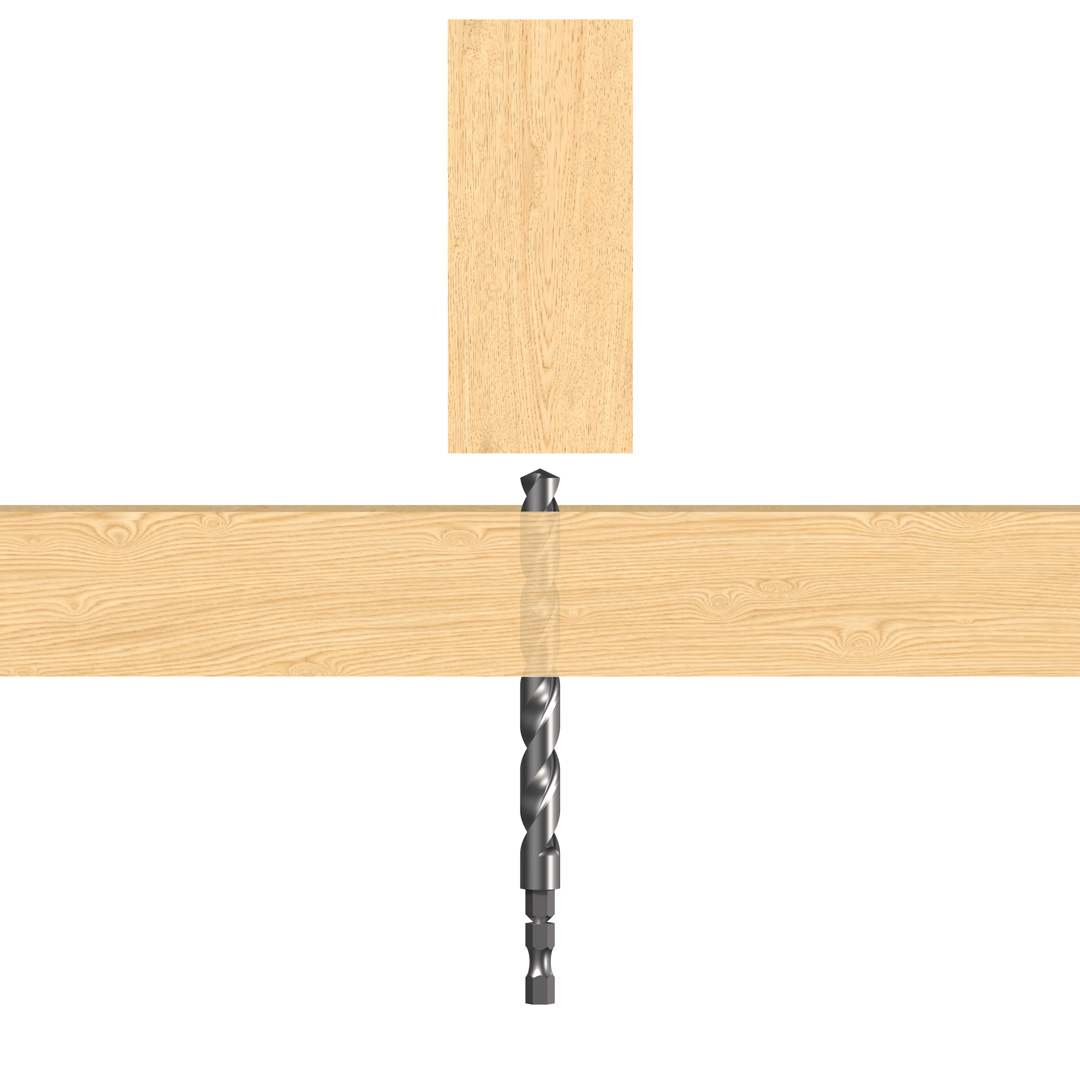

STEP 2: Drill Relief Hole

STEP 3: Insert SDPW and drive screw home

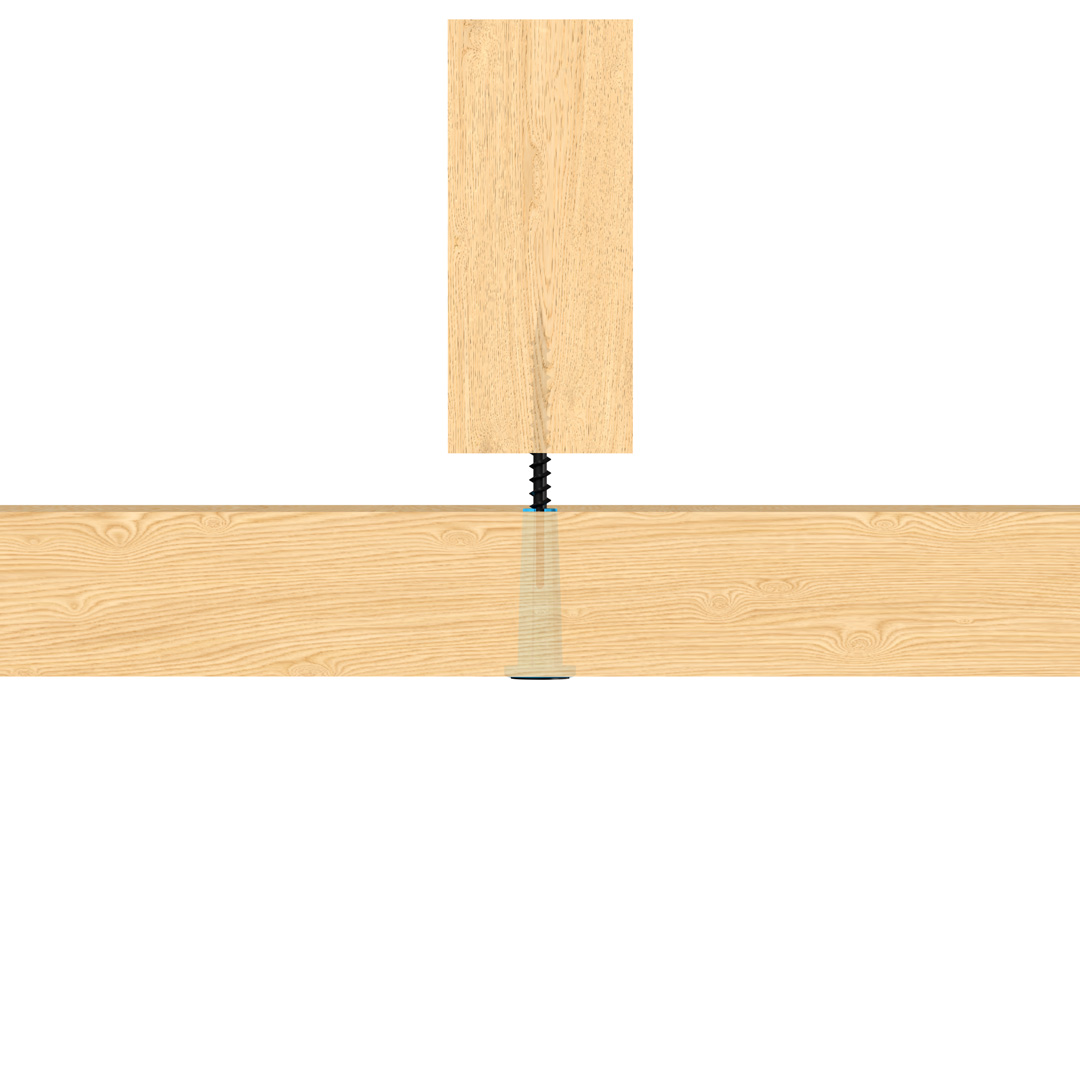

STEP 4: Installation complete
