DWF
Drywall to Steel Screw

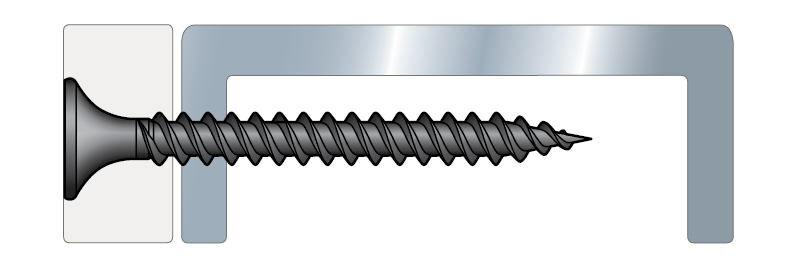

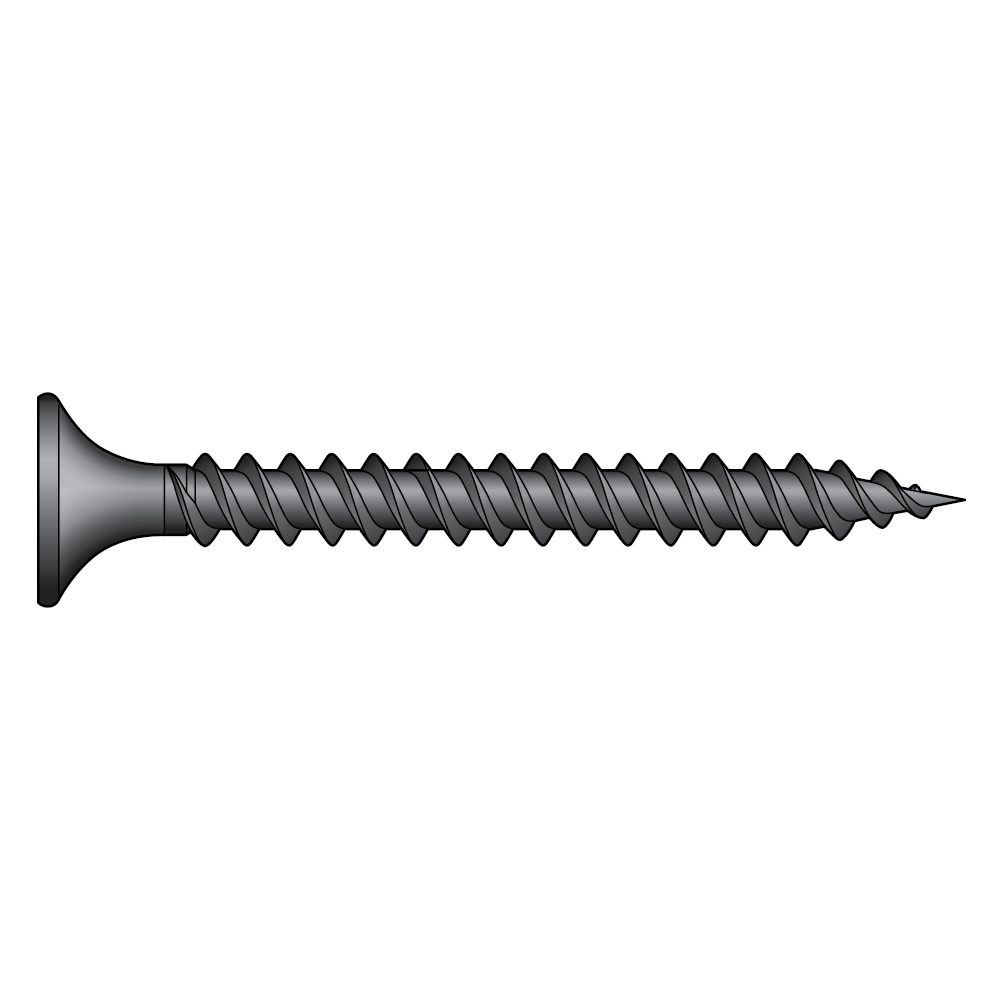

The DWF screw has been designed to fix drywall to light gauge steel (0.6 - 0.9 mm thick). The sharp point allows for faster drilling whilst the bugle head provides a neat finish in the drywall. The DWF has a fine thread and is CE marked to EN14566. It has grey phosphate coating and is suitable for use indoors.
CE Marking
Service class 1
Phosphated
Indoor
EPD
Product Details
Images
Features
Application
Technical Data
Product Dimensions UK
Dimensions
| Reference | Fasteners Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|
| Product Dimensions[mm] | QD information | Other | ||||||
| Ø Head[mm] | Thread diameter[mm] | l[mm] | Screws qty per strip | Max. rotation speed[tr/min] | Compatible device | Screws qty per box | Weight[kg] | |
| DWF3525PE | 8.1 | 3.5 | 25 | 30.0 | 2500 - 4000 | QDPRO51E / QD76KE | 2500.0 | 0.002 |
| DWF3535PE | 8.1 | 3.5 | 35 | 30.0 | 2500 - 4000 | QDPRO51E / QD76KE | 2500.0 | 0.002 |
| DWF3540PE | 8.1 | 3.5 | 40 | 30.0 | 2500 - 4000 | QDPRO51E / QD76KE | 2500.0 | 0.002 |
| DWF3940PE | 8.1 | 3.9 | 40 | 30.0 | 2500 - 6000 | QDPRO51E / QD76KE | 2500.0 | 0.002 |
