DWC
Drywall to Timber Screw

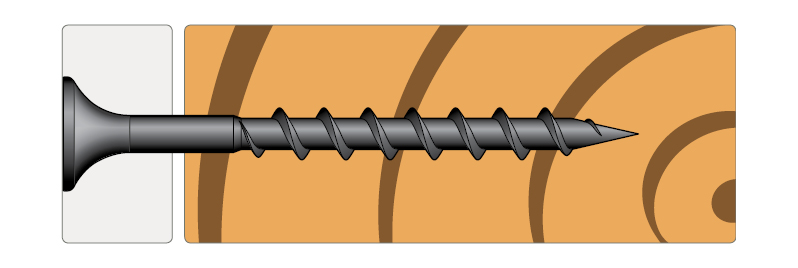

The DWC screw is designed for fixing drywall to timber. The screw features a sharp point, coarse thread and bugle head which provides a neat finish in the drywall. The DWC is CE marked to EN14566 and has a grey phosphate coating making it suitable for use indoors.
CE Marking
Service class 1
Phosphated
EPD
Indoor
Product Details
Images
Features
Application
Technical Data
Product Dimensions UK
Dimensions
| Reference | Fasteners Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|
| Other | Product Dimensions[mm] | QD information | ||||||

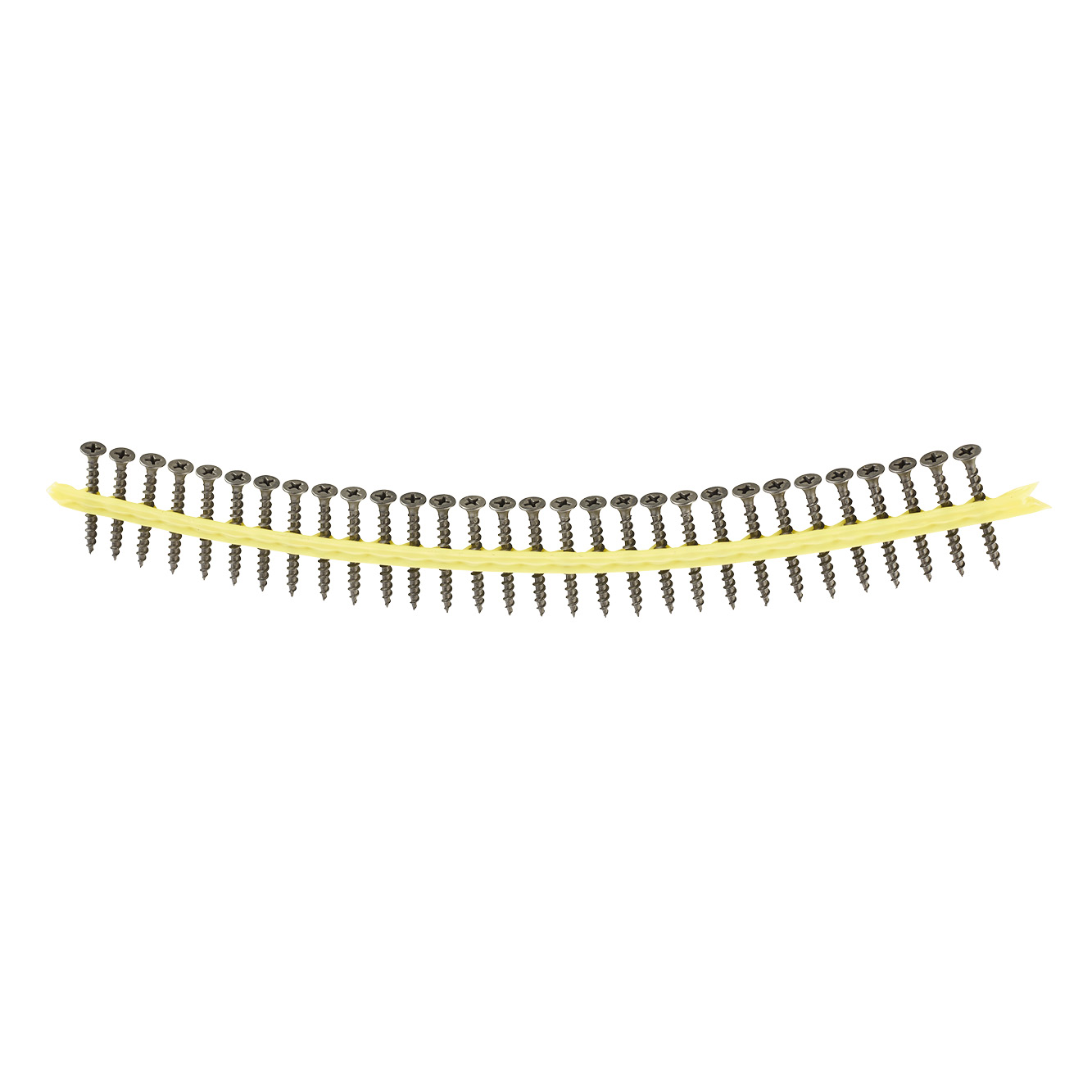

| Screws qty per box | Weight[kg] | Ø Head[mm] | Thread diameter[mm] | l[mm] | Screws qty per strip | Max. rotation speed[tr/min] | Compatible device | |
| DWC3525PE | 2500.0 | 0.002 | 8.1 | 3.8 | 25 | 30.0 | 2500 - 6000 | QDPRO51E / QD76KE |
| DWC3535PE | 2500.0 | 0.002 | 8.1 | 3.8 | 35 | 30.0 | 2500 - 6000 | QDPRO51E / QD76KE |
| DWC3540PE | 2500.0 | 0.002 | 8.1 | 3.8 | 40 | 30.0 | 2500 - 6000 | QDPRO51E / QD76KE |
| DWC3545PE | 2000.0 | 0.003 | 8.1 | 3.8 | 45 | 30.0 | 2500 - 6000 | QDPRO51E / QD76KE |
| DWC3550PE | 2000.0 | 0.003 | 8.1 | 3.8 | 50 | 30.0 | 2500 - 6000 | QDPRO51E / QD76KE |
| DWC3930PE | 2500.0 | 0.002 | 8.1 | 4 | 30 | 30.0 | 2500 - 6000 | QDPRO51E / QD76KE |
| DWC3945PE | 2000.0 | 0.003 | 8.1 | 4 | 45 | 30.0 | 2500 - 6000 | QDPRO51E / QD76KE |
| DWC3955PE | 2000.0 | 0.003 | 8.1 | 4 | 55 | 30.0 | 2500 - 6000 | QD76KE |
| DWC3965PE | 1500.0 | 0.005 | 8.1 | 4 | 65 | 30.0 | 2500 - 6000 | QD76KE |
