IUC
Face Fix Concealed Flange Hanger

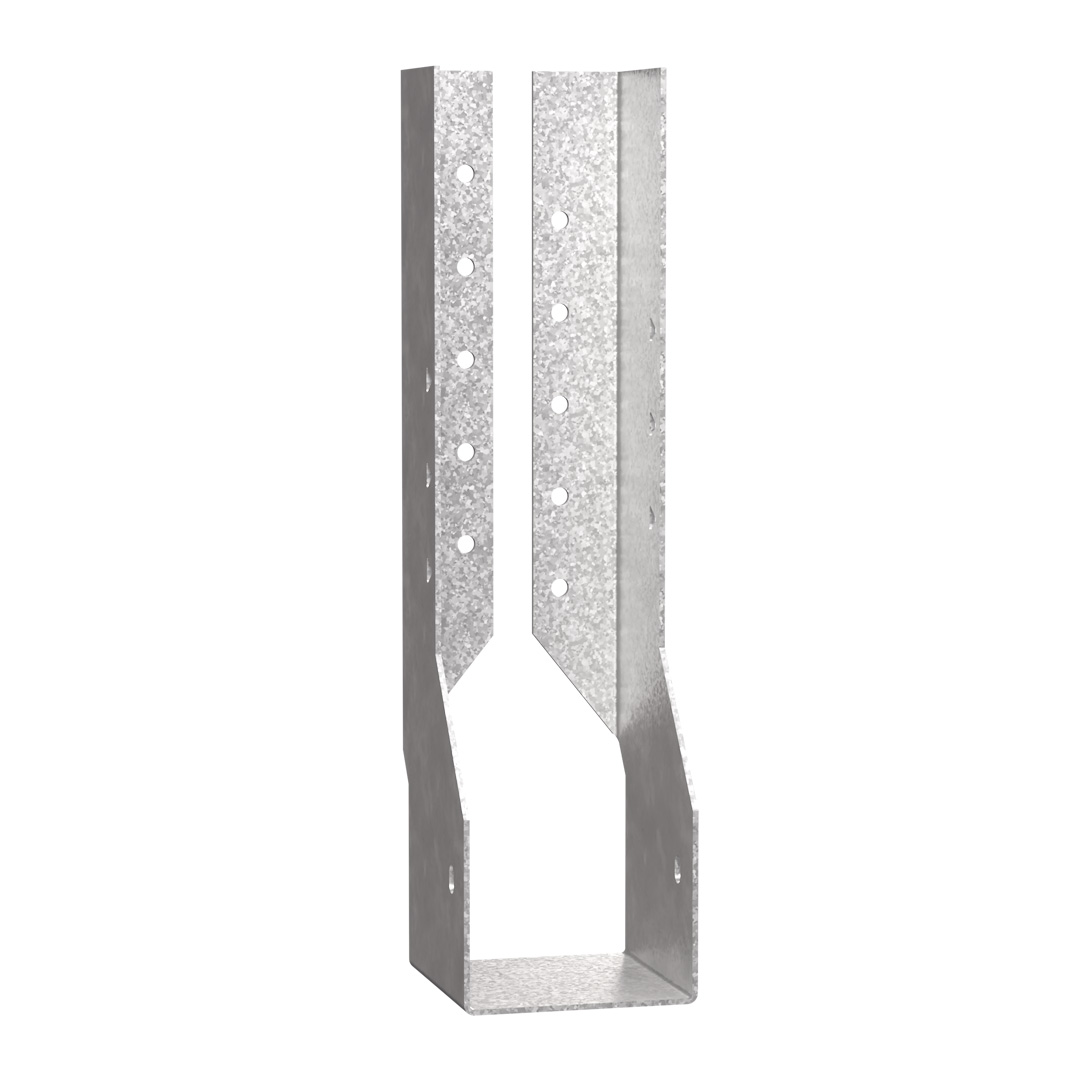

The IUC is a face mounted concealed flange hanger for solid timber sections or engineered joists.
These hangers cannot be skewed but will normally accomodate a skew of up to 5°. For concealed flange hangers with widths greater than 91mm see SAI hanger catalogue page.
ETA
EPD
Product Details
Images
Features
Technical Data
Product Dimensions
Dimensions
| Reference | Connector Dimensions | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Timber size[mm] | Product Dimensions[mm] | Header holes | Joist holes | Other | ||||||||||
| Height | Width | A[mm] | B[mm] | C[mm] | D[mm] | F[mm] | t[mm] | Round | Traingular[mm] | Obround | Weight[kg] | |||
| Min[mm] | Max.[mm] | Min[mm] | Max.[mm] | Ø4 | Ø4 | |||||||||
| IUC142/40 | 145 | 175 | 38 | 40 | 40 | 142 | 51 | 19 | 57 | 1.2 | 6 | 6 | 2 | 0.156 |
| IUC192/40 | 195 | 220 | 38 | 40 | 40 | 192 | 51 | 19 | 57 | 1.2 | 10 | 6 | 2 | 0.205 |
| IUC217/40 | 220 | 245 | 38 | 40 | 40 | 217 | 51 | 19 | 57 | 1.2 | 12 | 6 | 2 | 0.229 |
| IUC142/47 | 145 | 175 | 45 | 47 | 47 | 142 | 51 | 19 | 57 | 1.2 | 6 | 6 | 2 | 0.16 |
| IUC192/47 | 195 | 220 | 45 | 47 | 47 | 192 | 51 | 19 | 57 | 1.2 | 10 | 6 | 2 | 0.208 |
| IUC217/47 | 220 | 245 | 45 | 47 | 47 | 217 | 51 | 19 | 57 | 1.2 | 12 | 6 | 2 | 0.232 |
| IUC192/50 | 195 | 220 | 47 | 50 | 50 | 192 | 51 | 19 | 57 | 1.2 | 10 | 6 | 2 | 0.21 |
| IUC217/50 | 220 | 245 | 47 | 50 | 50 | 217 | 51 | 19 | 57 | 1.2 | 12 | 6 | 2 | 0.234 |
| IUC192/53 | 195 | 220 | 51 | 53 | 53 | 192 | 51 | 19 | 57 | 1.2 | 10 | 6 | 2 | 0.211 |
| IUC217/53 | 220 | 245 | 51 | 53 | 53 | 217 | 51 | 19 | 57 | 1.2 | 12 | 6 | 2 | 0.235 |
| IUC192/61 | 195 | 220 | 59 | 61 | 61 | 192 | 51 | 19 | 57 | 1.2 | 10 | 6 | 2 | 0.215 |
| IUC217/61 | 220 | 245 | 59 | 61 | 61 | 217 | 51 | 19 | 57 | 1.2 | 12 | 6 | 2 | 0.239 |
| IUC192/66 | 195 | 220 | 63 | 66 | 66 | 192 | 51 | 19 | 57 | 1.2 | 10 | 6 | 2 | 0.217 |
| IUC217/66 | 220 | 245 | 63 | 66 | 66 | 217 | 51 | 19 | 57 | 1.2 | 12 | 6 | 2 | 0.241 |
| IUC192/72 | 195 | 220 | 70 | 72 | 72 | 192 | 51 | 19 | 57 | 1.2 | 10 | 6 | 2 | 0.22 |
| IUC217/72 | 220 | 245 | 70 | 72 | 72 | 217 | 51 | 19 | 57 | 1.2 | 12 | 6 | 2 | 0.244 |
| IUC192/75 | 195 | 220 | 72 | 75 | 75 | 192 | 51 | 19 | 57 | 1.2 | 10 | 6 | 2 | 0.222 |
| IUC217/75 | 220 | 245 | 72 | 75 | 75 | 217 | 51 | 19 | 57 | 1.2 | 12 | 6 | 2 | 0.246 |
| IUC192/91 | 195 | 220 | 89 | 91 | 91 | 192 | 51 | 19 | 57 | 1.2 | 10 | 6 | 2 | 0.229 |
| IUC217/91 | 220 | 245 | 89 | 91 | 91 | 217 | 51 | 19 | 57 | 1.2 | 12 | 6 | 2 | 0.253 |
Performance Values
Dimensions
| Reference | Hanger capacity | ||||||
|---|---|---|---|---|---|---|---|
| Number of Fasteners | Characteristic Capacities[kN] | ||||||
| Header | Joist | R₁,ₖ | R₂,ₖ | ||||
| Qty | Qty | C16 or I Joist Header | C24 or LVL | N3.75x30 | |||
| N3.75x30 | N3.75x75 | N3.75x30 | N3.75x75 | ||||
| IUC142 | 6.0 | 2.0 | 3.8 | 7.9 | 8.1 | 10.7 | 1.8 |
| IUC192 | 10.0 | 2.0 | 7.5 | 13.1 | 13.5 | 17.8 | 1.8 |
| IUC217 | 12.0 | 2.0 | 10 | 15.7 | 16.2 | 21.4 | 1.8 |
* Performance Capacities differ depending on the type of header nail used (N3.75x30mm Square Twist Nails or N3.75x75mm Round Wire Nails)
