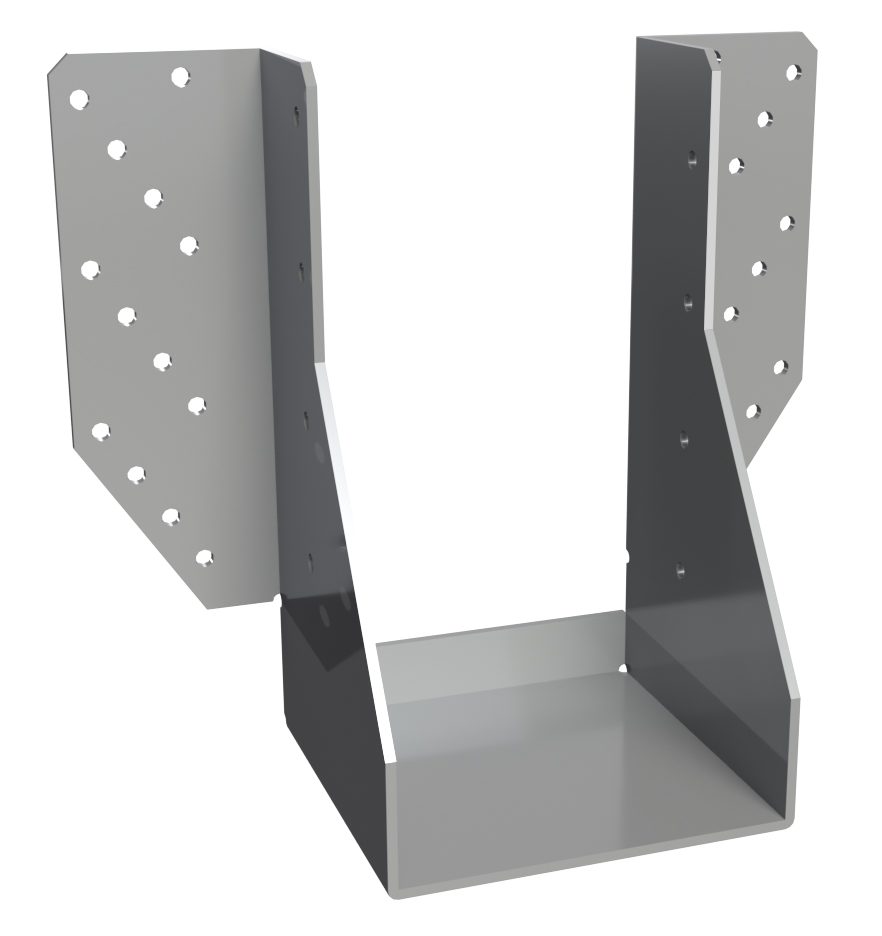

HGUQ
Face Fix Girder Truss Hanger - Screw Installation
The HGUQ is a joist hanger for supporting mono trusses and girder trusses from timber members.
It is compatible with SSH screws for even faster and easier installation.
ETA
EPD
Product Details
Images
Features
Technical Data
Product Dimensions
Dimensions
| Reference | Connector Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Timber size[mm] | Product Dimensions[mm] | Header holes | Joist holes | Other | ||||||
| Width[mm] | A[mm] | B[mm] | C[mm] | D[mm] | F[mm] | t[mm] | Round | Round | Weight[kg] | |
| Ø6.4[mm] | Ø6.4[mm] | |||||||||
| HGUQ180/105SCR | 2x47 | 105 | 180 | 100 | 54.5 | 102.5 | 2.5 | 26 | 8 | 0.986 |
| HGUQ180/120SCR | 3x35 | 120 | 180 | 100 | 54.5 | 102.5 | 2.5 | 26 | 8 | 1.021 |
| HGUQ180/155SCR | 3x47 | 155 | 180 | 100 | 54.5 | 102.5 | 2.5 | 26 | 8 | 1.103 |
| HGUQ180/202SCR | 4x47 | 202 | 180 | 100 | 54.5 | 102.5 | 2.5 | 26 | 8 | 1.214 |
HGUQ Installed with SDS Screws - Characteristic Capacity
| Reference | Hanger capacity | |||
|---|---|---|---|---|
| Number of Fasteners | Characteristic capacity - Timber TR26/C27[kN] | |||
| Header | Joist | R₁,ₖ | R₂,ₖ | |
| Qty | Qty | SSH6.0x60 | SSH6.0x60 | |
| HGUQ | 26.0 | 8.0 | 45.5 | 20.7 |
1. Safe working loads have been determined in accordance with BS 5268 and are based on TR26/C27 graded timbers.
2. Characteristic values have been determined in accordance with ETAG015, TR016 and EN 14358 for use with Eurocode 5. Values are based on TR26/C27 graded timbers.
3. Uplift values have been determined by calculation in accordance with Eurocode 5. Values are based on TR26/C27 graded timbers.
4. Hanger supplied with SSH6.0x60 screws screws.
