FBCS
Fibre Cement Screw

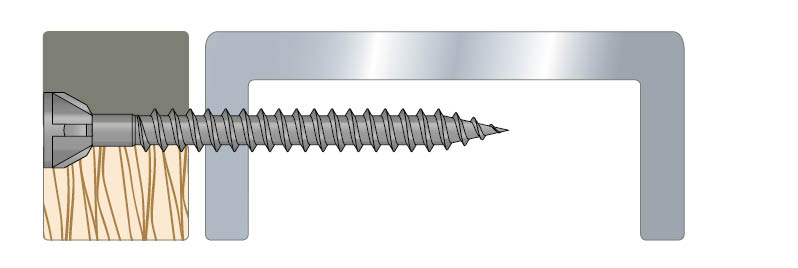

FBCS screws are used in humid conditions both indoor and outdoor thanks to the impressive Impreg®+ coating. They are particularly suited for fixing fibre cement boards to timber. They are also suitable for timber to timber applications. The sharp point means that the screws can also be used to fix to light gauge steel up to 1mm thick. The ribbed countersunk flat head countersinks flush into the cement board/timber leaving a neat finish. FBCS screws are CE marked to EN14566 and have a PH2 drive recess.
Available as loose screws or flat belt collated for standard autofeed screwdrivers.
CE Marking
Outdoor
Service class 2
Impreg® +
EPD
Product Details
Images
Features
Application
Technical Data

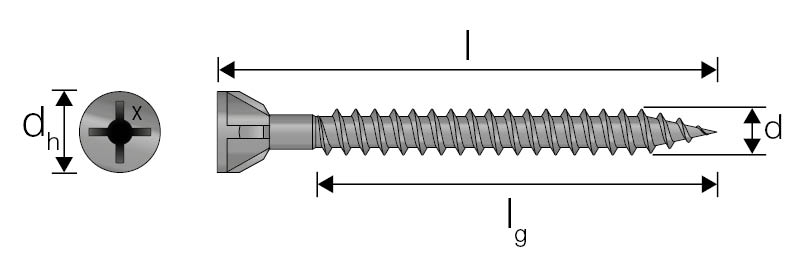

Product Dimensions
| Reference | Fasteners Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|
| Item Code | Other | Product Dimensions[mm] | ||||||
| Box Quantity | Weight[kg] | d[mm] | l[mm] | dh[mm] | lg[mm] | Driver Bit[mm] | ||
| FBCS3.9X25 | 75453 | 250.0 | 0.001 | 3.9 | 25 | 6.8 | 18 | PH2 |
| FBCS3.9X35 | 75454 | 250.0 | 0.002 | 3.9 | 35 | 6.8 | 28 | PH2 |
