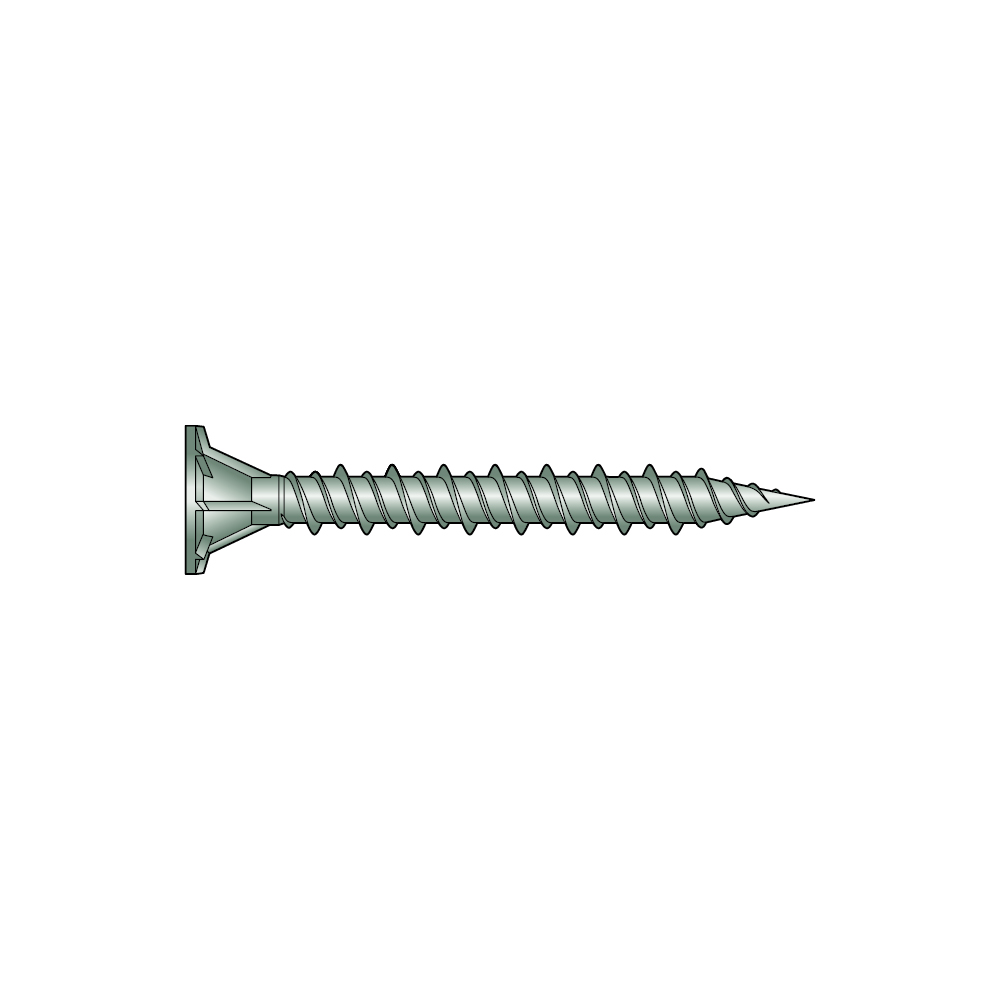

CB3BLGHL

Fibre Cement to Timber Screw

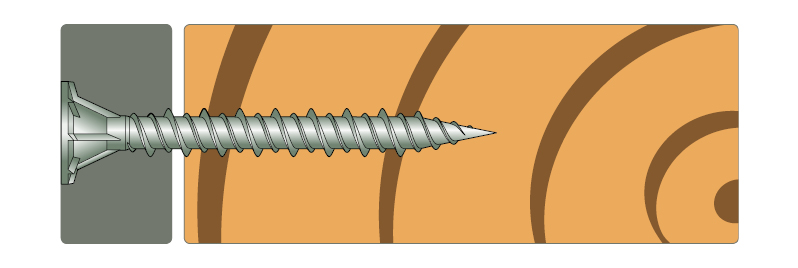

The CB3BLGHL is designed for fixing fibre cement board to timber. It has a flat countersunk head with ribs which enables the head of the screw to be easily countersunk into the fibre cement board ensuring a neat finish. The screw also has a sharp point and high-low thread design to provide a stronger grip in the timber.

CE Marking
Service class 2
Outdoor

Product Details

Images

Features

Material

  • Steel - C-3 mechanically galvanised coating

Benefits

  • CE Marked to EN14566
  • Countersunk ribbed flat head for a neat finish
  • Sharp point
  • High-low thread for increased pull out resistance
  • Driver bits included (BIT3SUE)

Application

Support

  • Used for fixing to timber

Common Applications

  • Fibre cement board to timber
  • Cement board to timber

Technical Data

Dimensions

Product Dimensions UK

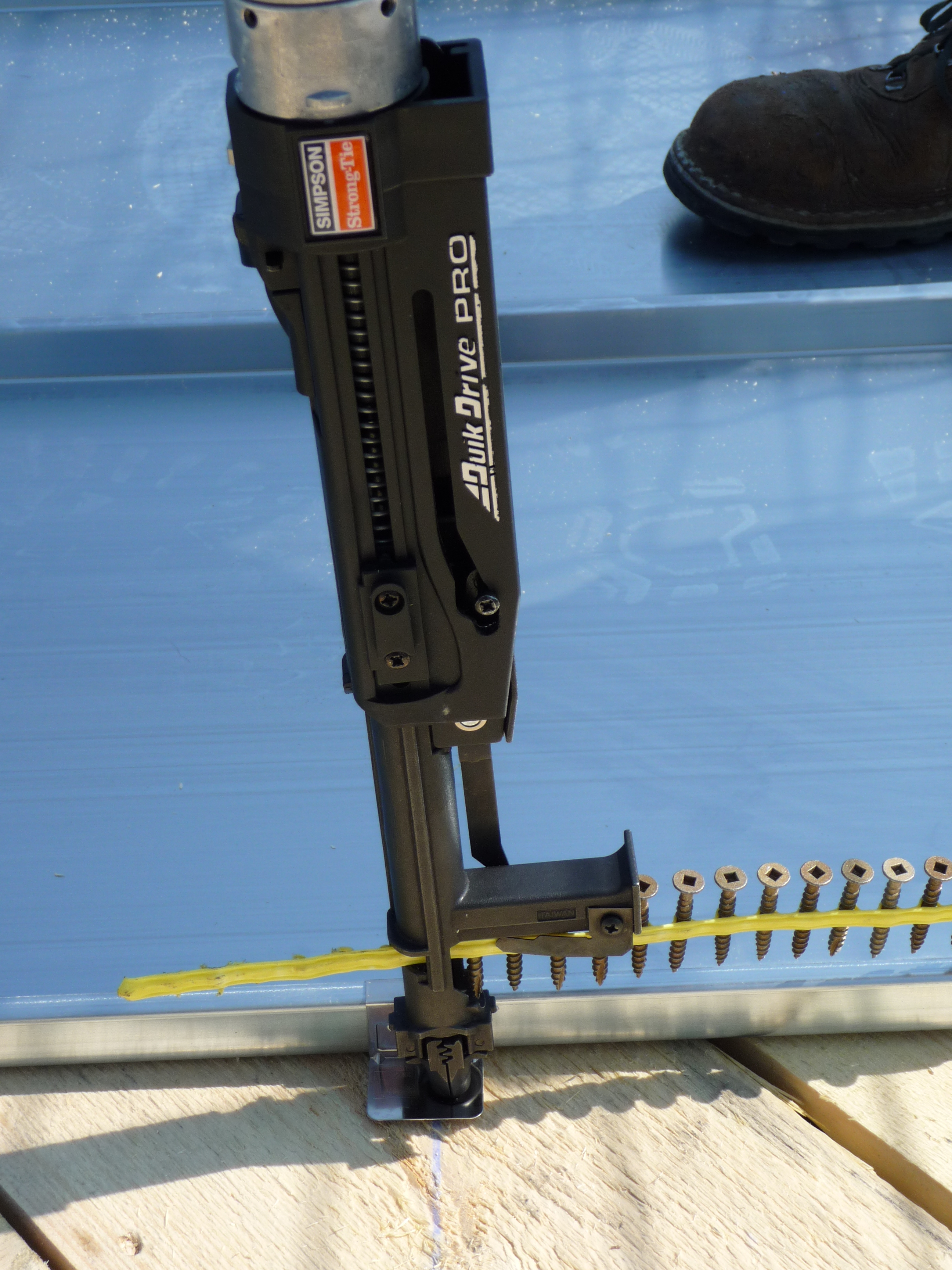

References Fastener Dimensions [mm] Qty per Strip Qty per Box Recommended RPM Quik Drive Attachment
dh d l
CB3BLGHL32E9.74.5322215002500QDPROLDHG2
CB3BLGHL41E4.5412215002500QDPROLDHG2

Certification

Declaration of Performance (DoP)

CAD Library

DWG (2D) REVIT (2D) DWG (3D) REVIT (3D) SAT XML
