FB20S

Fixing Band

FB20S fixing band is for all general light strapping needs.

Perfect for DIY, industrial and agricultural applications.

Comes in convenient 10 metre rolls.

Suitable for use in external applications

Technical Data Sheet

CE Marking

Stainless

Service class 3

Outdoor

Product Details

Images

Features

Supplied on a 10 metre roll.
Suitable for external applications
Strap is punched with two different sized holes to enable variety of different fixings to be used
- Nails
- Screws
- Bolts
Fixings need to be Stainless Steel to prevent galvanic corrosion. Suitable fixings include:
- CNA4.0x40S
- CSA5.0x35S

Application

Material

Stainless Steel

Technical Data

Product Dimensions

Reference	Connector Dimensions						Straps capacity
	Other	Dimensions[mm]			Holes[mm]		Strap Characteristic Tensile Capacity[kN]
	Weight[kg]	A[mm]	B[mm]	t[mm]	∅[mm]	Square	Strap Characteristic tensile capacity - fₜₑₙₛ,ₖ[kN]
FB20S	1.5	20	10 m	1.0	Ø4 & Ø6.5	-	5.0

The capacity of the connection is the lower of the straps declared characteristic tensile capacity or the fixing capacity.
The quanity, type and size of fixings along with its spacings, edge distances and fixing substrates should be considered when determining the capacity of the connection.
Stainless steel fasteners must be used.

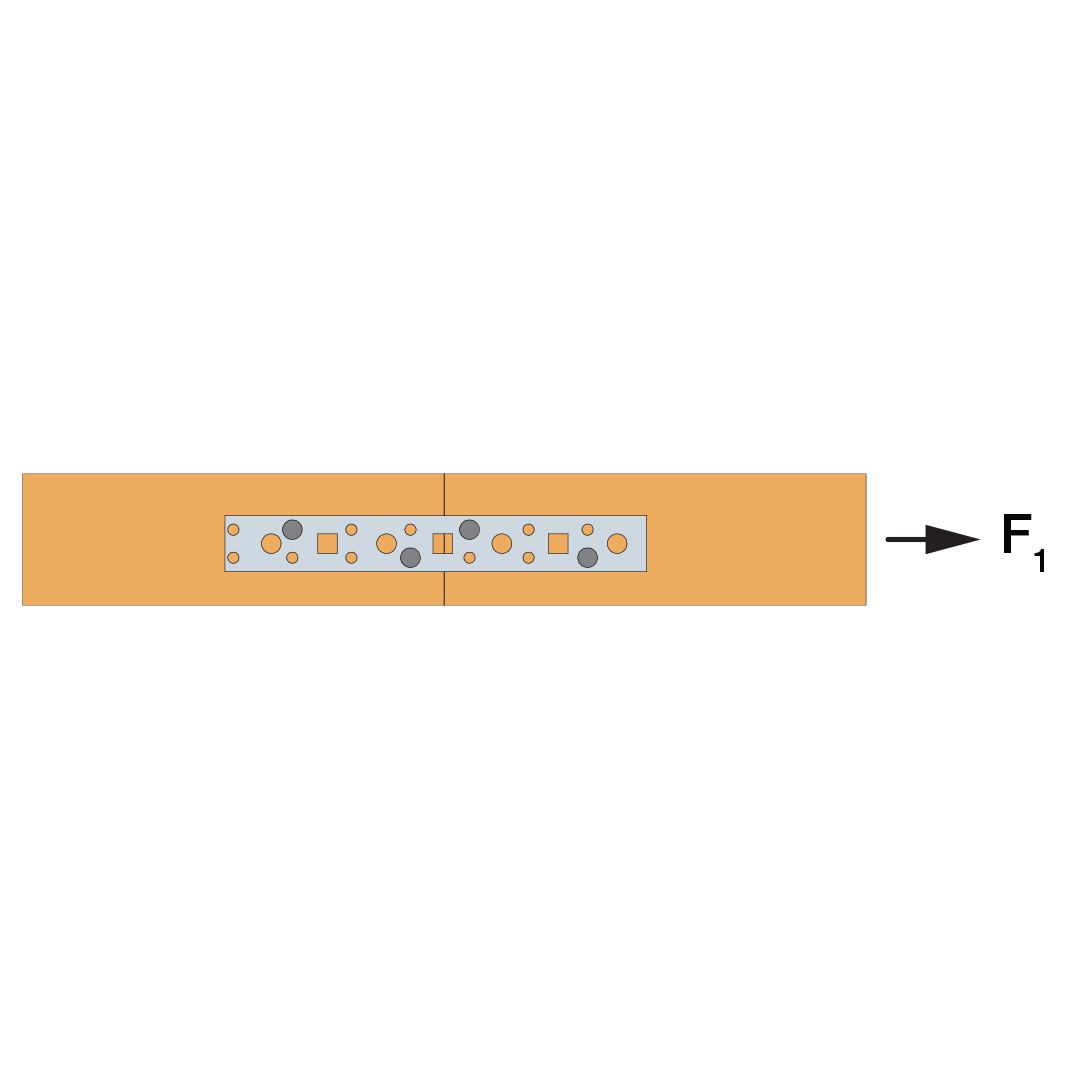

Characteristic Capacities

Reference	Straps capacity
	Strap Characteristic Tensile Capacity[kN]
	Strap Characteristic tensile capacity - fₜₑₙₛ,ₖ[kN]
FB20S	5.0
