X1 evo

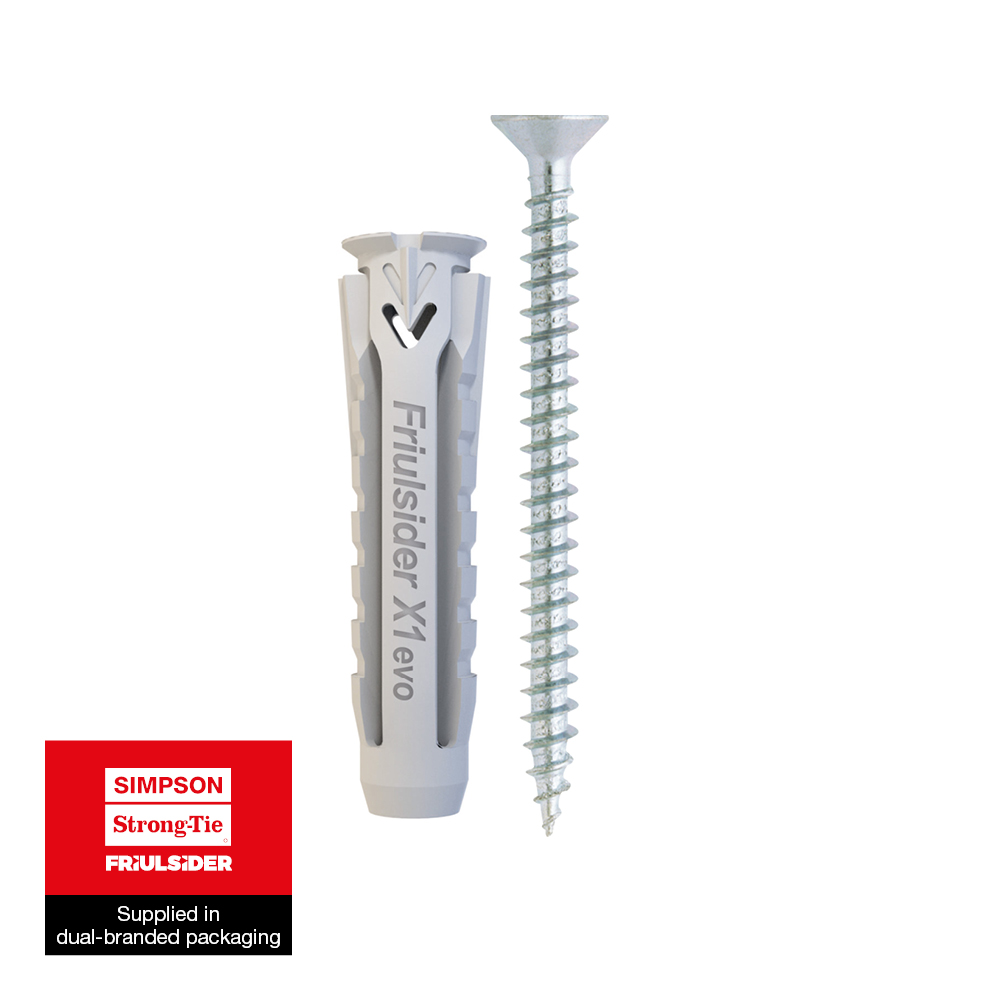

Four Segments Universal Nylon Plug

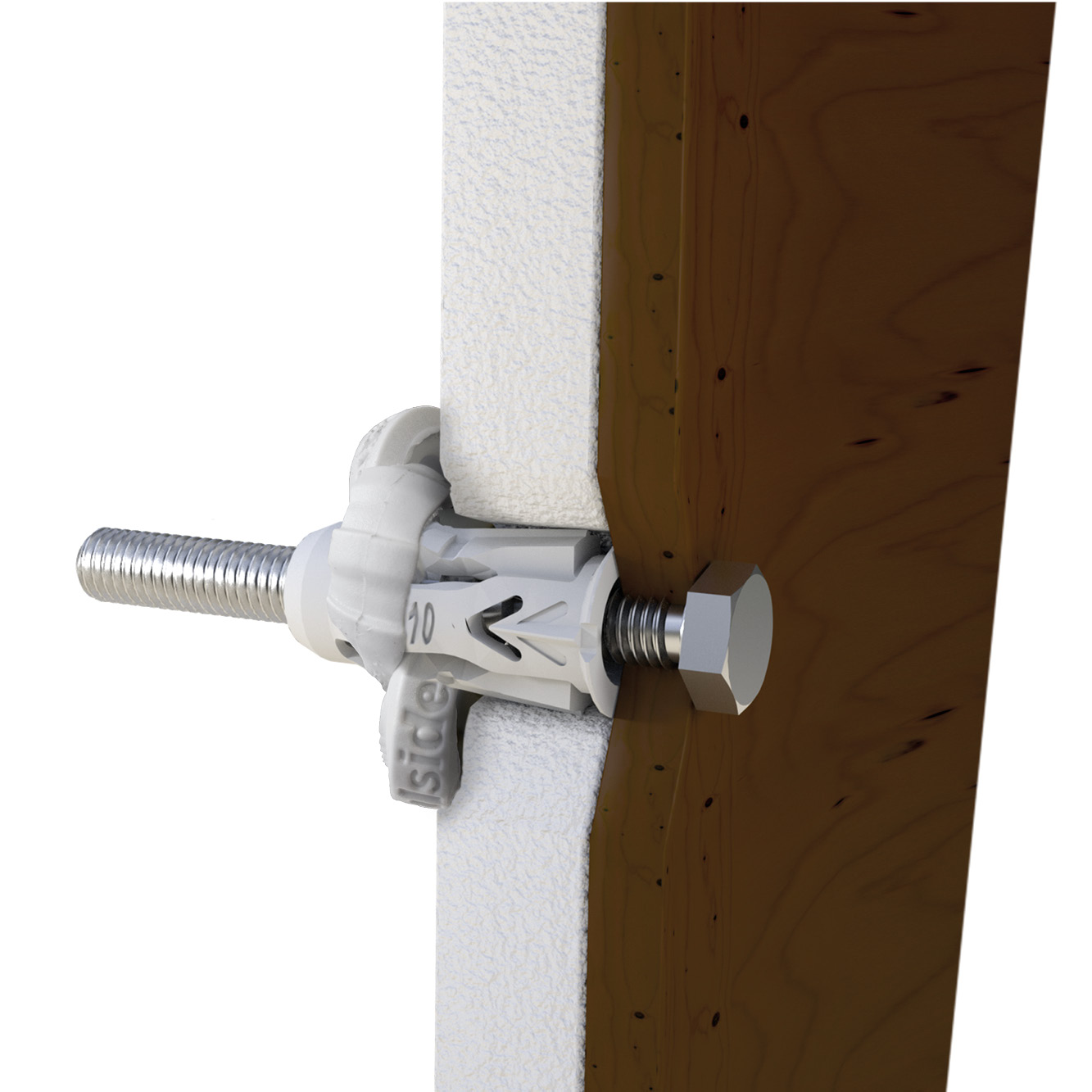

The X1 evo universal plug in the versions Ø5 to Ø14 mm is designed for fixings in solid, hollow and board building materials.
New
Product Details
Images
Features
Application
Technical Data
Product Dimension - Plug Only
Dimensions
| Reference | Nylon fixings dimensions | Nylon fixings Installation data | |||||
|---|---|---|---|---|---|---|---|
| Info product[mm] | Installation data | ||||||
| Product Reference | Screw diameter (Min / Max) | Qty per outer box[mm] | Hole diameter x anchor length [dₒxL][mm] | Hole diameter [dₒ][mm] | Min. hole depth* [h₁][mm] | Nominal embedment depth* [hₙₒₘ][mm] | |
| 6007000502500 | X1 evo | - | 3200.0 | Ø5x25 | 5 | 35 | 25 |
| 6007000603000 | X1 evo | Ø4 - Ø5 | 3200.0 | Ø6x30 | 6 | 40 | 30 |
| 6007000804000 | X1 evo | Ø4,5 - Ø6 | 1600.0 | Ø8x40 | 8 | 50 | 40 |
| 6007001005000 | X1 evo | Ø6 - Ø8 | 800.0 | Ø10x50 | 10 | 60 | 50 |
| 6007001206000 | X1 evo | Ø8 - Ø10 | 400.0 | Ø12x60 | 12 | 70 | 60 |
| 6007001407000 | X1 evo | - | 160.0 | Ø14x70 | 14 | 80 | 70 |
| 6007000502530 | X1 evo | - | 15000.0 | Ø5x25 | 5 | 35 | 25 |
| 6007000603030 | X1 evo | Ø4 - Ø5 | 10000.0 | Ø6x30 | 6 | 40 | 30 |
| 6007000804030 | X1 evo | Ø4,5 - Ø6 | 4000.0 | Ø8x40 | 8 | 50 | 40 |
| 6007001005030 | X1 evo | Ø6 - Ø8 | 2000.0 | Ø10x50 | 10 | 60 | 50 |
* Values refer to installation on solid or part hollow base materials.
* Load values, please refer to the document in the download tab of the page.
* These values are for guidance only
Product Dimension - Plug with Chipboard Screw
Dimensions
| Reference | Nylon fixings dimensions | Nylon fixings Installation data | ||||
|---|---|---|---|---|---|---|
| Info product[mm] | Installation data | |||||
| Product Reference | Fixture thickness [tfᵢₓ][mm] | Screw diameter [d][mm] | Screw length [Lv][mm] | Qty per outer box[mm] | Hole diameter x anchor length [dₒxL][mm] | |
| 60071B0502500 | X1 evo | 1.5 | 4 | 30 | 3200.0 | Ø5x25 |
| 60071B0603000 | X1 evo | 5 | 4.5 | 40 | 1600.0 | Ø6x30 |
| 60071B0804000 | X1 evo | 5 | 5 | 50 | 800.0 | Ø8x40 |
| 60071B1005000 | X1 evo | 5 | 6 | 60 | 400.0 | Ø10x50 |

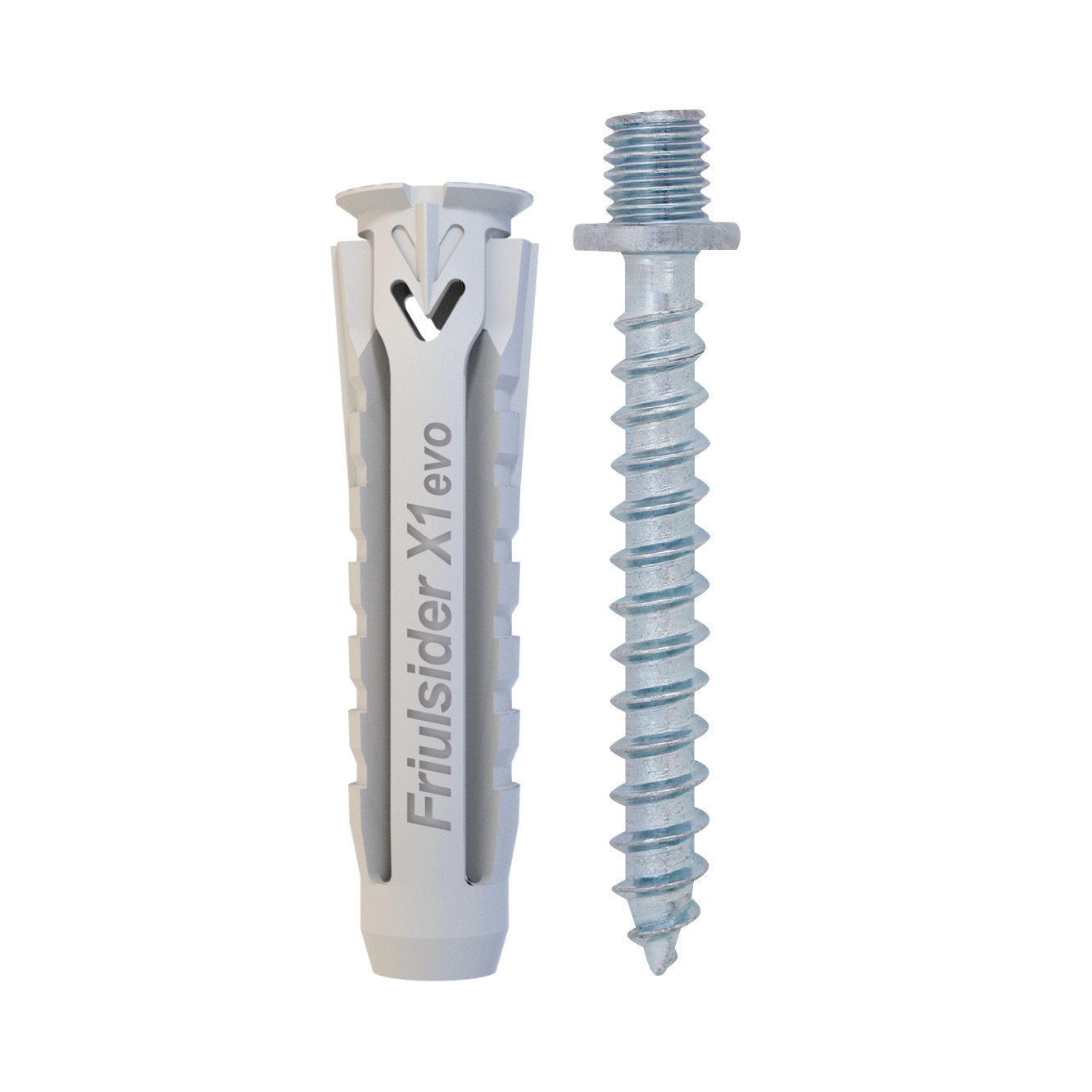

Product Dimension - Plug with Double Threaded Screw
Dimensions
Table "Product Dimension - Plug with Double Threaded Screw" cannot be displayed : no references available.

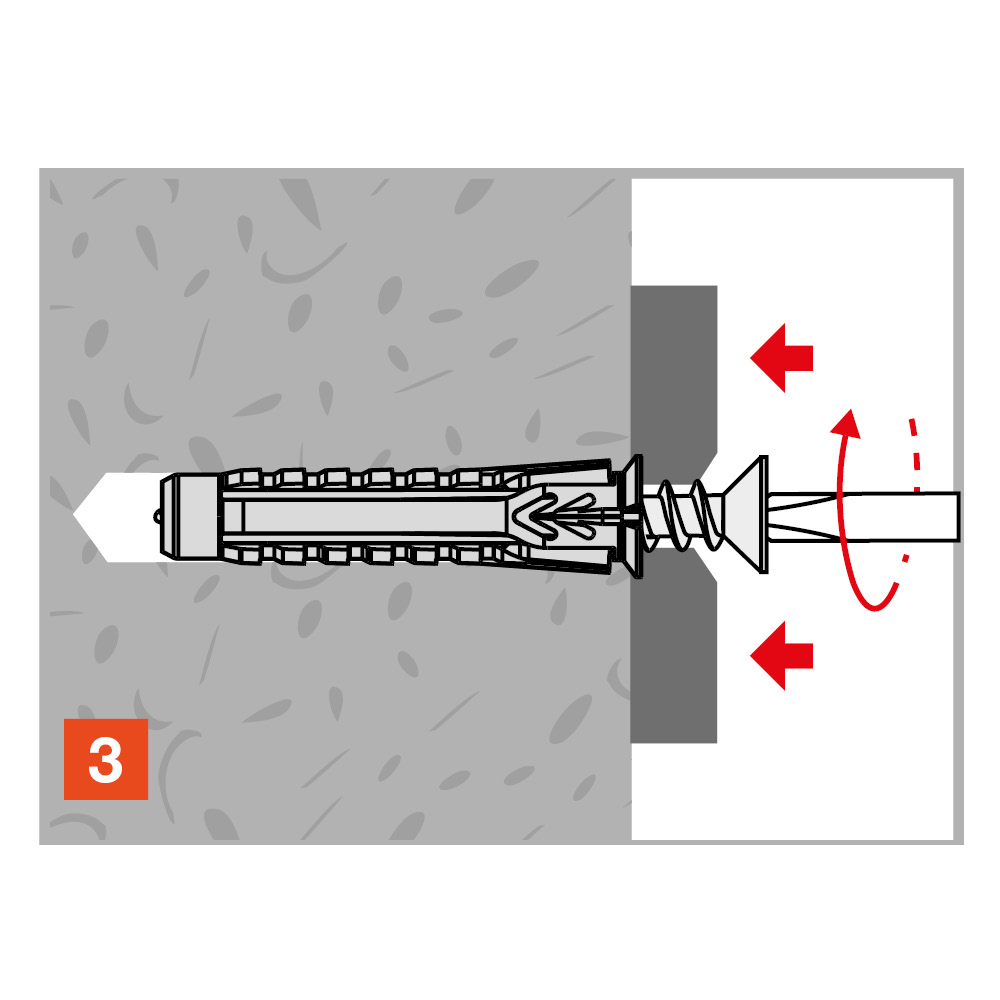

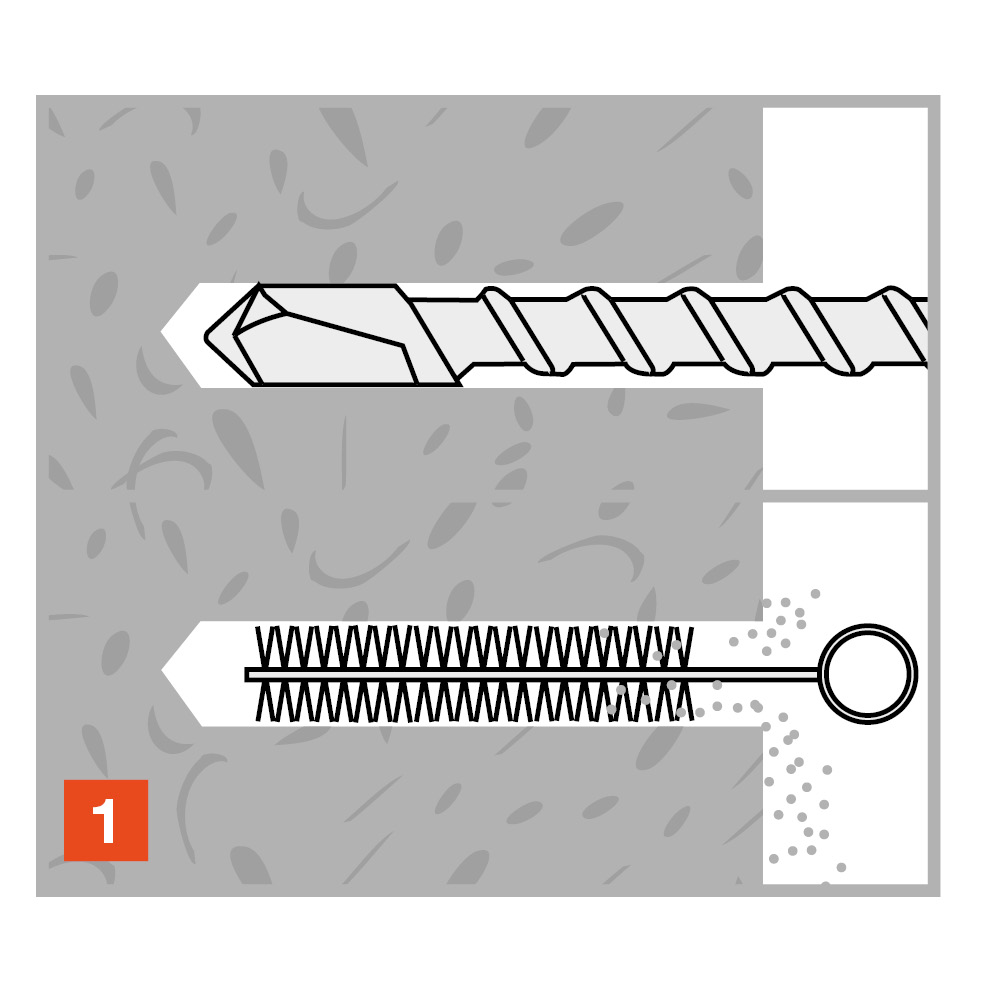

Installation

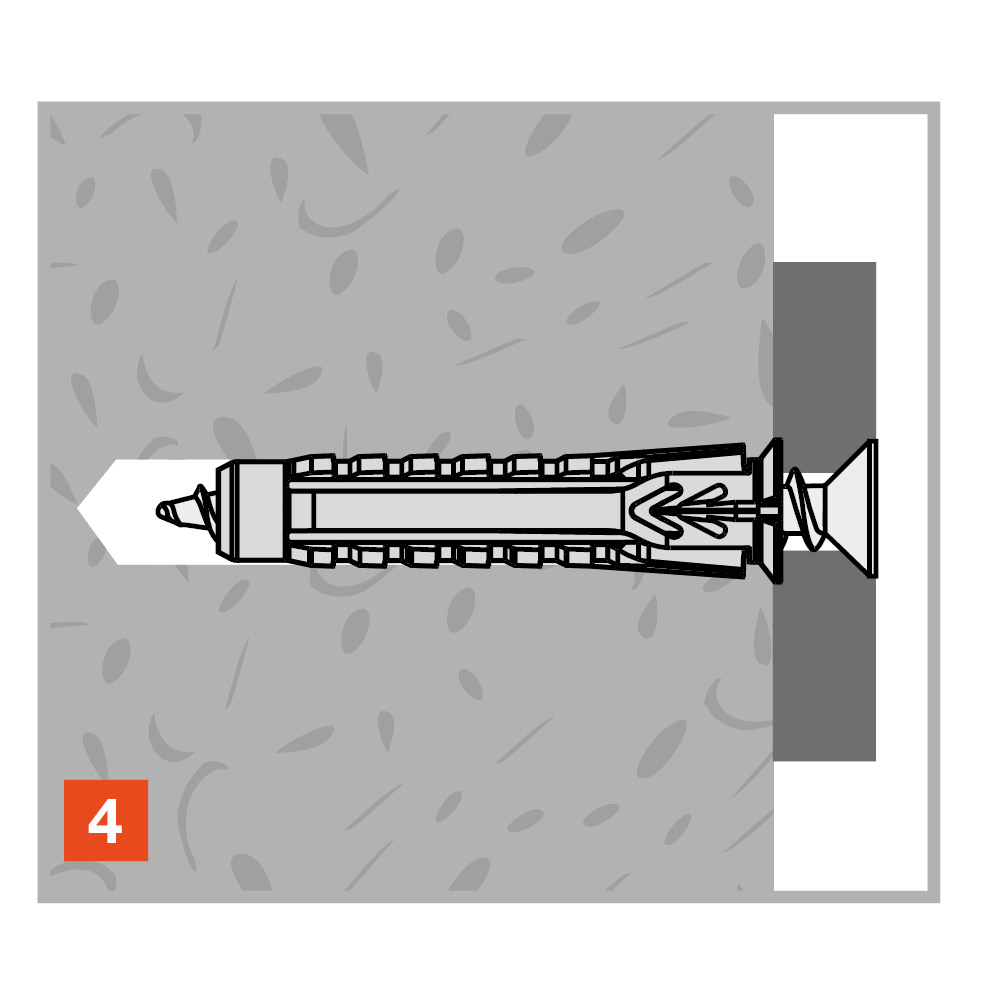

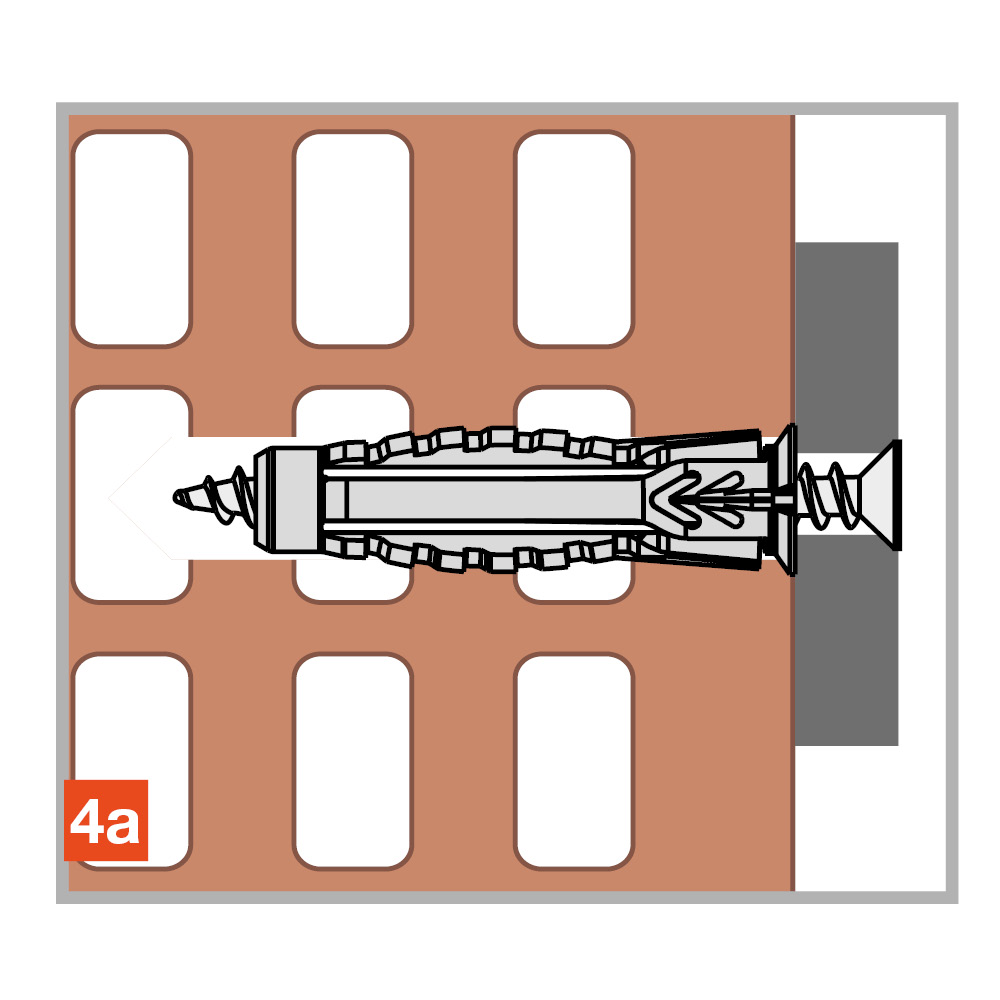

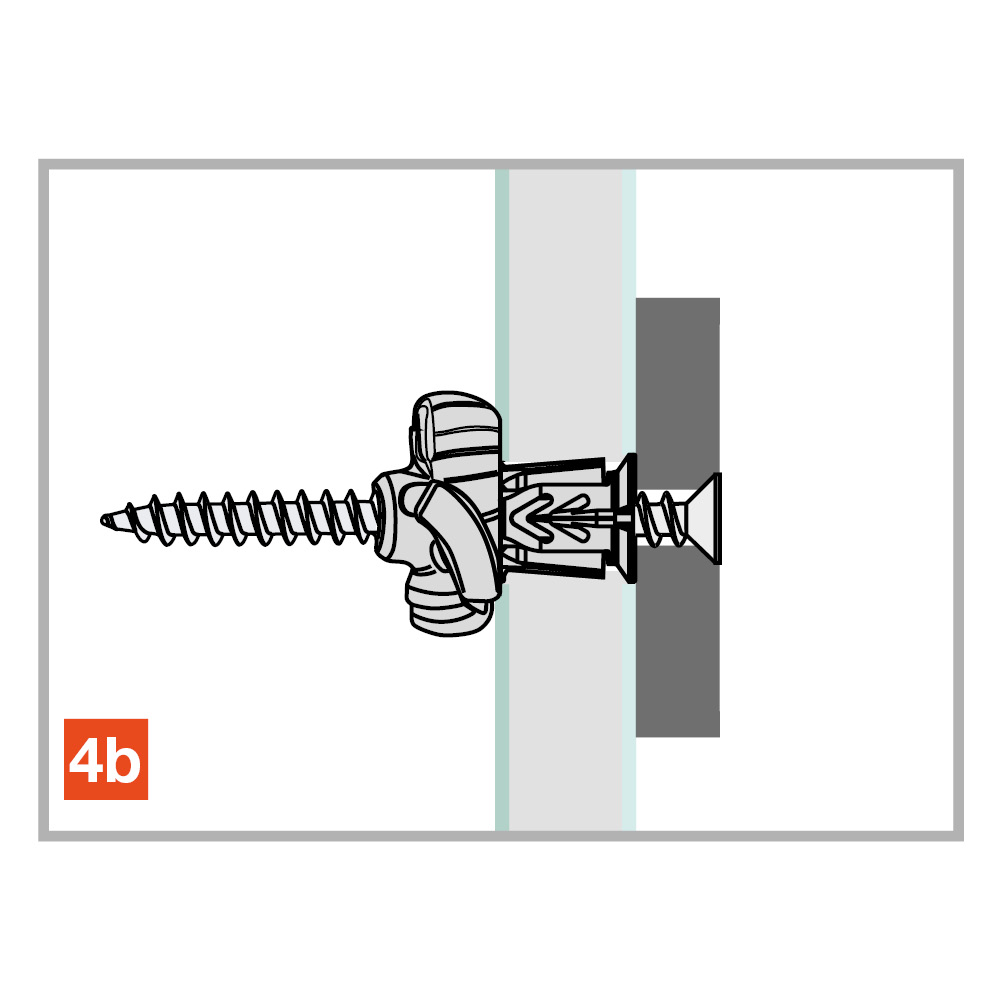

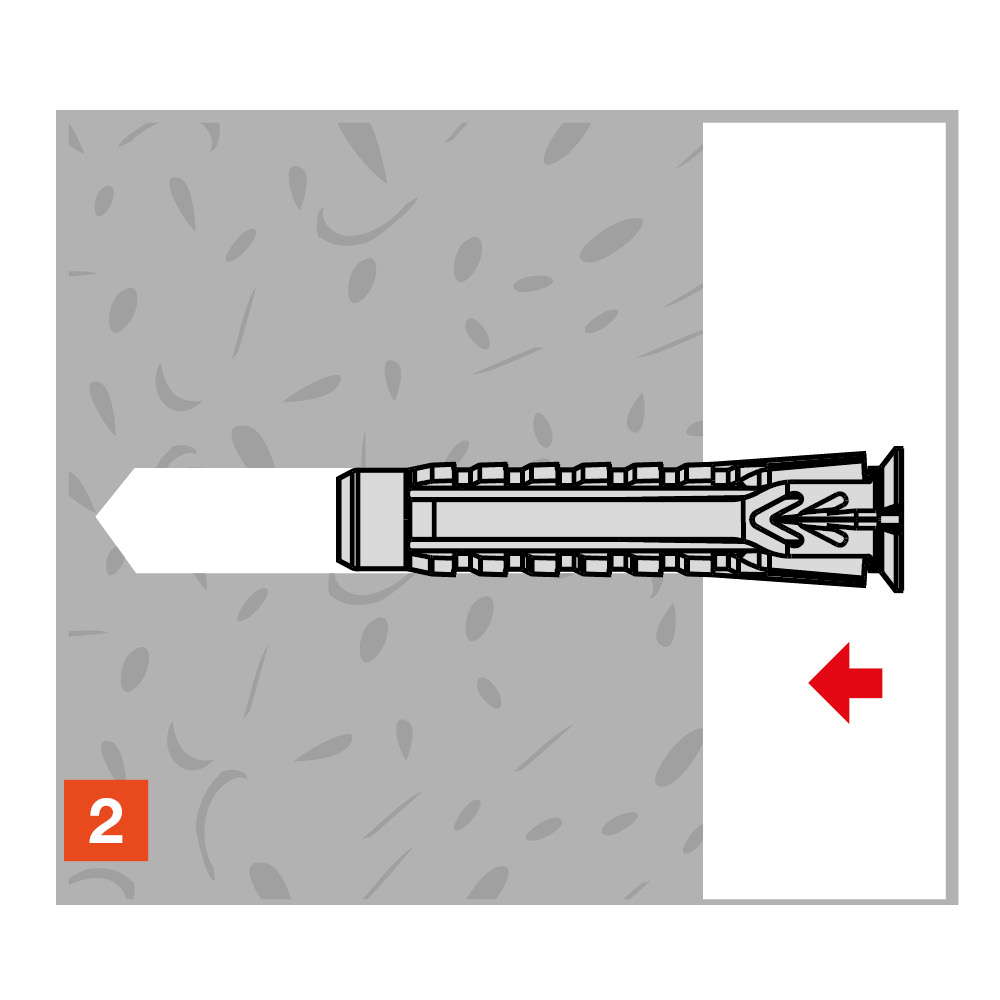

Installation
