FPHSD

FPHSD STEEL FRAMING Screw, Flat Head

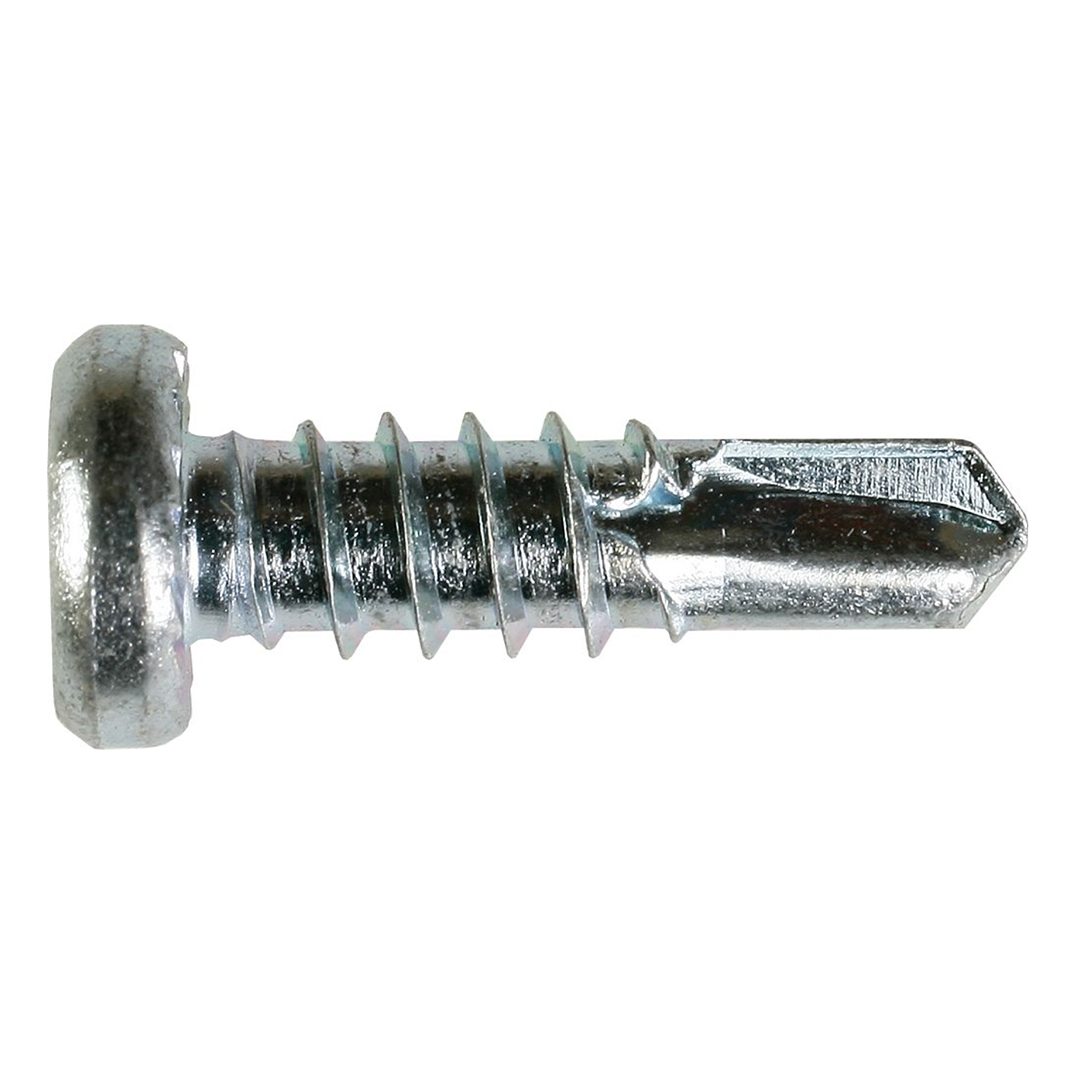

FPHSD is a self-drilling flat pan head screw with a #3 drill point tip suitable for light gauge steel frame assembly. The #3 drill point allows the screw to penetrate the steel without the need for a pilot hole. Driver bits included with boxes of Quik Drive collated screws.

Available as loose screws in bulk quantity of 100,000 screws under code FPHSD34S1214R. Driver bits not included with loose screws.

Service class 2
Electro-galvanized steel
Indoor

Product Details

Images

Features

Material

  • Steel - electro galvanised

Features

  • Light gauge steel framing (up to 5.5 mm thickness) applications
  • Bit (BIT3SE) included

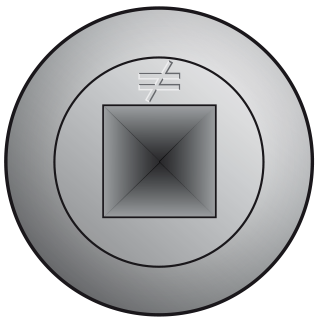

  • Flat pan head for optimum torque
  • Drill point tip with fine thread for self drilling into steel frame

Application

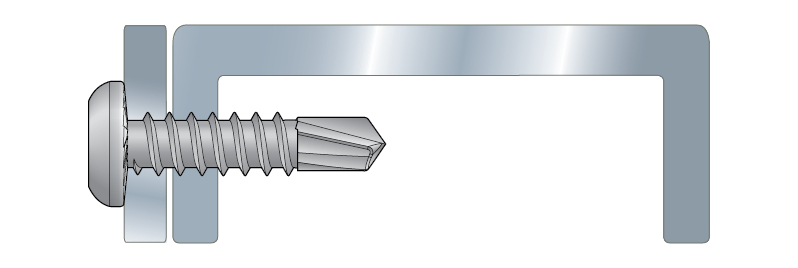

Header member

  • Steel to steel (maximum material thickness 2.0 mm)

Common Applications

  • Construction and steel frame assembilies
  • Steel to steel applications

Technical Data

Dimensions

Product Dimensions UK

References Fastener dimensions [mm] Qty per Strip Qty per Box Recommended RPM Quik Drive Attachment
dh d l
FPHSD34S1016 9 4.8 19 23 2500 2500 QDPROPHG2
FPHSD34S1214 9 5.5 19 23 2500 2500 QDPROPHG2
FPHSD34S1214R 9 5.5 19 - 100000 - -

Performance Values

References Performance Values [kN] / Member Thickness [mm]
Shear Tension
Safe Working Loads [kN] Characteristic Loads [kN] Safe Working Loads [kN] Characteristic Loads [mm]
1.2 1.6 [mm] 1.2 [mm] 1.6 [mm] 1.2 [mm] 1.6 [mm] 1.2 [mm] 1.6 [mm]
FPHSD34S1214 2.2 2.7 3.5 4.3 1.1 1.4 1.7 2.3
FPHSD34S1214R 2.2 2.7 3.5 4.3 1.1 1.4 1.7 2.3
