FT

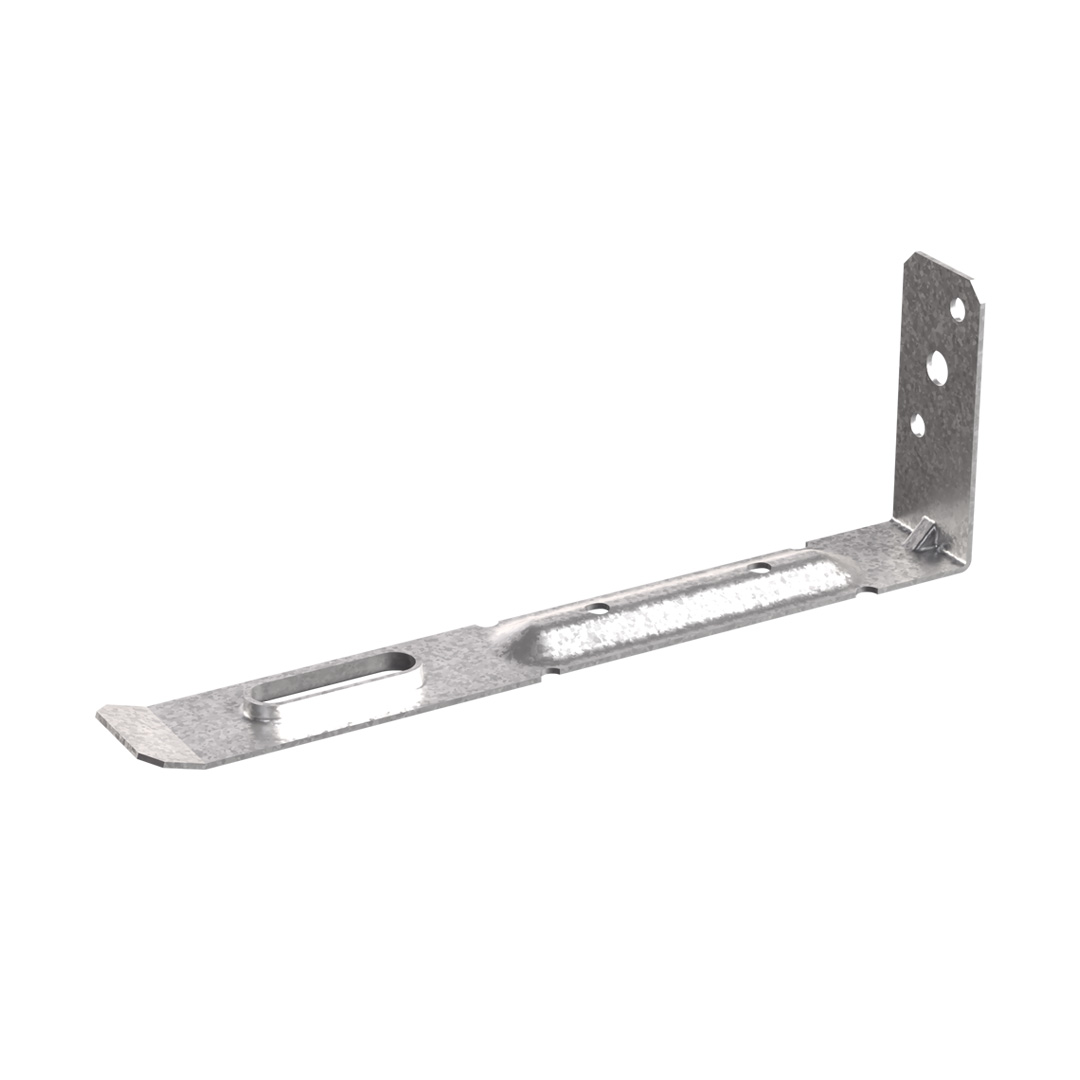

Frame Tie

When fixing windows, door frames etc. to masonry, the frame tie provides
enhanced mortar keying and reduces the risk of injury from sharp edges.

Note: Frame tie should be fully embedded into mortar.

Product Details

Images

Technical Data

Dimensions

Product Dimensions

References Material Dimensions [mm] Holes
A B C t Flange C
Ø4.1 Ø6
FT150 Galvanised 21.5 100 50 1 2 1
FT200 Galvanised 21.5 150 50 1 2 1
FT250 Galvanised 21.5 200 50 1 2 1
FT150S Stainless Steel 21.5 100 50 1 2 1
FT200S Stainless Steel 21.5 150 50 1 2 1
FT250S Stainless Steel 21.5 200 50 1 2 1

NOTE: not suitable for cavity wall construction
