A34

Framing Anchor/Universal Framing Anchor

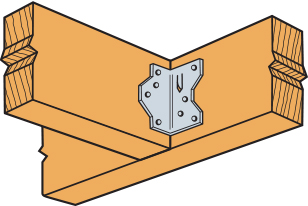

The A34E anchor’s exclusive bending slot allows instant, accurate bending on site for all two and three-way connections.

Balanced, completely reversible design allows the A34E to be used to secure a wide variety of connections.

Technical Data Sheet

CE Marking

ETA

EPD

Technical Data

A34 / A35

Dimensions

Reference	Connector Dimensions
	Product Dimensions[mm]				Joist	Flange B
	A[mm]	B[mm]	C[mm]	t[mm]	Round	Round
	A[mm]	B[mm]	C[mm]	t[mm]	Ø4.1	Ø4.1
A34E	33	33	64	1.2	4	4

A34E Performance Values

Reference	Connector Dimensions	Ties capacity
	Other	Product characteristic capacities - Timber C24[kN]		Safe Working Load - Timber C16[kN]
	Installation Type	Number of Fasteners		Long Term						Medium Term
		Flange B	Joist	R1,SWL	R2,SWL	R3,SWL	R4,SWL	R5,SWL	R6,SWL	R1,SWL	R2,SWL	R3,SWL	R4,SWL	R5,SWL	R6,SWL
		N.3.75x30	N.3.75x30	R1,SWL	R2,SWL	R3,SWL	R4,SWL	R5,SWL	R6,SWL	R1,SWL	R2,SWL	R3,SWL	R4,SWL	R5,SWL	R6,SWL
A34E	1	4	4	1.3	1.3	-	1.1	-	-	1.5	1.5	-	1.2	-	-

(3) Based upon 2 No brackets installed diagonally opposite to each other
