RSND34G

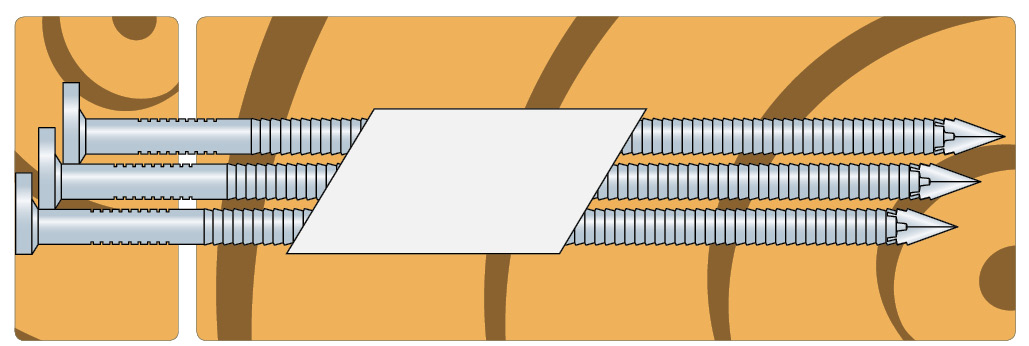

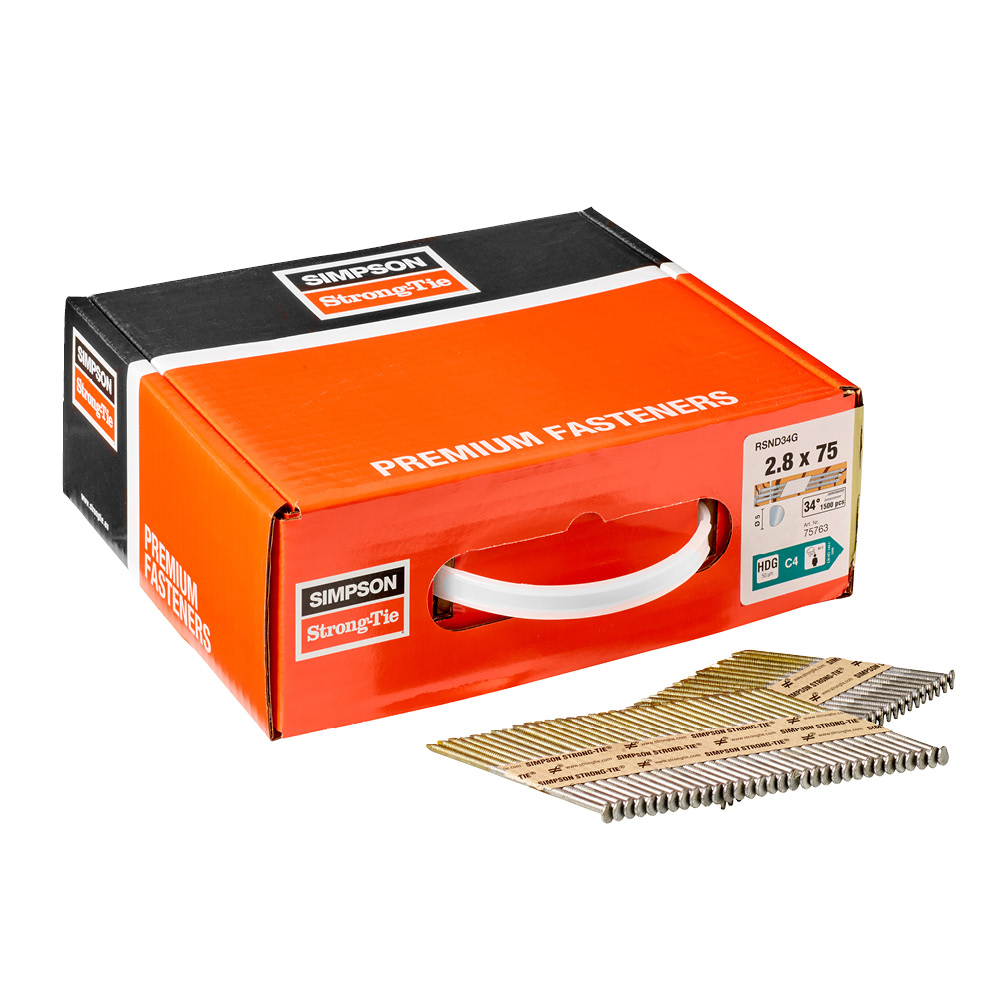

Framing Nail 34° Paper tape - Clipped Head, Ring shank - HDG

The framing nail is used for wood to wood constructions. The clipped head and the tight collation means that more nails can be loaded in the tools and the ring shank increases the withdrawal capacity.

Technical Data Sheet

CE Marking

Service class 3

EPD

Hot-dip galvanised steel

Outdoor

Fastener Designer

Product Details

Images

Features

Advantages

Clipped head (D-head)
High withdrawal capacity
Hot dip galvanised
Annular ring thread
Paper tape 34°

Application

Support

Framing wood to wood

Technical Data

Product dimensions

Reference	Fasteners Dimensions
	Item Code	Other			Product Dimensions[mm]
	Item Code	Tun / DB nr.	NOB nr.	Weight[kg]	d[mm]	l[mm]	dh[mm]	Aₕ[mm]	ht[mm]	tfix[mm]
RSND34G2.8X65	75762	2056109	55837755	0.004	2.8	65	5	19.6	1.1	48.2
RSND34G2.8X75	75763	2056110	55837766	0.004	2.8	75	5	19.6	1.1	58.2

Product characteristic properties

Reference	Nail characteristic parameters
	Characteristic parameters
	Characteristic Yield Moment My,k[Nm]	Characteristic Withdrawal Parameter fax,k,90°[N/mm²]	Characteristic Head Pull-Through Parameter fhead,k[N/mm²]	Characteristic tensile capacity - fₜₑₙₛ,ₖ[kN]
RSND34G2.8X65	3.2	9.3	22.9	3.1
RSND34G2.8X75	3.2	9.3	22.9	3.1

Certification

Declaration of Performance (DoP)

uk-dop-h19-0011-s02-0.pdf

Show history

2019-05-31

uk-dop-h19-0011-s1-0.pdf

Environmental Product Declarations (EPD)

epd-certificate-sst-nails
