RSN34G

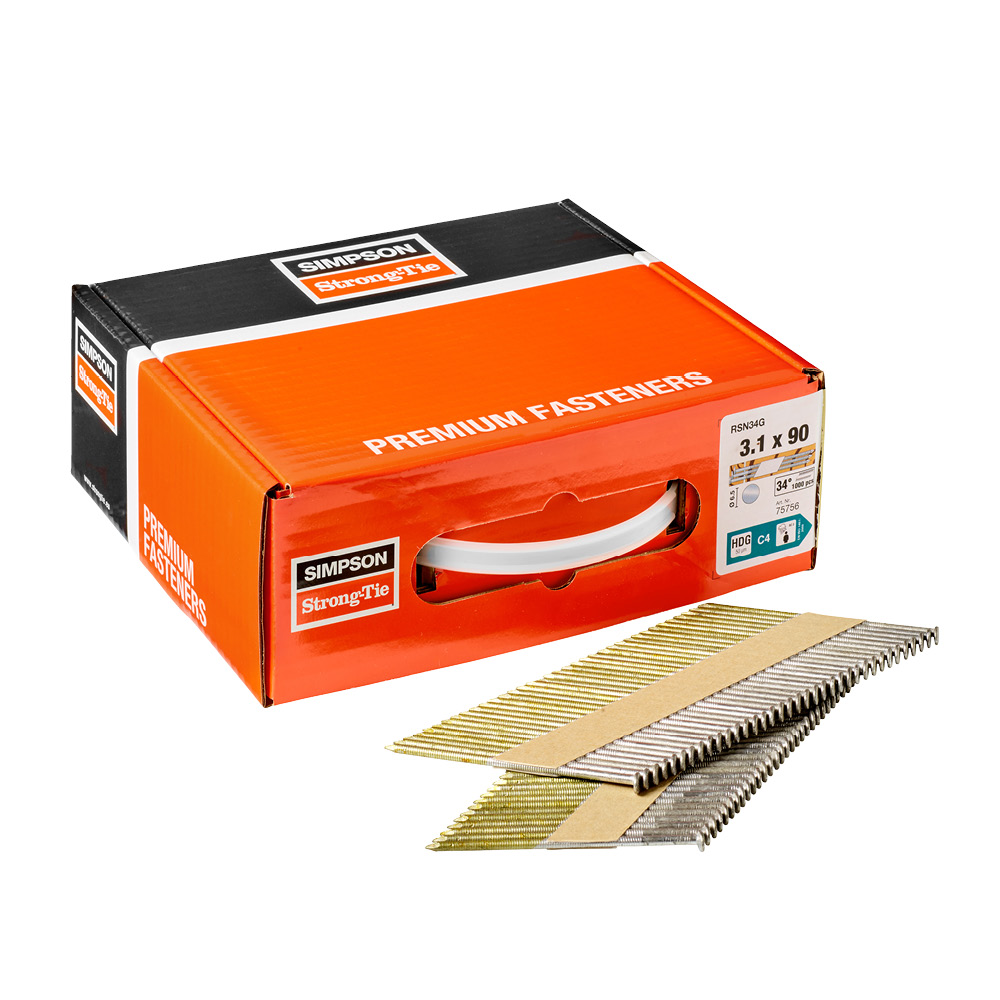

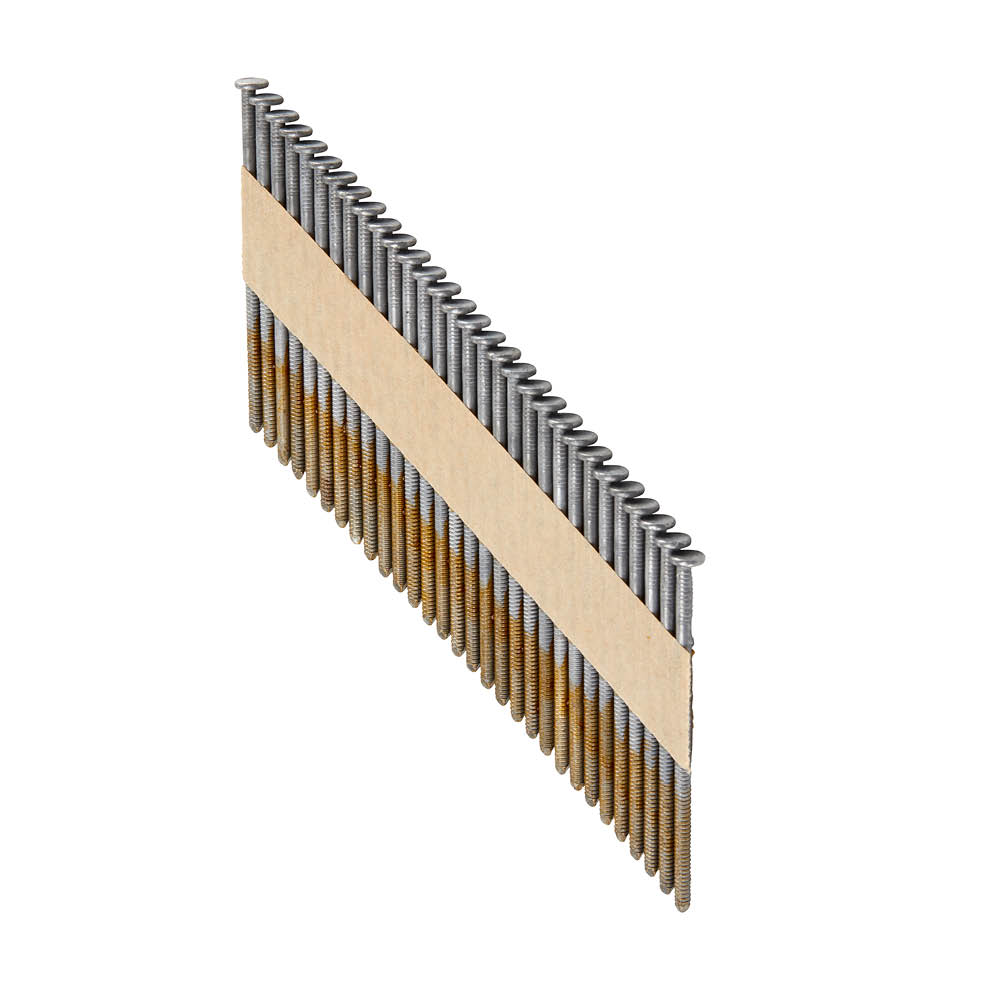

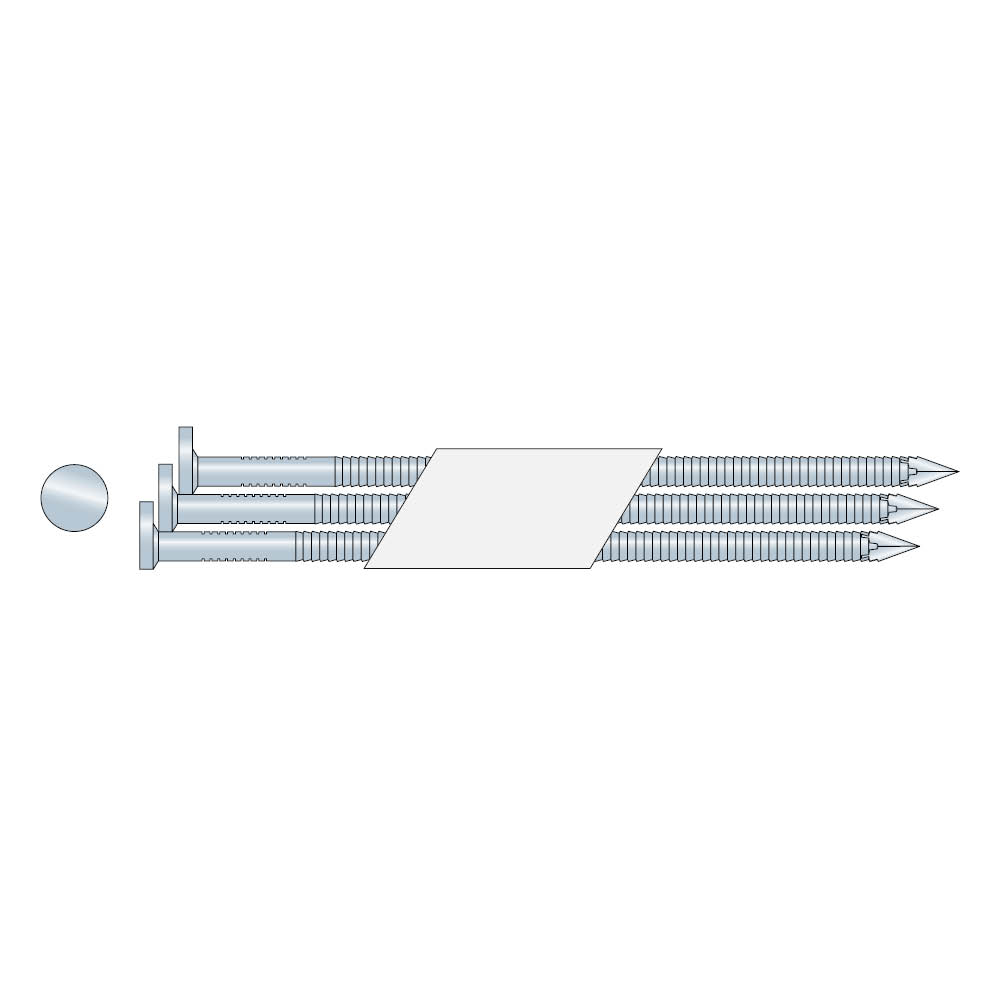

Framing Nail 34° Paper tape - Off-set Round Head, Ring shank - HDG

The framing nail is used for wood to wood constructions. The round (off-set) head gives a good visual end result and the ring shank increases the withdrawal capacity.

CE Marking
CE Marking
Hot-dip galvanised steel
Hot-dip galvanised steel
Outdoor
Outdoor
EPD
EPD
Service class 3
Service class 3
Fastener Designer
Fastener Designer
RSN34G_SSTBP_homepage_DK_da

Product Details

Images

Features

Advantages

  • Off-set round head
  • High withdrawal capacity
  • Hot dip galvanised
  • Annular ring thread
  • Paper tape 34°

Application

Support

  • Framing wood to wood

Technical Data

Product dimensions

ReferenceFasteners Dimensions
Item CodeOtherProduct Dimensions[mm]
Tun / DB nr.NOB nr.Weight[kg]d[mm]l[mm]dh[mm]Aₕ[mm]ht[mm]lp[mm]tfix[mm]
RSN34G2.8X65757542056101558377360.0042.8656.533.21.33.248.2
RSN34G2.8X75757552056102558377210.0052.8756.533.21.33.258.2
RSN34G3.1X90757562056103558377170.0073.1886.533.21.33.569.4

Product characteristic properties

ReferenceNail characteristic parameters
Characteristic parameters
Characteristic Yield Moment My,k[Nm]Characteristic Withdrawal Parameter fax,k,90°[N/mm²]Characteristic Head Pull-Through Parameter fhead,k[N/mm²]Characteristic tensile capacity - fₜₑₙₛ,ₖ[kN]
RSN34G2.8X653.210.730.13.1
RSN34G2.8X753.210.730.13.1
RSN34G3.1X904.49.520.83.1

Certification

Declaration of Performance (DoP)

Show history

Environmental Product Declarations (EPD)

ZIP Packages
