Fasteners

Nails

FIRKD34G

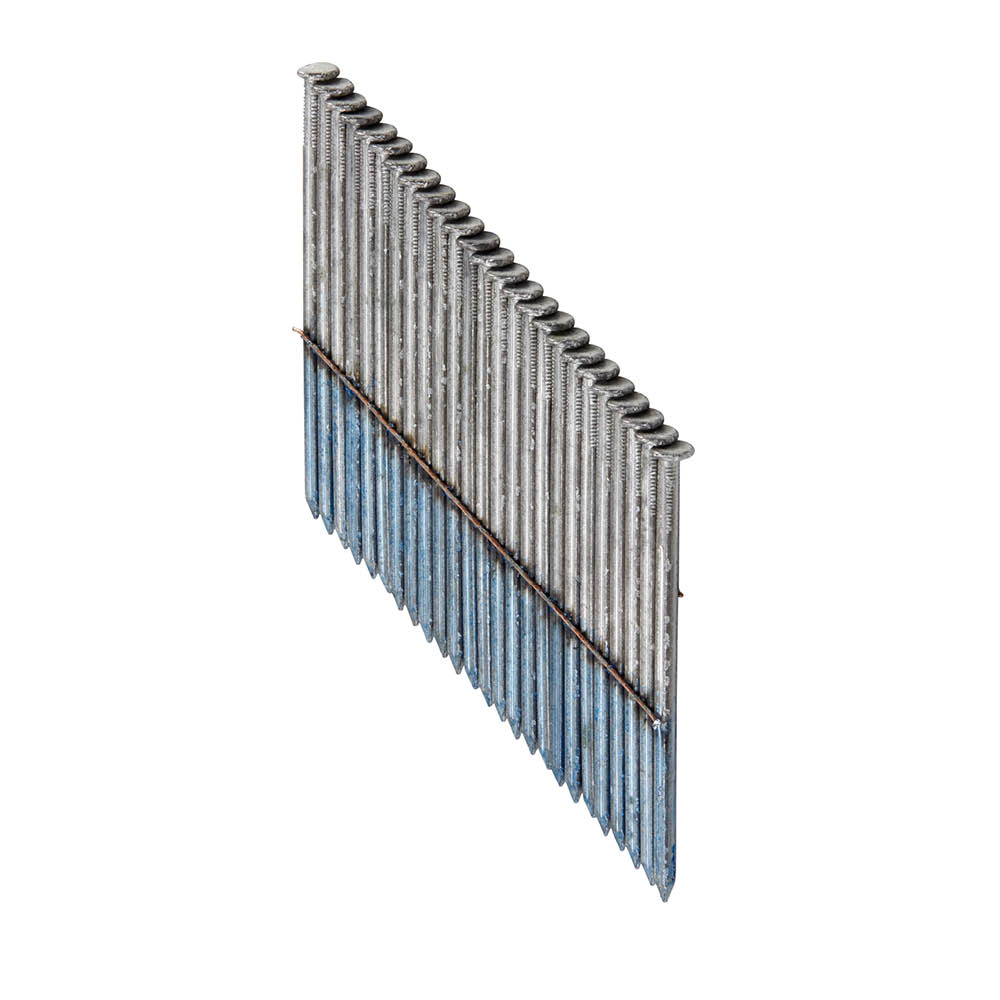

Framing Nail 34° Wire Weld - Clipped Head, Grooved - HDG

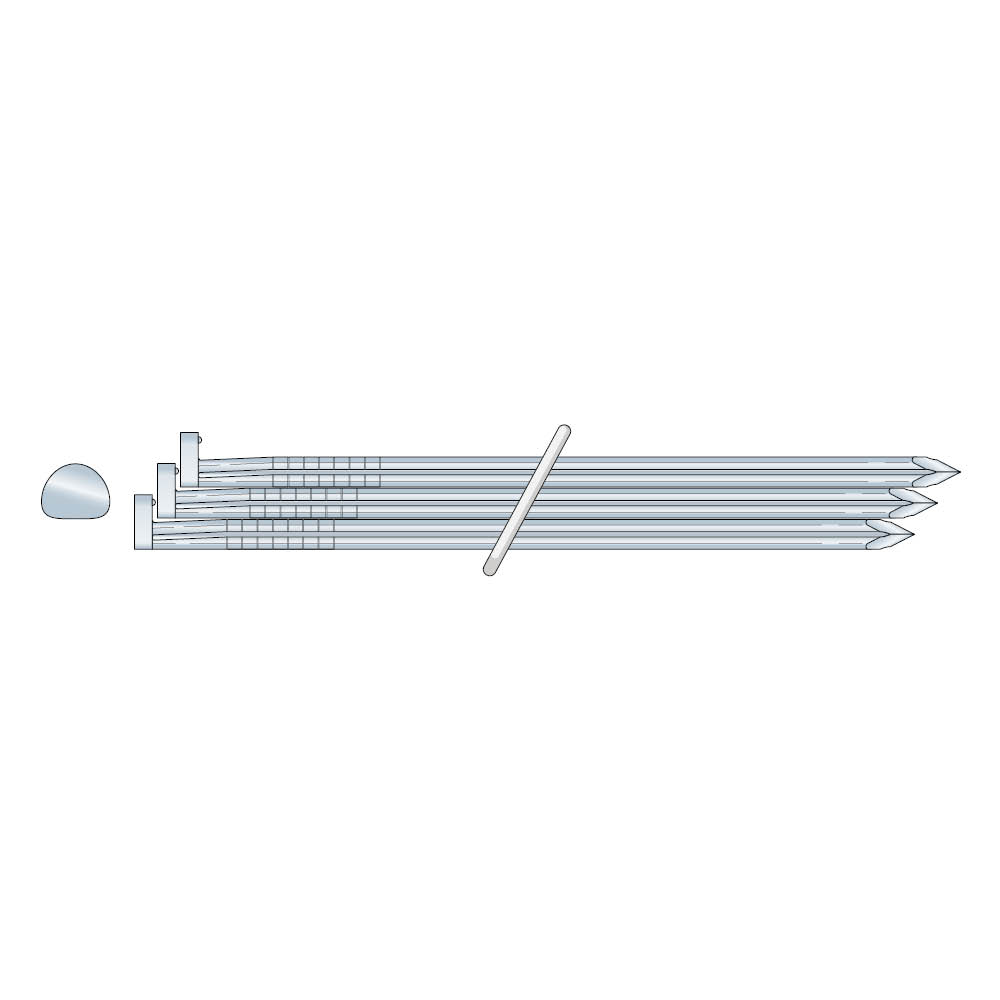

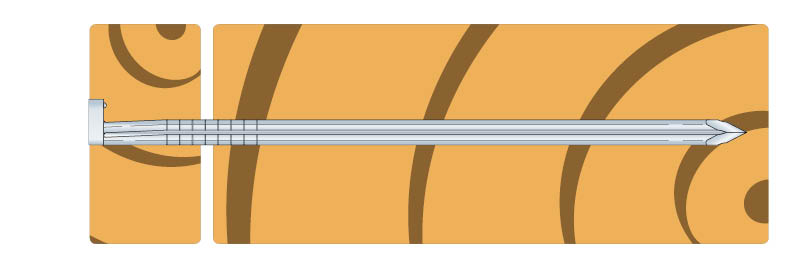

The framing nail is used for wood to wood constructions. The clipped head and the tight collation means that more nails can be loaded in the tools, the wire weld collation is not affected by wetness, storage time or temperature. The grooved shank increases the shear capacity.

Technical Data Sheet

CE Marking

Outdoor

Hot-dip galvanised steel

Service class 3

Fastener Designer

Technical Data

Product dimensions

Reference	Fasteners Dimensions
	Item Code	Other			Product Dimensions[mm]
	Item Code	Tun / DB nr.	NOB nr.	Weight[kg]	d[mm]	l[mm]	dh[mm]	d1[mm]	Aₕ[mm]	ht[mm]	lg[mm]	lp[mm]	tfix[mm]	bit[mm]
FIRKD34G2.9X65	75645	2055999	55837702	0.004	2.8	64	11.5	-	23.8	1.6	-	4.2	47.2	-
FIRKD34G2.9X75	75646	2056000	55837698	0.005	2.8	73	11.5	-	23.8	1.6	-	4.2	56.2	-
FIRKD34G2.9X90	75647	2056001	55837683	0.006	2.8	87	11.5	-	23.8	1.6	-	4.2	70.2	-

Product characteristic properties

Reference	Nail characteristic parameters
	Characteristic parameters
	Characteristic Yield Moment My,k[Nm]	Characteristic Withdrawal Parameter fax,k,90°[N/mm²]	Characteristic Head Pull-Through Parameter fhead,k[N/mm²]	Characteristic tensile capacity - fₜₑₙₛ,ₖ[kN]	Characteristic torsional strength - ftor,k[Nm]	Torsional ratio
FIRKD34G2.9X65	3.7	2.5	20.5	-	-	-
FIRKD34G2.9X75	3.7	2.5	20.5	-	-	-
FIRKD34G2.9X90	3.7	2.5	20.5	-	-	-

Certification

Declaration of Performance (DoP)

uk-dop-h19-0007-s1-0.pdf
