GPC

Gable Panel Connector

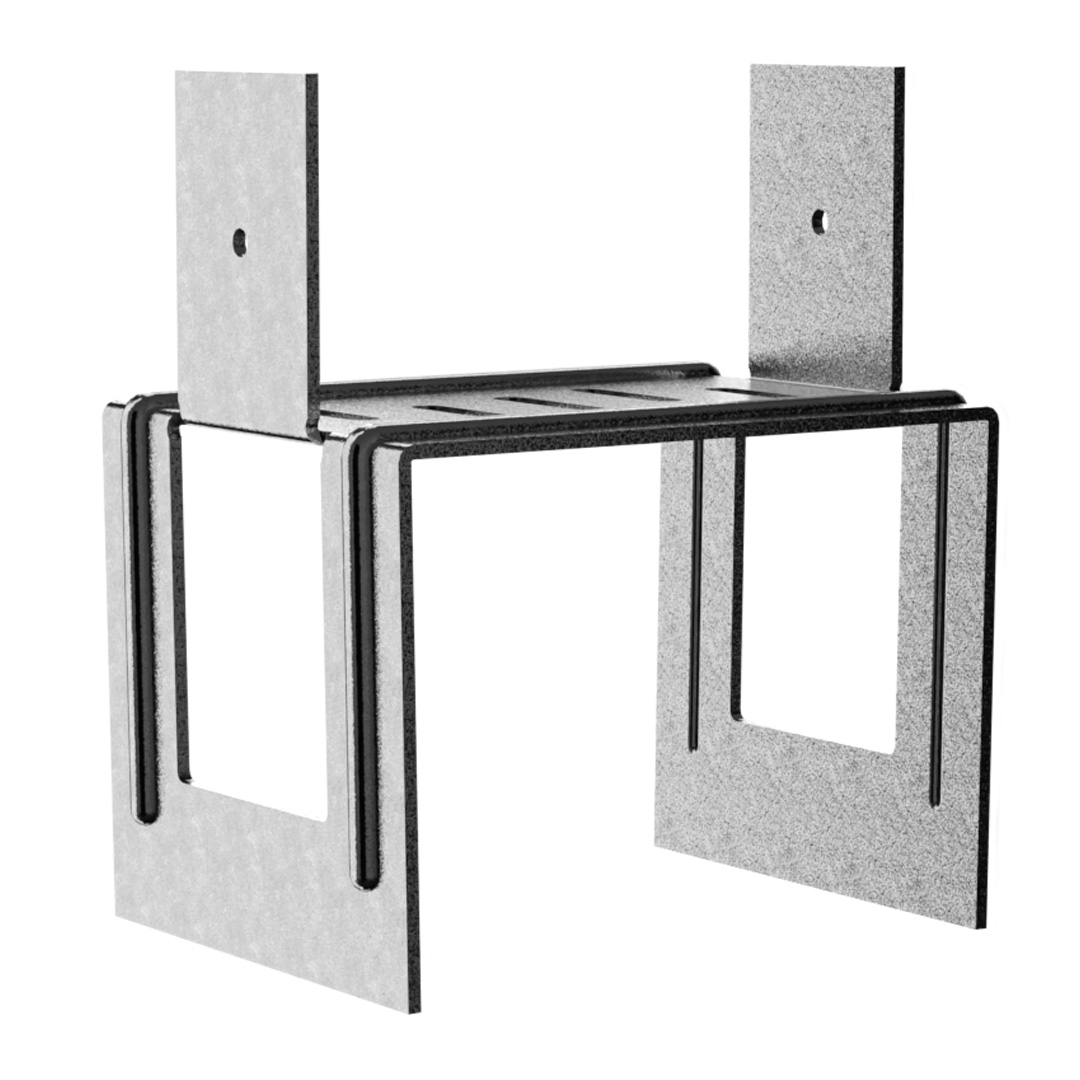

The GPC is a connector that forms part of a mechanism that provides lateral restraint to the gable wall by the roof structure.


The connectors have been developed to safely transfer lateral wind loads from the gable end into the braced roof diaphragm, giving installation options onto a continuous wall plate.

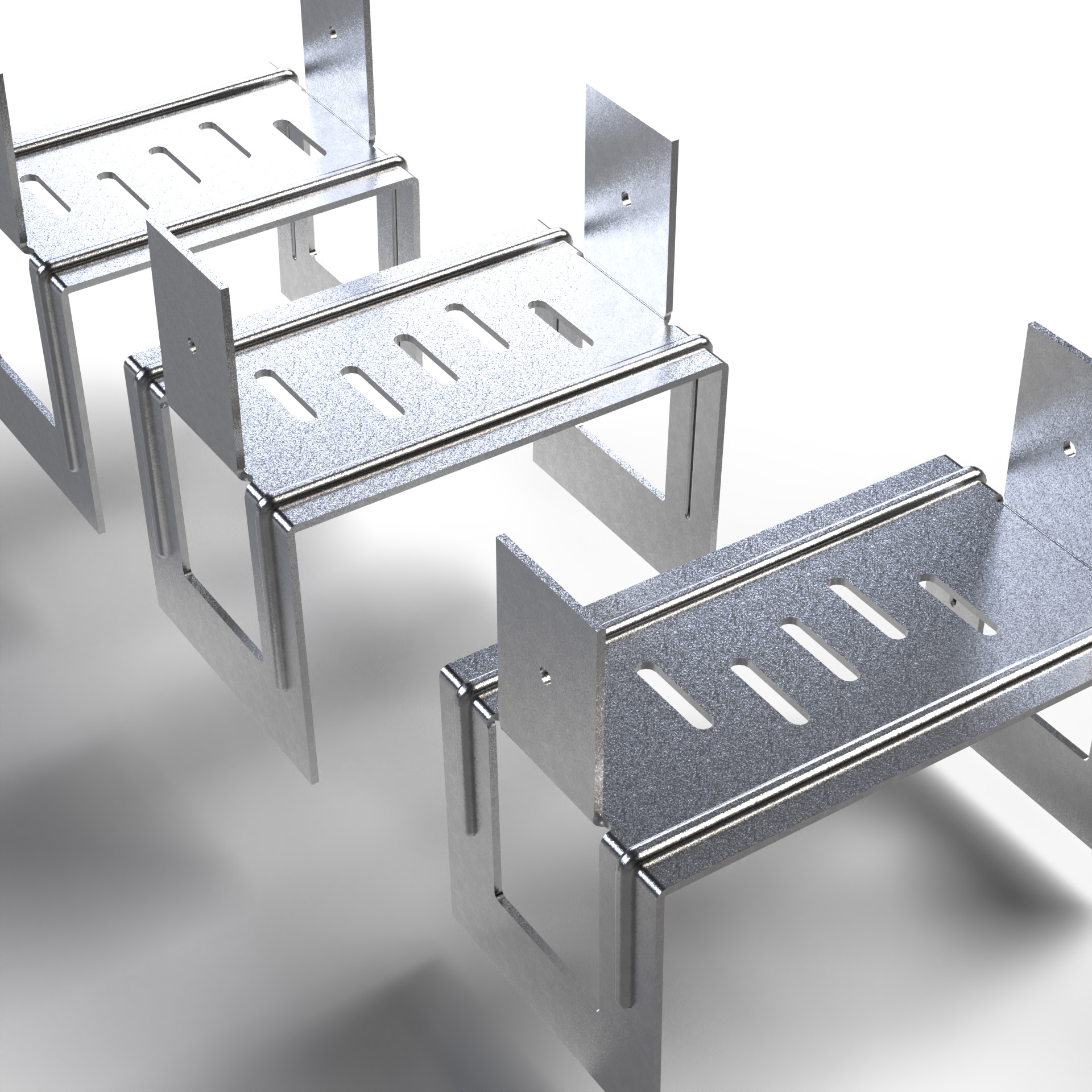

Available in sizes to suit 100mm, 115mm and 140mm masonry walls.

  • Easy & quick to install with no masonry fasteners required
  • Sits directly on the top of the top layer of blockwork

Product Details

Technical Data

Dimensions

Product Dimensions

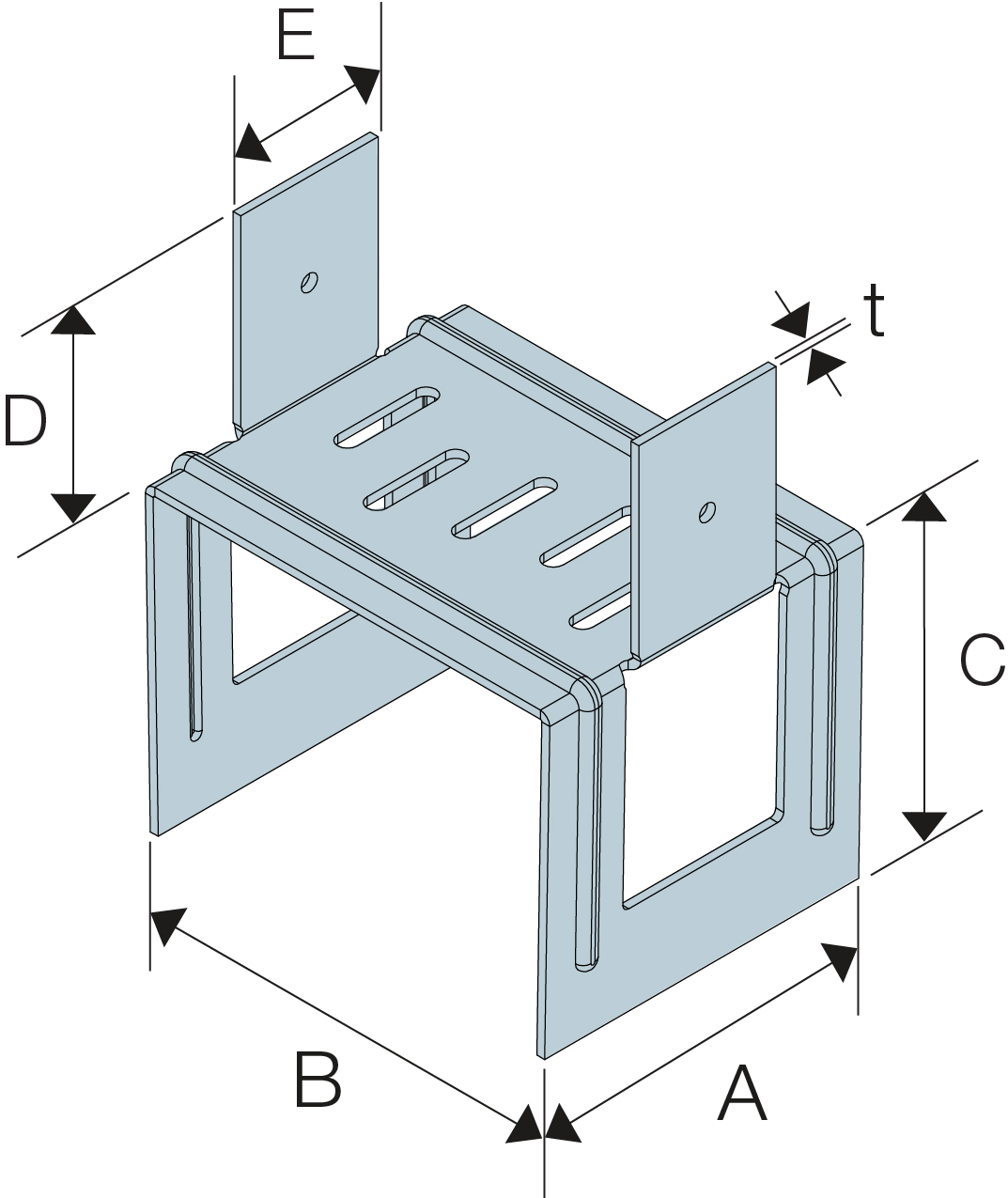

References Connector Dimensions [mm] Fixing Holes
A B C D E t Wall Plate
Ø4.1mm
GPC100 80 100 75 50 35 2 2
GPC115 80 115 75 50 35 2 2
GPC140 80 140 75 50 35 2 2

Product Characteristics

References Fixing Performance Values
Wall Plate Characteristic Capacities Safe Working Loads [kN]
Qty Type R3,k=R4,k Characteristic Capacity
GPC100 2 N3.75x30 Nails or CSA4.0x30 Screws 4.2 2.8
GPC115 2 N3.75x30 Nails or CSA4.0x30 Screws 4.2 2.8
GPC140 2 N3.75x30 Nails or CSA4.0x30 Screws 4.2 2.8

Installation

Installation

Installation

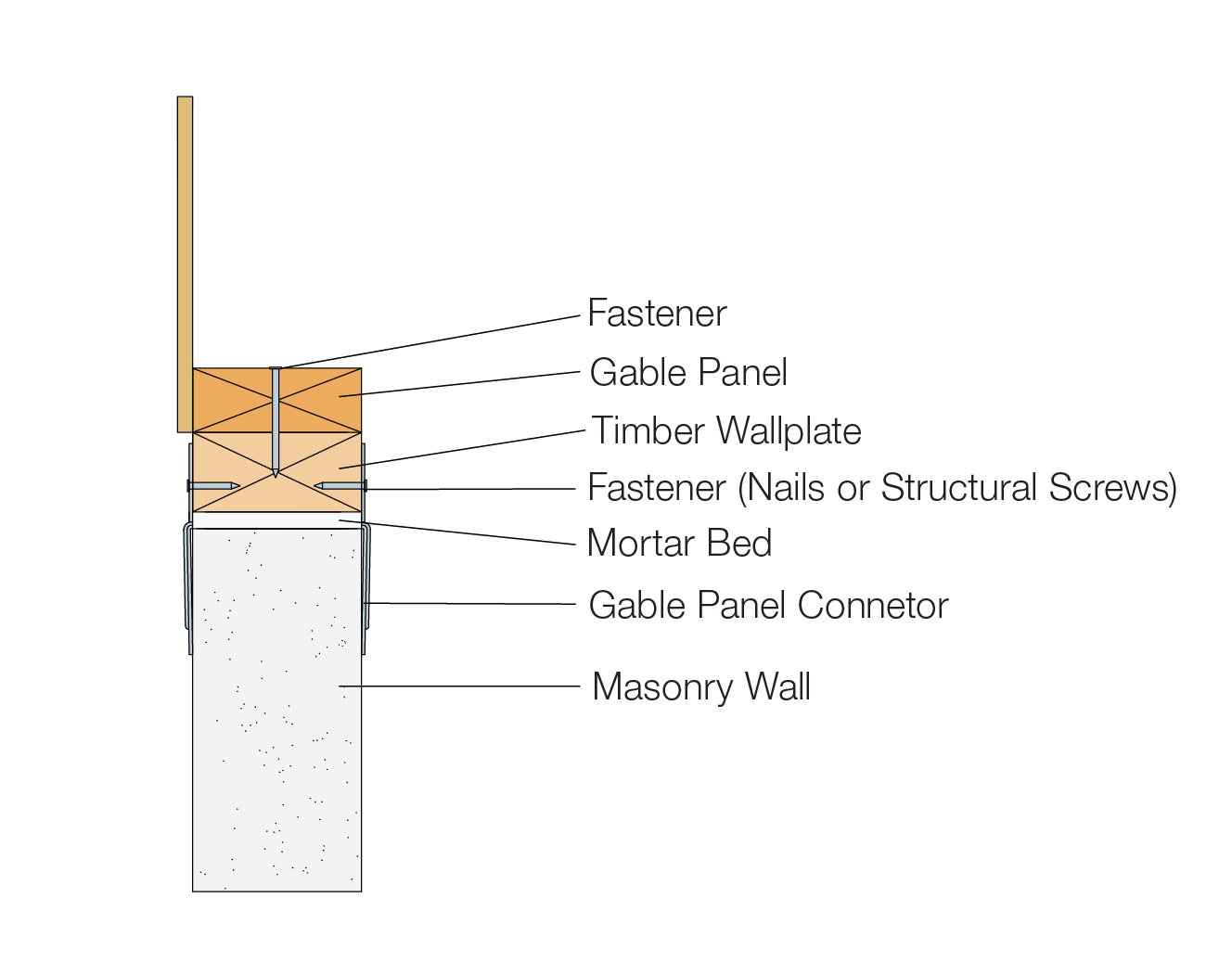

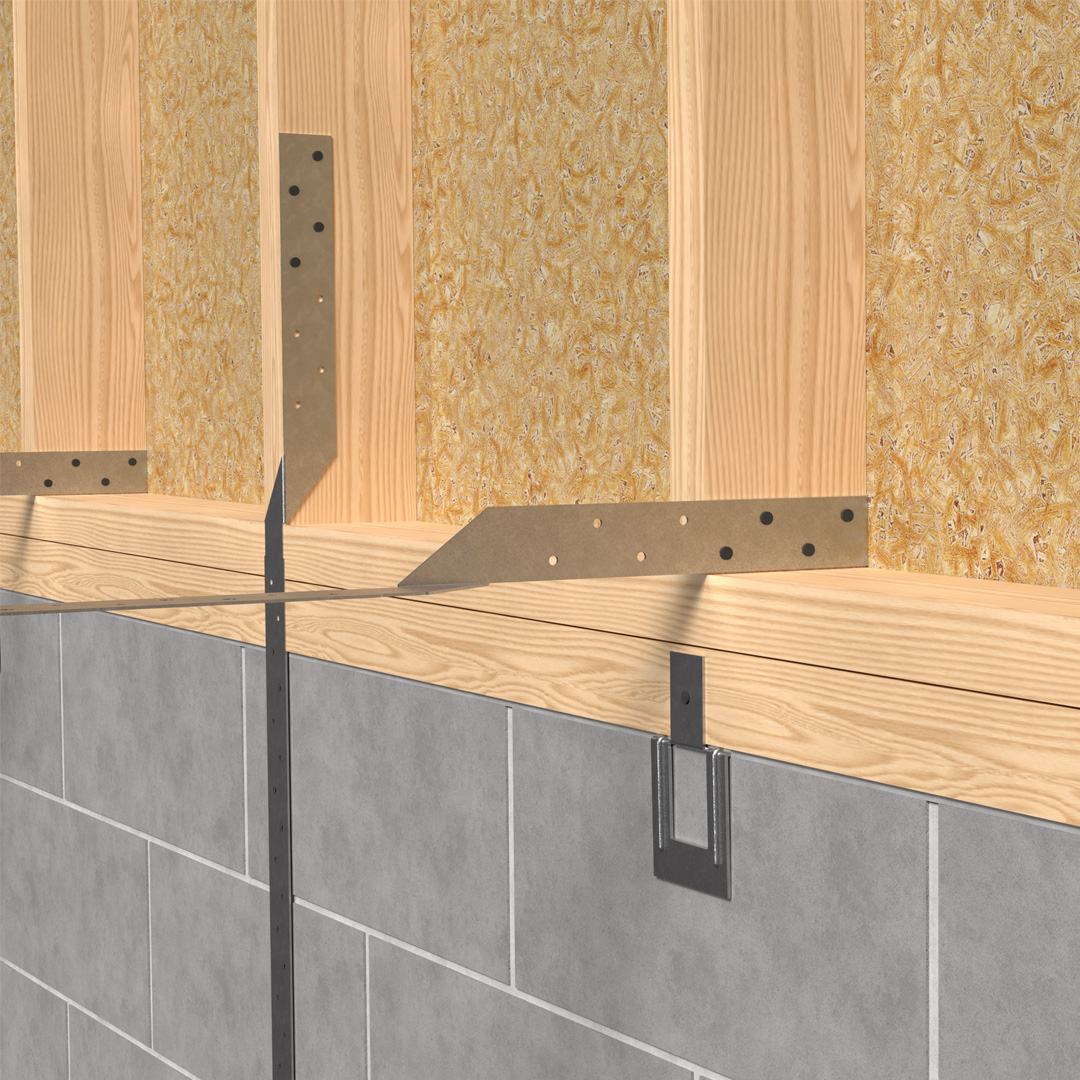

  • Suitable for use on Continuous Wall Plate and Raised Wall Plate Installations.
  • Install directly onto the top block, dry bedded & spaced to provide 2kN/m lateral capacity
  • Lay mortar between GPC & wall plate to allow the wall plate to be levelled.
  • Fix the connector to the wall plate using 2 No 3.75x30mm square Twist Nails, or 2 No 4.0x30mm Wood Screws (SIMPSON Strong-Tie CSA4.0x30mm or equivalent)
  • Fix the bottom rail of the Timber Gable Panel to the wall plate with either structural screws or nails, ensuring fasteners achieve minimum lateral capacity of 2kN/m.
  • Connection details between the gable panel and wallplate are to be designed by the building designer ensuring required loads are transferred between the timber gable panel and the wallplate.
  • To hold the timber gable panel down onto the supporting masonry wall either LES10B10, LTS1400E or L12F00 should be used.
  • For the transfer of wind loads from the gable wall (timber gable panel and/or masonry) to the roof structure either LTS1400E or HES15B10 lateral restraint straps should be used.
  • The quantity and installation centres for the GPC, lateral restraint straps and hold down straps hould be specified by the building designer or structural engineer.
  • Meets the minimum requirement of Building Regulations 2010 approved document A, Scottish Building Regulations domestic, NHBC Standards for houses of 3 storeys or less - England and Wales and 2 storeys or less - Scotland.

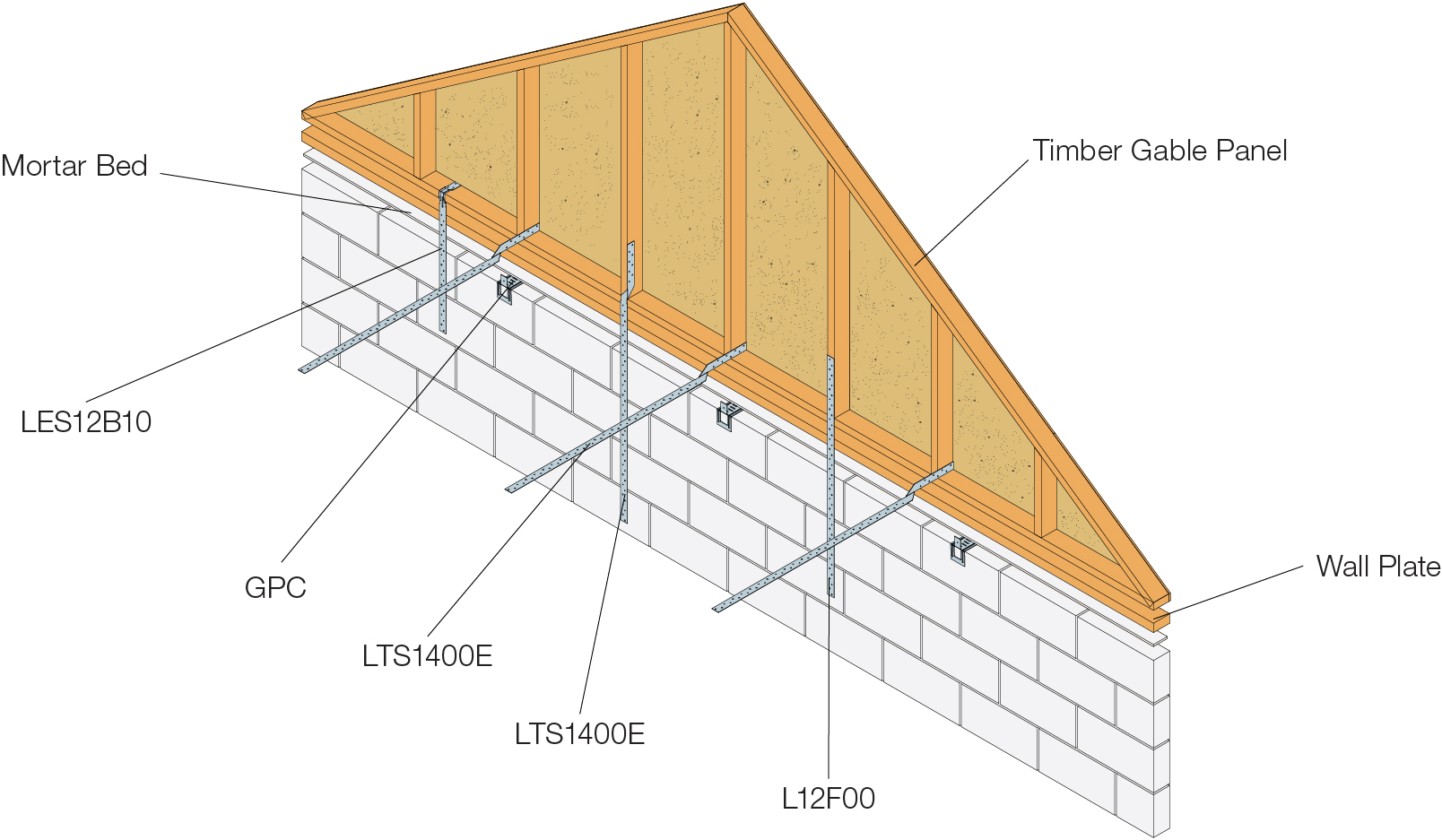

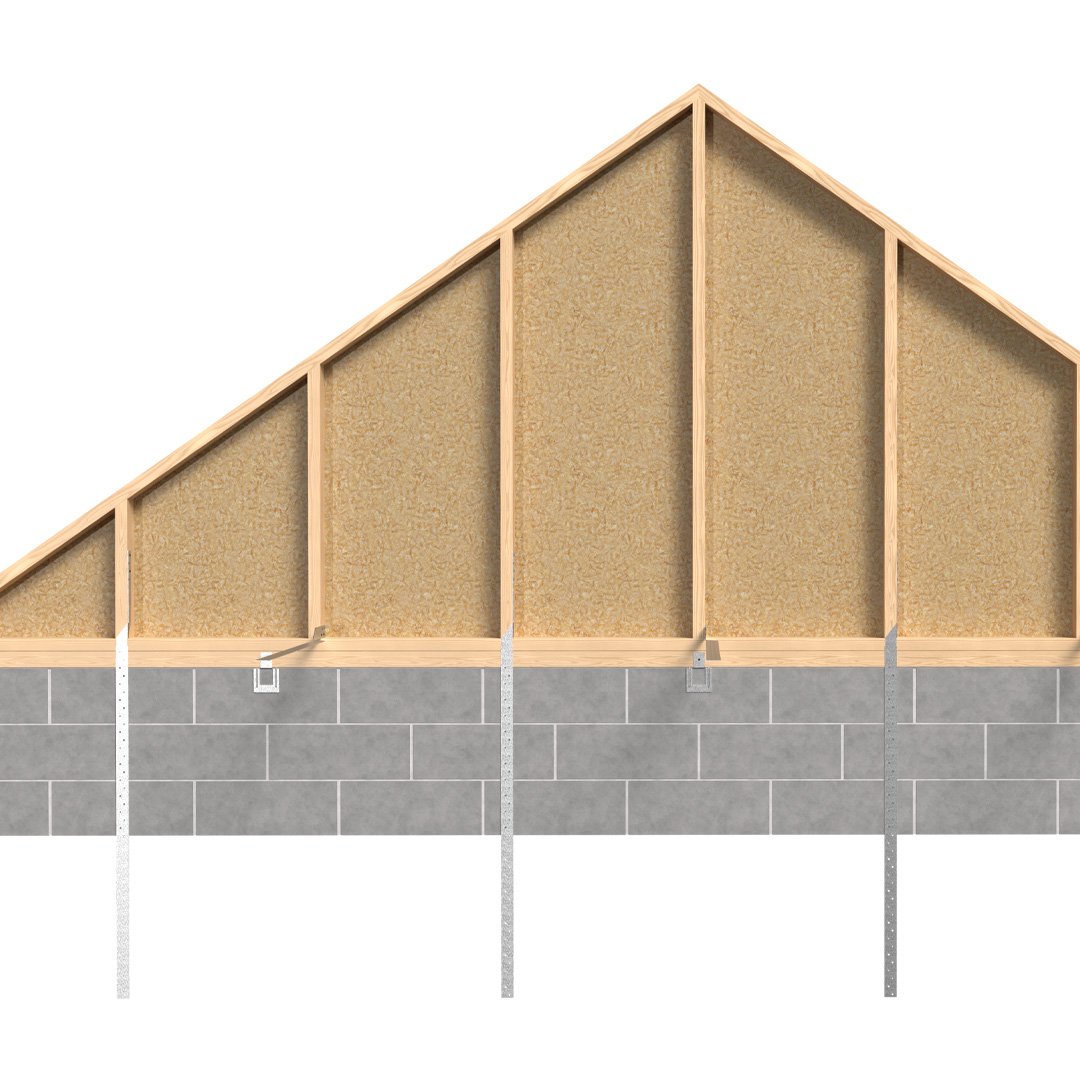

Continuous Wallplate Installation

Lateral Restraint Connectors:

  • GPC:  Gable Panel Connector, and
  • LTS1400E:  Vertical restraint Strap

Vertical Restraint Connectors:

  • LES:  Light Engineered Hold Down Strap, or
  • LTS1400E:  Vertical restraint Strap, or
  • L12F00:  Flat Strap

Raised Wallplate Installation

Lateral Restraint Connectors:

  • GPC:  Gable Panel Connector, and
  • HES:  Horizontal Restraint Strap

Vertical Restraint Connectors:

  • LES:  Light Engineered Hold Down Strap, or
  • LTS1400E:  Vertical restraint Strap, or
  • L12F00:  Flat Strap
