BRDEZ

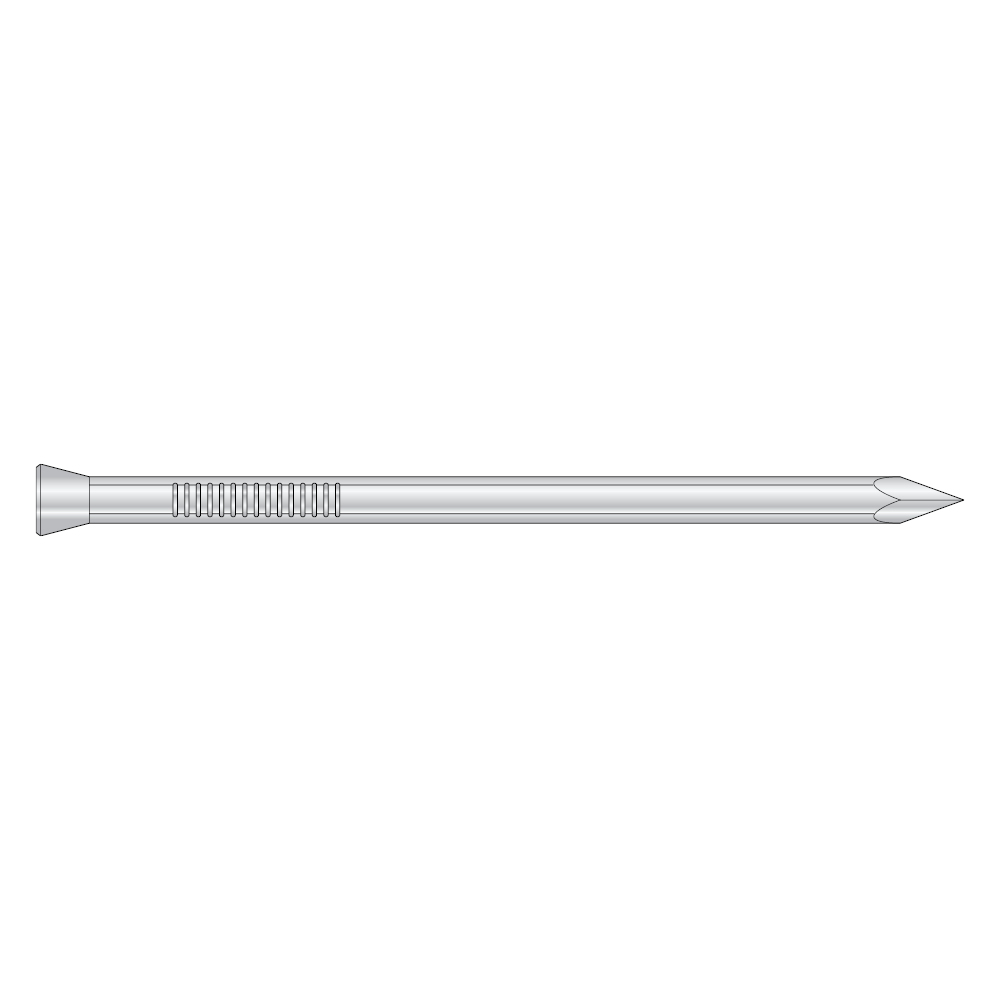

Grooved Countersunk Nail - Electro Galvanised

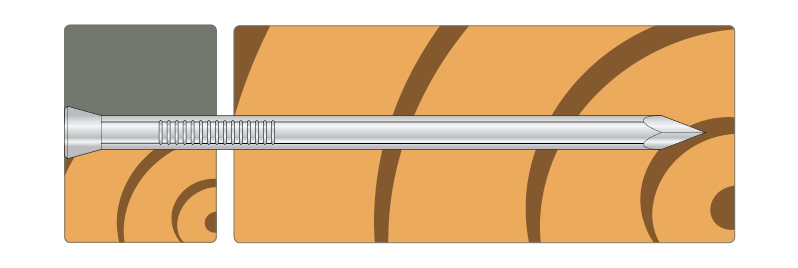

Nail with a countersunk head and grooved shank for use indoors for fitting moulding or fixing hardwood and semi-hardwood boards to a wood base.
Particularly suited for use where the head should be countersunk, so that the nail is concealed.
Service class 1
Electro-galvanized steel
Indoor
EPD
Product Details
Images
Features
Application
Technical Data
Dimensions and drill holes
Dimensions
| Reference | Fasteners Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|
| Item Code | Other | Product Dimensions[mm] | ||||||
| Tun / DB nr. | NOB nr. | Qty per blister | Weight[kg] | d[mm] | l[mm] | dh[mm] | ||
| BRDEZ1.2X20 | 74196 | 1950524 | 53291836 | - | 0.001 | 1.2 | 20 | 1.9 |
| BRDEZ1.4X25 | 74197 | 1950525 | 53291840 | - | 0.001 | 1.4 | 25 | 2.2 |
| BRDEZ1.7X30 | 75685 | 2056038 | 55839560 | - | 0.001 | 1.7 | 30 | 2.7 |
| BRDEZ1.7X35 | 74198 | 1950526 | 53291855 | - | 0.001 | 1.7 | 35 | 2.7 |
| BRDEZ1.7X40 | 74199 | 1950527 | 53291866 | - | 0.001 | 1.7 | 40 | 2.7 |
| BRDEZ1.7X50 | 74200 | 1950528 | 53291874 | - | 0.001 | 1.7 | 50 | 2.7 |
| BRDEZ2.0X40 | 75686 | 2056039 | 55839575 | - | 0.002 | 2 | 40 | 3.2 |
| BRDEZ2.0X50 | 74201 | 1950529 | 53291885 | - | 0.001 | 2 | 50 | 3.2 |
