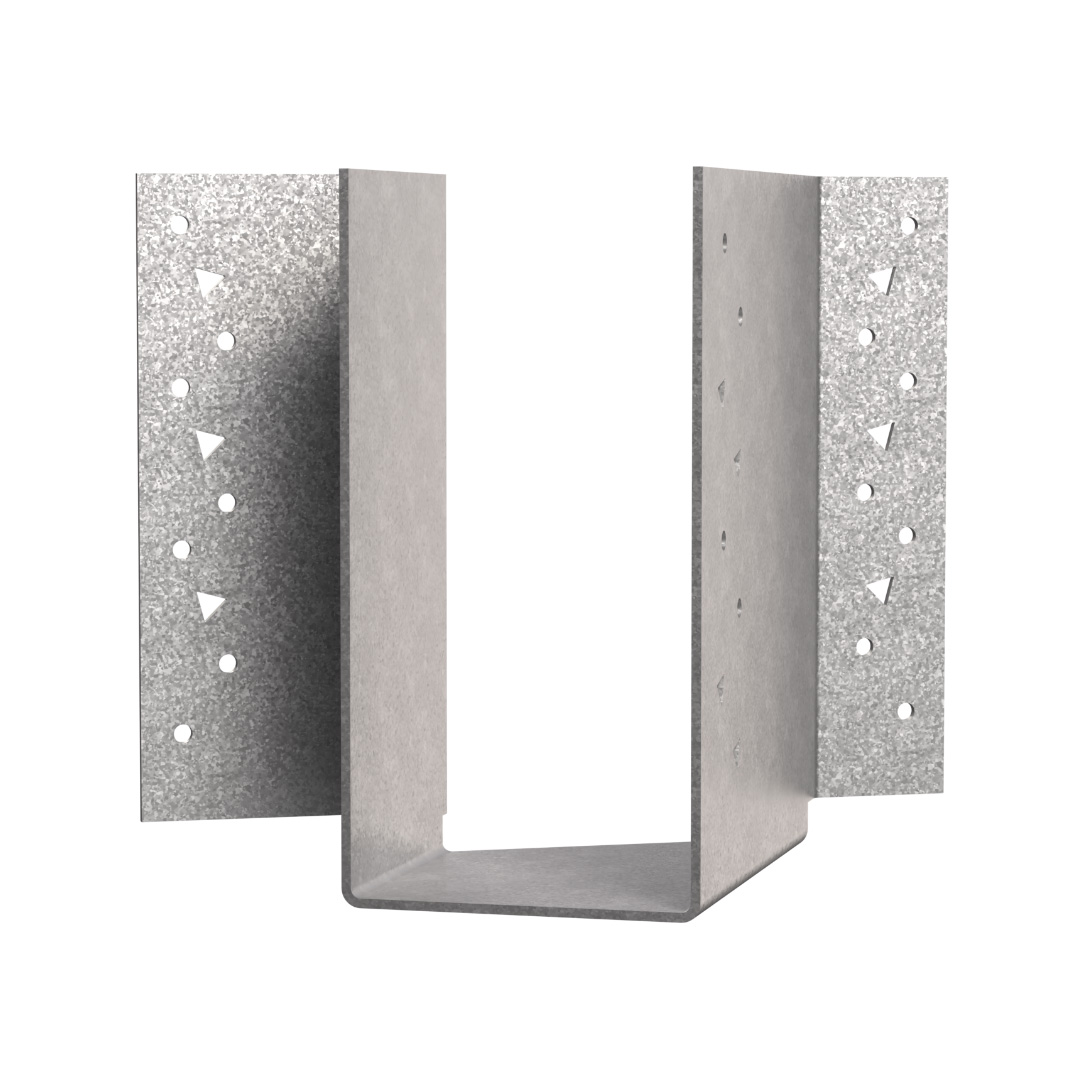

1. These hangers are based upon Composite Wood style SAE hangers and contain round and triangular nail holes only. (ie. No Bolt Holes).
2. SWL’s are based upon a maximum nailing schedule—all round and triangular holes filled.

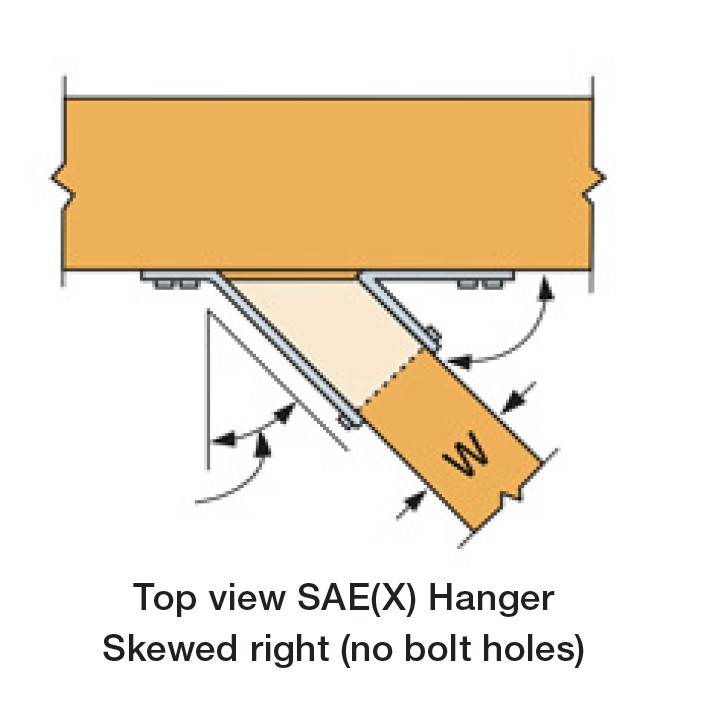

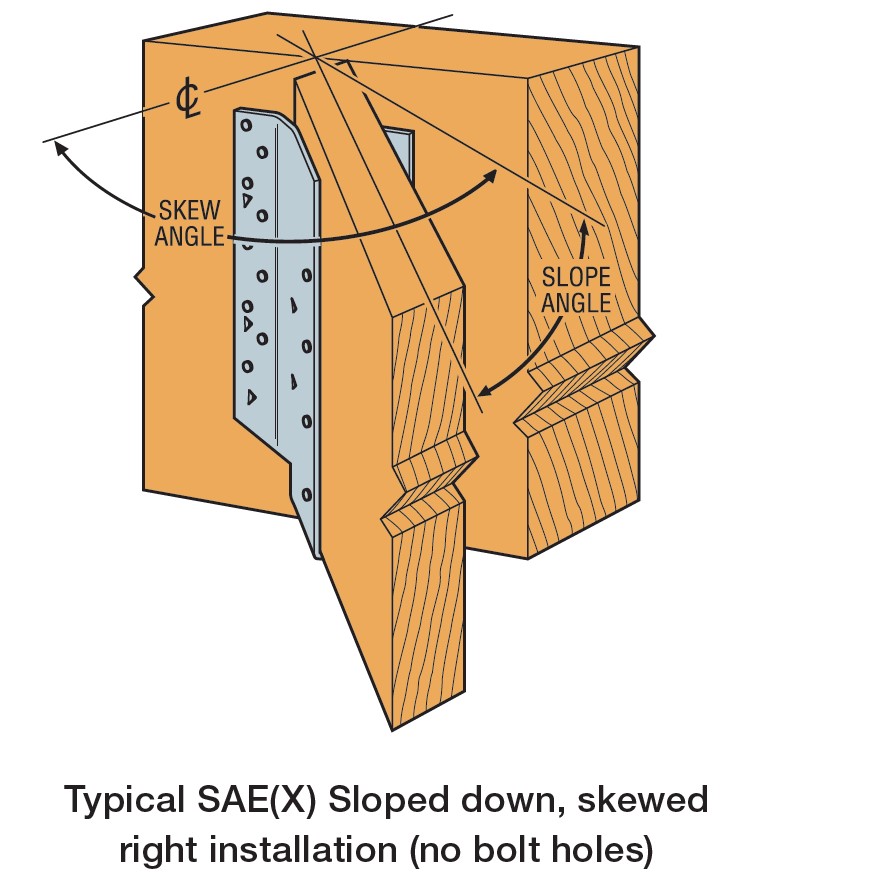

3. Skews right or left up to 67.5° and slopes up or down up to 45°. For combined skew and sloped hangers the maximum SWL is 80% of the stated loads.
4. Enables hangers to be manufactured for any combination of widths and heights listed for a model number.
5. To order specify model number, width, height, skew and/or slope.eg SAE380/63 Skewed Right at 15° becomes SAE380X, A = 63, B = 159, SKR = 15° (for no skewed/sloped options please specify skew = 0° & slope = 0°).

Note: the hanger height (B) would normally be input as 10mm less than the ujoist height, to allow for any timber tolerances etc
