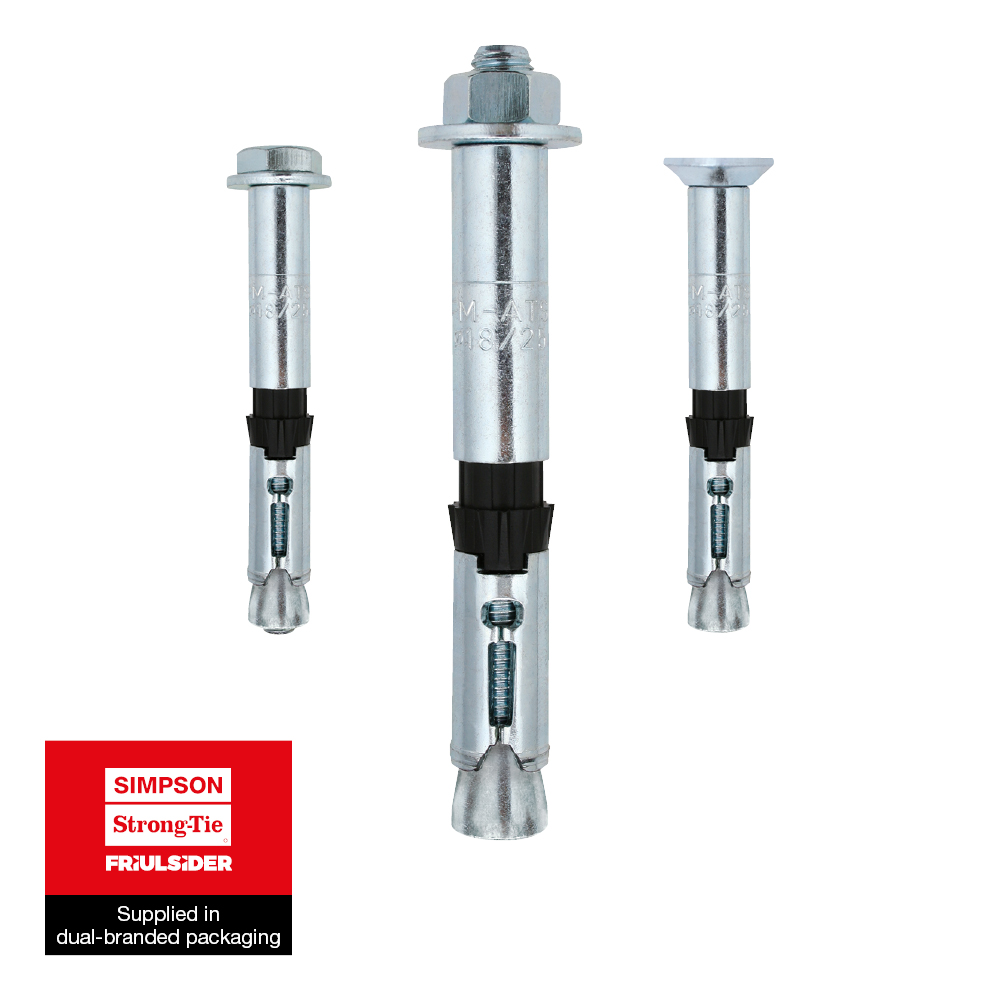

ATS-evo

Heavy duty safety bolt with seismic certification

Force-controlled expansion anchor for heavy loads in sizes M10 - M24 for anchoring in cracked and non-cracked concrete C20/25 - C50/60, as well as for seismic areas.

Seismic actions of the performance category C1/C2.

Technical Data Sheet

CE Marking

ETA

New

Sprinkler Systems

Seismic C1 C2

Fire resistance R 120

Fix Calc

Product Details

Images

Features

Material

White zinc plated

Application

Benefits

Seismic performance C1 and C2
Cracked concrete
Fire resistance R120

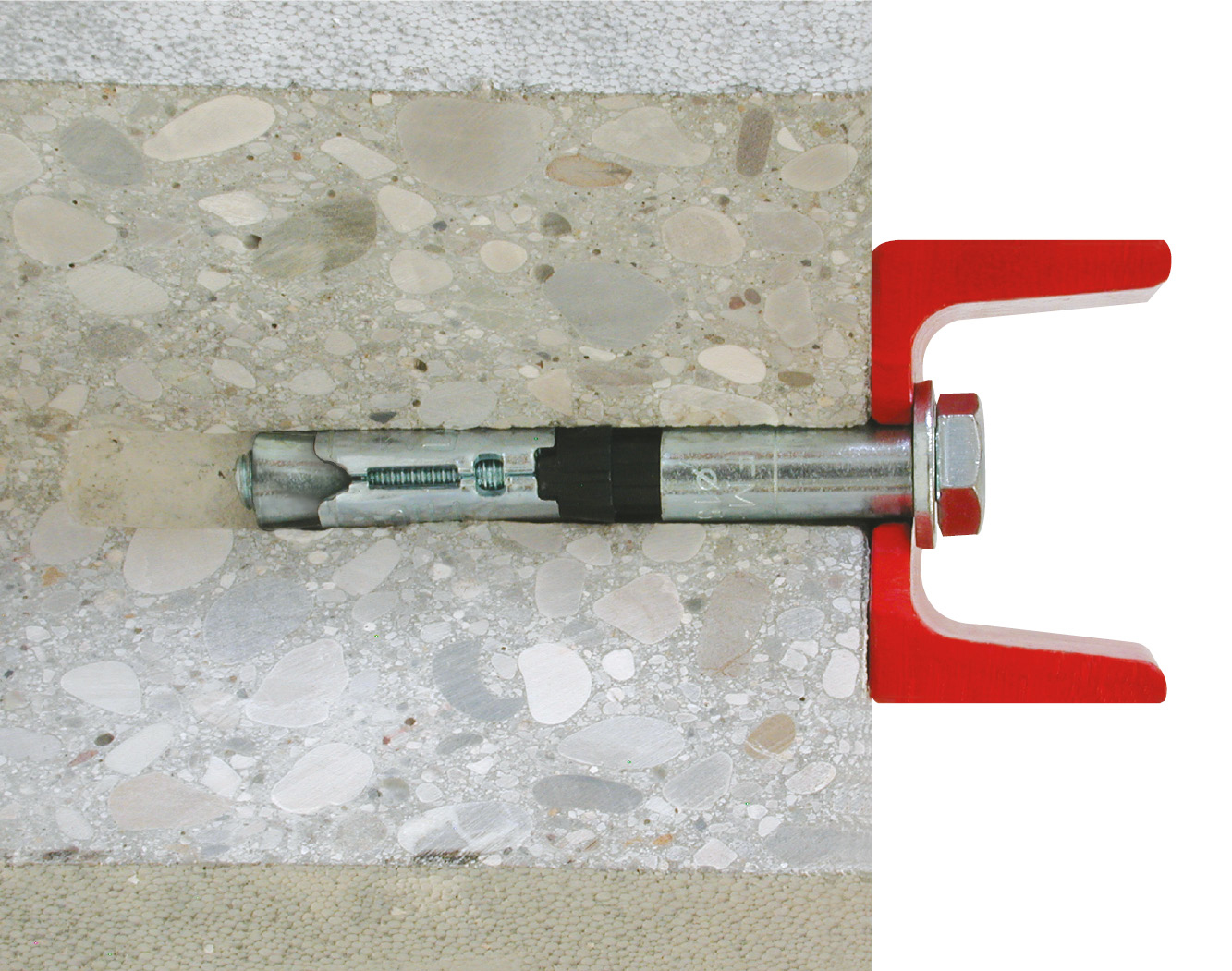

Applications

Steel constructions
Industrial construction
Steel and metal construction (railings, brackets, etc.)
Anchorages for gates and machines
Cable routes/pipe installations
Seismic effects of category C1/C2
Fire impact R30 to R120
Sprinkler systems/shelters

Suitable for

Cracked and un-cracked concrete

Technical Data

Other

ats-evo-rev08.pdf

ATS-evo B

Dimensions

Reference	Metallic fixings dimensions							Installation data
	Product Dimensions[mm]			Product Reference	Other			Installation data			Spacing and edge distances
	Dimensions[mm]	Plug[mm]	Wrench size[mm]	Product Reference	Fixture thickness [tfᵢₓ,ₘₐₓ] with standard setting depth [hₑf,ₛₜD][mm]	Hole diameter in fixture [df][mm]	Qty per box[stk]	Min. drill depth[mm]	Embedment depth[mm]	Installation torque[Nm]	Min. support thickness[mm]
79402B1509000	15/10-M10	15x90	17	ATS-evo B	10	17	20.0	95	67	45	140
79402B1510000	15/20-M10	15x100	17	ATS-evo B	20	17	20.0	95	67	45	140
79402B1513000	15/50-M10	15x130	17	ATS-evo B	50	17	20.0	95	67	45	140
79402B1518000	15/100-M10	15x180	17	ATS-evo B	100	17	20.0	95	67	45	140
79402B1812500	18/25-M12	18x125	19	ATS-evo B	25	20	20.0	100	88	80	180
79402B1820000	18/100-M12	18x200	19	ATS-evo B	100	20	20.0	100	88	80	180
79402B2412500	24/10-M16	24x125	24	ATS-evo B	10	26	10.0	130	99	150	200
79402B2414000	24/25-M16	24x140	24	ATS-evo B	25	26	10.0	130	99	150	200
79402B2416500	24/50-M16	24x165	24	ATS-evo B	50	26	10.0	130	99	150	200
79402B2421500	24/100-M16	24x215	24	ATS-evo B	100	26	10.0	130	99	150	200
79402B2816000	28/10-M20▲	28x155	30	ATS-evo B	10	31	4.0	145	125	170	250
79402B2818000	28/30-M20▲	28x175	30	ATS-evo B	30	31	4.0	145	125	170	250
79402B2821000	28/60-M20▲	28x205	30	ATS-evo B	60	31	4.0	145	125	170	250
79402B2825000	28/100-M20▲	28x245	30	ATS-evo B	100	31	4.0	145	125	170	250
79402B3218000	32/10-M24▲	32x175	36	ATS-evo B	10	35	4.0	180	150	200	300
79402B3220000	32/30-M24▲	32x195	36	ATS-evo B	30	35	4.0	180	150	200	300
79402B3223000	32/60-M24▲	32x225	36	ATS-evo B	60	35	4.0	180	150	200	300
79402B1008000	10/20-M6*	10x80	10	ATS-evo B	20	-	50.0	-	-	-	-
79402B1011000	10/50-M6*	10x110	10	ATS-evo B	50	-	50.0	-	-	-	-
79402B1208000	12/10-M8	12x80	13	ATS-evo B	10	-	25.0	-	-	-	-
79402B1209000	12/20-M8	12x90	13	ATS-evo B	20	-	25.0	-	-	-	-
79402B1212000	12/50-M8	12x120	13	ATS-evo B	50	-	25.0	-	-	-	-

*Seismic certification category C1 only

ATS-evo S

Dimensions

Reference	Metallic fixings dimensions							Installation data
	Product Dimensions[mm]			Product Reference	Other			Installation data			Spacing and edge distances
	Dimensions[mm]	Plug[mm]	Wrench size[mm]	Product Reference	Fixture thickness [tfᵢₓ,ₘₐₓ] with standard setting depth [hₑf,ₛₜD][mm]	Hole diameter in fixture [df][mm]	Qty per box[stk]	Min. drill depth[mm]	Embedment depth[mm]	Installation torque[Nm]	Min. support thickness[mm]
79302B1008000	10/20-M6*	10x80	10	ATS-evo S	20	12	50.0	75	49	10	100
79302B1208000	12/10-M8	12x80	13	ATS-evo S	10	14	25.0	85	59	20	120
79302B1209000	12/20-M8	12x90	13	ATS-evo S	20	14	25.0	85	59	20	120
79302B1212000	12/50-M8	12x120	13	ATS-evo S	50	14	25.0	85	59	20	120
79302B1518000	15/100-M10	15x180	17	ATS-evo S	100	17	20.0	95	67	45	140
79302B1509000	15/10-M10	15x95	17	ATS-evo S	50	17	20.0	95	67	45	140
79302B1510000	15/20-M10	15x100	17	ATS-evo S	20	17	20.0	95	67	45	140
79302B1513000	15/50-M10	15x130	17	ATS-evo S	50	17	20.0	95	67	45	140
79302B1815000	18/50-M12	18x150	19	ATS-evo S	50	20	20.0	100	88	80	180
79302B1820000	18/100-M12	18x200	19	ATS-evo S	100	20	20.0	100	88	80	180
79302B1811000	18/10-M12	18x110	19	ATS-evo S	10	20	20.0	115	88	80	180
79302B1812500	18/25-M12	18x125	19	ATS-evo S	25	20	20.0	115	88	80	180
79302B2421500	24/100-M16	24x215	24	ATS-evo S	100	26	10.0	130	99	150	200
79302B2412500	24/10-M16	24x125	24	ATS-evo S	10	26	10.0	130	99	150	200
79302B2414000	24/25-M16	24x140	24	ATS-evo S	25	26	10.0	130	99	150	200
79302B2416500	24/50-M16	24x165	24	ATS-evo S	50	26	10.0	130	99	150	200
79302B2825000	28/100-M20	28x245	30	ATS-evo S	100	31	4.0	145	125	170	250
79302B2816000	28/10-M20	28x155	30	ATS-evo S	10	31	4.0	160	125	170	250
79302B2818000	28/30-M20	28x175	30	ATS-evo S	30	31	4.0	160	125	170	250
79302B2821000	28/60-M20	28x205	30	ATS-evo S	60	31	4.0	160	125	170	250
79302B3218000	32/10-M24	32x175	36	ATS-evo S	10	35	4.0	180	150	200	300
79302B3220000	32/30-M24	32x195	36	ATS-evo S	30	35	4.0	180	150	200	300
79302B3223000	32/60-M24	32x225	36	ATS-evo S	60	35	4.0	180	150	200	300
79302B1007000	10/10-M6*	10x70	10	ATS-evo S	10	-	50.0	-	-	-	-
79302B1011000	10/50-M6*	10x110	10	ATS-evo S	50	-	50.0	-	-	-	-

*Seismic certification category C1 only

ATS-evo SK

Dimensions

Reference	Metallic fixings dimensions							Installation data
	Product Dimensions[mm]			Product Reference	Other			Installation data			Spacing and edge distances
	Dimensions[mm]	Plug[mm]	Wrench size[mm]	Product Reference	Fixture thickness [tfᵢₓ,ₘₐₓ] with standard setting depth [hₑf,ₛₜD][mm]	Hole diameter in fixture [df][mm]	Qty per box[stk]	Min. drill depth[mm]	Embedment depth[mm]	Installation torque[Nm]	Min. support thickness[mm]
79303B1509000	15/17-M10	15x90	8	ATS-evo SK	17	17	20.0	95	67	45	140
79303B1510000	15/27-M10	15x100	8	ATS-evo SK	27	17	20.0	95	67	45	140
79303B1812500	18/33-M12	18x125	10	ATS-evo SK	33	20	20.0	100	88	80	180
79303B1007000	10/15-M6*	10x70	5	ATS-evo SK	15	-	50.0	-	-	-	-
79303B1008000	10/25-M6*	10x80	5	ATS-evo SK	25	-	50.0	-	-	-	-
79303B1208000	12/16-M8	12x80	6	ATS-evo SK	16	-	25.0	-	-	-	-
79303B1209000	12/26-M8	12x90	6	ATS-evo SK	26	-	25.0	-	-	-	-
79303B1212000	12/56-M8	12x120	6	ATS-evo SK	56	-	25.0	-	-	-	-

*Seismic certification category C1 only

Recommended loads / non-cracked concrete / for single anchors / with no edge distances or spacings - ETA-10/0423

Reference	Metallic fixings dimensions		Metallic fixings loads
	Product Dimensions[mm]	Product Reference	Recommended loads - Non-cracked concrete								Design capacity - Non-cracked concrete (3)[kN]
	Dimensions[mm]		Tension - Nᵣₑc[kN]				Shear - Vᵣₑc[kN]				Bending moment MRd[Nm]
	Dimensions[mm]		C20/25[kN]	C30/37[kN]	C40/50[kN]	C50/60[kN]	C20/25[kN]	C30/37[kN]	C40/50[kN]	C50/60[kN]	Bending moment MRd[Nm]
79402B1008000	10/20-M6*	ATS-evo B	-	-	-	-	-	-	-	-	-
79402B1011000	10/50-M6*	ATS-evo B	-	-	-	-	-	-	-	-	-
79402B1208000	12/10-M8	ATS-evo B	-	-	-	-	-	-	-	-	-
79402B1209000	12/20-M8	ATS-evo B	-	-	-	-	-	-	-	-	-
79402B1212000	12/50-M8	ATS-evo B	-	-	-	-	-	-	-	-	-
79402B1509000	15/10-M10	ATS-evo B	13.2	16.1	18.6	20.5	19.2	19.2	19.2	19.2	34
79402B1510000	15/20-M10	ATS-evo B	13.2	16.1	18.6	20.5	19.2	19.2	19.2	19.2	34
79402B1513000	15/50-M10	ATS-evo B	13.2	16.1	18.6	20.5	19.2	19.2	19.2	19.2	34
79402B1518000	15/100-M10	ATS-evo B	13.2	16.1	18.6	20.5	19.2	19.2	19.2	19.2	34
79402B1812500	18/25-M12	ATS-evo B	19.9	24.3	28.1	30.8	22.9	22.9	22.9	22.9	60
79402B1820000	18/100-M12	ATS-evo B	19.9	24.3	28.1	30.8	22.9	22.9	22.9	22.9	60
79402B2412500	24/10-M16	ATS-evo B	23.7	28.9	33.4	36.7	44.3	44.3	44.3	44.3	150
79402B2414000	24/25-M16	ATS-evo B	23.7	28.9	33.4	36.7	44.3	44.3	44.3	44.3	150
79402B2416500	24/50-M16	ATS-evo B	23.7	28.9	33.4	36.7	44.3	44.3	44.3	44.3	150
79402B2421500	24/100-M16	ATS-evo B	23.7	28.9	33.4	36.7	44.3	44.3	44.3	44.3	150
79402B2816000	28/10-M20▲	ATS-evo B	33.6	41	47.4	52.1	57.1	57.1	57.1	57.1	310
79402B2818000	28/30-M20▲	ATS-evo B	33.6	41	47.4	52.1	57.1	57.1	57.1	57.1	310
79402B2821000	28/60-M20▲	ATS-evo B	33.6	41	47.4	52.1	57.1	57.1	57.1	57.1	310
79402B2825000	28/100-M20▲	ATS-evo B	33.6	41	47.4	52.1	57.1	57.1	57.1	57.1	310
79402B3218000	32/10-M24▲	ATS-evo B	44.1	53.8	62.2	68.4	69	69	69	69	530
79402B3220000	32/30-M24▲	ATS-evo B	44.1	53.8	62.2	68.4	69	69	69	69	530
79402B3223000	32/60-M24▲	ATS-evo B	44.1	53.8	62.2	68.4	69	69	69	69	530
79302B1007000	10/10-M6*	ATS-evo S	-	-	-	-	-	-	-	-	-
79302B1011000	10/50-M6*	ATS-evo S	-	-	-	-	-	-	-	-	-
79302B1815000	18/50-M12	ATS-evo S	19.9	24.2	27.9	30.7	22.9	22.9	22.9	22.9	60
79302B1820000	18/100-M12	ATS-evo S	19.9	24.2	27.9	30.7	22.9	22.9	22.9	22.9	60
79302B1518000	15/100-M10	ATS-evo S	13.2	24.2	27.9	30.7	19.2	19.2	19.2	19.2	34
79302B2421500	24/100-M16	ATS-evo S	23.7	28.9	33.4	36.7	44.3	44.3	44.3	44.3	150
79302B1008000	10/20-M6*	ATS-evo S	7.6	7.6	7.6	7.6	8	8	8	8	7
79302B1208000	12/10-M8	ATS-evo S	10.9	13.3	15.4	16.9	10.6	10.6	10.6	10.6	17
79302B1209000	12/20-M8	ATS-evo S	10.9	13.3	15.4	16.9	10.6	10.6	10.6	10.6	17
79302B1212000	12/50-M8	ATS-evo S	10.9	13.3	15.4	16.9	10.6	10.6	10.6	10.6	17
79302B1509000	15/10-M10	ATS-evo S	13.2	16.1	18.6	20.5	19.2	19.2	19.2	19.2	34
79302B1510000	15/20-M10	ATS-evo S	13.2	16.1	18.6	20.5	19.2	19.2	19.2	19.2	34
79302B1513000	15/50-M10	ATS-evo S	13.2	16.1	18.6	20.5	19.2	19.2	19.2	19.2	34
79302B1811000	18/10-M12	ATS-evo S	19.8	24.2	27.9	30.7	22.9	22.9	22.9	22.9	60
79302B1812500	18/25-M12	ATS-evo S	19.8	24.2	27.9	30.7	22.9	22.9	22.9	22.9	60
79302B2412500	24/10-M16	ATS-evo S	23.6	28.8	33.3	36.6	44.3	44.3	44.3	44.3	150
79302B2414000	24/25-M16	ATS-evo S	23.6	28.8	33.3	36.6	44.3	44.3	44.3	44.3	150
79302B2416500	24/50-M16	ATS-evo S	23.6	28.8	33.3	36.6	44.3	44.3	44.3	44.3	150
79302B2816000	28/10-M20	ATS-evo S	33.6	41	47.4	52.1	57.1	57.1	57.1	57.1	310
79302B2818000	28/30-M20	ATS-evo S	33.6	41	47.4	52.1	57.1	57.1	57.1	57.1	310
79302B2821000	28/60-M20	ATS-evo S	33.6	41	47.4	52.1	57.1	57.1	57.1	57.1	310
79302B2825000	28/100-M20	ATS-evo S	33.6	41	47.4	52.1	57.1	57.1	57.1	57.1	310
79302B3218000	32/10-M24	ATS-evo S	44.1	53.8	62.2	68.4	69	69	69	69	530
79302B3220000	32/30-M24	ATS-evo S	44.1	53.8	62.2	68.4	69	69	69	69	530
79302B3223000	32/60-M24	ATS-evo S	44.1	53.8	62.2	68.4	69	69	69	69	530
79303B1007000	10/15-M6*	ATS-evo SK	-	-	-	-	-	-	-	-	-
79303B1008000	10/25-M6*	ATS-evo SK	-	-	-	-	-	-	-	-	-
79303B1208000	12/16-M8	ATS-evo SK	-	-	-	-	-	-	-	-	-
79303B1209000	12/26-M8	ATS-evo SK	-	-	-	-	-	-	-	-	-
79303B1212000	12/56-M8	ATS-evo SK	-	-	-	-	-	-	-	-	-
79303B1509000	15/17-M10	ATS-evo SK	13.2	16.1	18.6	20.5	19.2	19.2	19.2	19.2	34
79303B1510000	15/27-M10	ATS-evo SK	13.2	16.1	18.6	20.5	19.2	19.2	19.2	19.2	34
79303B1812500	18/33-M12	ATS-evo SK	19.9	24.3	28.1	30.8	22.9	22.9	22.9	22.9	60

Recommended loads / cracked concrete / for single anchors / with no edge distances or spacings - ETA-10/0423

Reference	Metallic fixings dimensions		Metallic fixings loads
	Product Dimensions[mm]	Product Reference	Recommended loads - Cracked concrete								Design capacity - Cracked concrete
	Dimensions[mm]		Tension - Nᵣₑc				Shear - Vᵣₑc				Bending moment MRd[Nm]
	Dimensions[mm]		C20/25[kN]	C30/37[kN]	C40/50[kN]	C50/60[kN]	C20/25[kN]	C30/37[kN]	C40/50[kN]	C50/60[kN]	Bending moment MRd[Nm]
79402B1008000	10/20-M6*	ATS-evo B	-	-	-	-	-	-	-	-	-
79402B1011000	10/50-M6*	ATS-evo B	-	-	-	-	-	-	-	-	-
79402B1208000	12/10-M8	ATS-evo B	-	-	-	-	-	-	-	-	-
79402B1209000	12/20-M8	ATS-evo B	-	-	-	-	-	-	-	-	-
79402B1212000	12/50-M8	ATS-evo B	-	-	-	-	-	-	-	-	-
79402B1509000	15/10-M10	ATS-evo B	7.6	9.3	10.7	11.8	18	19.2	19.2	19.2	34
79402B1510000	15/20-M10	ATS-evo B	7.6	9.3	10.7	11.8	18	19.2	19.2	19.2	34
79402B1513000	15/50-M10	ATS-evo B	7.6	9.3	10.7	11.8	18	19.2	19.2	19.2	34
79402B1518000	15/100-M10	ATS-evo B	7.6	9.3	10.7	11.8	18	19.2	19.2	19.2	34
79402B1812500	18/25-M12	ATS-evo B	11.9	14.5	16.8	18.5	22.9	22.9	22.9	22.9	60
79402B1820000	18/100-M12	ATS-evo B	11.9	14.5	16.8	18.5	22.9	22.9	22.9	22.9	60
79402B2412500	24/10-M16	ATS-evo B	16.9	20.6	23.9	26.1	32.3	44.3	44.3	44.3	150
79402B2414000	24/25-M16	ATS-evo B	16.9	20.6	23.9	26.1	32.3	44.3	44.3	44.3	150
79402B2416500	24/50-M16	ATS-evo B	16.9	20.6	23.9	26.1	32.3	44.3	44.3	44.3	150
79402B2421500	24/100-M16	ATS-evo B	16.9	20.6	23.9	26.1	32.3	44.3	44.3	44.3	150
79402B2816000	28/10-M20▲	ATS-evo B	23.9	29.1	33.9	37.1	45.8	56.1	57.1	57.1	310
79402B2818000	28/30-M20▲	ATS-evo B	23.9	29.1	33.9	37.1	45.8	56.1	57.1	57.1	310
79402B2821000	28/60-M20▲	ATS-evo B	23.9	29.1	33.9	37.1	45.8	56.1	57.1	57.1	310
79402B2825000	28/100-M20▲	ATS-evo B	23.9	29.1	33.9	37.1	45.8	56.1	57.1	57.1	310
79402B3218000	32/10-M24▲	ATS-evo B	31.5	38.2	44.6	48.8	60.4	69	69	69	530
79402B3220000	32/30-M24▲	ATS-evo B	31.5	38.2	44.6	48.8	60.4	69	69	69	530
79402B3223000	32/60-M24▲	ATS-evo B	31.5	38.2	44.6	48.8	60.4	69	69	69	530
79302B1007000	10/10-M6*	ATS-evo S	-	-	-	-	-	-	-	-	-
79302B1011000	10/50-M6*	ATS-evo S	-	-	-	-	-	-	-	-	-
79302B1815000	18/50-M12	ATS-evo S	11.9	14.5	16.8	18.5	22.9	22.9	22.9	22.9	60
79302B1820000	18/100-M12	ATS-evo S	11.9	14.5	16.8	18.5	22.9	22.9	22.9	22.9	60
79302B1518000	15/100-M10	ATS-evo S	7.6	14.5	16.8	18.4	18	19.2	19.2	19.2	34
79302B2421500	24/100-M16	ATS-evo S	16.9	20.6	23.9	26.1	32.3	44.3	44.3	44.3	150
79302B1008000	10/20-M6*	ATS-evo S	4.3	5.2	6	6.6	5.6	5.6	5.6	5.6	7
79302B1208000	12/10-M8	ATS-evo S	5.7	7	8	8.8	7.4	7.4	7.4	7.4	17
79302B1209000	12/20-M8	ATS-evo S	5.7	7	8	8.8	7.4	7.4	7.4	7.4	17
79302B1212000	12/50-M8	ATS-evo S	5.7	7	8	8.8	7.4	7.4	7.4	7.4	17
79302B1509000	15/10-M10	ATS-evo S	7.6	9.3	10.7	11.8	18	19.2	19.2	19.2	34
79302B1510000	15/20-M10	ATS-evo S	7.6	9.3	10.7	11.8	18	19.2	19.2	19.2	34
79302B1513000	15/50-M10	ATS-evo S	7.6	9.3	10.7	11.8	18	19.2	19.2	19.2	34
79302B1811000	18/10-M12	ATS-evo S	11.9	14.5	16.8	18.4	22.9	22.9	22.9	22.9	60
79302B1812500	18/25-M12	ATS-evo S	11.9	14.5	16.8	18.4	22.9	22.9	22.9	22.9	60
79302B2412500	24/10-M16	ATS-evo S	16.9	20.6	23.8	26.2	32.3	44.3	44.3	44.3	150
79302B2414000	24/25-M16	ATS-evo S	16.9	20.6	23.8	26.2	32.3	44.3	44.3	44.3	150
79302B2416500	24/50-M16	ATS-evo S	16.9	20.6	23.8	26.2	32.3	44.3	44.3	44.3	150
79302B2816000	28/10-M20	ATS-evo S	23.9	29.2	33.7	37	45.8	56.1	57.1	57.1	310
79302B2818000	28/30-M20	ATS-evo S	23.9	29.2	33.7	37	45.8	56.1	57.1	57.1	310
79302B2821000	28/60-M20	ATS-evo S	23.9	29.2	33.7	37	45.8	56.1	57.1	57.1	310
79302B2825000	28/100-M20	ATS-evo S	23.9	29.1	33.9	37.1	45.8	56.1	57.1	57.1	310
79302B3218000	32/10-M24	ATS-evo S	31.5	38.2	44.6	48.8	60.4	69	69	69	530
79302B3220000	32/30-M24	ATS-evo S	31.5	38.2	44.6	48.8	60.4	69	69	69	530
79302B3223000	32/60-M24	ATS-evo S	31.5	38.2	44.6	48.8	60.4	69	69	69	530
79303B1007000	10/15-M6*	ATS-evo SK	-	-	-	-	-	-	-	-	-
79303B1008000	10/25-M6*	ATS-evo SK	-	-	-	-	-	-	-	-	-
79303B1208000	12/16-M8	ATS-evo SK	-	-	-	-	-	-	-	-	-
79303B1209000	12/26-M8	ATS-evo SK	-	-	-	-	-	-	-	-	-
79303B1212000	12/56-M8	ATS-evo SK	-	-	-	-	-	-	-	-	-
79303B1509000	15/17-M10	ATS-evo SK	7.6	9.3	10.7	11.8	18	19.2	19.2	19.2	34
79303B1510000	15/27-M10	ATS-evo SK	7.6	9.3	10.7	11.8	18	19.2	19.2	19.2	34
79303B1812500	18/33-M12	ATS-evo SK	11.9	14.5	16.8	18.5	22.9	22.9	22.9	22.9	60

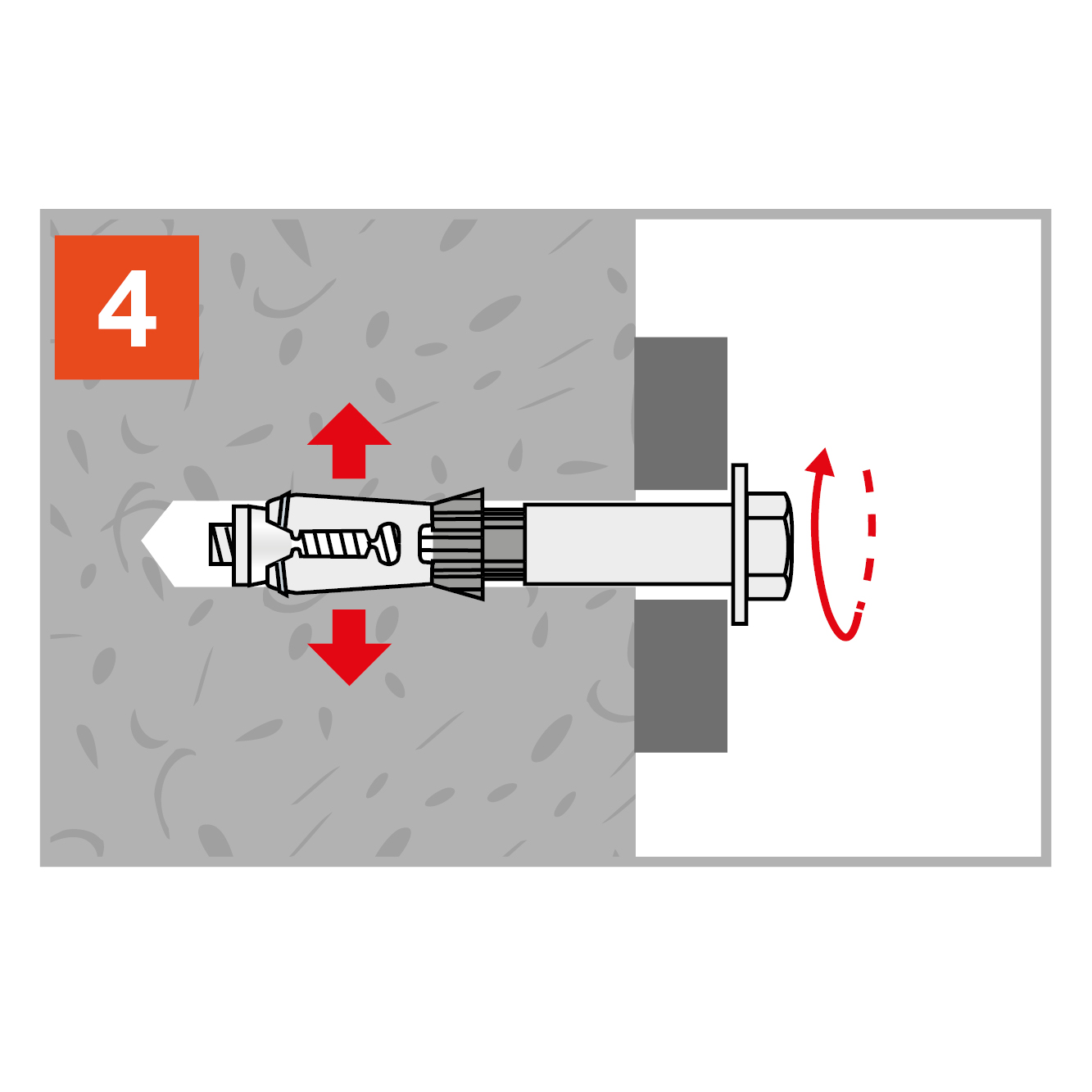

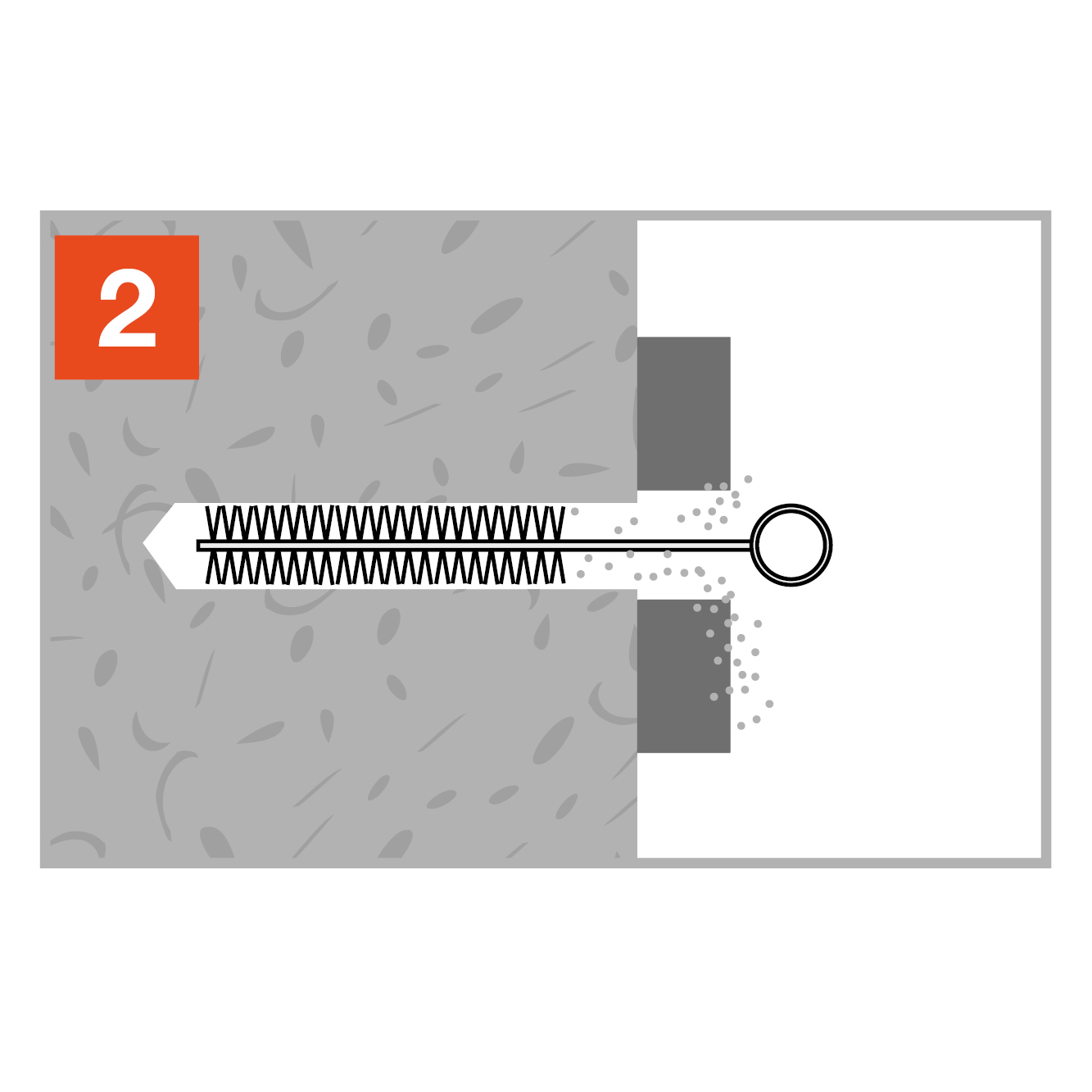

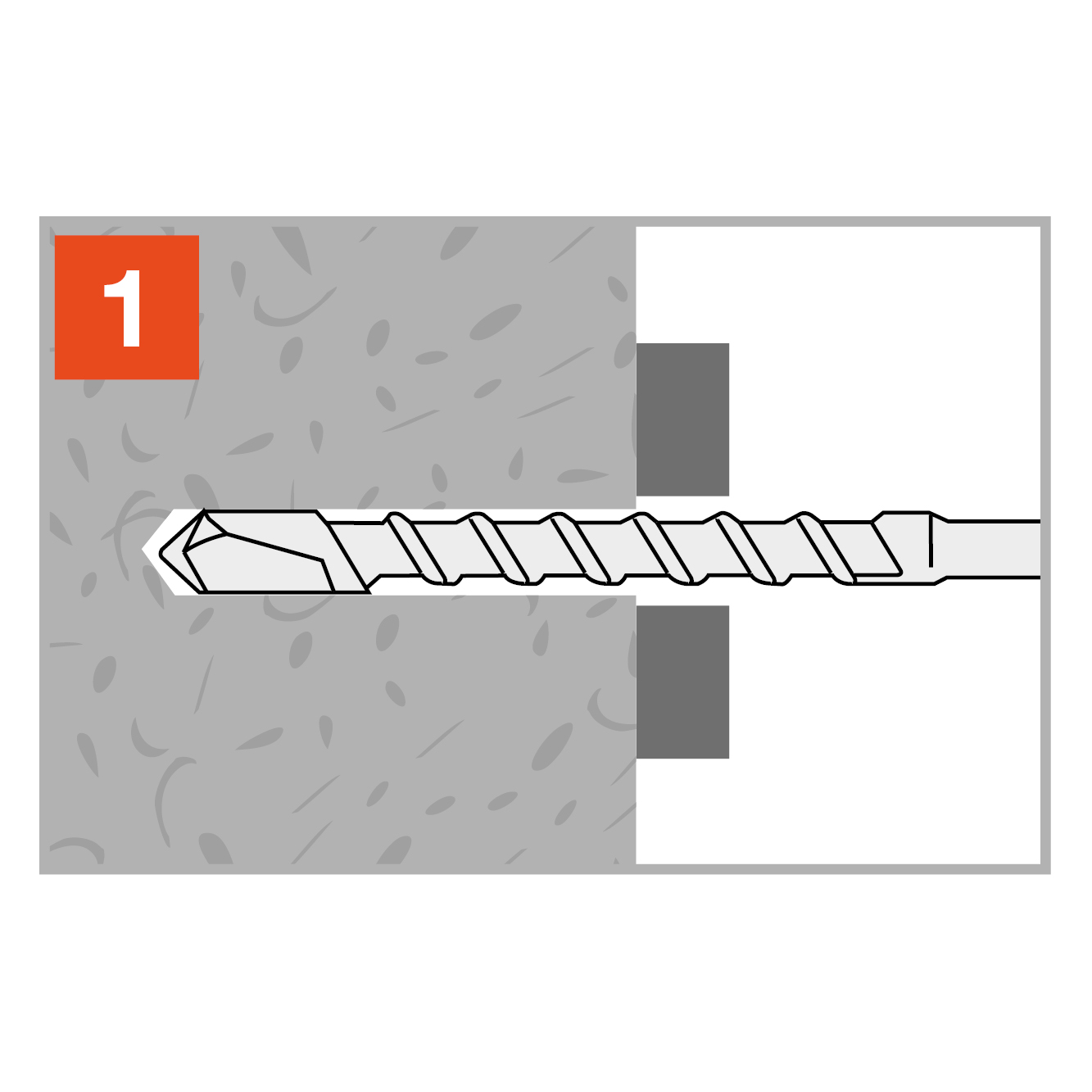

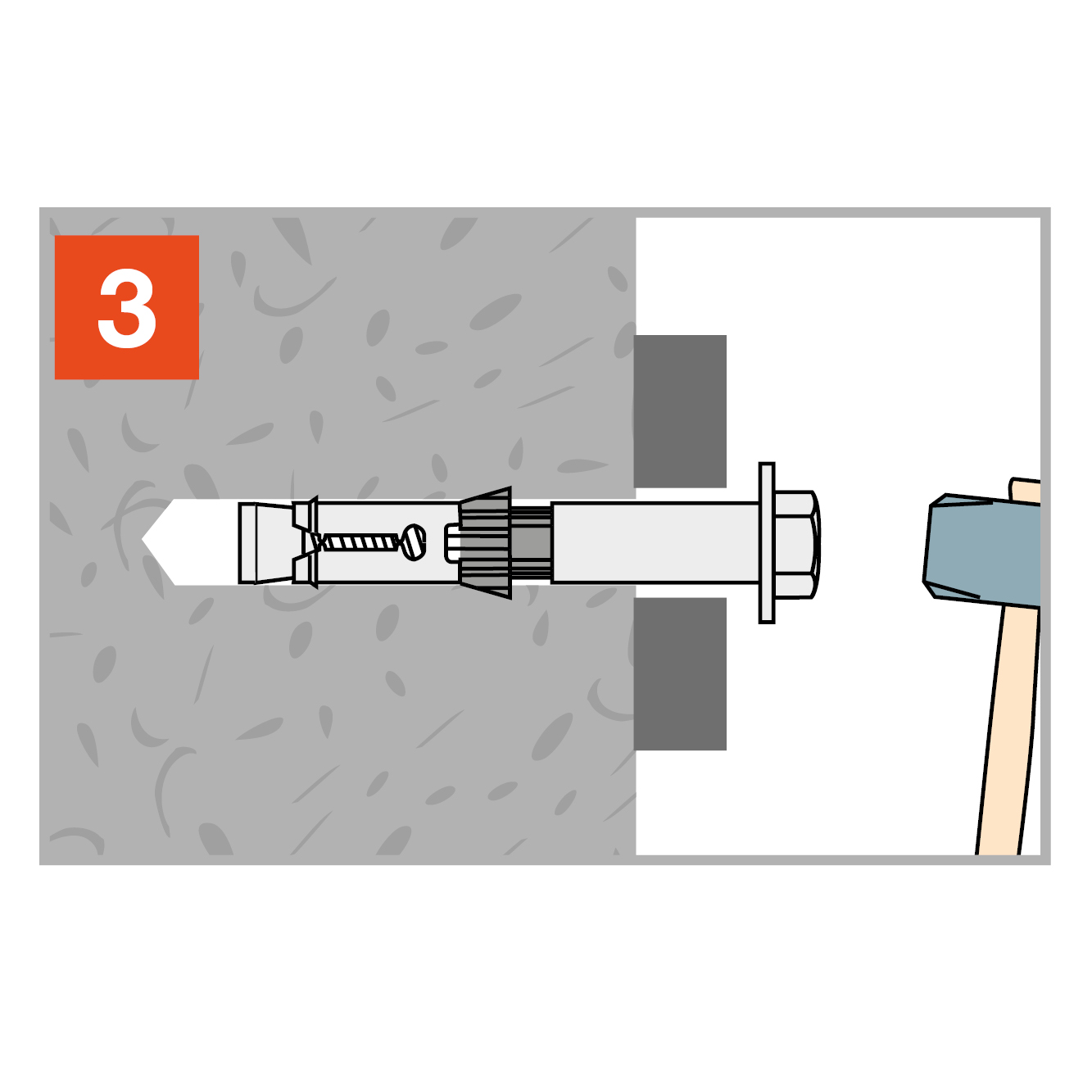

Installation

Spacing and edge distances

Reference	Metallic fixings dimensions		Installation data
	Product Dimensions[mm]	Product Reference	Spacing and edge distances		Spacing and edge distances - Rebar
	Dimensions[mm]	Product Reference	Min. spacing[mm]	Characteristic spacing(5) - Scr,N[mm]	Min. edge distance[mm]	Characteristic edge distance (Ccr,N)[mm]
79402B1008000	10/20-M6*	ATS-evo B	-	-	-	-
79402B1011000	10/50-M6*	ATS-evo B	-	-	-	-
79402B1208000	12/10-M8	ATS-evo B	-	-	-	-
79402B1209000	12/20-M8	ATS-evo B	-	-	-	-
79402B1212000	12/50-M8	ATS-evo B	-	-	-	-
79402B1509000	15/10-M10	ATS-evo B	70	201	70	101
79402B1510000	15/20-M10	ATS-evo B	70	201	70	101
79402B1513000	15/50-M10	ATS-evo B	70	201	70	101
79402B1518000	15/100-M10	ATS-evo B	70	201	70	101
79402B1812500	18/25-M12	ATS-evo B	80	264	80	132
79402B1820000	18/100-M12	ATS-evo B	80	264	80	132
79402B2412500	24/10-M16	ATS-evo B	100	297	100	149
79402B2414000	24/25-M16	ATS-evo B	100	297	100	149
79402B2416500	24/50-M16	ATS-evo B	100	297	100	149
79402B2421500	24/100-M16	ATS-evo B	100	297	100	149
79402B2816000	28/10-M20▲	ATS-evo B	125	375	125	188
79402B2818000	28/30-M20▲	ATS-evo B	125	375	125	188
79402B2821000	28/60-M20▲	ATS-evo B	125	375	125	188
79402B2825000	28/100-M20▲	ATS-evo B	125	375	125	188
79402B3218000	32/10-M24▲	ATS-evo B	150	450	150	225
79402B3220000	32/30-M24▲	ATS-evo B	150	450	150	225
79402B3223000	32/60-M24▲	ATS-evo B	150	450	150	225
79302B1007000	10/10-M6*	ATS-evo S	-	-	-	-
79302B1011000	10/50-M6*	ATS-evo S	-	-	-	-
79302B1815000	18/50-M12	ATS-evo S	80	264	80	132
79302B1820000	18/100-M12	ATS-evo S	80	264	80	132
79302B1518000	15/100-M10	ATS-evo S	70	201	70	101
79302B2421500	24/100-M16	ATS-evo S	100	297	100	149
79302B1008000	10/20-M6*	ATS-evo S	50	147	50	74
79302B1208000	12/10-M8	ATS-evo S	60	177	60	89
79302B1209000	12/20-M8	ATS-evo S	60	177	60	89
79302B1212000	12/50-M8	ATS-evo S	60	177	60	89
79302B1509000	15/10-M10	ATS-evo S	70	201	70	101
79302B1510000	15/20-M10	ATS-evo S	70	201	70	101
79302B1513000	15/50-M10	ATS-evo S	70	201	70	101
79302B1811000	18/10-M12	ATS-evo S	80	264	80	132
79302B1812500	18/25-M12	ATS-evo S	80	264	80	132
79302B2412500	24/10-M16	ATS-evo S	100	297	100	149
79302B2414000	24/25-M16	ATS-evo S	100	297	100	149
79302B2416500	24/50-M16	ATS-evo S	100	297	100	149
79302B2816000	28/10-M20	ATS-evo S	125	375	125	188
79302B2818000	28/30-M20	ATS-evo S	125	375	125	188
79302B2821000	28/60-M20	ATS-evo S	125	375	125	188
79302B2825000	28/100-M20	ATS-evo S	125	375	125	188
79302B3218000	32/10-M24	ATS-evo S	150	450	150	225
79302B3220000	32/30-M24	ATS-evo S	150	450	150	225
79302B3223000	32/60-M24	ATS-evo S	150	450	150	225
79303B1007000	10/15-M6*	ATS-evo SK	-	-	-	-
79303B1008000	10/25-M6*	ATS-evo SK	-	-	-	-
79303B1208000	12/16-M8	ATS-evo SK	-	-	-	-
79303B1209000	12/26-M8	ATS-evo SK	-	-	-	-
79303B1212000	12/56-M8	ATS-evo SK	-	-	-	-
79303B1509000	15/17-M10	ATS-evo SK	70	201	70	101
79303B1510000	15/27-M10	ATS-evo SK	70	201	70	101
79303B1812500	18/33-M12	ATS-evo SK	80	264	80	132

Certification

Declaration of Performance (DoP)

dop-e10-0423-atsevo-rev-07.pdf

No history available

European Technical Assessment (ETA)

eta-10-0423-ats-evo.pdf

No history available

Select one of our Websites

Connectors

Fasteners

Anchors & fixings

Others

Product Details

Images

Features

Material

Application

Benefits

Applications

Suitable for

Technical Data

Other

ATS-evo B

Dimensions

ATS-evo S

Dimensions

ATS-evo SK

Dimensions

Recommended loads / non-cracked concrete / for single anchors / with no edge distances or spacings - ETA-10/0423

Recommended loads / cracked concrete / for single anchors / with no edge distances or spacings - ETA-10/0423

Installation

Installation

Spacing and edge distances

Certification

Declaration of Performance (DoP)

European Technical Assessment (ETA)

About Simpson Strong-Tie®

Simpson Strong-Tie U.K.

Phone

Fax

Email

Website

Copyright (en-UK)
