ICF

Insulated Concrete Form Hanger

The ICFLC and ICFVL-CW ledger connector system is engineered to solve
the challenges of mounting steel or wood ledgers on insulated concrete
walls.
The ledger connector system is easy, quick and versatile to use.
The perforations in the embedded leg of the ICFCL permit the concrete to
flow around it, anchoring the ICFLC securely within the wall. The exposed
flange provides a structural surface for mounting either a wood or a steel
ledger.

Product Details

Application

Notes

  • ​Spacings shown apply to vertical loads only
  • No load duration increase is allowed
  • Minimum concrete grade C20/25
  • Do not splice ledger at ICFLC location

WARNING: Industry studies show that hardened fasteners can experience performance problems in wet environments. Accordingly, use this product in dry, interior applications only.

Technical Data

Dimensions

Product Dimensions

References Hanger Dimensions [mm] Joist Holes
A B C t Ø6.3
ICFLC572641512-
ICFVL-CW178184461.68

Performance Values - Timber Ledger

References Ledger Thickness [mm] Maximum Connector Spacings [mm] Fasteners Safe Working Loads [kN]
Download
Timber4512008 x ICF - D3.25[1]8.5

1. Screws Provided

2. Minimum steel ledger specification is A-653 SS Grade 50

Performance Values - Steel Ledger

References Ledger Thickness [mm] Maximum Connector Spacings [mm] Fasteners Safe Working Loads [kN]
Download
Steel1.63504 x #14 x 3/4" [2][3]7.3

2. 1/4 x 3/4" drill point screws not provided.

3. Minimum screw shear capacity is 3.3kN.

4. Minimum timber ledger is C16. Steel ledger specification  A653SS Grade 50.

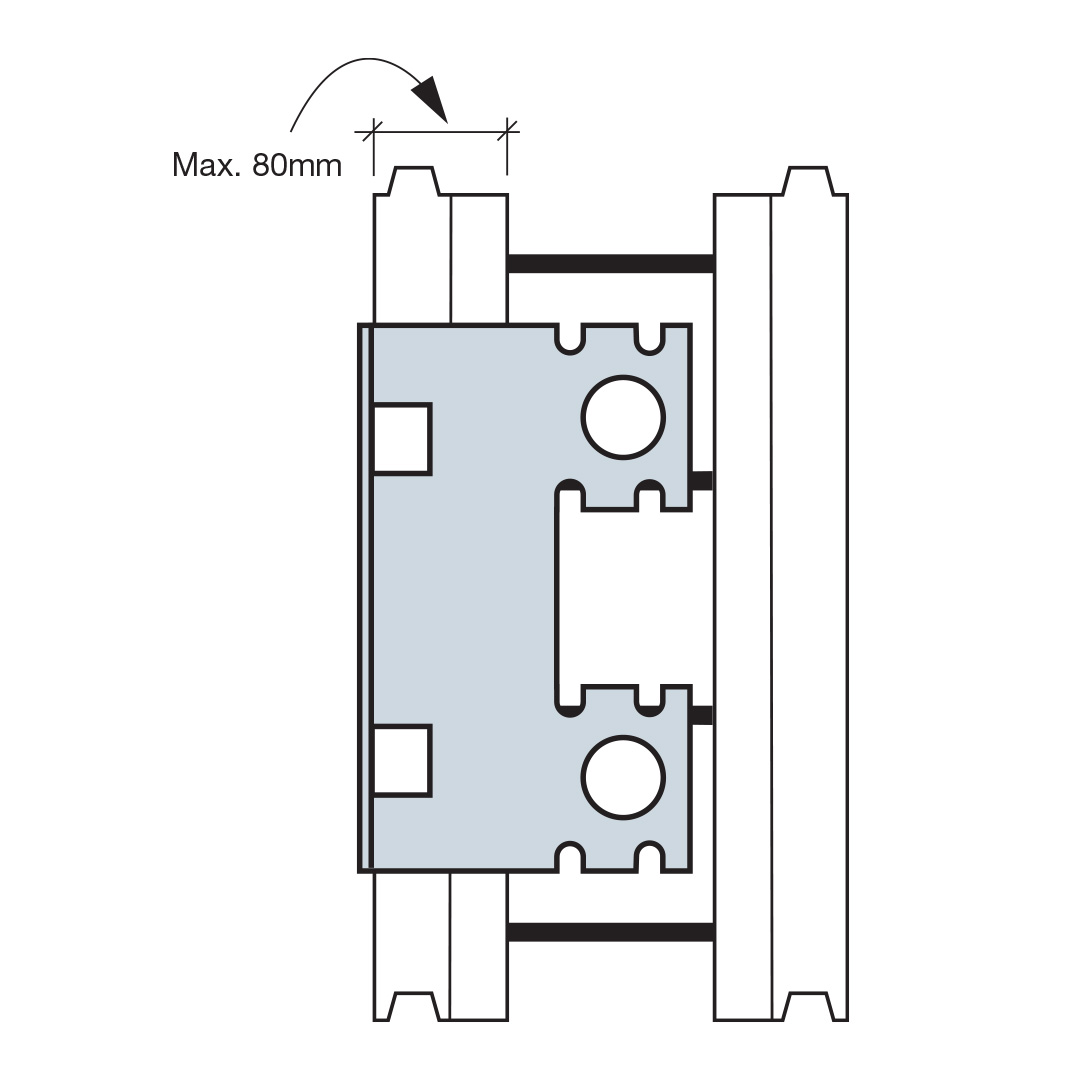

5. Maximum ICF Foam thickness is 80mm
