Connectors for Masonry, Timber and Steel Construction
Wall Profiles and Masonry Ties
IRC

Insulation Retaining Clip

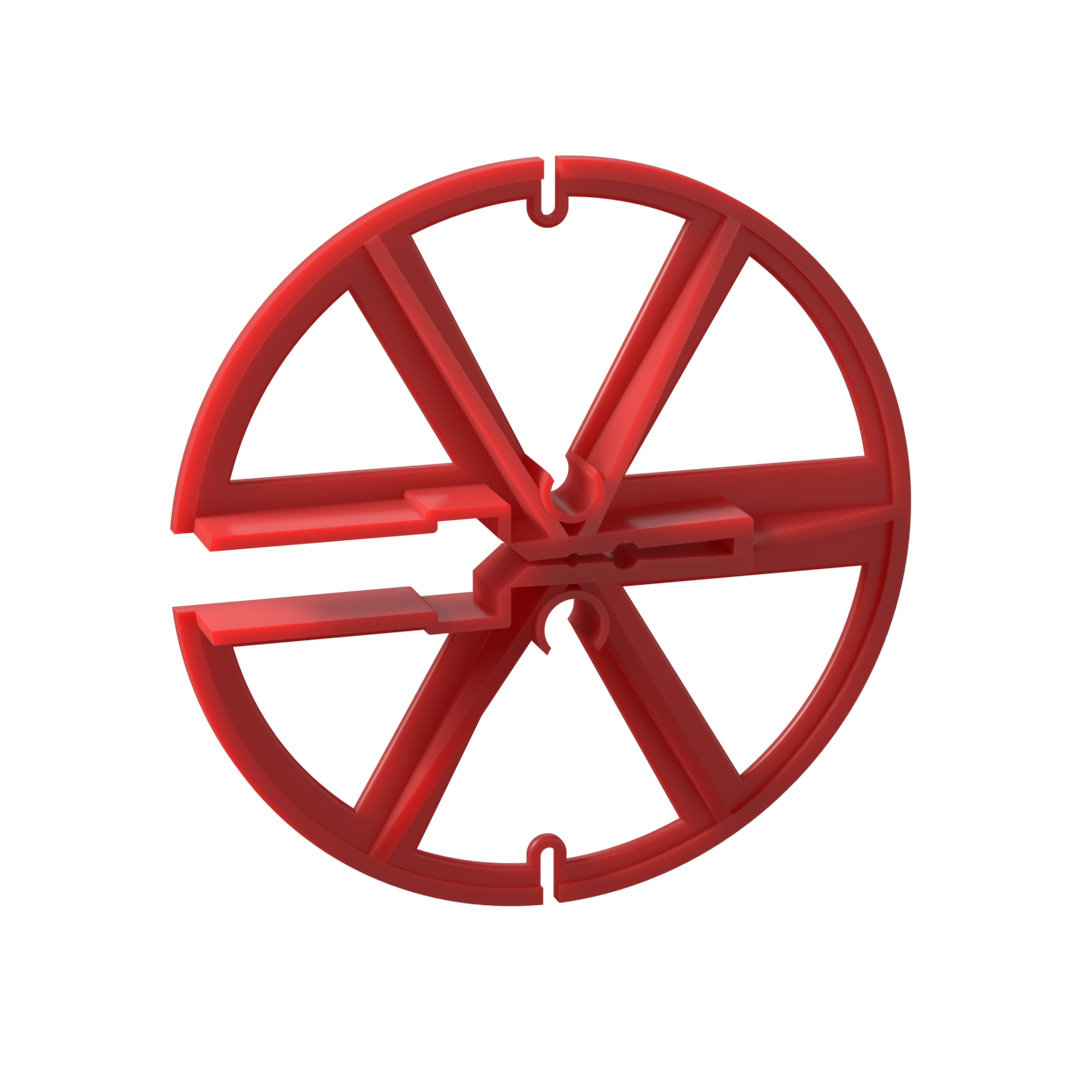

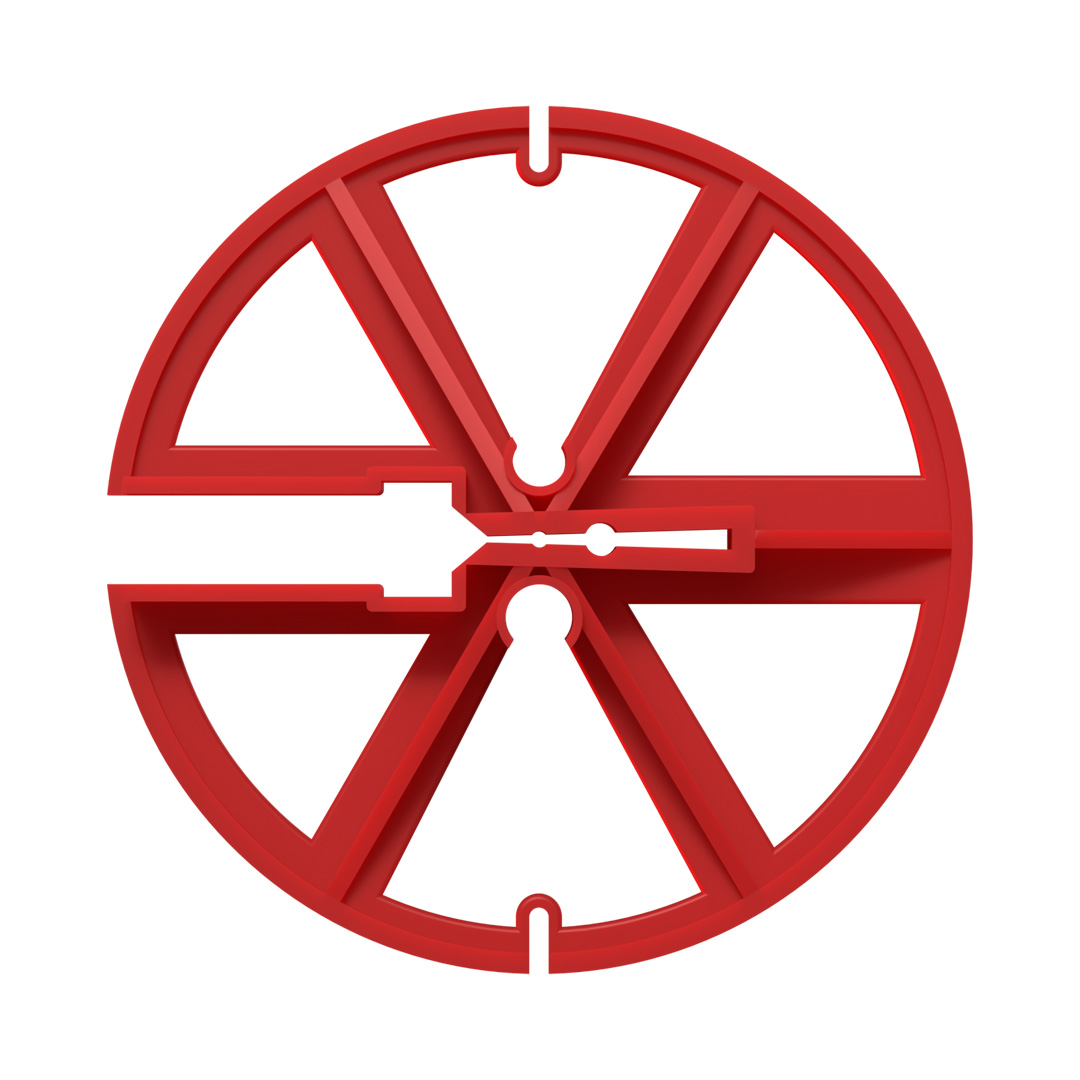

Suitable for use with cavity wall ties, the insulation retaining clip is a 75mm diameter plastic disk used to hold insulation material back to the structure,



Technical Data Sheet
IRC main image

Product Details

Images

IRC image
IRC illustration

Technical Data

Product Dimensions

References Dimensions [mm] Material Weight [Kg]
Dia t
IRC001502Polyprop. Plastic0.005

Qty - 250 per bag

Colour of IRC may change

Installation

Installation

Installation

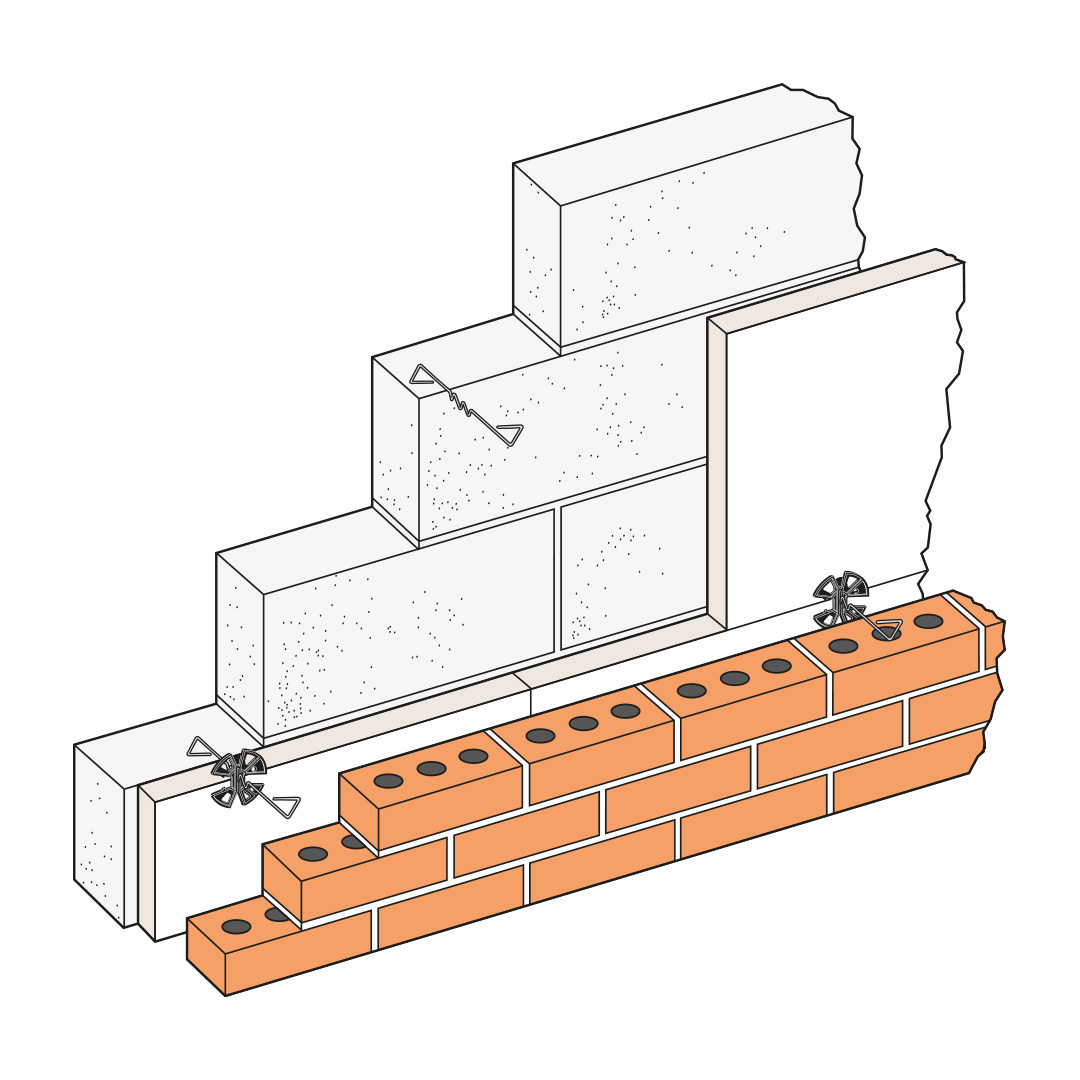

Designed to work with most types of wall tie, simply slot the IRC over the wall tie, and up against the insulation, to retain it in a vertical position.

IRC install image 1
IRC install image 2
