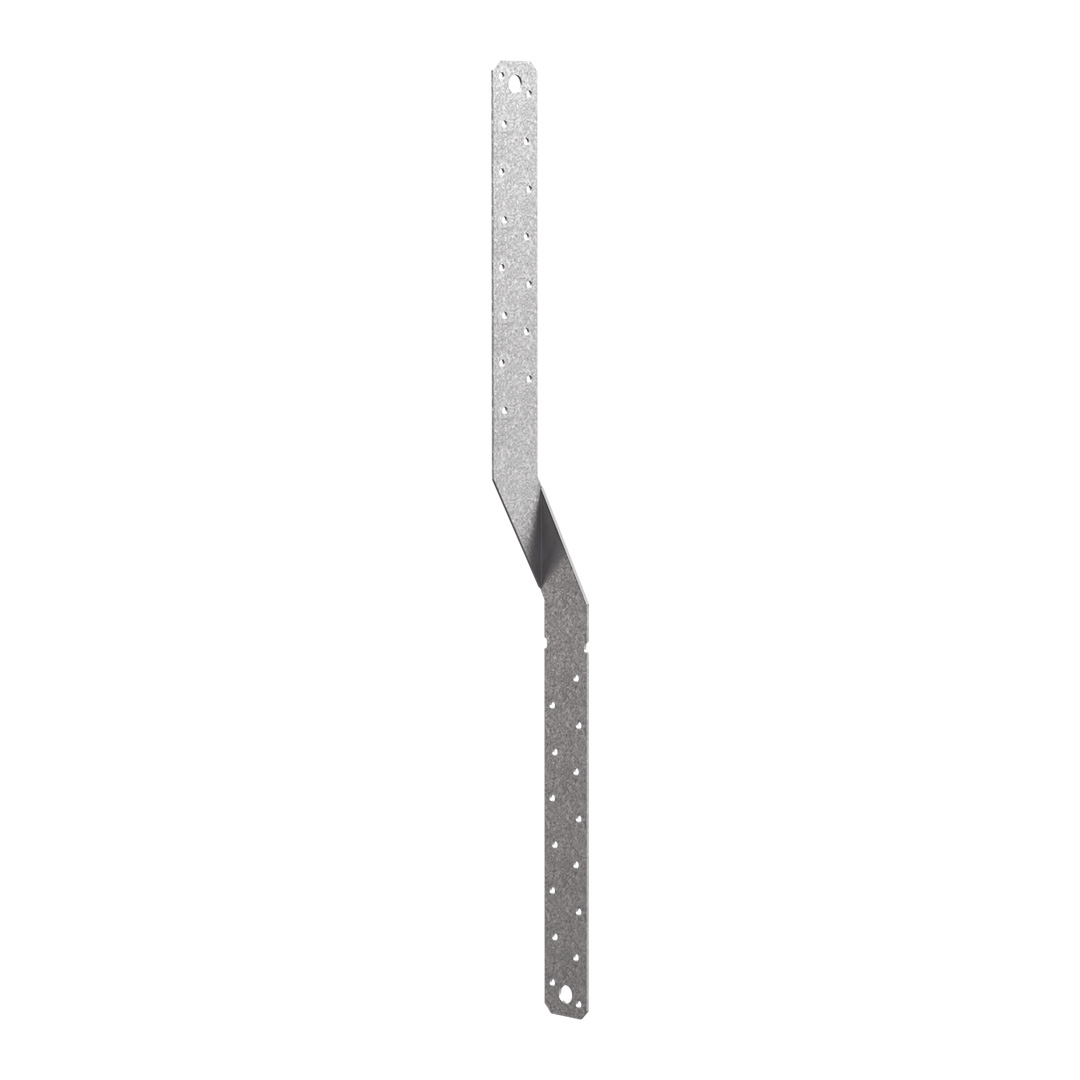

MTS
Medium Twist Strap
Install strap ties where tension connections are required. Commonly used as ridge ties and at wall intersections.
CE Marking
ETA
Indoor
Electrogalvanized steel Z275
Service class 2
Product Details
Images

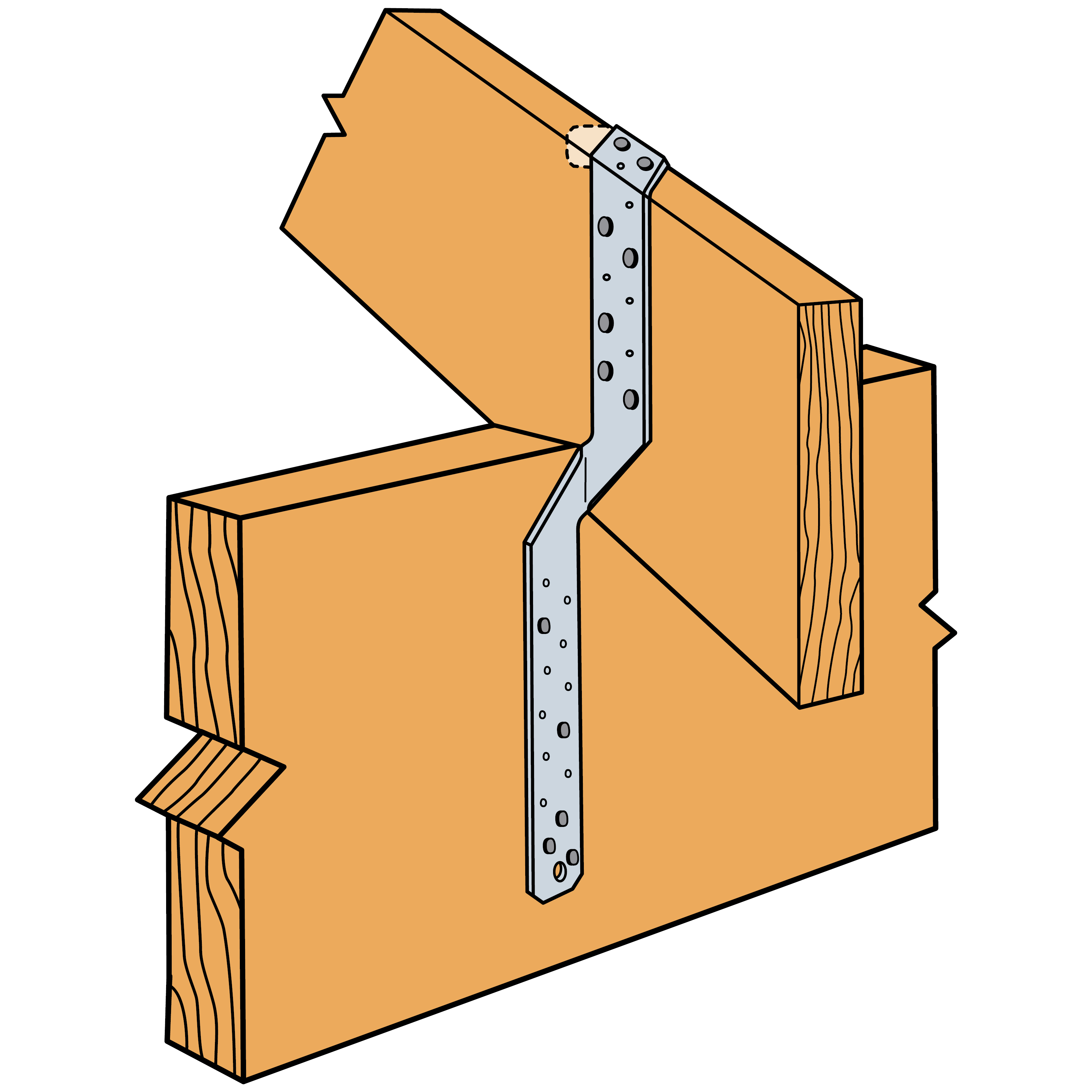

Fastening rafters to the wall plate using MTS twisted straps

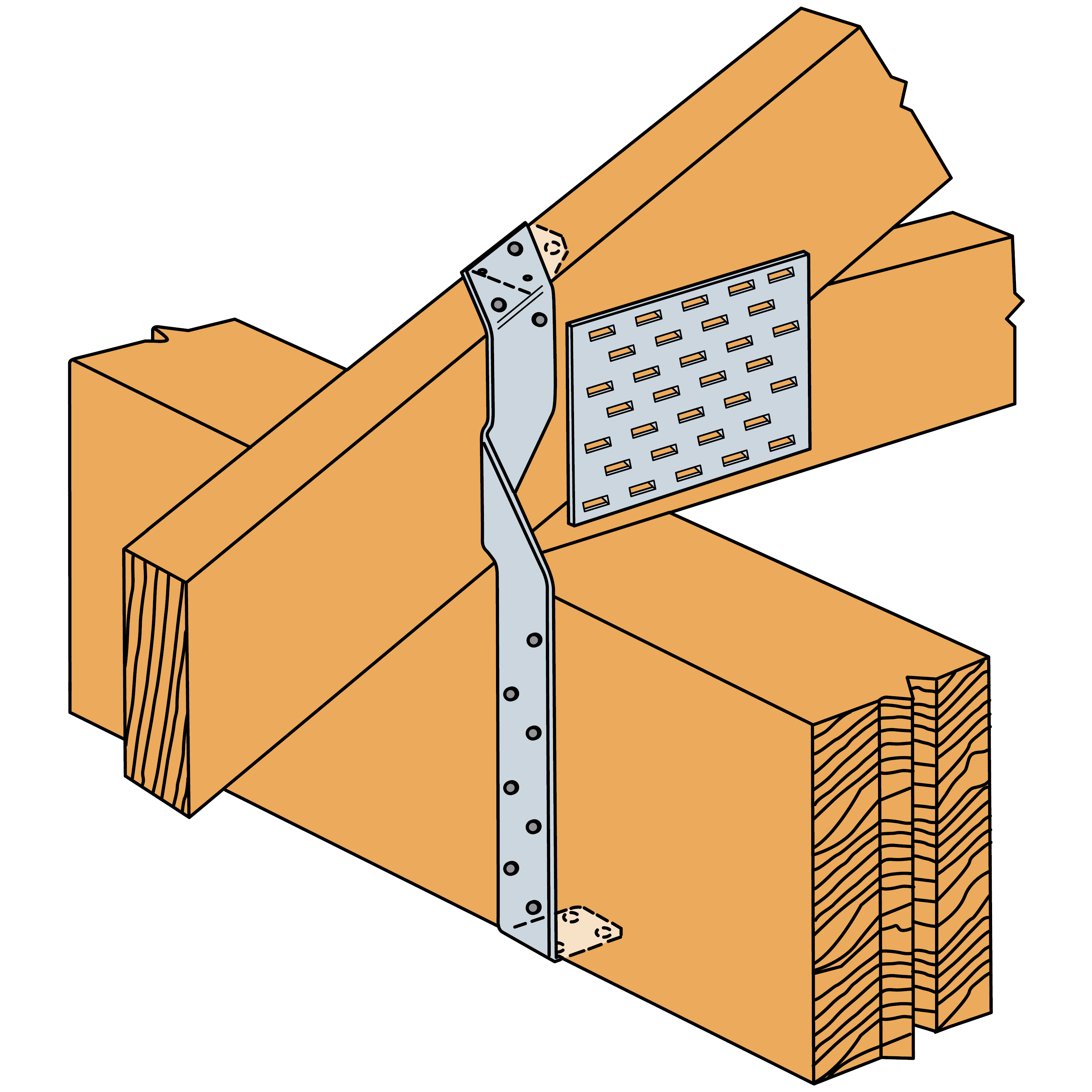

Fastening of trusses to wall plates using MTS twisted straps
Features
Application
Technical Data
MTS Meduim Twist Strap - Characteristic

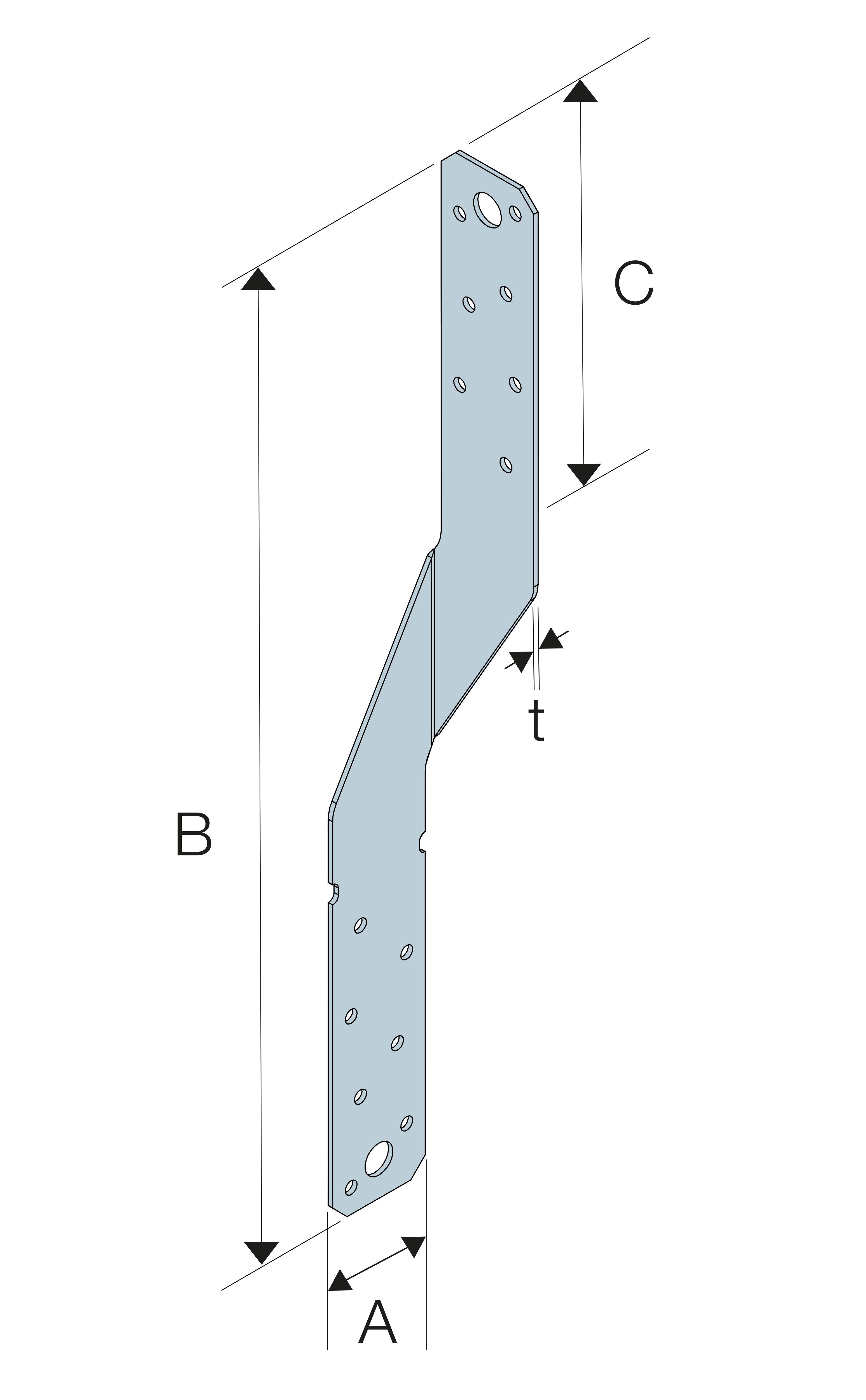

Dimensions
| Reference | Connector Dimensions | Masonry capacity | |||
|---|---|---|---|---|---|
| Product Dimensions[mm] | Characteristic Capacity[N] | ||||
| A[mm] | B[mm] | C[mm] | t[mm] | Strap Characteristic Tensile Capacity[kN] | |
| MTS12 | 32 | 305 | 117 | 1.5 | 4 |
| MTS20 | 32 | 508 | 219 | 1.5 | 4 |
| MTS30 | 32 | 765 | 219 | 1.5 | 4 |
Installation
Installation
Fastening rafters to the wall plate using MTS twisted straps
Fastening of trusses to wall plates using MTS twisted straps
