MP

Mending Plate

The MP is an easy to use connector for timber splices, no nails required.
For non-structural applications only; not for truss applications.

Technical Data Sheet
Service class 2
Service class 2
Electrogalvanized steel Z275
Electrogalvanized steel Z275
Indoor
Indoor
EPD
EPD

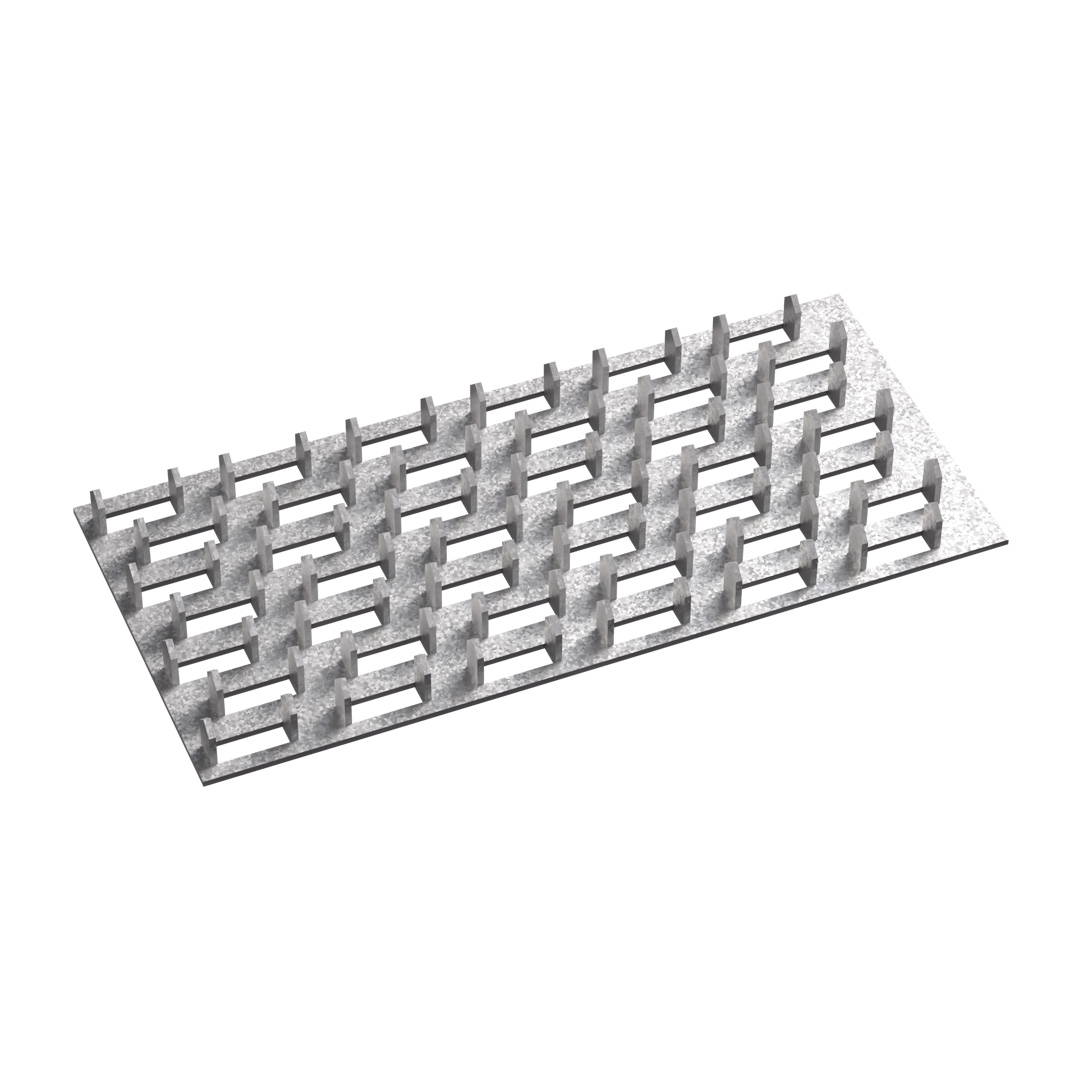

MP main image

Product Details

Images

MP25/100
MP50/100
MP50/100
MP75/150
Installed
MP mending plate Inst. 4.jpg

Features

Material

  • Pre-galvanised mild steel

Benefits

b

Application

Suitable On

b

When to Use

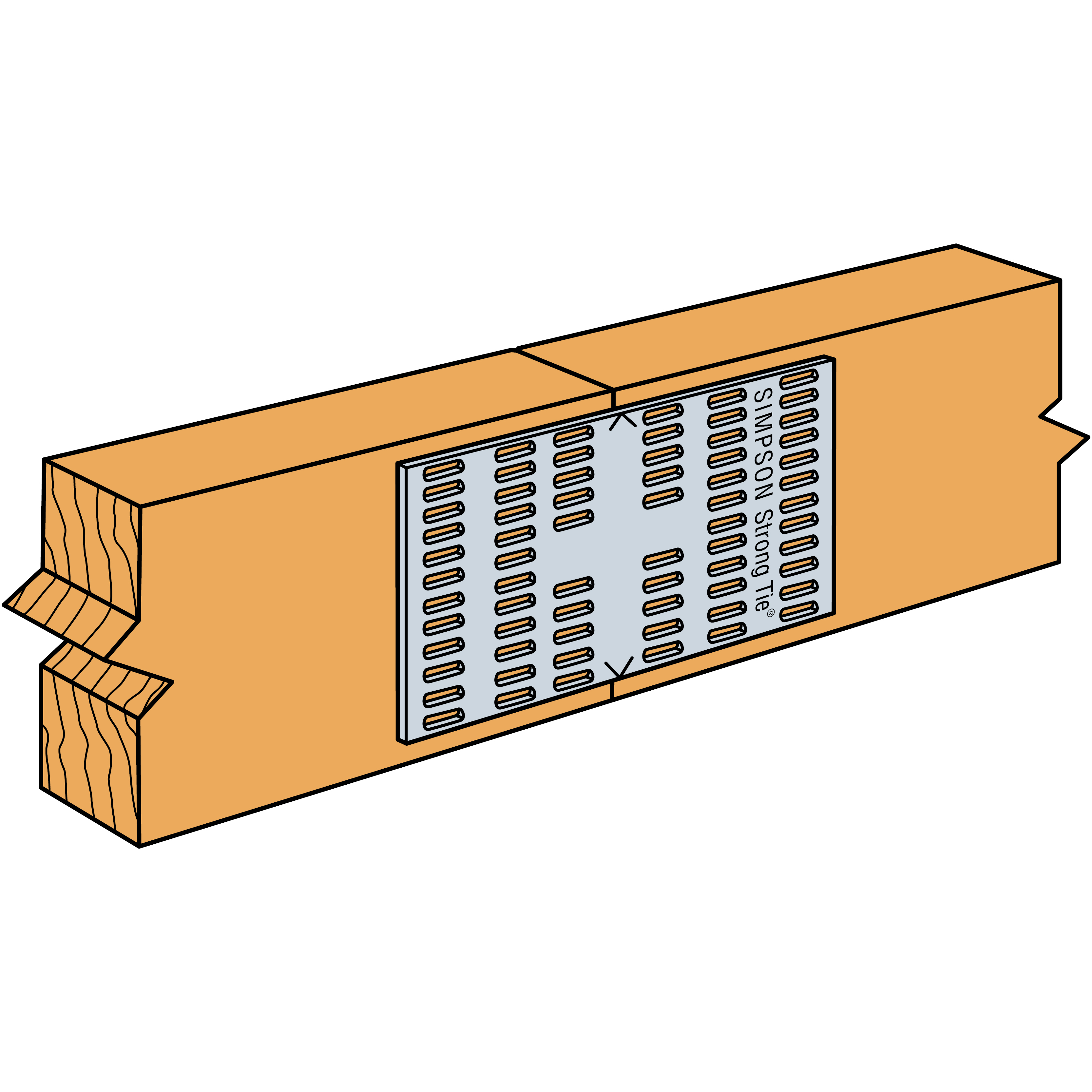

  • Jointing of 2 pieces.
  • Reinforcement of damaged or split assemblies.
  • Boxes, etc.

Technical Data

Product dimensions

Dimensions

Product dimensions
Product dimensions
Product dimensions
ReferenceConnector Dimensions
Product Dimensions[mm]Other
A[mm]B[mm]Weight[kg]
MP25/100251000.02
MP50/100501000.052
MP75/150751500.09

Installation

Installation

Fixing

Does not require any additional accessory.

DO NOT USE IN STRUCTURAL APPLICATIONS. AVOID SPLITTING THE WOOD.

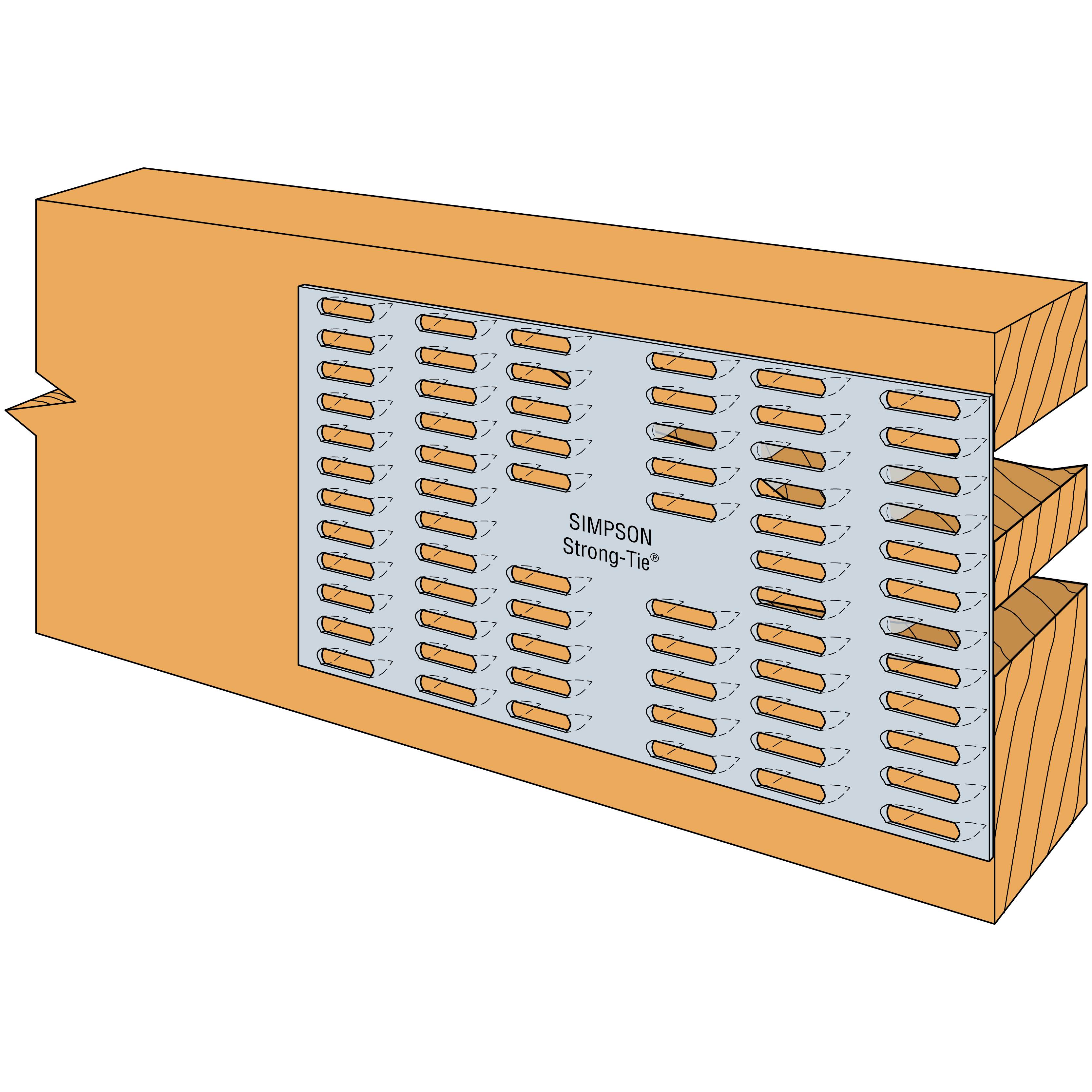

MP mending plate Inst. 4.jpg
Installed

Certification

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors
