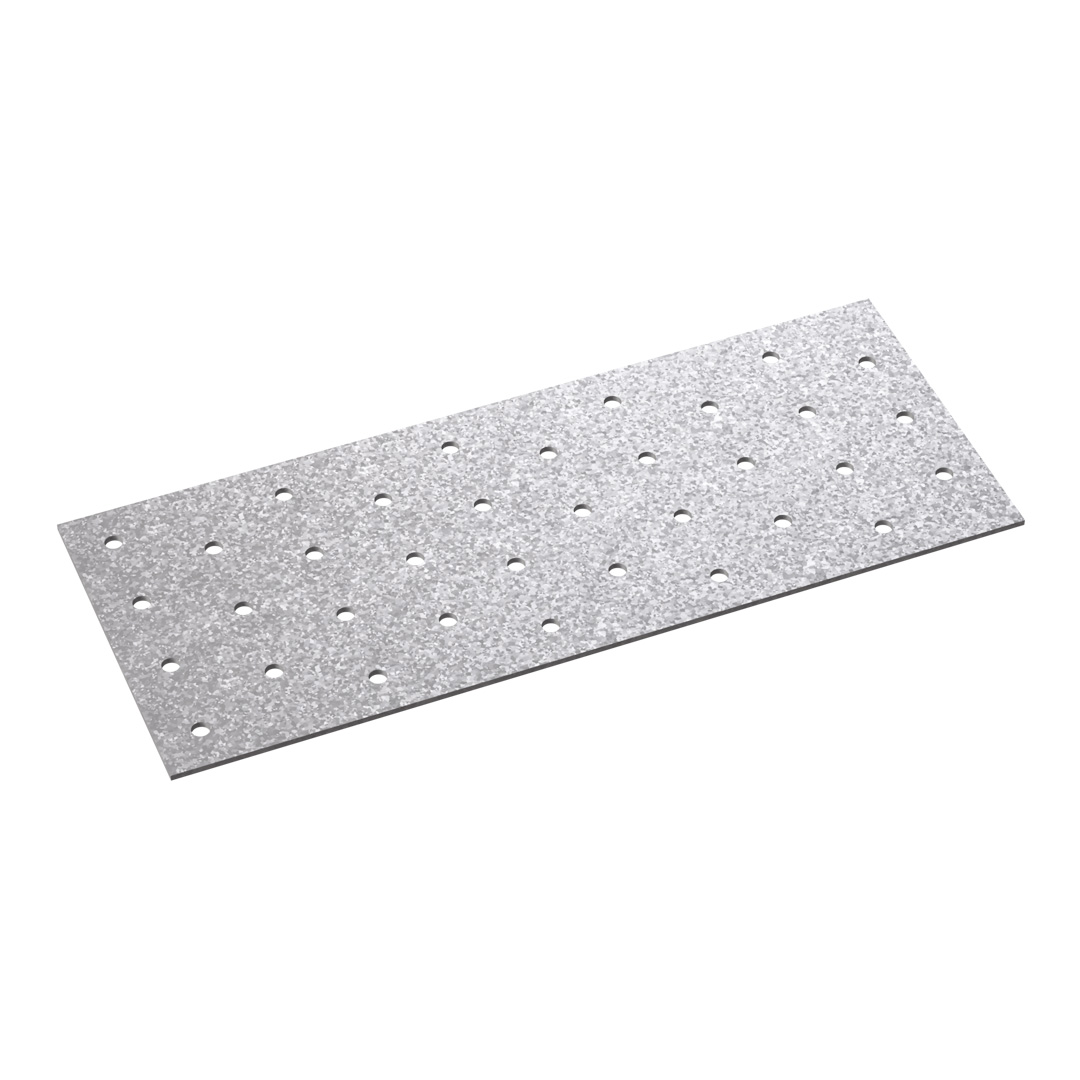

Nail Plate

Nail plates are used to connect two or more timber members together. They are available in a variety of sizes.

Technical Data Sheet

CE Marking

Electrogalvanized steel Z275

Indoor

Service class 2

EPD

Product Details

Images


Features

Material

Pre-glavanised mild steel. Grade S250GD

Benefits

Versatility of applications
Can be bent on site

Application

Header member

Supporting member: solid wood, glued-laminated wood, composite lumber, etc.
Supported member: solid wood, glued-laminated wood, composite lumber, triangular trusses, profiles.

Applications

Post/beam connection
Jointing
Repairs
Assemblies requiring a special bending on site, etc

Technical Data

Dimensions and characteristic values

Dimensions

Reference	Connector Dimensions							Nail plates capacity
	Other		Product Dimensions[mm]			Joist		Characteristic Capacities[kN]
	Weight[kg]	Qty per Box	A[mm]	B[mm]	Thickness[mm]	Round		R₁,ₖ
	Weight[kg]	Qty per Box	A[mm]	B[mm]	Thickness[mm]	Qty	Diameter	R₁,ₖ
NP15/40/120	0.053	100	40	120	1.5	9.0	Ø5	min (n x Rlat,k ; 13.4/kmod)
NP15/80/140	0.13	50	80	140	1.5	25.0	Ø5	min (n x Rlat,k ; 26.7/kmod)
NP15/80/180	0.165	50	80	180	1.5	32.0	Ø5	min (n x Rlat,k ; 26.7/kmod)
NP15/80/200	0.18	50	80	200	1.5	35.0	Ø5	min (n x Rlat,k ; 26.7/kmod)
NP15/80/220	0.198	50	80	220	1.5	39.0	Ø5	min (n x Rlat,k ; 26.7/kmod)
NP15/80/260	0.22	50	80	260	1.5	46.0	Ø5	min (n x Rlat,k ; 26.7/kmod)
NP15/100/140	0.16	50	100	140	1.5	32.0	Ø5	min (n x Rlat,k ; 33.4/kmod)
NP15/100/200	0.22	50	100	200	1.5	45.0	Ø5	min (n x Rlat,k ; 33.4/kmod)
NP15/100/240	0.26	50	100	240	1.5	54.0	Ø5	min (n x Rlat,k ; 33.4/kmod)
NP15/100/300	0.336	50	100	300	1.5	68.0	Ø5	min (n x Rlat,k ; 33.4/kmod)
NP15/140/180	0.28	50	140	180	1.5	59.0	Ø5	min (n x Rlat,k ; 46.8/kmod)
NP15/140/200	0.31	50	140	200	1.5	65.0	Ø5	min (n x Rlat,k ; 46.8/kmod)
NP15/140/260	0.4	50	140	260	1.5	85.0	Ø5	min (n x Rlat,k ; 46.8/kmod)
NP15/160/340	0.59	25	160	340	1.5	128.0	Ø5	min (n x Rlat,k ; 53.5/kmod)
NP15/200/260	0.56	25	200	260	1.5	124.0	Ø5	min (n x Rlat,k ; 66.8/kmod)
NP15/220/300	0.72	25	220	300	1.5	158.0	Ø5	min (n x Rlat,k ; 73.5/kmod)
NP20/40/120	0.071	100	40	120	2	9.0	Ø5	min (n x Rlat,k ; 17.8/kmod)
NP20/40/160	0.094	50	40	160	2	12.0	Ø5	min (n x Rlat,k ; 17.8/kmod)
NP20/50/200	0.15	50	50	200	2	20.0	Ø5	min (n x Rlat,k ; 23.8/kmod)
NP20/60/140	0.12	50	60	140	2	18.0	Ø5	min (n x Rlat,k ; 26.7/kmod)
NP20/80/200	0.232	50	80	200	2	35.0	Ø5	min (n x Rlat,k ; 35.6/kmod)
NP20/80/240	0.29	50	80	240	2	42.0	Ø5	min (n x Rlat,k ; 35.6/kmod)
NP20/80/300	0.35	50	80	300	2	53.0	Ø5	min (n x Rlat,k ; 35.6/kmod)
NP20/100/140	0.204	50	100	140	2	32.0	Ø5	min (n x Rlat,k ; 44.6/kmod)
NP20/100/200	0.3	50	100	200	2	45.0	Ø5	min (n x Rlat,k ; 44.6/kmod)
NP20/100/240	0.35	50	100	240	2	54.0	Ø5	min (n x Rlat,k ; 44.6/kmod)
NP20/100/260	0.38	50	100	260	2	59.0	Ø5	min (n x Rlat,k ; 44.6/kmod)
NP20/100/300	0.45	25	100	300	2	68.0	Ø5	min (n x Rlat,k ; 44.6/kmod)
NP20/100/400	0.6	25	100	400	2	89.0	Ø5	min (n x Rlat,k ; 44.6/kmod)
NP20/100/500	0.75	25	100	500	2	112.0	Ø5	min (n x Rlat,k ; 44.6/kmod)
NP20/120/200	0.35	50	120	200	2	55.0	Ø5	min (n x Rlat,k ; 53.5/kmod)
NP20/120/240	0.41	25	120	240	2	66.0	Ø5	min (n x Rlat,k ; 53.5/kmod)
NP20/120/260	0.48	25	120	260	2	72.0	Ø5	min (n x Rlat,k ; 53.5/kmod)
NP20/120/300	0.53	25	120	300	2	83.0	Ø5	min (n x Rlat,k ; 53.5/kmod)
NP20/120/400	0.689	25	120	400	2	110.0	Ø5	min (n x Rlat,k ; 53.5/kmod)
NP20/140/400	0.83	25	140	400	2	130.0	Ø5	min (n x Rlat,k ; 62.4/kmod)
NP20/160/300	0.69	25	160	300	2	113.0	Ø5	min (n x Rlat,k ; 71.3/kmod)
NP20/160/400	0.93	20	160	400	2	150.0	Ø5	min (n x Rlat,k ; 71.3/kmod)
NP20/200/300	0.89	20	200	300	2	143.0	Ø5	min (n x Rlat,k ; 89.1/kmod)
NP20/350/40	-	-	350	40	2	34.0	Ø5	-

With

n: the number of nails

R_lat,k : Shear capacity of the fastener

Installation

Fixing

Nail plates are commonly used with:

CNA nails Ø4.0
CSA screws Ø5.0

Installation

The performance values stated in the table refer to the nail plate’s maximum tensile strength. The fastener capacity must be checked separately in accordance to BS EN 1995-1-1.

The characteristic resistance of an NP nail plate assembly under tensile load R_1.k is:

Rl.k= min (R_1.st / k_mod; R_upper; R_lower)

Where:

R_1.st: the maximum characteristic value under tensile load as specified in the table.
R_upper: the resistance of the group of fasteners in the upper wall
R_lower: the resistance of the group of fasteners in the lower wall

R_upper = ne_f.upper x R_lat.k R_lower = n_ef.lowerx R_lat.k

Where:
