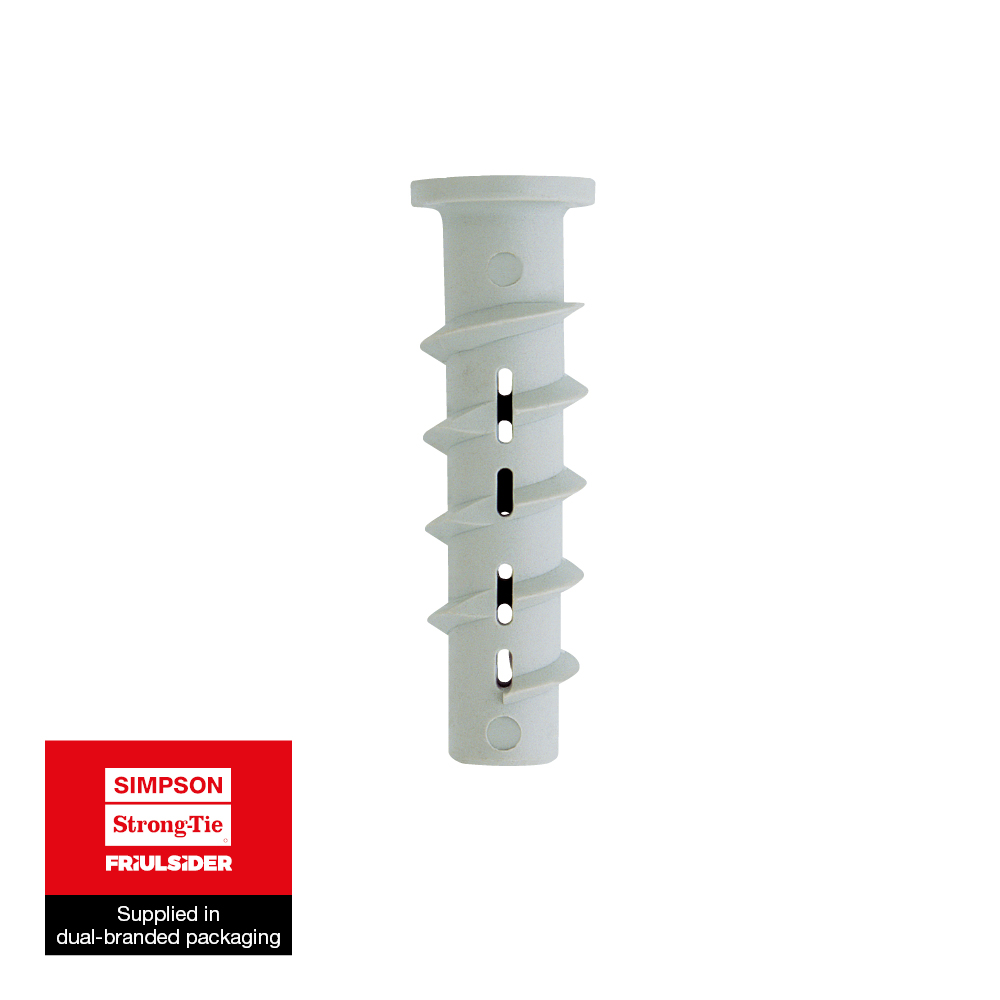

Nylon plug for aerated concrete
TML concrete anchors Ø10 - Ø 14 mm are specially designed for fastening in aerated concrete. The anchor is placed after pre-drilling, whereby the external thread cuts positively into the building material and ensures a secure hold. The add-on parts can then be mounted using wood screws or metric screws.
Product Details
Images

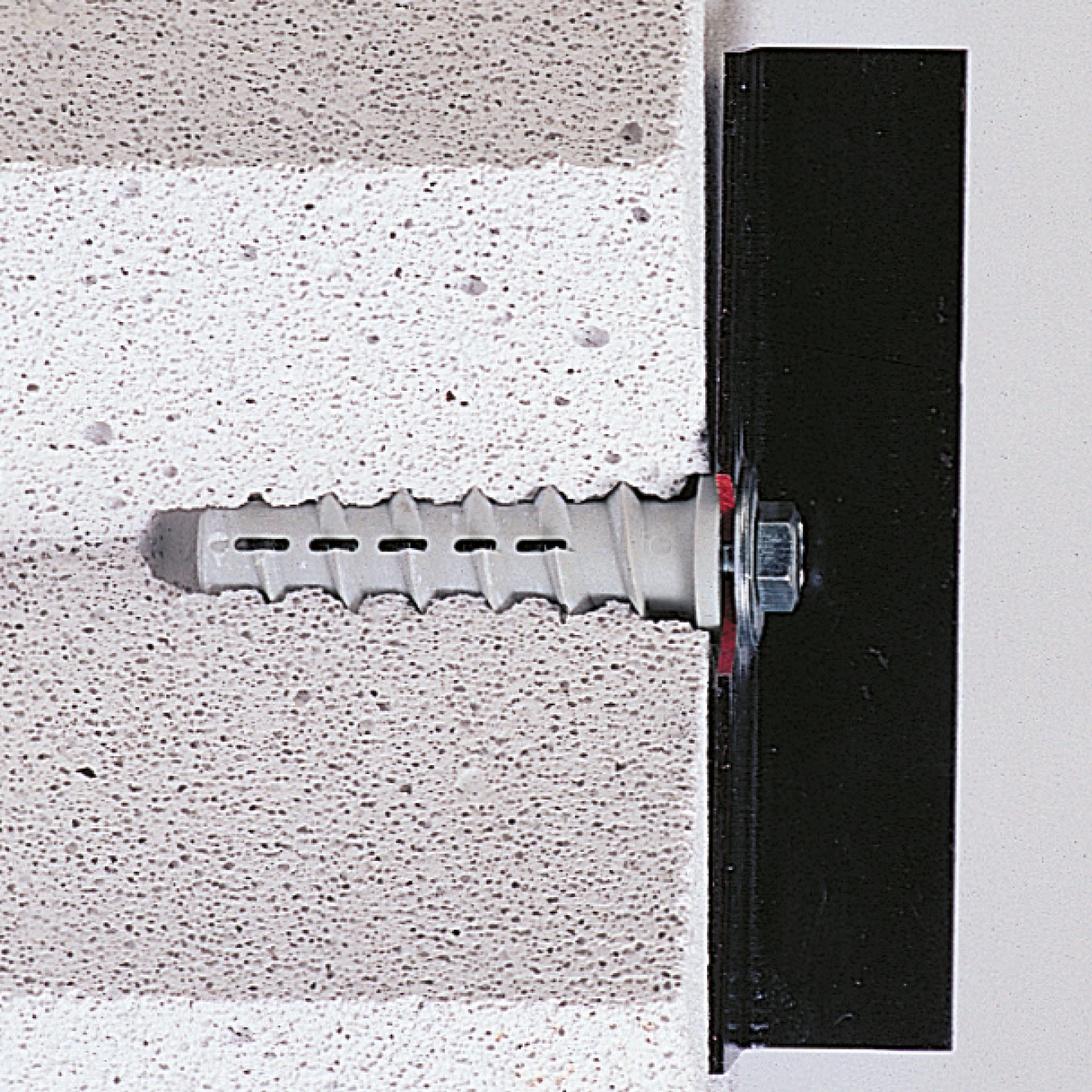

Application
Technical Data
Dimensions
Dimensions
| Reference | Nylon fixings dimensions | Nylon fixings Installation data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Info product[mm] | Installation data | ||||||||||||
| Product Reference | Min. screw diameter [d][mm] | Max. screw diameter [d][mm] | Metric screw diameter | Anchor length [Lu][mm] | Wrench[SW] | Qty per box[stk] | Qty per outer box | Weight[kg] | Hole diameter x anchor length [dₒxL][mm] | Min. hole depth [h₁][mm] | Nominal embedment depth [hₙₒₘ][mm] | Min. support thickness [hₘᵢₙ][mm] | |
| 6260100605000 | TML | 5.5 | 6 | M6 | 40 | 6 | 25.0 | 250.0 | 0.005 | 10x50 | 60 | 50 | 75 |
| 6260100806000 | TML | 7 | 8 | M8 | 50 | 8 | 25.0 | 250.0 | 0.008 | 12x60 | 70 | 60 | 85 |
| 6260101007000 | TML | 9 | 10 | M10 | 60 | 10 | 25.0 | 250.0 | 0.01 | 14x70 | 80 | 70 | 100 |
Screw Length: Lv = Lu + tfix

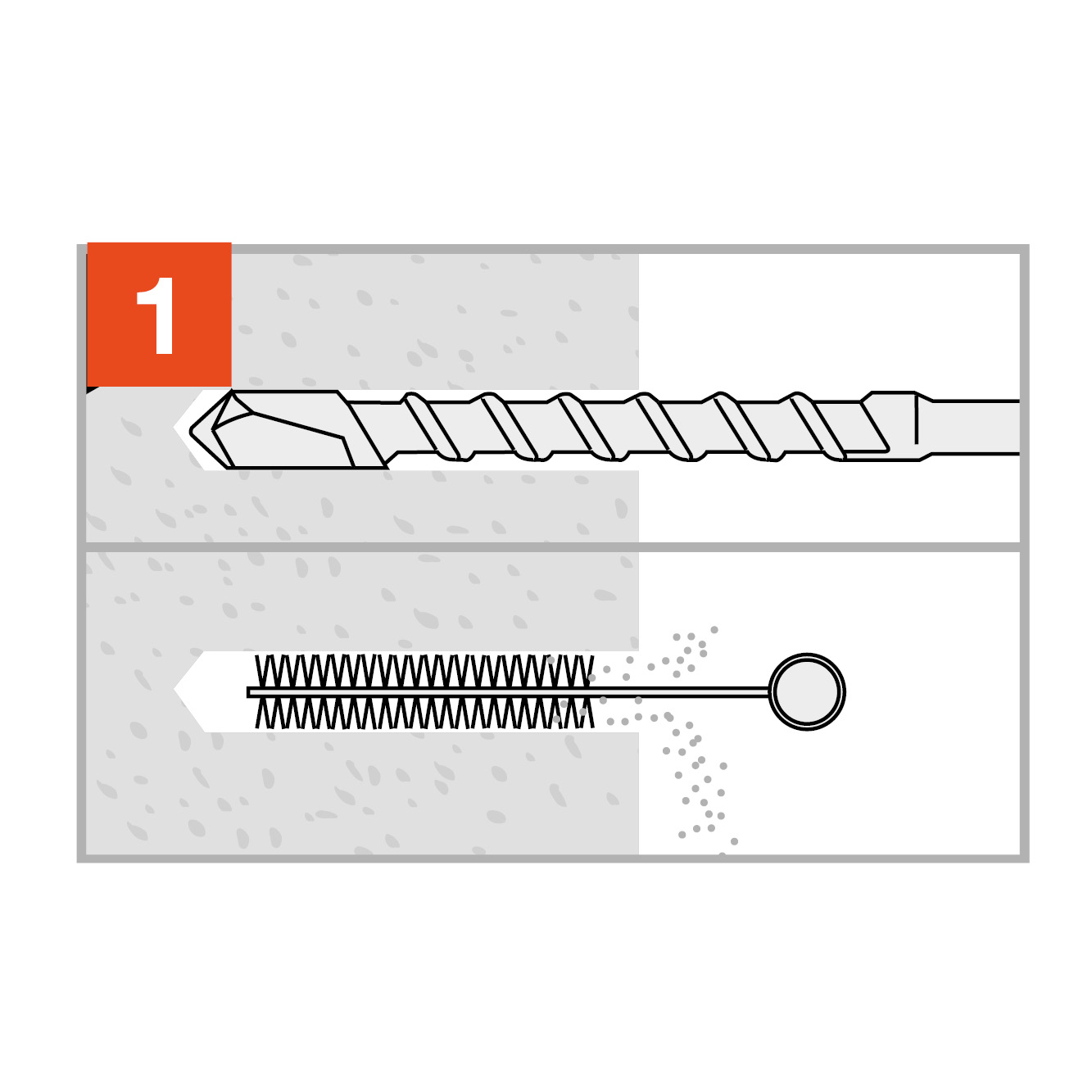

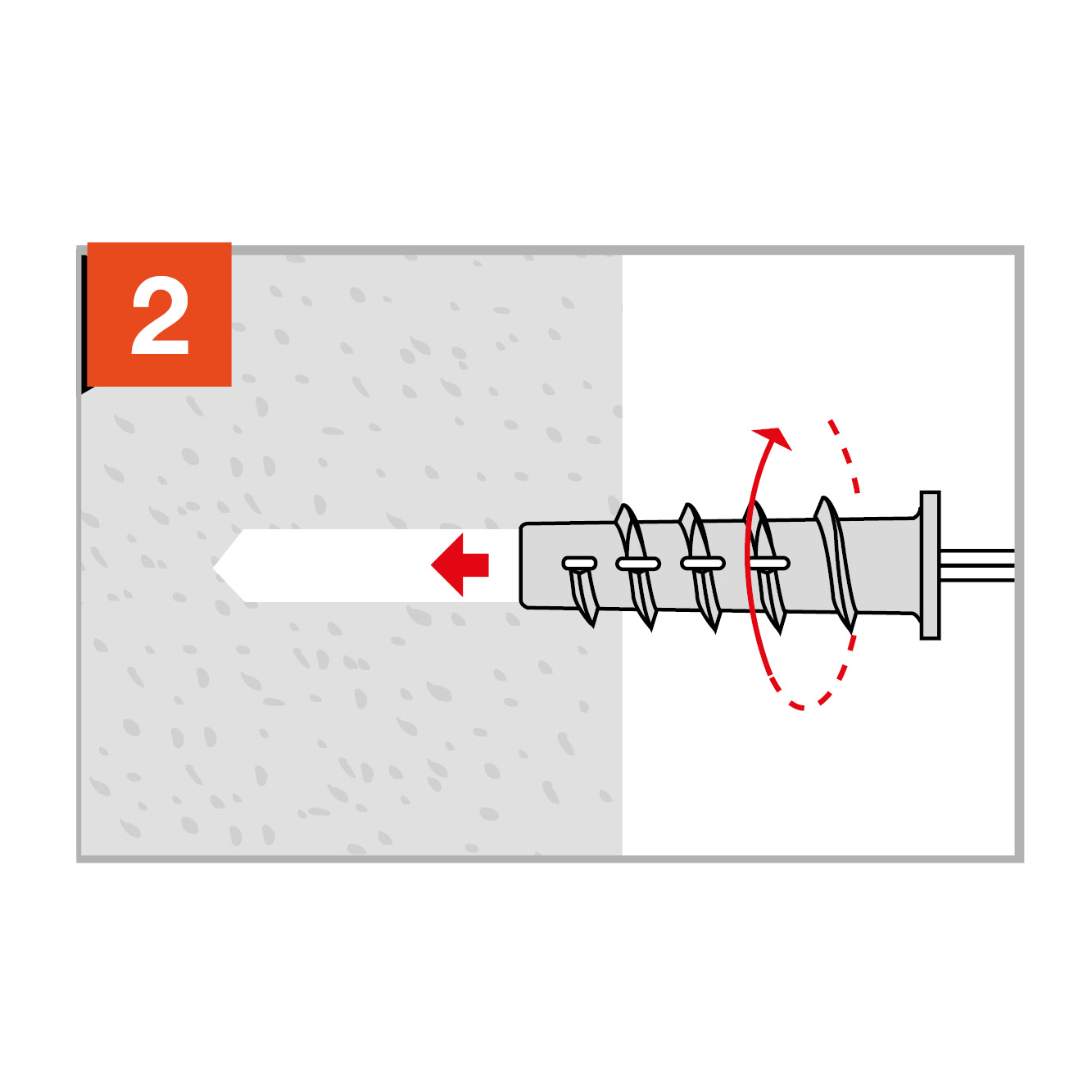

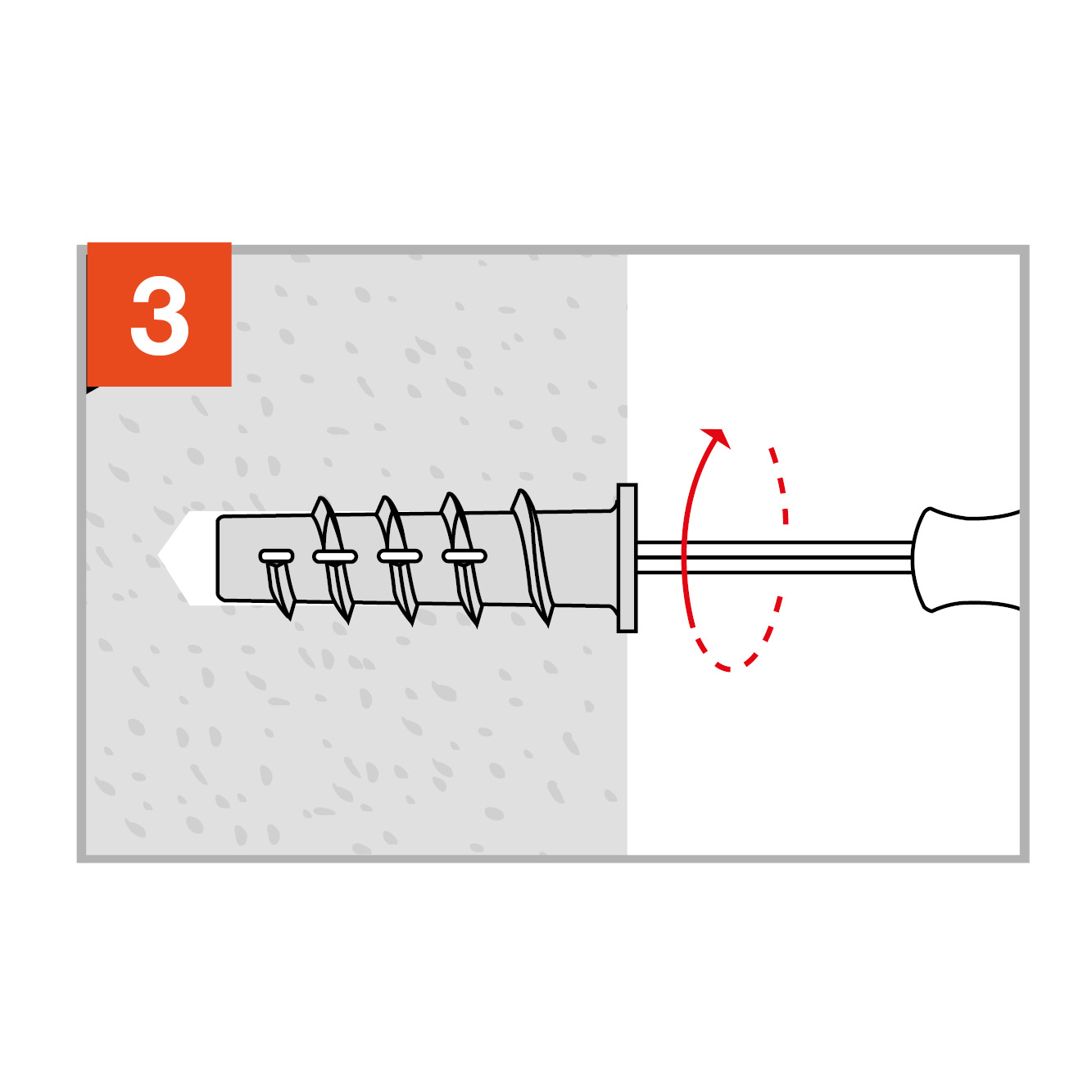

Installation
