PBS

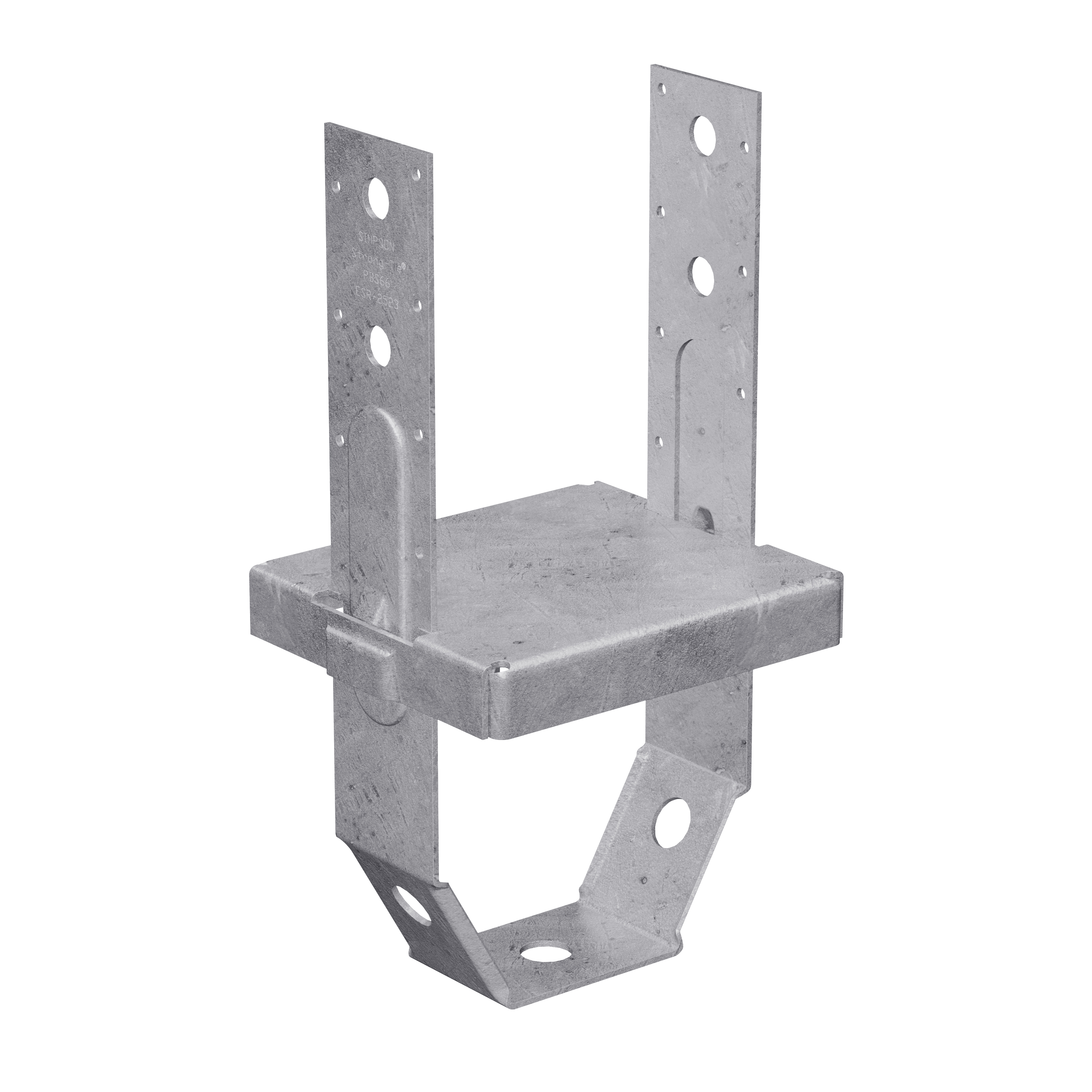

Post Base with Stand Off

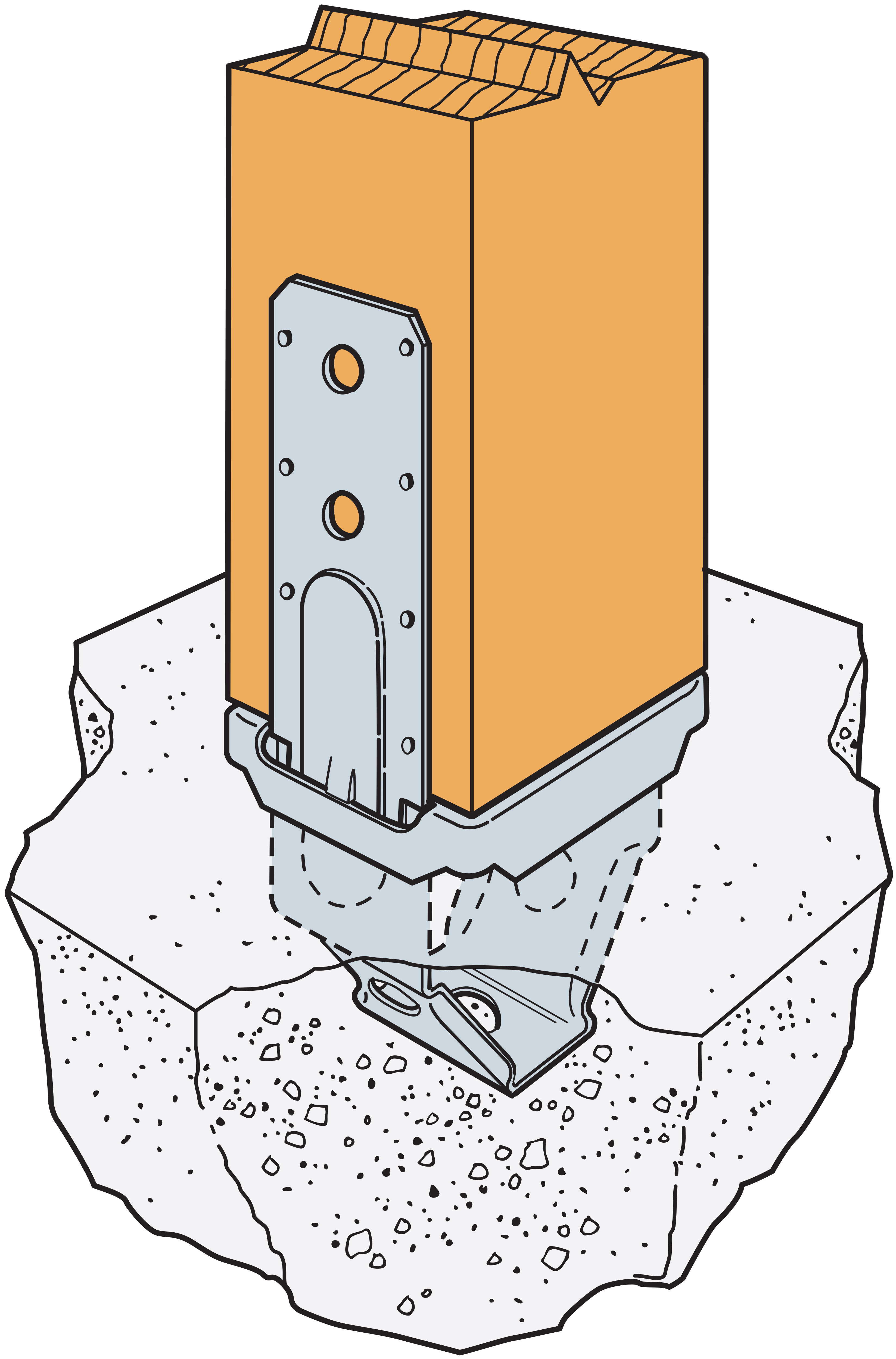

The PBS post base is designed to be installed into wet concrete and features a
stand off to help prevent moisture induced decay to the timber post.
CE Marking
Service class 3
Outdoor
Product Details
Images
Features
Technical Data
Dimensions
Product Dimensions
| References | Post size [mm] | Product Dimensions [mm] | Holes | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | t1 | Top | Bottom | |||
| Ø4.3 | Ø14 | Ø19 | |||||||||||
| PBS44AZ | 89 x 89 | 91 | 57 | 159 | 89 | 91 | 25 | Ø57 | 84 | 2.5 | 14 | 4 | 3 |
Characteristic Loads
| References | Number of Fasteners | Characteristic Capacities - Timber C24 [kN] | |||||
|---|---|---|---|---|---|---|---|
| Post(1) | R1,k | R2,k | |||||
| Nails | Bolts | Nails | Bolts | ||||
| Qty | Type | Qty | Type | ||||
| PBS44AZ | 12 | 3.75 x 75 | 2 | M12 | 60.9 | 24 | 16 |
- Use Nails or Bolts
- The published characteristic capacity is based upon medium term load duration and service class 3 according to EC5 (EN 1995). For other load duration and service classes please refer to the ETA .
