PISBMAXI

Post Base with Stand Off

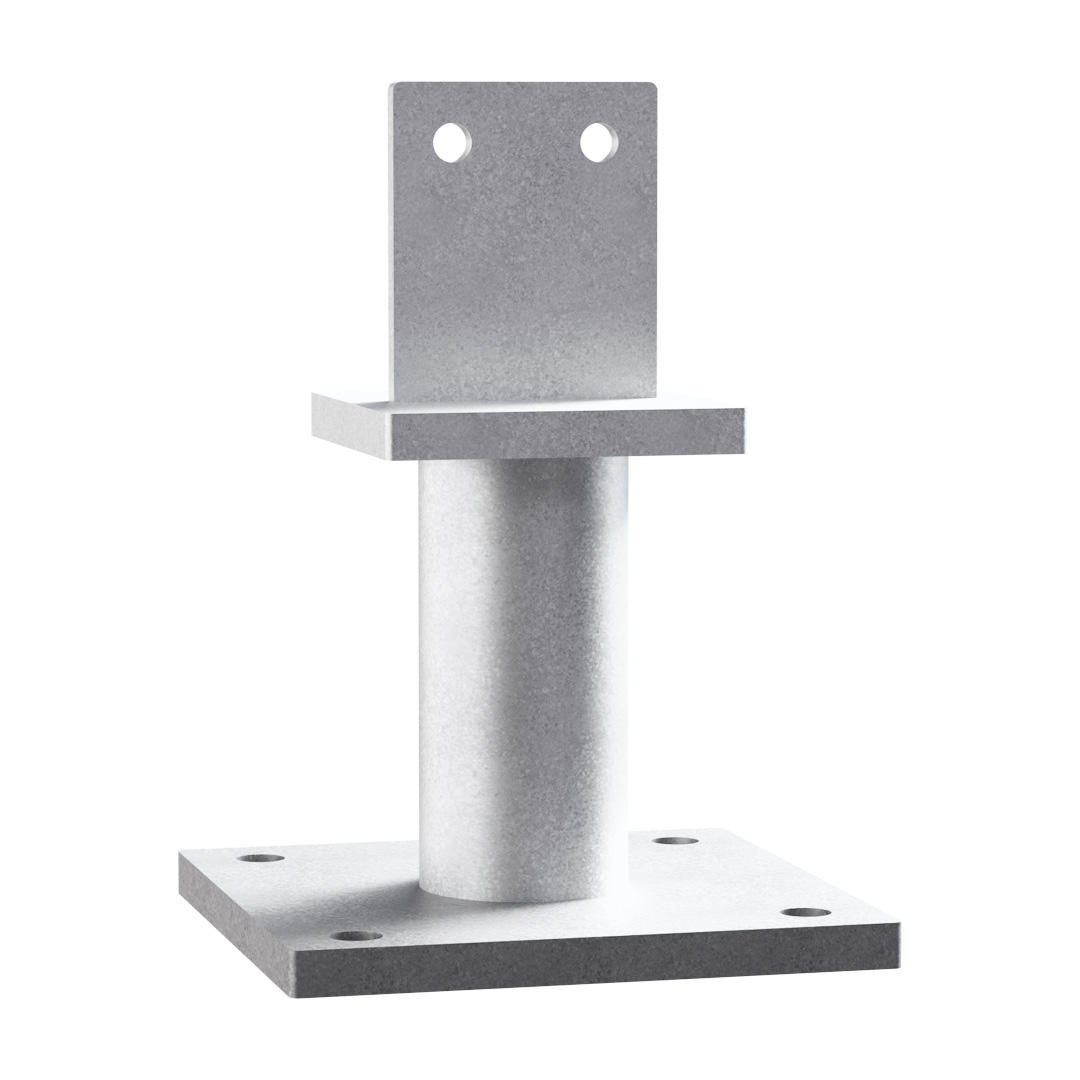

The PISBMAXI is a heavy duty elevated post base to suit various sizes of timber and Glulam posts.

CE Marking
ETA
Service class 3
Hot-dip galvanised steel
Outdoor

Product Details

Images

Features

Material

Material Grade

S235

Finish

Post hot dip galvanised.

Benefits

  • The post base is made of 15mm thick plates welded to a Ø70mm tube.
  • The column is fixed to an 8mm thick vertical plate with holes to suit Ø12mm dowels.

Application

Suitable On

Timber / Glulam columns to solid foundations

Scope

The PISBMAXI is a heavy duty elivated post base to suit various sizes of timber and Glulam posts.

Technical Data

Dimensions

Product Dimensions

References Product Dimensions [mm] Top plate holes Bottom plate holes Box Quantity
A B C D E F G H t1 t2 Ø13 Ø17
PISBMAXIG-B120120105200200148709081524-

Simplified Characteristic Capacities - Timber to Concrete

References Number of Fasteners Simplified characteristic capacities - Timber C24 [kN]

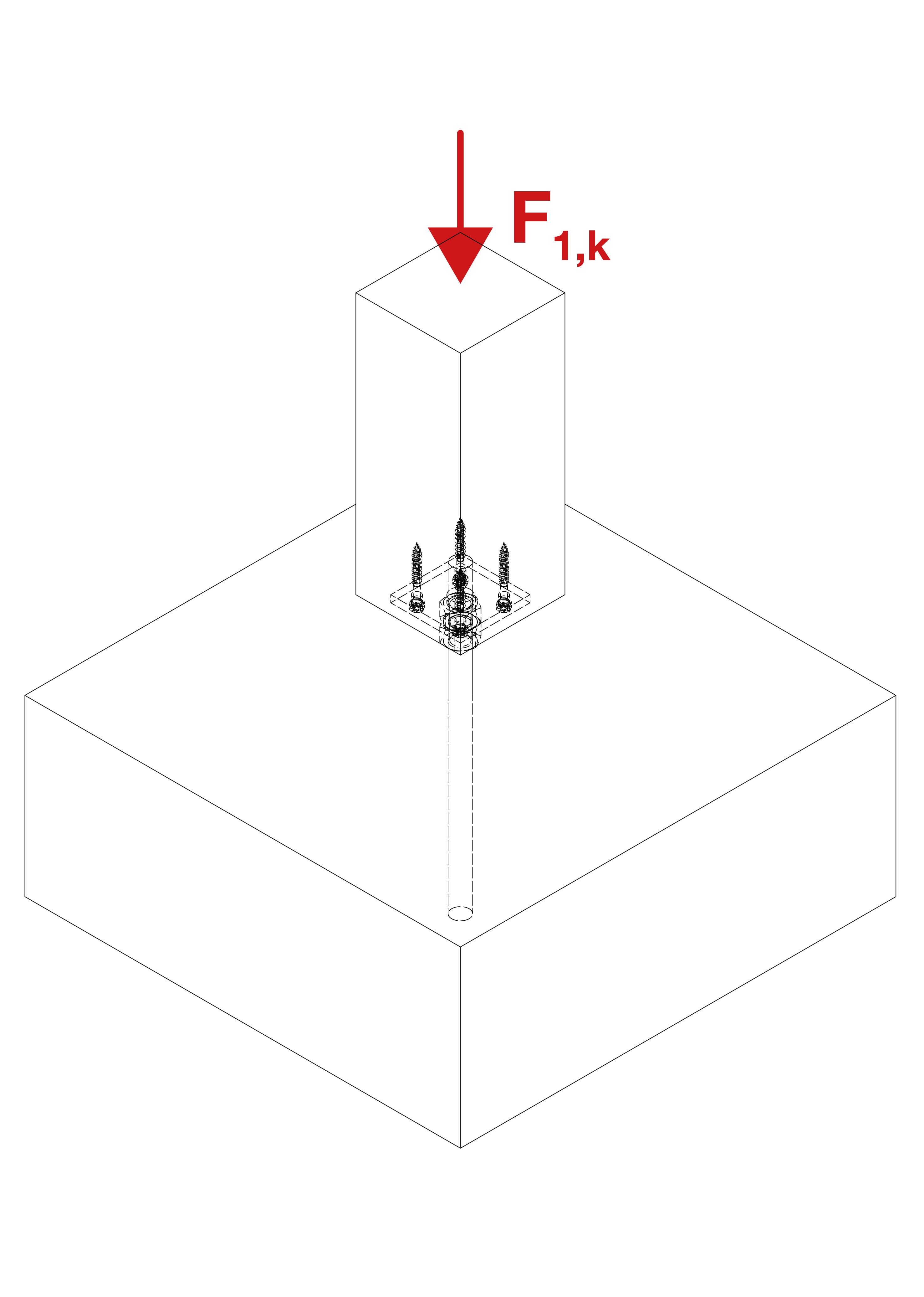

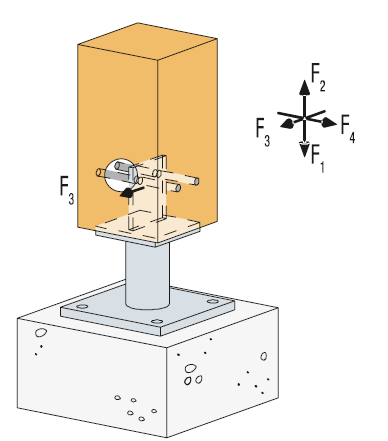

On post On concrete R1,k** R2,k R3,k** R4,k
Qty Type Qty Type Dowel length [mm] Dowel length [mm] Dowel length [mm]
120 140 160 120 140 160 120 140 160
PISBMAXIG-B2Ø124Ø16*272.234.538.542.122.520.120.17.79.912.3

* Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions are SET-XP and AT-HP, depending on the concrete type, spacing and edge distances.

** The published characteristic capacity is based on medium term load duration and service class 3 according to EC5 (EN 1995). For other load duration and service class, please refer to the ETA to get more accurate capacities

Installation

Installation

Fixing

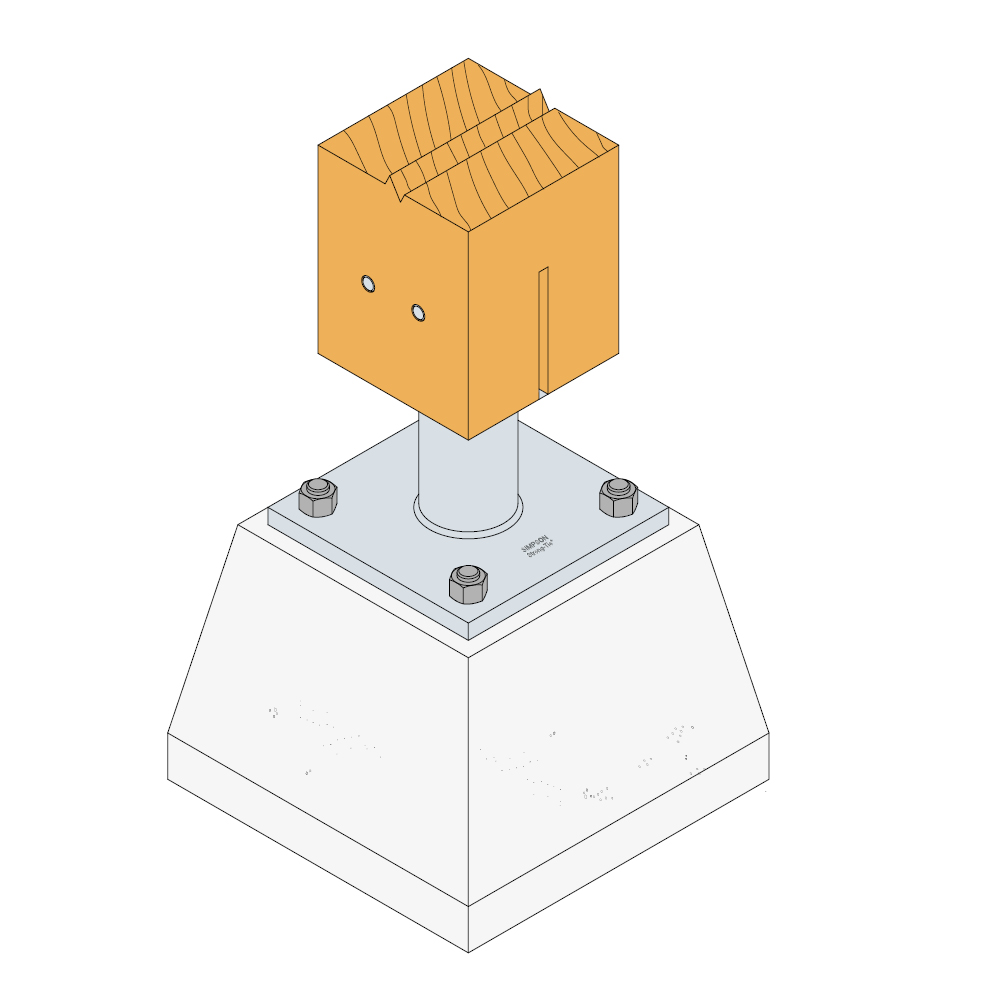

Attach the PISBMAXI post base i to the concrete foundation using concrete screws / mechanical anchors or chemical anchor system.
Connect to the timber using dowels Ø12 supplied.
