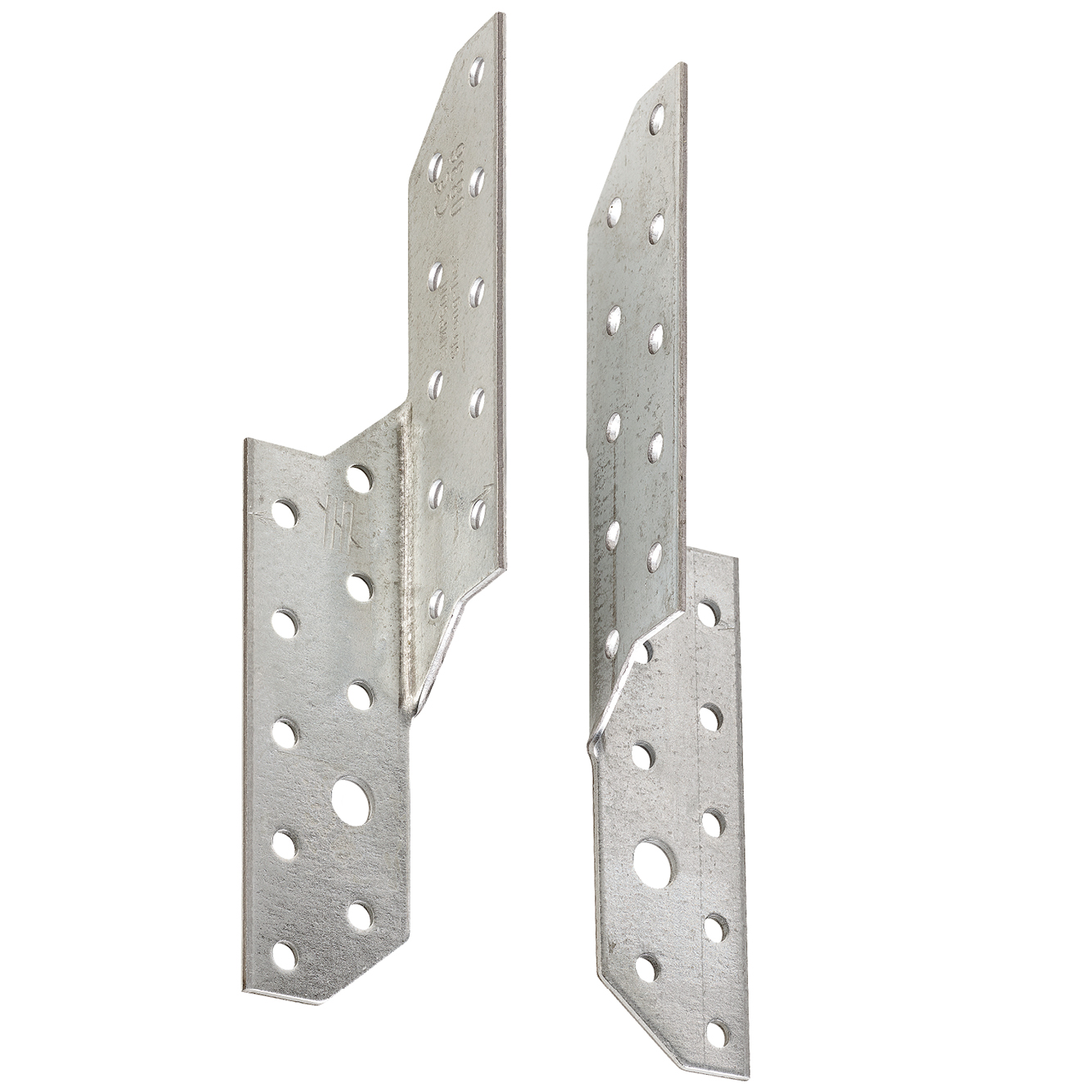

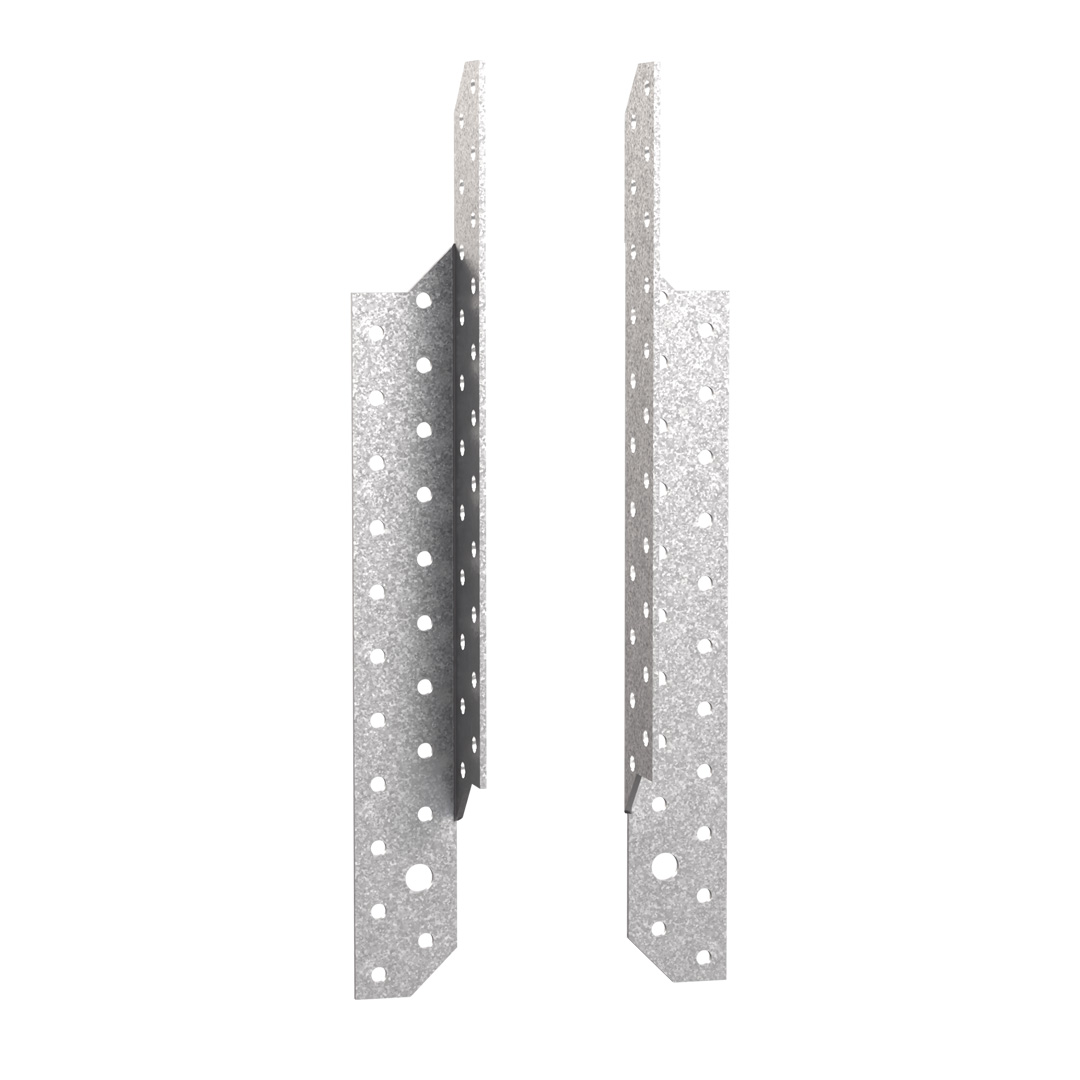

Purlin Anchor

The SPF can be used to connect two timbers that cross over at 90 degrees to each other and can be used with a number of timber dimensions. The SPF are handed, left and right, and are sold separately.
Note: The brackets are manufactured in right and left versions and are sold individually.

Technical Data Sheet

CE Marking

ETA

Electrogalvanized steel Z275

Service class 2

EPD

Available in Connector Selector

Product Details

Images

Features

Material

Steel quality:

S250GD + Z275 according to DIN EN10346

Corrosion protection:

275 g / m galvanized on both sides 20mm

Benefits

• Designed to withstand tensile loads, loads more possible in horizontal directions.
• Installation maybe 2 or 4 connectors for connection.
• Low number of nails, 1-hole line every foot.
• Variable installation

Application

Applicatons

Wood, wood products

Scope

• Wood / wood joints, especially in the intersecting roof structures

Note:

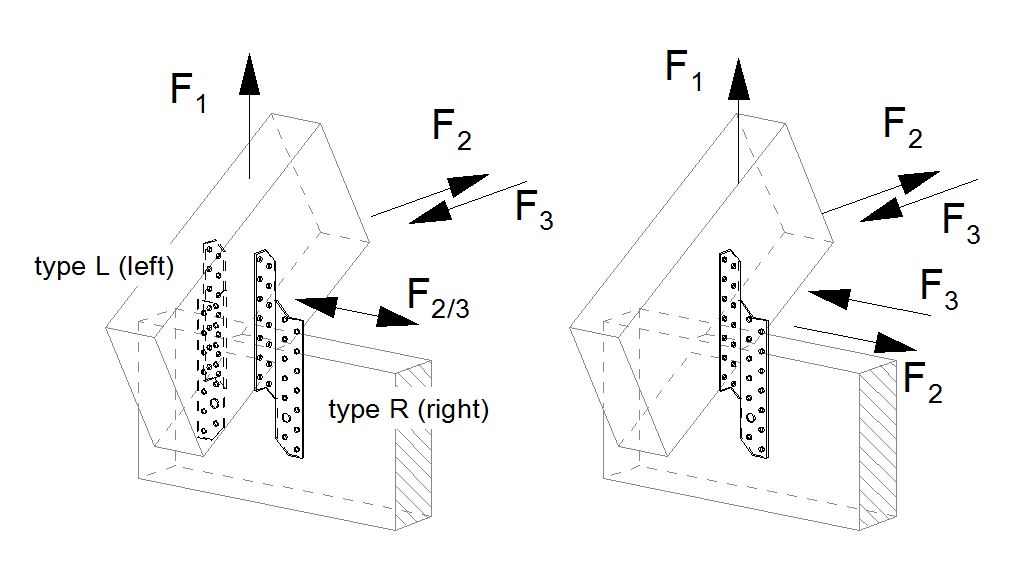

Clutch purlins and rafters in pairs
SPF ... R - coupling purlins and rafters - right
SPF ... L - coupling purlins and rafters – left

Technical Data

Product Dimensions

Dimensions

Reference	Connector Dimensions
	Other		Product Dimensions[mm]					Flange B	Flange E
	Qty per Box	Weight[kg]	A[mm]	B[mm]	C[mm]	E[mm]	t[mm]	Round	Round
	Qty per Box	Weight[kg]	A[mm]	B[mm]	C[mm]	E[mm]	t[mm]	Ø5[mm]	Ø5[mm]
SPF290L	100	0.21	290	32.5	220	220	2	22	21
SPF290R	100	0.21	290	32.5	220	220	2	22	21
SPF370L	50	0.28	370	32.5	300	300	2	30	29
SPF370R	50	0.28	370	32.5	300	300	2	30	29

The types "SPF ...LR" is a pair of left and right version
The Type "SPF...L" is the left version
The type "SPF...R" is the right version

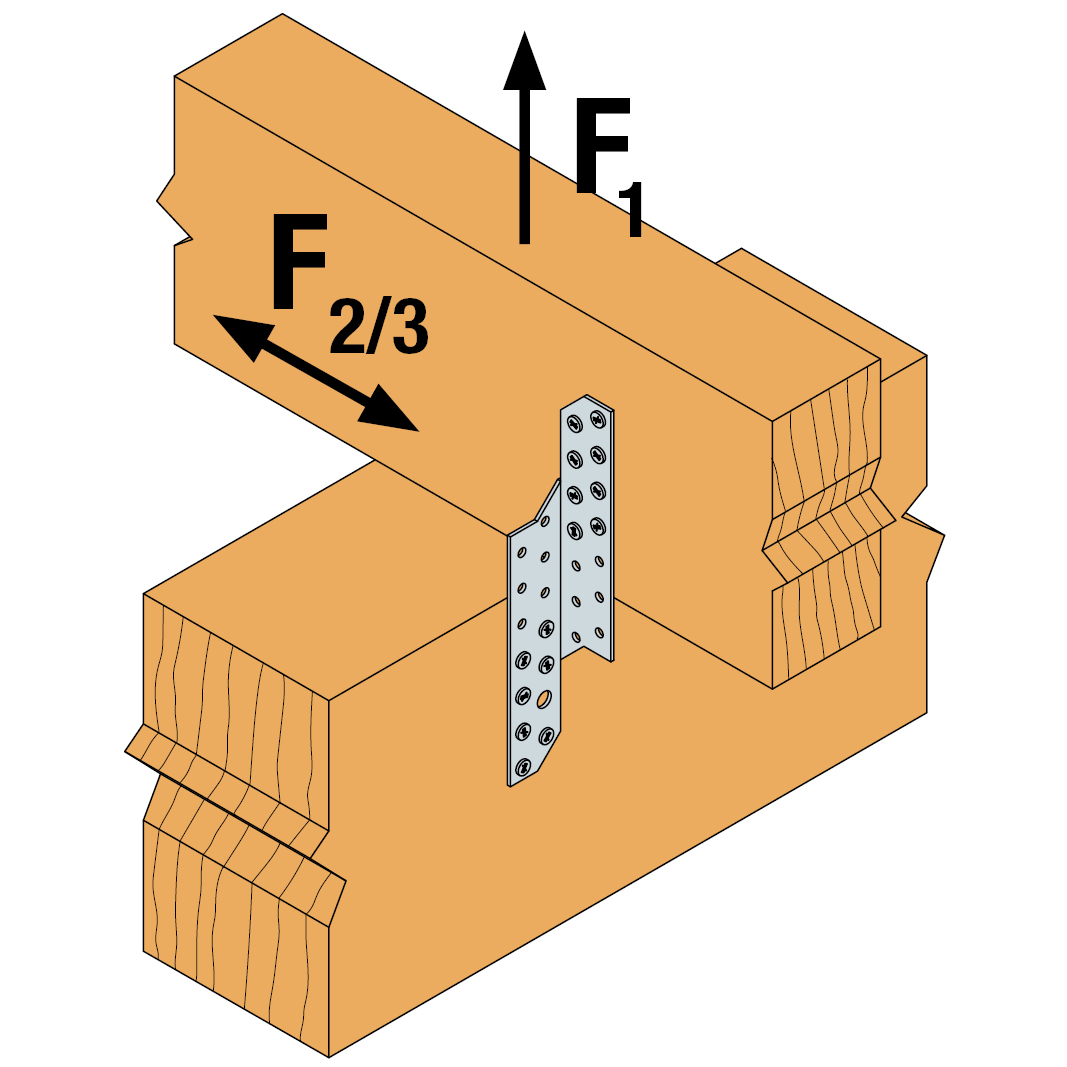

Wood/wood fastening- Characteristic values in kn

Reference	Ties capacity
	Product Characteristic capacities - Timber to timber - Full nailing
	Number of Fasteners		Characteristic capacity - Timber C24 2 connectors[kN]												Simplified characteristic capacity - Timber C24 - 2 connectors[kN]
	Header	Purlin	R₁,ₖ				R₂,ₖ				R₃,ₖ				R₁,ₖ				R₂,ₖ				R₃,ₖ
	Qty	Qty	CNA4.0x35	CNA4.0x40	CNA4.0x50	CNA4.0x60	CNA4.0x35	CNA4.0x40	CNA4.0x50	CNA4.0x60	CNA4.0x35	CNA4.0x40	CNA4.0x50	CNA4.0x60	CNA4.0x35	CNA4.0x40	CNA4.0x50	CNA4.0x60	CNA4.0x35	CNA4.0x40	CNA4.0x50	CNA4.0x60	CNA4.0x35	CNA4.0x40	CNA4.0x50	CNA4.0x60
SPF290L	11.0	11.0	min (16,0 ; 13,2 /kmod)	min (17,8 ; 13,2 /kmod)	min (21,4 ; 13,2 /kmod)	min (22,7 ; 13,2 /kmod)	min (5,4 ; 3,8 /kmod^0,7)	min (5,7 ; 4,1 /kmod^0,7)	min (6,1 ; 4,6 /kmod^0,5)	min (6,1 ; 4,6 /kmod^0,5)	1.2	1.5	2	2.5	14.7	14.7	14.7	14.7	4	4.2	4.7	5.1	1.2	1.4	2	5.1
SPF290R	11.0	11.0	min (16,0 ; 13,2 /kmod)	min (17,8 ; 13,2 /kmod)	min (21,4 ; 13,2 /kmod)	min (22,7 ; 13,2 /kmod)	min (5,4 ; 3,8 /kmod^0,7)	min (5,7 ; 4,1 /kmod^0,7)	min (6,1 ; 4,6 /kmod^0,5)	min (6,1 ; 4,6 /kmod^0,5)	1.2	1.5	2	2.5	14.7	14.7	14.7	14.7	4	4.2	4.7	5.1	1.2	1.4	2	5.1
SPF370L	15.0	15.0	min (23,1 ; 13,4 /kmod)	min (25,7 ; 13,4 /kmod)	min (30,9 ; 13,4 /kmod)	min (32,9 ; 13,4 /kmod)	min (5,4 ; 3,8 /kmod^0,7)	min (5,7 ; 4,1 /kmod^0,7)	min (6,1 ; 4,6 /kmod^0,5)	min (6,1 ; 4,6 /kmod^0,5)	1.2	1.5	2	2.5	14.9	14.9	14.9	14.9	4	4.2	4.7	5.1	1.2	1.4	2	5.1
SPF370R	15.0	15.0	min (23,1 ; 13,4 /kmod)	min (25,7 ; 13,4 /kmod)	min (30,9 ; 13,4 /kmod)	min (32,9 ; 13,4 /kmod)	min (5,4 ; 3,8 /kmod^0,7)	min (5,7 ; 4,1 /kmod^0,7)	min (6,1 ; 4,6 /kmod^0,5)	min (6,1 ; 4,6 /kmod^0,5)	1.2	1.5	2	2.5	14.9	14.9	14.9	14.9	4	4.2	4.7	5.1	1.2	1.4	2	5.1
SPF290	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SPF370	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

The capacities are given for one SPF, where the header and purlin are prevented against rotation

The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995). For other load duration and service class, please refer to the ETA to get more accurate capacities

The capacity for connection with 2 SPF is the sum of the single capacities.

$\sum\frac{F_{i,d}} {R_{i,d}}\le1$
