MKSA4

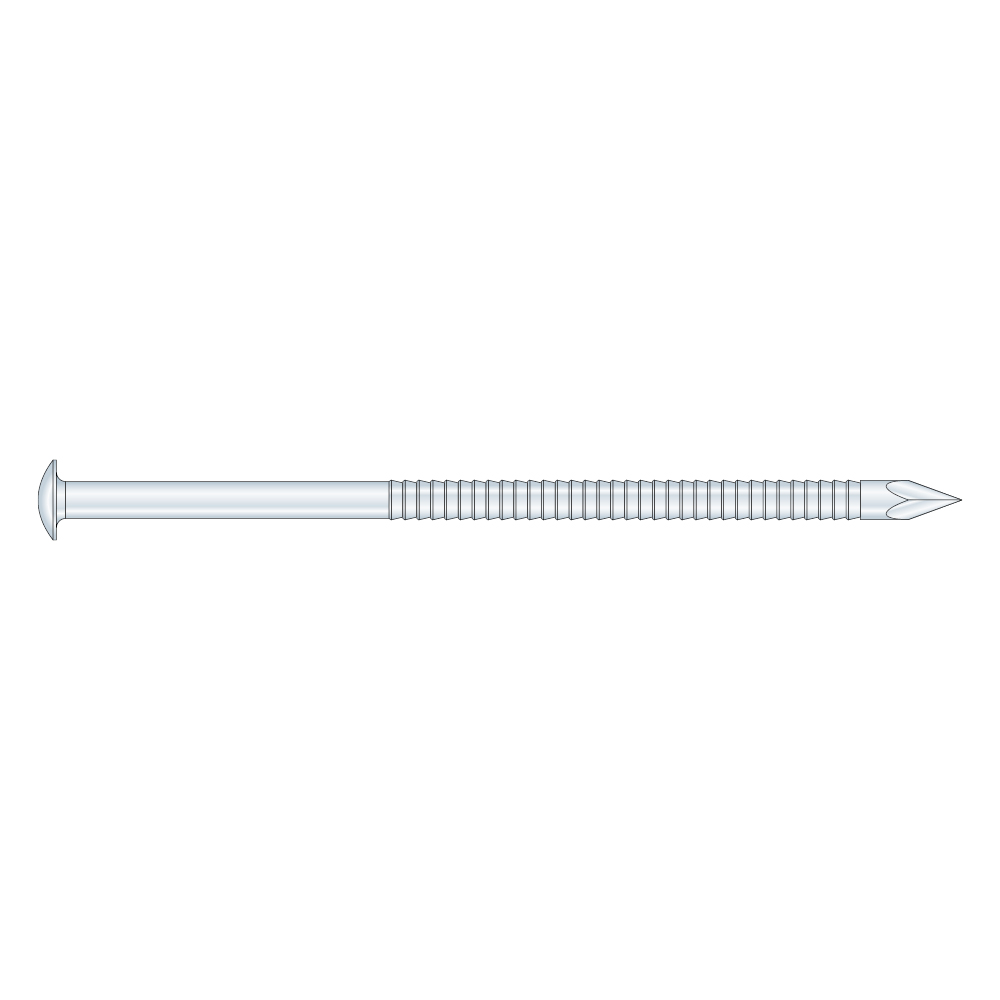

Ring Shank Brick/Wood to Wood Nail

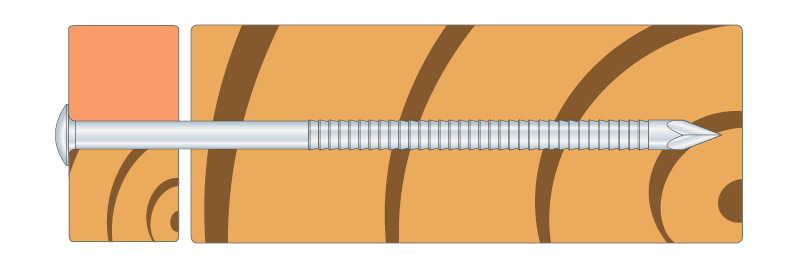

This ring shank nail in stainless steel can withstand rain and aggressive environments. Used where high withdrawal strength is required. A common use is in the construction of jetties, thanks to the nail’s corrosion resistance. When laying a brick facade the joins are anchored to an existing cross-wall up to 6 m.

CE Marking

Severe
EPD

Stainless steel A4

Service class 3

Fastener Designer
Technical Data
Product Dimensions
| Reference | Fasteners Dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Item Code | Other | Product Dimensions[mm] | |||||||||
| NOB nr. | Tun / DB nr. | Weight[kg] | d[mm] | l[mm] | dh[mm] | Aₕ[mm] | ht[mm] | lg[mm] | lp[mm] | ||
| MKSA44.0X100 | 74229 | 53292892 | 1950558 | 0.011 | 4 | 100 | 8.5 | 56.7 | 2 | 50 | 5 |
| MKSA44.0X125 | 74230 | 53292903 | 1950559 | 0.013 | 4 | 125 | 8.5 | 56.7 | 2 | 50 | 5 |
| MKSA44.0X145 | 74231 | 53292918 | 1950560 | 0.015 | 4 | 145 | 8.5 | 56.7 | 2 | 50 | 5 |
| MKSA44.0X175 | 74232 | 53292922 | 1950561 | 0.018 | 4 | 175 | 8.5 | 56.7 | 2 | 50 | 5 |
| MKSA44.0X200 | 74233 | 53292937 | 1950562 | 0.021 | 4 | 200 | 8.5 | 56.7 | 2 | 50 | 5 |
Product characteristic properties
| Reference | Nail characteristic parameters | |||
|---|---|---|---|---|
| Characteristic parameters | ||||
| Characteristic Yield Moment My,k[Nm] | Characteristic Withdrawal Parameter fax,k,90°[N/mm²] | Characteristic Head Pull-Through Parameter fhead,k[N/mm²] | Characteristic tensile capacity - fₜₑₙₛ,ₖ[kN] | |
| MKSA44.0X100 | 7825 | 6.2 | - | 8.3 |
| MKSA44.0X125 | 7825 | 6.2 | - | 8.3 |
| MKSA44.0X145 | 7825 | 6.2 | - | 8.3 |
| MKSA44.0X175 | 7825 | 6.2 | - | 8.3 |
| MKSA44.0X200 | 7825 | 6.2 | - | 8.3 |
Refer to relevant ITTR or ETA for more details
