Ring Shank Wood to Wood Nail - Stainless Steel (A4)

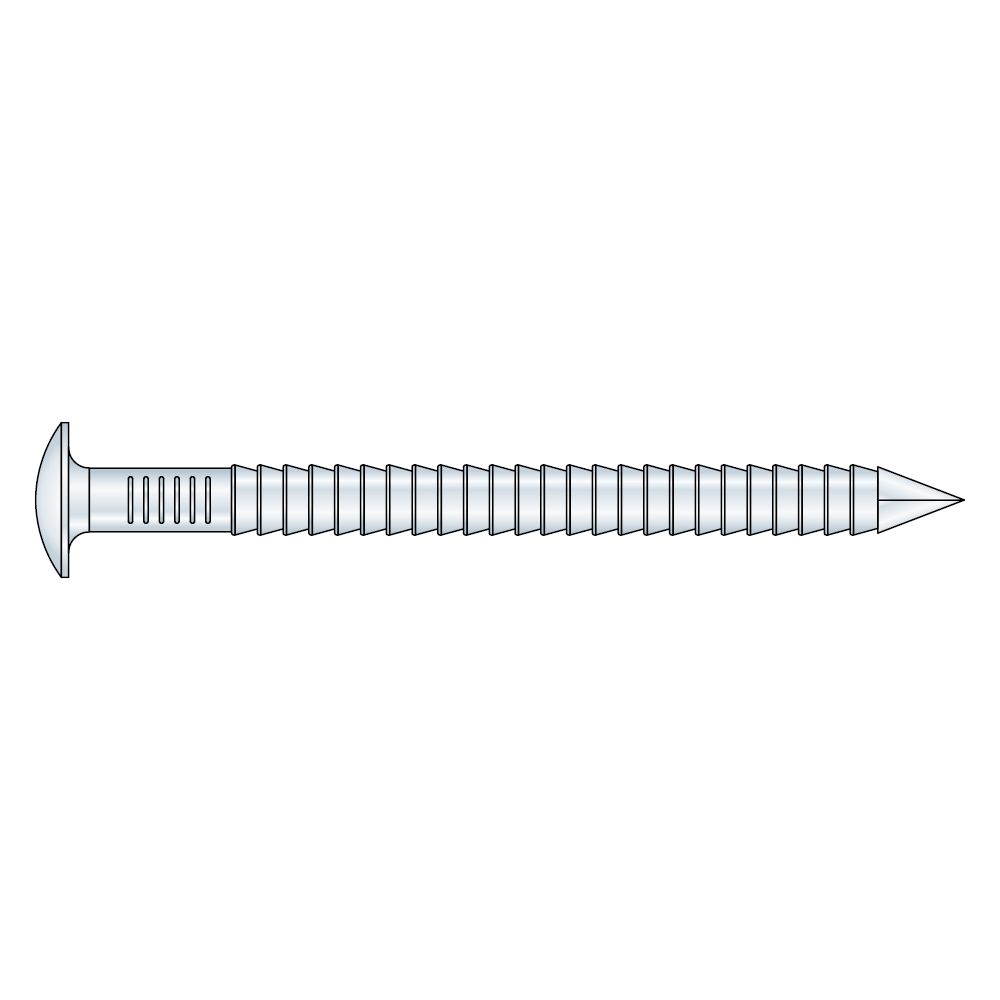

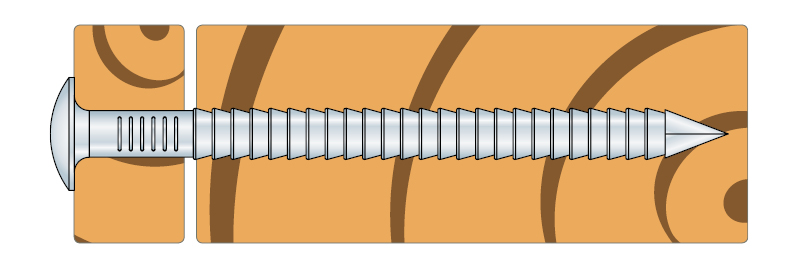

This ring shank nail with its low oval head and ring shank is used to fix timber components to wood, where high pull-out strength is required. Stainless A4 can withstand all weather conditions and  also deal with aggressive environments.

CE Marking
Service class 3
Stainless steel A4
Severe

Product Details

Images

Technical Data

Dimensions

Product Dimensions

References Item Code Tun / DB nr. NOB nr. Fastener dimensions [mm]
d l dh Ah ht lg lp
ARA42.3X35 74223 1950552 53292846 2.3 35 5.5 23.8 1.3 27 3.2
ARA42.3X45 74224 1950553 53292854 2.3 45 5.5 23.8 1.2 32 2.4
ARA42.3X50 74225 1950554 53292865 2.3 50 5.5 23.8 1.4 37 2.9
ARA42.5X60 74226 1950555 53292873 2.5 60 5.7 25.5 1.3 42 3.4
ARA43.1X75 74227 1950556 53292884 3.1 75 7.5 44.2 1.8 46 4.3

ARA41.9x20, ARA41.9X25, ARA41.9X30 and ARA41.9X35 are not CE marked.

Product characteristic properties

References Product characteristic properties
Characteristic Yield Moment – My,k [My.k] [Nm] Characteristic withdrawal parameter - fax,k,90° [fax.k.90°] [N/mm²] Characteristic head pull-through parameter - fhead,k [fhead.k] [N/mm²] Characteristic tensile capacity - ftens,k [ftens.k] [kN]
ARA42.3X35 1839 8.5 22.8 3.2
ARA42.3X45 1839 8.5 22.8 3.2
ARA42.3X50 1784 6.2 29.3 3.2
ARA42.5X60 2257 6 27.2 3.5
ARA43.1X75 4409 7.1 - 5.7
