PAPP

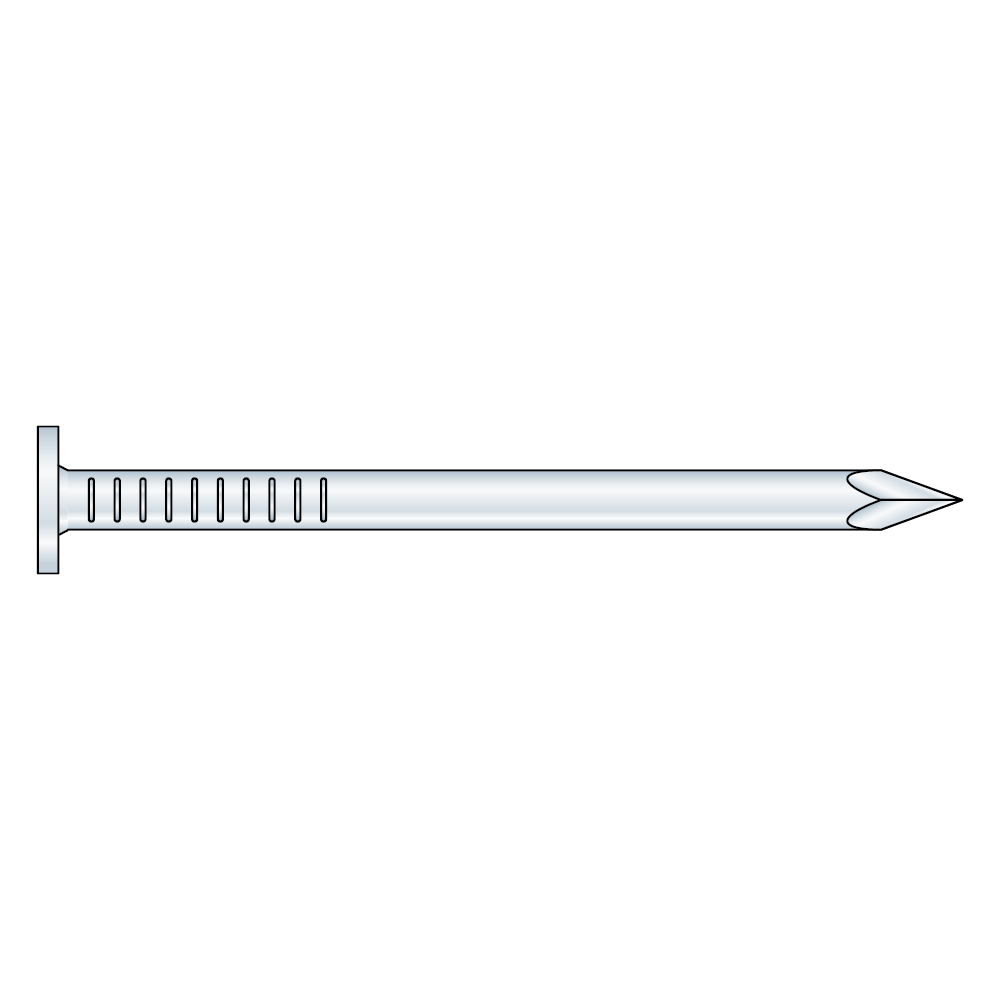

Round Clout Nail - Hot Dip Galvanised

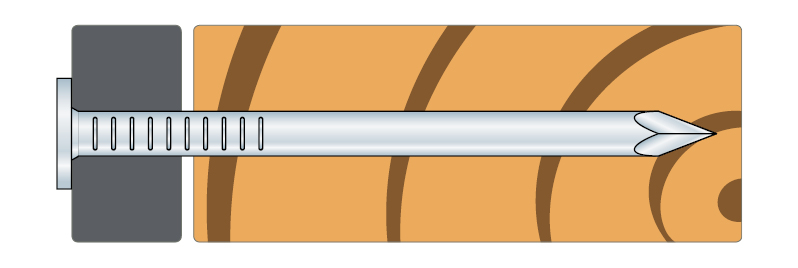

Clout nail with a flat head and round shank that can withstand rain and is used for fixing exterior plaster board, roofing felt, asphalt board, construction membrane and draught-proofing felt to a timber base.
Service class 3
Outdoor
EPD
Hot-dip galvanised steel
Product Details
Images
Features
Application
Technical Data
Product dimensions
Dimensions
| Reference | Fasteners Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|
| Item Code | Other | Product Dimensions[mm] | ||||||
| Tun / DB nr. | NOB nr. | Qty per blister | Weight[kg] | d[mm] | l[mm] | dh[mm] | ||
| PAPP2.1X20 | 74212 | 1950540 | 53293285 | - | 0.001 | 2.1 | 20 | 7 |
| PAPP2.5X25 | 74213 | 1950541 | 53293293 | - | 0.001 | 2.5 | 25 | 8.7 |
| PAPP2.5X40 | 74214 | 1950543 | 53293304 | - | 0.002 | 2.5 | 40 | 8.7 |
