Safety Fast Masonry Restraint Hanger For I-Joist

The Safety Fast Hangers are designed to support timber joists, beams and trussed
rafters from masonry walls without the need for masonry above the top flange.

CE Marking
EPD

Product Details

Images

Features

Materials

  • Pre-galvanised mild steel

Benefits

  • Requires no masonry above the top flange to  achieve the published performance values.
  • Improved vertical and lateral load distribution.
  • Mini Strap simply hooks onto the hanger.
  • Enables the construction of the floor deck prior to the next lift of masonry.
  • Reduces Health & Safety risks associated with the use of the traditional masonry hangers with no  masonry above.
  • Eliminates the need for propping of floor joists.
  • Mini Strap provides lateral restraint capacity in accordance with NHBC guidelines.
  • Allows for retrofit of lateral restraint straps.

Application

Suitable For

  • I-joist to masonry connections.

Technical Data

Dimensions

Product Dimensions

References Joist Size [mm] Product Dimensions [mm] Joist holes Weight [kg]
Width Height [mm] A B C D E F t
Hanger holes
Mini Strap
Ø6x4
[mm]
Ø4.2
SFHI195/40/100381954019564100103752.523-
SFHI200/40/100382004020064100103752.523-
SFHI220/40/100382204022064100103752.523-
SFHI225/40/100382254022564100103752.5230.93
SFHI235/40/100382354023564100103752.523-
SFHI240/40/100382404024064100103752.5231.2
SFHI245/40/100382454024564100103752.523-
SFHI300/40/100383004030064100103752.5231.4
SFHI360/40/100383604036064100103752.523-
SFHI400/40/100384004040064100103752.523-
SFHI195/47/100451954719564100103752.523-
SFHI200/47/100452004720064100103752.5231.1
SFHI220/47/100452204722064100103752.523-
SFHI225/47/100452254722564100103752.5231.2
SFHI235/47/100452354723564100103752.523-
SFHI240/47/100452404724064100103752.5231.2
SFHI245/47/100452454724564100103752.523-
SFHI300/47/100453004730064100103752.5231.4
SFHI350/47/100453504735064100103752.523-
SFHI360/47/100453604736064100103752.523-
SFHI400/47/100454004740064100103752.523-
SFHI195/50/100471955019564100103752.5231.1
SFHI220/50/100472205022064100103752.523-
SFHI225/50/100472255022564100103752.5231.3
SFHI235/50/100472355023564100103752.523-
SFHI240/50/100472355023564100103752.5231.3
SFHI245/50/100472455024564100103752.5231.2
SFHI300/50/100473005030064100103752.5231.5
SFHI220/66/100632206622064200103752.523-
SFHI225/66/100632256622564200103752.5230.001
SFHI235/66/100632356623564200103752.523-
SFHI240/66/100632406624064200103752.523-
SFHI245/66/100632456624564200103752.523-
SFHI300/66/100633006630064200103752.523-
SFHI200/72/100702007220064200103752.523-
SFHI220/72/100702207222064200103752.523-
SFHI225/72/100702257222564200103752.5231.6
SFHI240/72/100702407224064200103752.5230.001
SFHI300/72/100703007230064200103752.5231.6
SFHI360/72/100703607236064200103752.523-
SFHI400/72/100704007240064200103752.523-
SFHI195/75/100721957519564200103752.5231.2
SFHI200/75/100722007520064200103752.5231.4
SFHI220/75/100722207522064200103752.5231.2
SFHI225/75/100722257522564200103752.523-
SFHI235/75/100722357523564200103752.523-
SFHI245/75/100722457524564200103752.5231.2
SFHI253/75/100722537525364200103752.523-
SFHI300/75/100723007530064200103752.5232.8
SFHI304/75/100723047530464200103752.523-
SFHI350/75/100723507535064200103752.523-
SFHI356/75/100723567535664200103752.523-
SFHI373/75/100723737537364200103752.523-
SFHI400/75/100724007540064200103752.523-
SFHI417/75/100724177541764200103752.523-
SFHI421/75/100724217542164200103752.523-
SFHI195/78/1002x381957819564200103752.523-
SFHI200/78/1002x382007820064200103752.523-
SFHI220/78/1002x382207822064200103752.523-
SFHI225/78/1002x382257822564200103752.5231.6
SFHI235/78/1002x382357823564200103752.523-
SFHI240/78/1002x382407824064200103752.5231.2
SFHI245/78/1002x382457824564200103752.523-
SFHI360/78/1002x383607836064200103752.523-
SFHI400/78/1002x384007840064200103752.523-
SFHI195/91/1002x45 or 89-901959119564200103752.523-
SFHI200/91/1002x45 or 89-902009120064200103752.523-
SFHI220/91/1002x45 or 89-902209122064200103752.523-
SFHI225/91/1002x45 or 89-902259122564200103752.5231.6
SFHI235/91/1002x45 or 89-902359123564200103752.523-
SFHI240/91/1002x45 or 89-902409124064200103752.5231.3
SFHI245/91/1002x45 or 89-902459124564200103752.523-
SFHI300/91/1002x45 or 89-903009130064200103752.5231.8
SFHI350/91/1002x45 or 89-903509135064200103752.523-
SFHI360/91/1002x45 or 89-903609136064200103752.523-
SFHI400/91/1002x45 or 89-904009140064200103752.523-
SFHI195/96/1002x471959619564200103752.5231.8
SFHI220/96/1002x472209622064200103752.523-
SFHI225/96/1002x472259622564200103752.5231.6
SFHI235/96/1002x472359623564200103752.523-
SFHI240/96/1002x472409624064200103752.5230.001
SFHI245/96/1002x472459624564200103752.523-
SFHI300/96/1002x473009630064200103752.5231.9
SFHI195/99/10096-971959919564200103752.523-
SFHI200/99/10096-972009920064200103752.523-
SFHI220/99/10096-972209922064200103752.523-
SFHI225/99/10096-972259922564200103752.523-
SFHI235/99/10096-972359923564200103752.523-
SFHI240/99/10096-972409924064200103752.523-
SFHI245/99/10096-972459924564200103752.523-
SFHI253/99/10096-972539925364200103752.523-
SFHI300/99/10096-973009930064200103752.523-
SFHI304/99/10096-973049930464200103752.523-
SFHI350/99/10096-973509935064200103752.523-
SFHI400/99/10096-974009940064200103752.523-
SFHI417/99/10096-974179941764200103752.523-
SFHI421/99/10096-974219942164200103752.523-

Product characteristic capacities

References Number of Fasteners Characteristic Capacities [kN] Safe Working Loads [kN]
Joist R1.k R1,SWL
Hanger Mini Strap 2.8 N/mm2; Solid AAC 3.5 N/mm2 Solid LAC 7 N/mm2 Solid DAC 2.8N/mm2 Solid AAC 3.5N/mm2 Solid LAC 7N/mm2 Solid DAC
Qty Type Qty Type
SFHI (A ≤ 63mm)2N3.75 x 303N3.75 x 30-13.313.35.36.76.7
SFHI (A > 63mm)2N3.75 x 303N3.75 x 30-24.924.91012.512.5

Installation

Installation

Installation

  • Use all specified nails.
  • Build masonry to required level, ensuring any coursing bricks or blocks are at least one course below the supporting block, and leave to cure.
  • Place the Safety Fast Restraint Hanger over the  inner leaf of block work, ensuring the bearing plate is fully located onto the top of the masonry, sitting tight against the front face and top of the block work.
  • Sit the floor joist into the masonry hanger and ensure all joists are correctly installed. The joist should be tight into the back of the hanger where possible. The maximum gap between the back of the hanger and the end of the joist is 6mm.

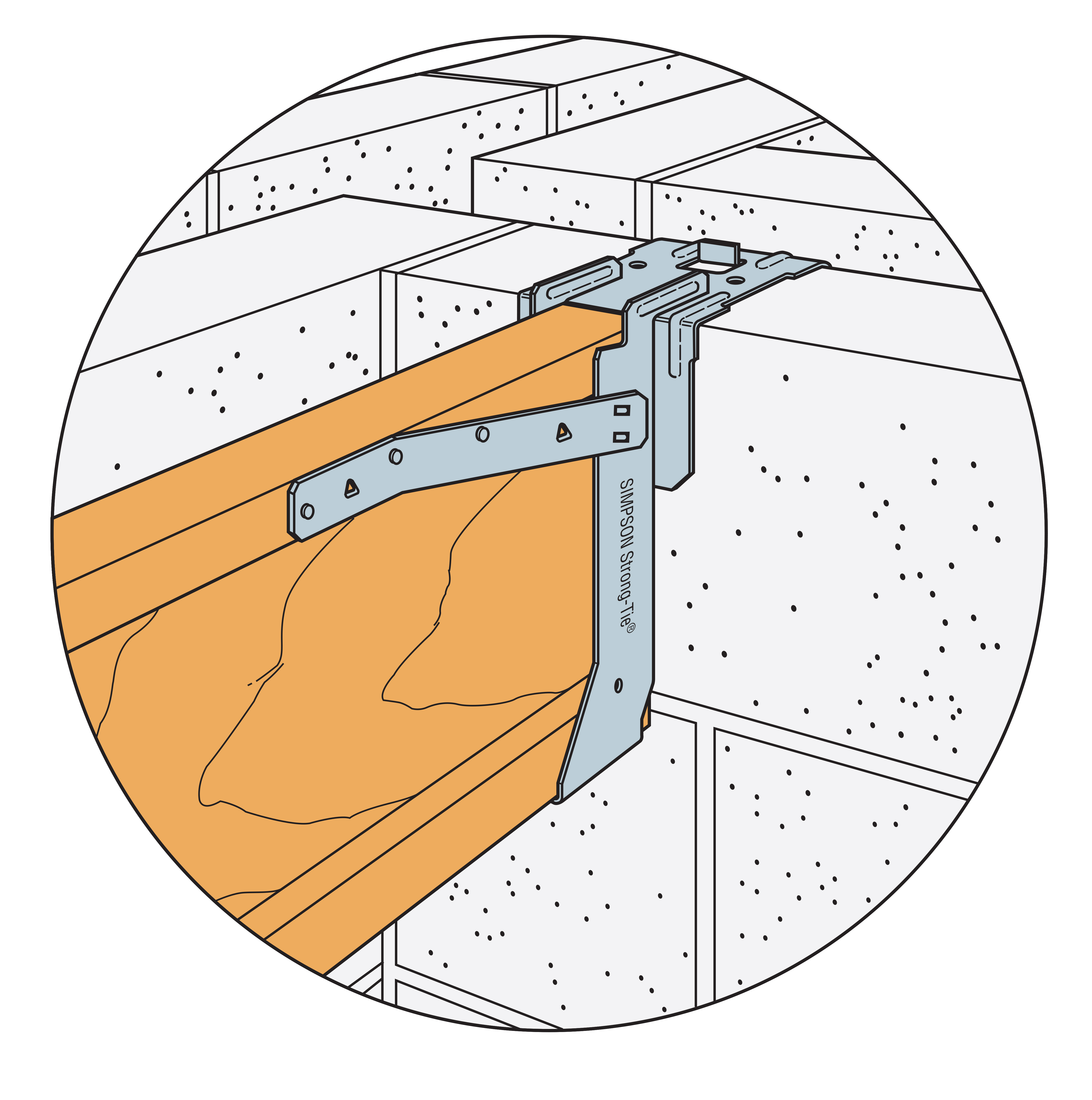

  • Clip the Safety Fast Mini Strap onto the restraining hooks on either side of the hanger and nail to the side face of the joist with 3.75 x 30mm square twist nails. INSTALL ONLY ONE STRAP PER HANGER.
