X

Self Drilling Metal Screw

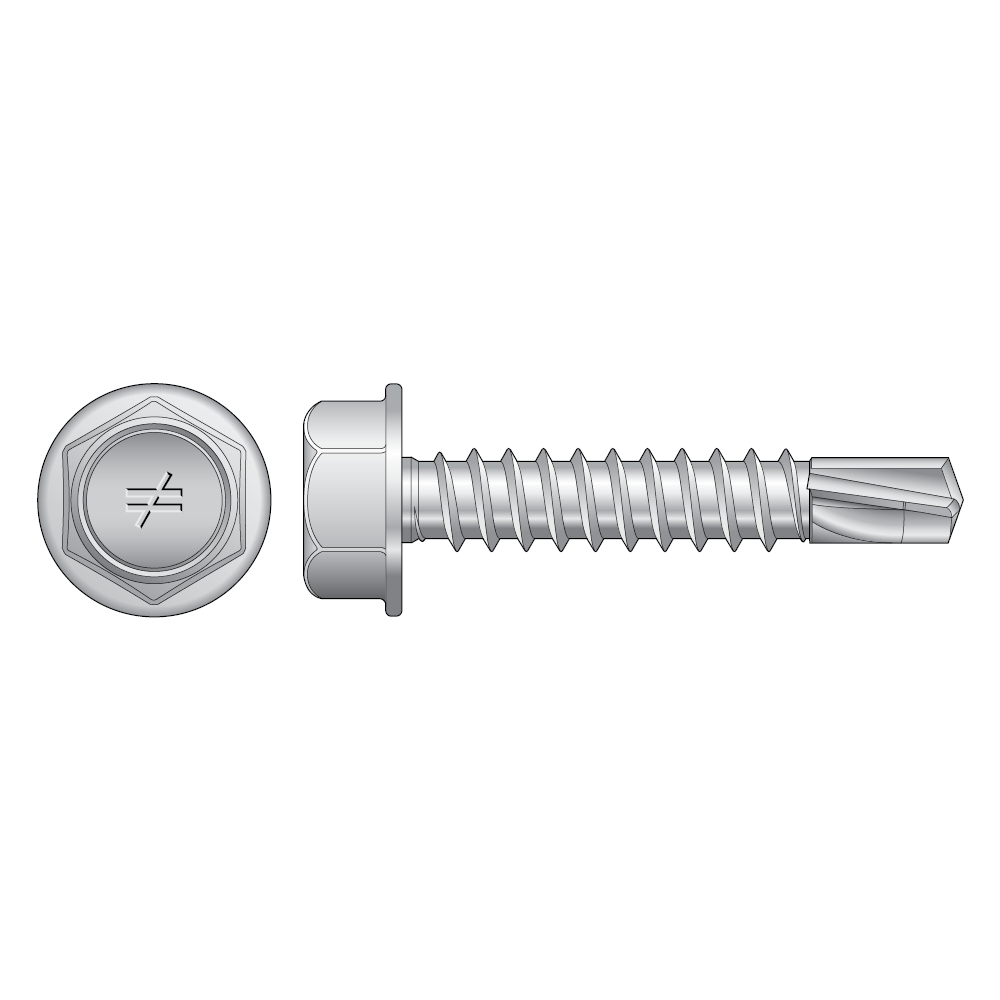

The 'X' is a self-drilling screw with a #3 drill point and 5/16" hex washer head. The drill point allows the screw to penetrate the steel without the need for a pilot hole. The self-drilling screws cut their own thread and are commonly used for metal to metal connections and light gauge steel applications.



Service class 1
Electro-galvanized steel
Indoor

Product Details

Images

Features

Material

  • Steel - electrogalvanised clear zinc coating

Features

  • 5/16" hex washer head
  • #3 drill point
  • LGS to LGS tek screw
  • Compatible with QDPROHX516G2 Quik Drive attachment
  • Compatible with QDPROPP38KE Quik Drive attachment

Application

Support

  • Steel to steel applications

Common Applications

  • Construction and steel frame assembilies

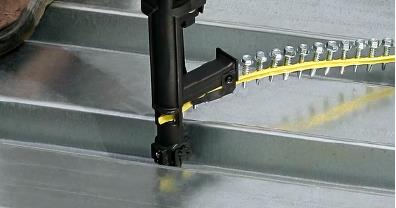

  • Steel decking
  • Steel to steel applications

Technical Data

Dimensions

Product Dimensions UK

References Fastener dimensions [mm] TPI Drill Point Qty per Strip Recommended RPM Quik Drive Attachment Qty per Box
Head dw d l
X25E10168mm Hex-4.725--222500QDPROHX516G2 / QDPROPP38KE1500
X1S12148mm Hex10.15.52514#3222500QDPROHX516G2 / QDPROPP38KE1500

Performance Values

References Performance Values [kN] / Member Thickness [mm]
Shear Tension
Safe Working Loads [kN] Characteristic Loads [kN] Safe Working Loads [kN] Characteristic Loads [kN]
1.2 [mm] 1.6 [mm] 1.2 [mm] 1.6 [mm] 1.2 [mm] 1.6 [mm] 1.2 [mm] 1.6 [mm]
X25E1016--------
X1S12142.22.83.54.50.81.21.21.9
