SNRK

Solid Joist Notch Reinforcement Kit

Reinforces solid timber joists where they have been notched to allow electrical and water services to pass through them. The kit includes five brackets and screws - enough to reinforce five floor joists and protect pipes and cables from the risk of damage from subfloor fastenings.

Product Details

Application

Features

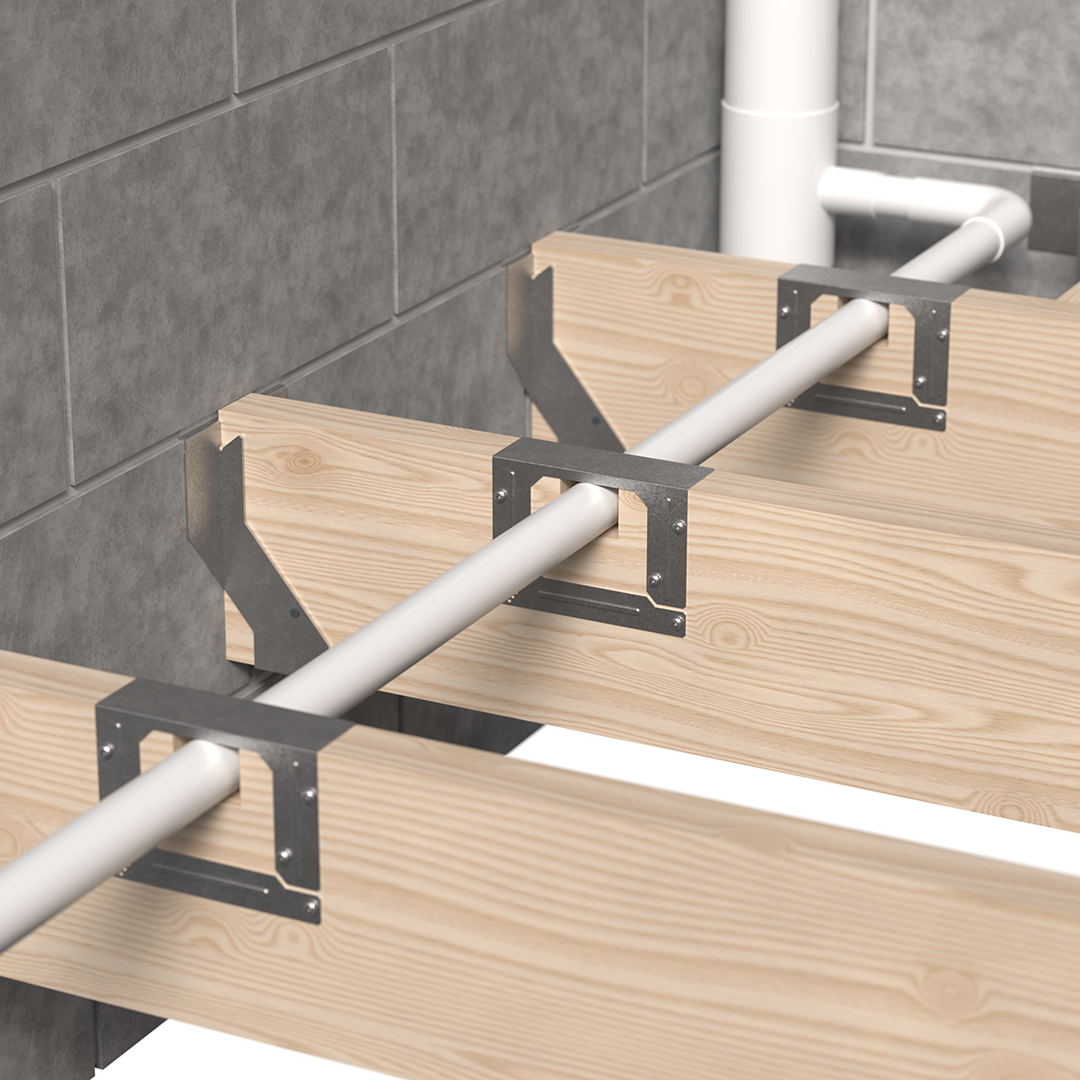

Commonly the case in bathrooms, notching out solid timber joists allows plumbing pipes and cables to pass through the floor structure  - however doing so weakens the joist and exposes services to accidental damage from screws or nails coming from above.

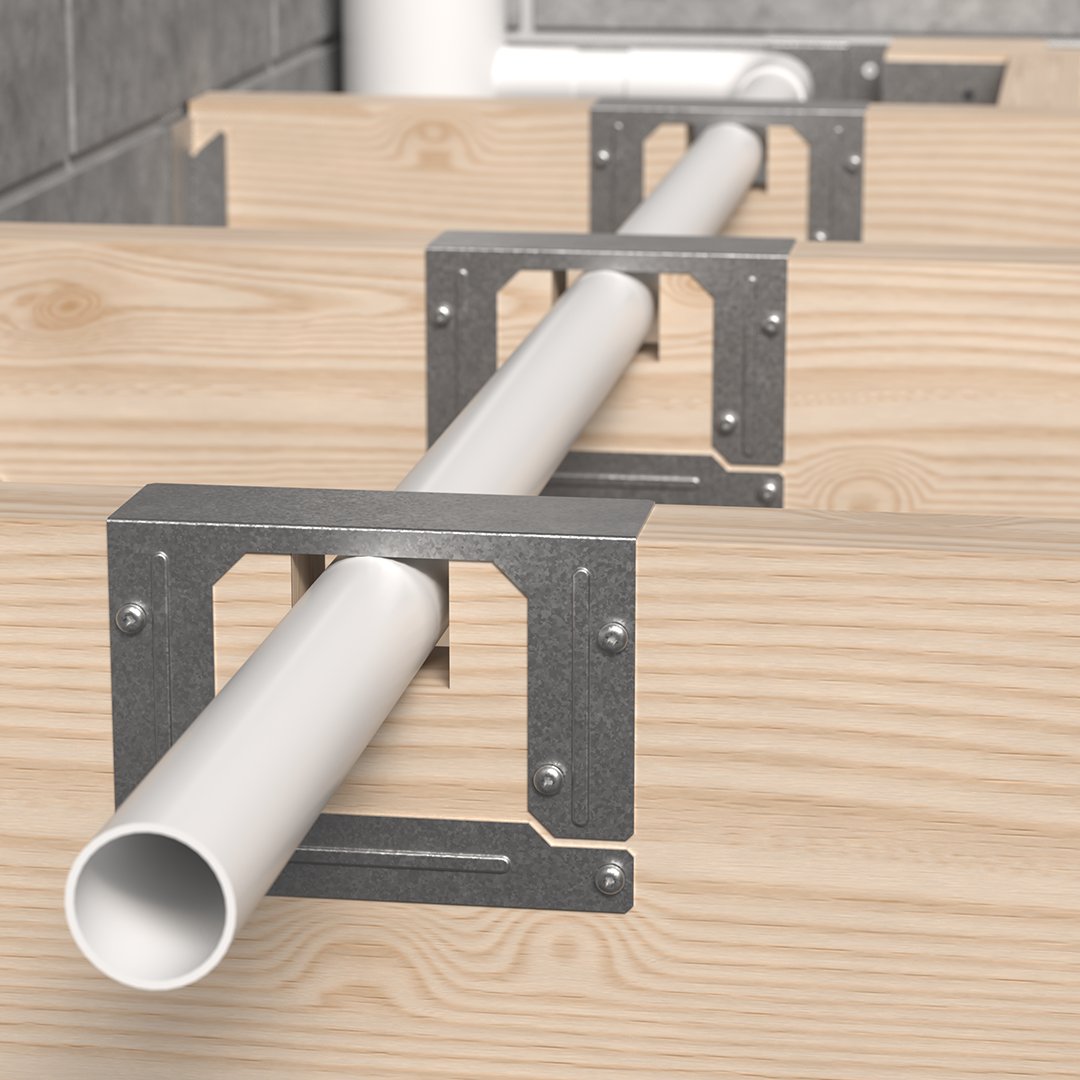

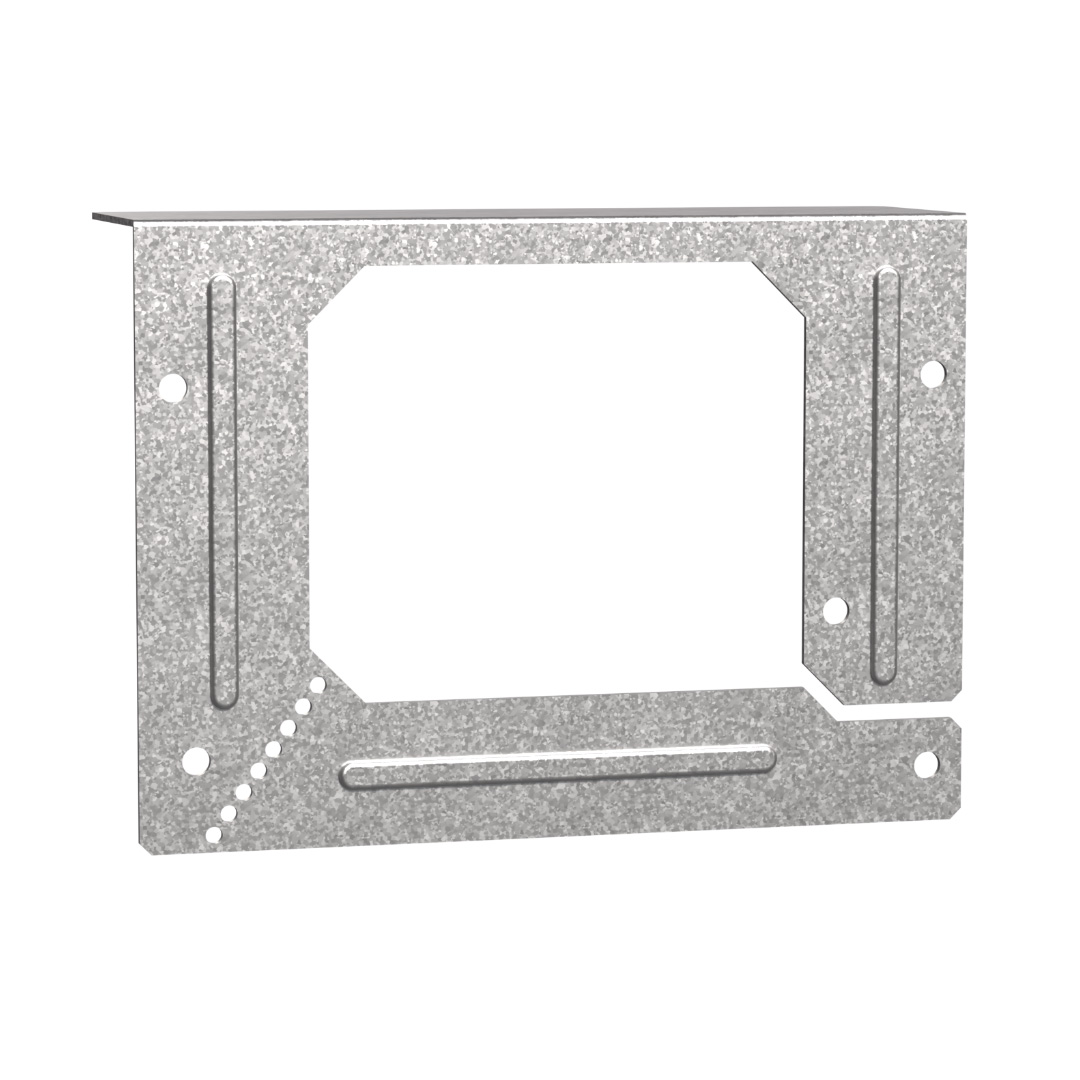

The kit includes an engineered steel reinforcement bracket with a bendable leg so it can easily be installed around existing services and onto the joist to help strengthen the joist at the notch point. The top plate covers the notch to ensure that screws used to flx the flooring to the joists will not penetrate pipes or cables beneath.

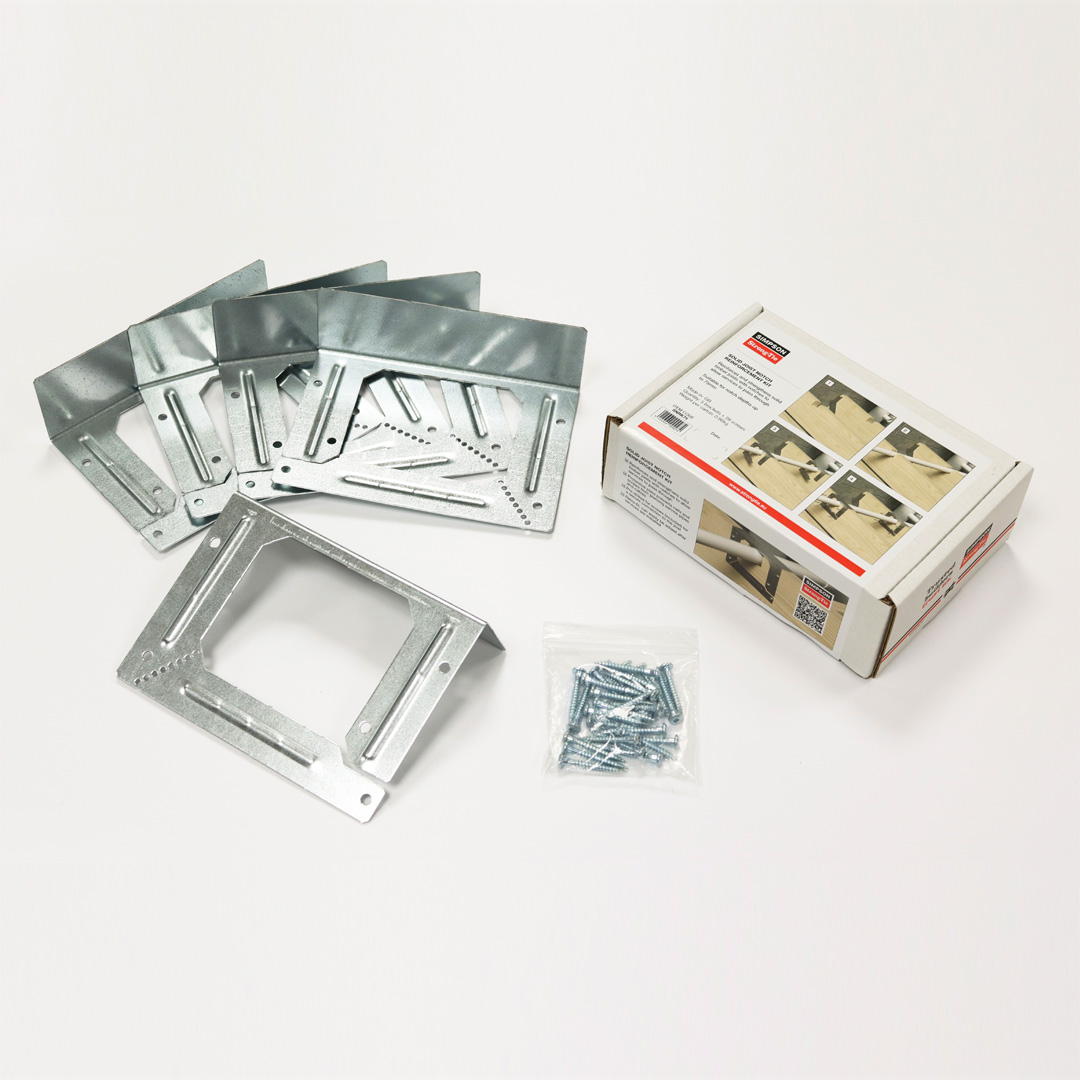

Sufficient for five notched floor joists, the kit includes:

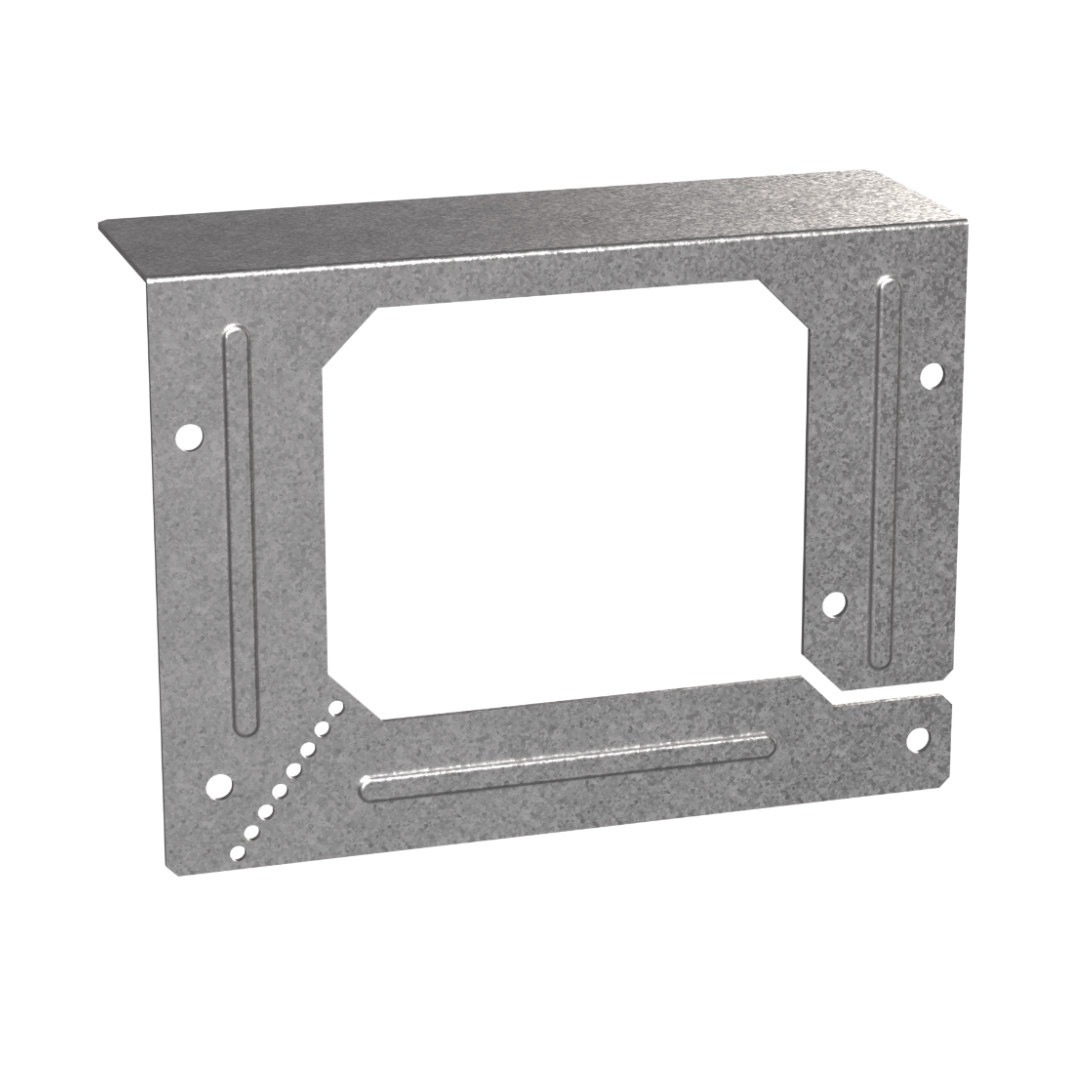

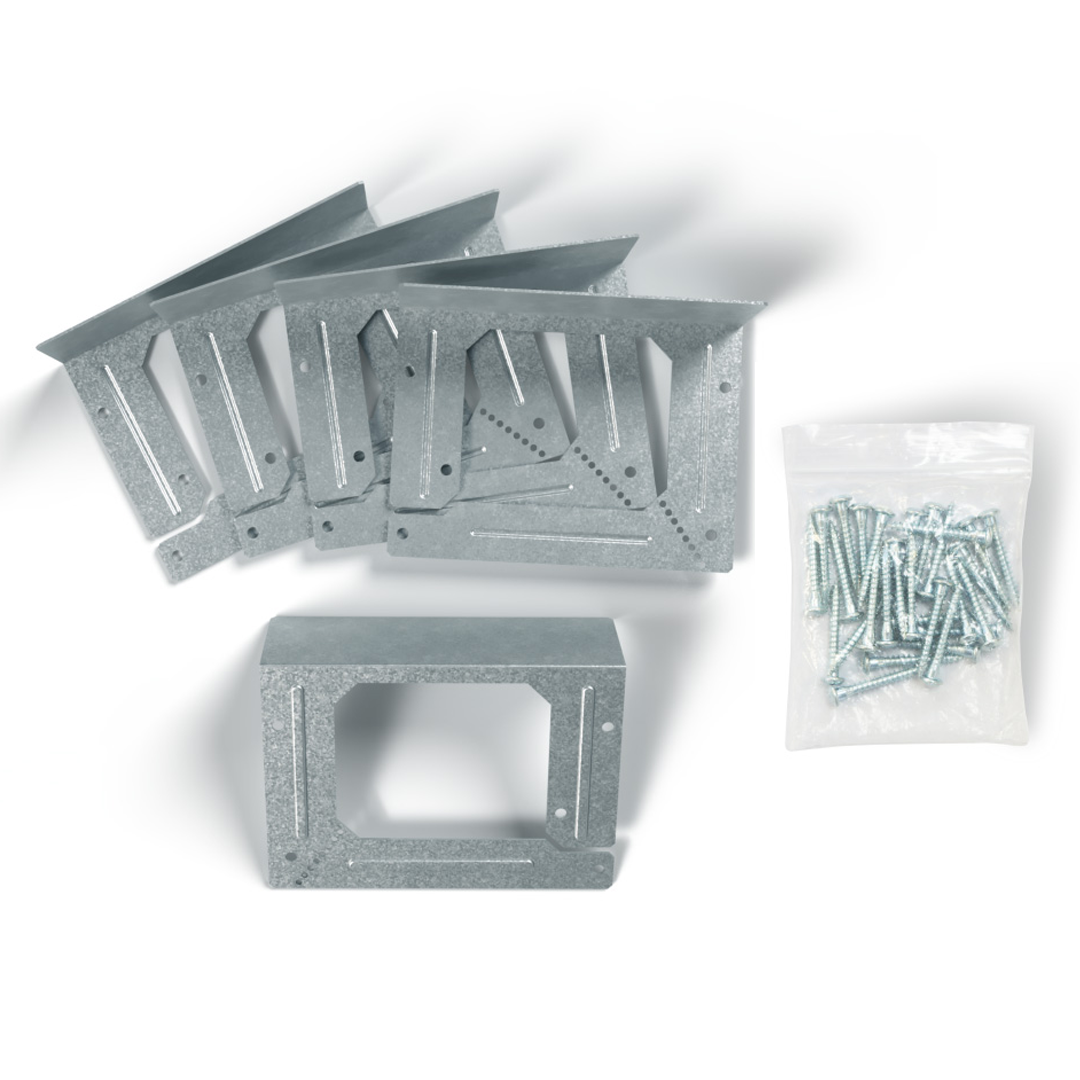

  • 5 x SNRB75 Solid Joist Notch Reinforcement Plates
  • 28 x Simpson Strong-Tie 4x30mm screws

Advantages

  • Reinforces solid timber joists with notches to allow services to pass through
  • Can be retro-fitted to existing floors or installed to new ones in the same short time frame
  • Avoids the risk of flooring fastenings accidentally penetrating pipes or cables
  • A convenient solution for up to 5 notched floor joists

Material

Pre-galvanised mild steel

Technical Data

Dimensions

Product Dimensions

References Product Dimensions [mm] Opening Size [mm] Fastener Holes Fasteners
A B C t E F Ø5 Qty Type
SNRK150109451.2769055CSA4.0x30

Installation

Installation

Install with new, or retrofit to existing floors

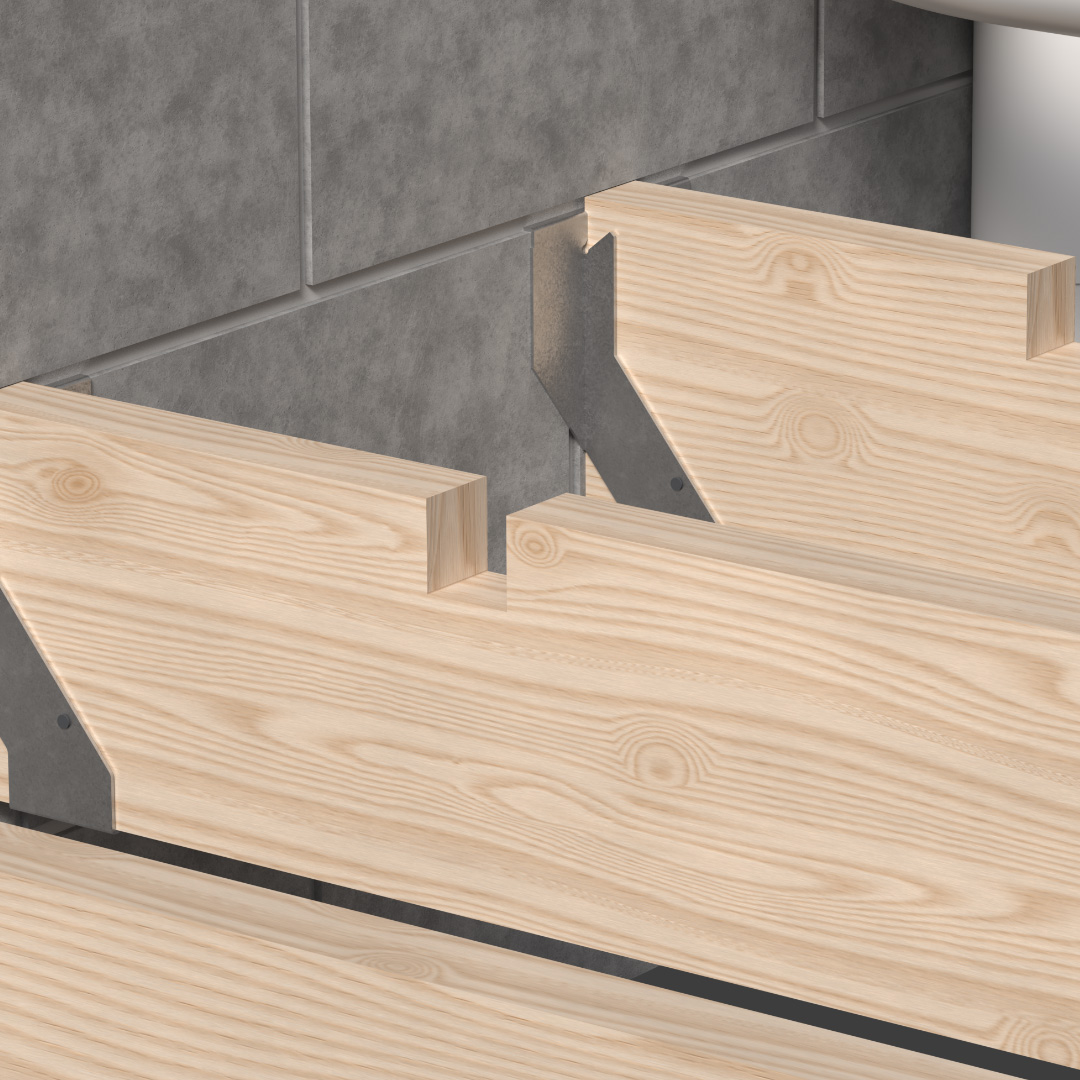

Step 1 - Carefully mark out and cut the notch.

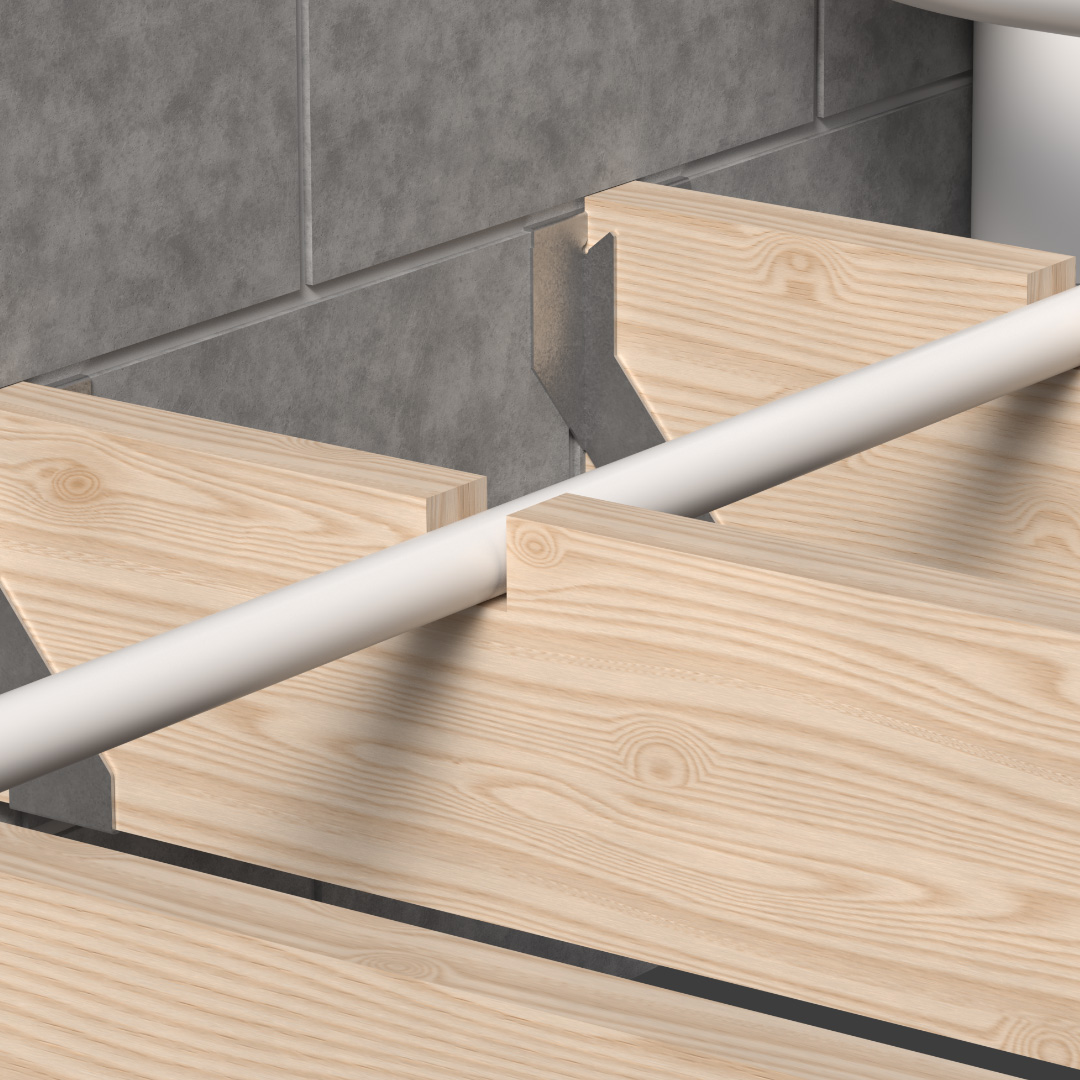

Step 2 - Insert the pipework/services as required.

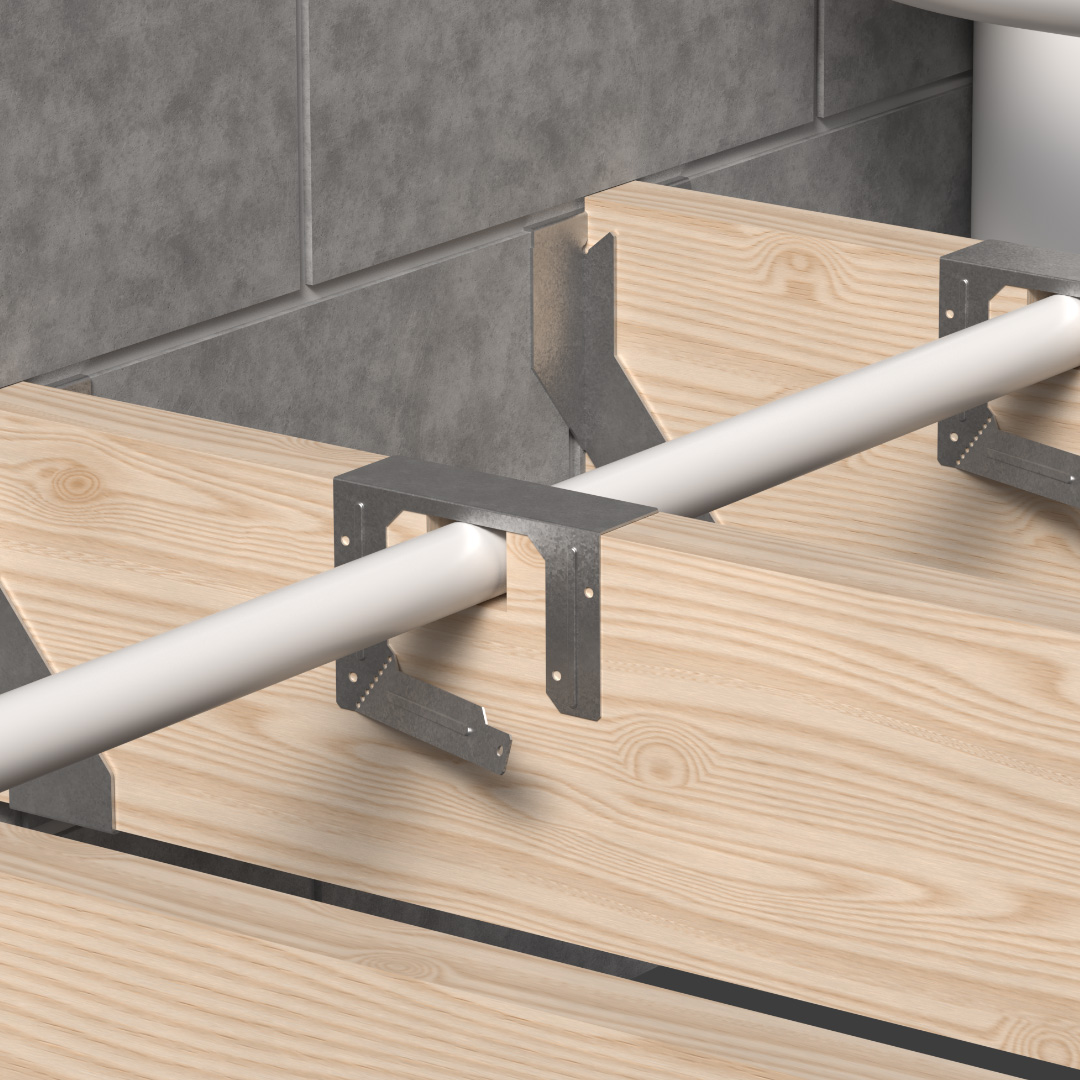

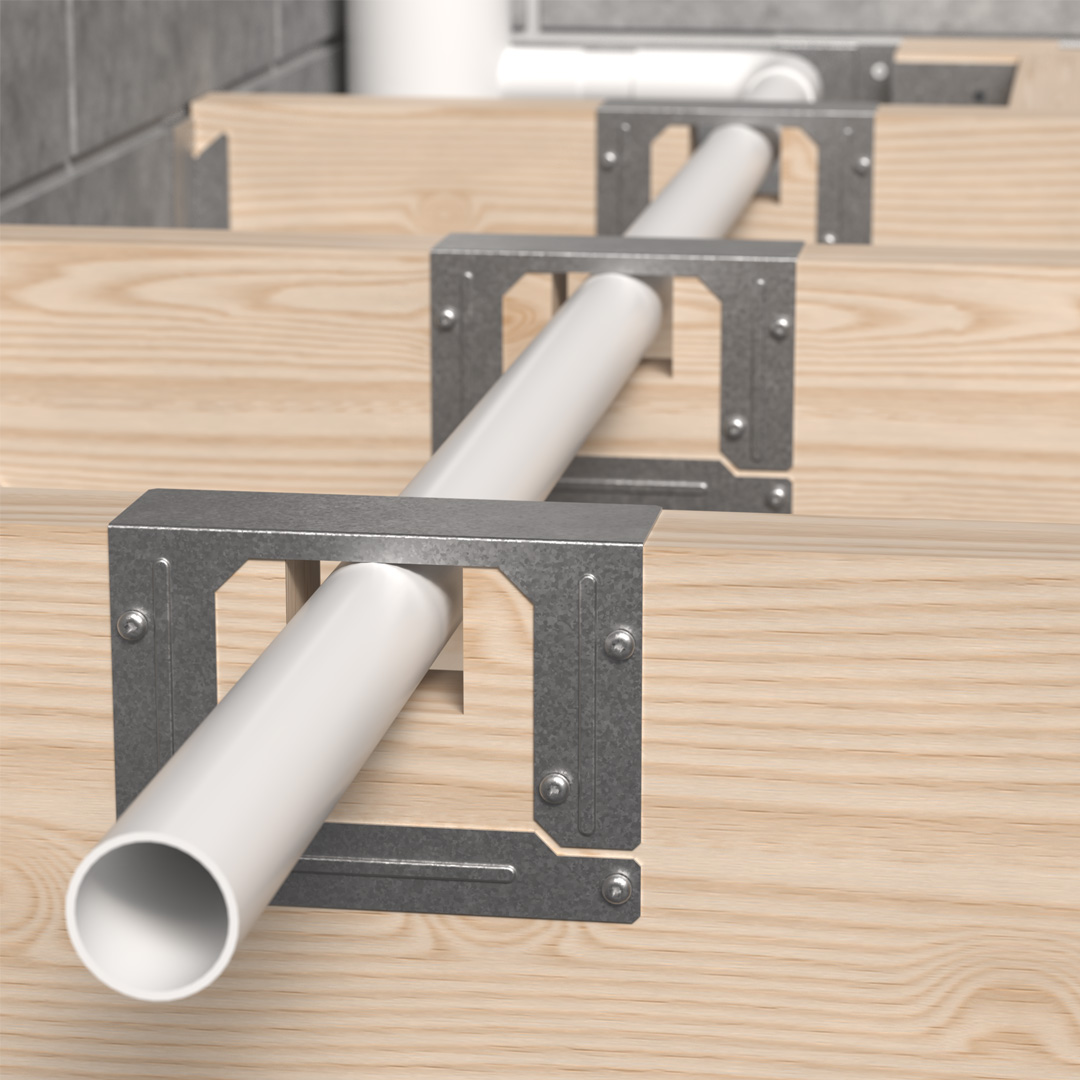

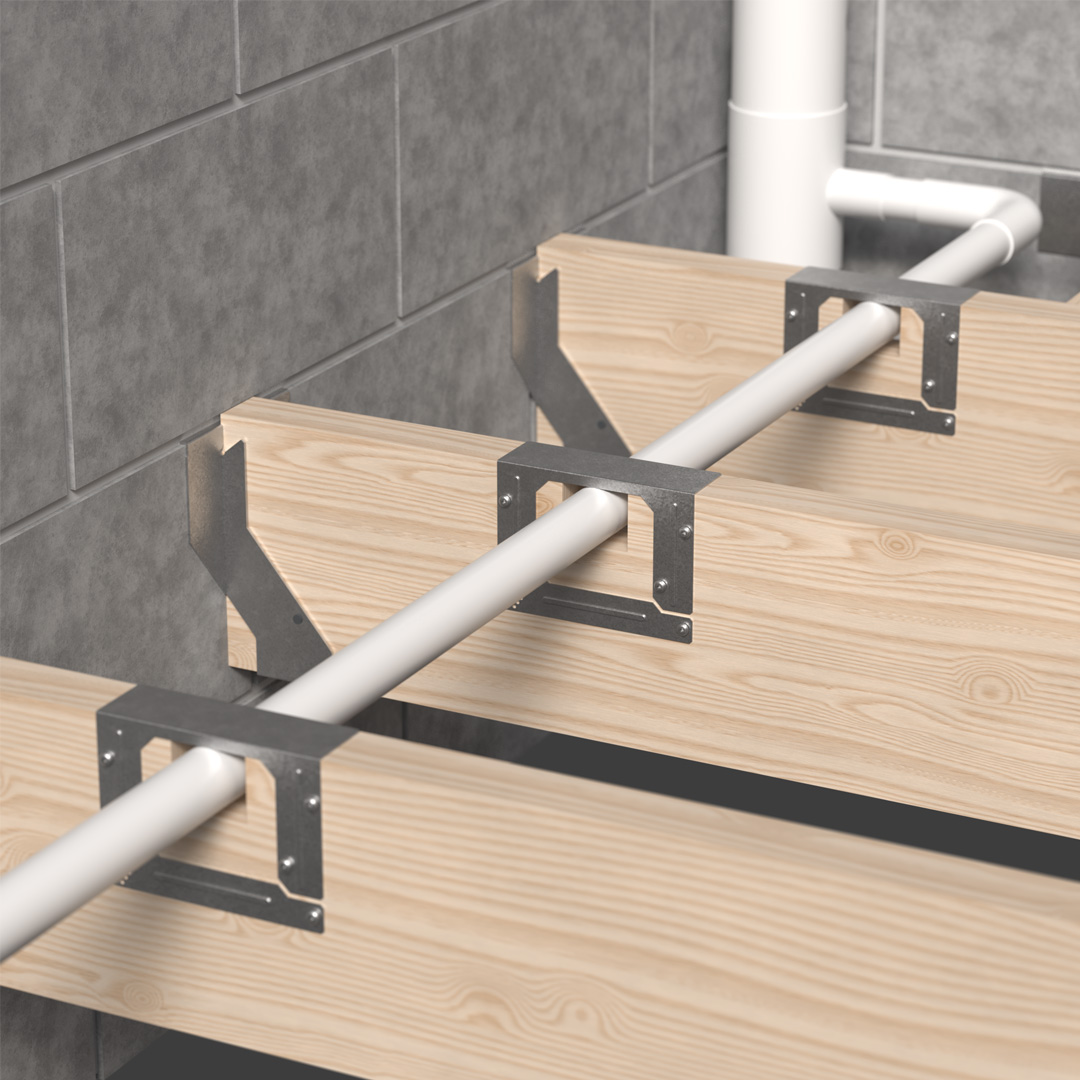

Step 3 - Bend the flexible tab outwards and position the bracket over the in-situ pipework/services centrally over the notch in the timber - the flexible relief tab makes it easy to put into place. The protective plate should cover the top of the notch.

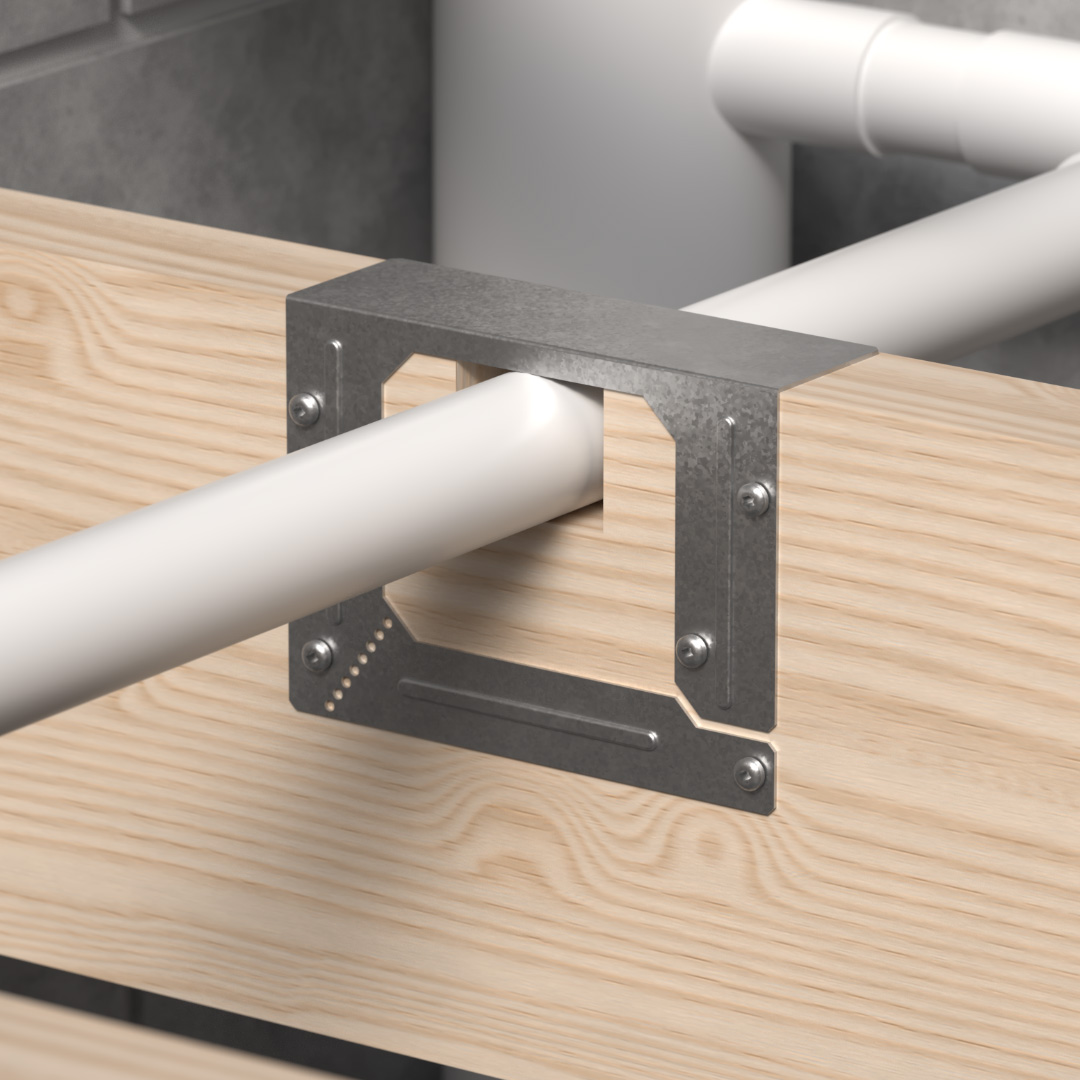

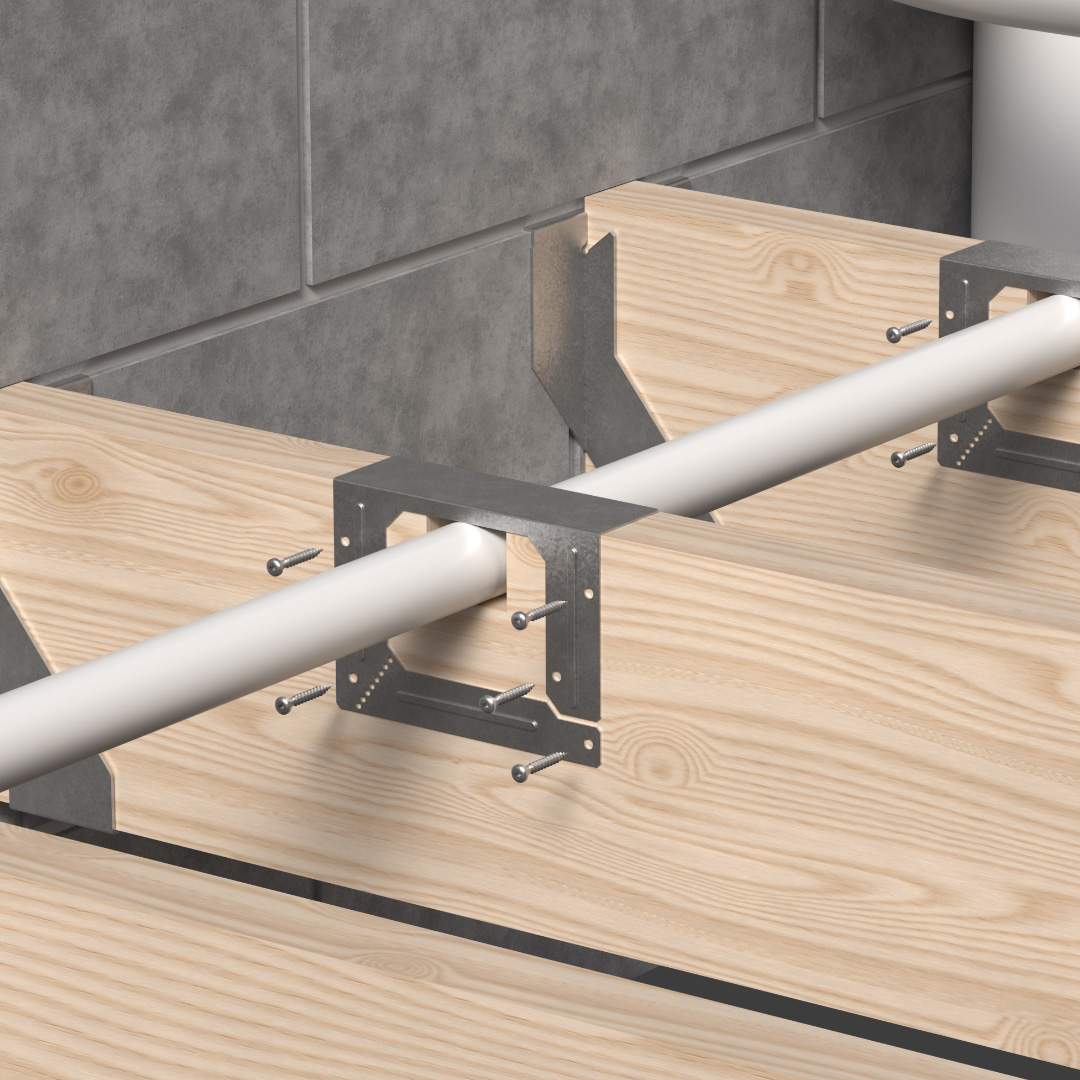

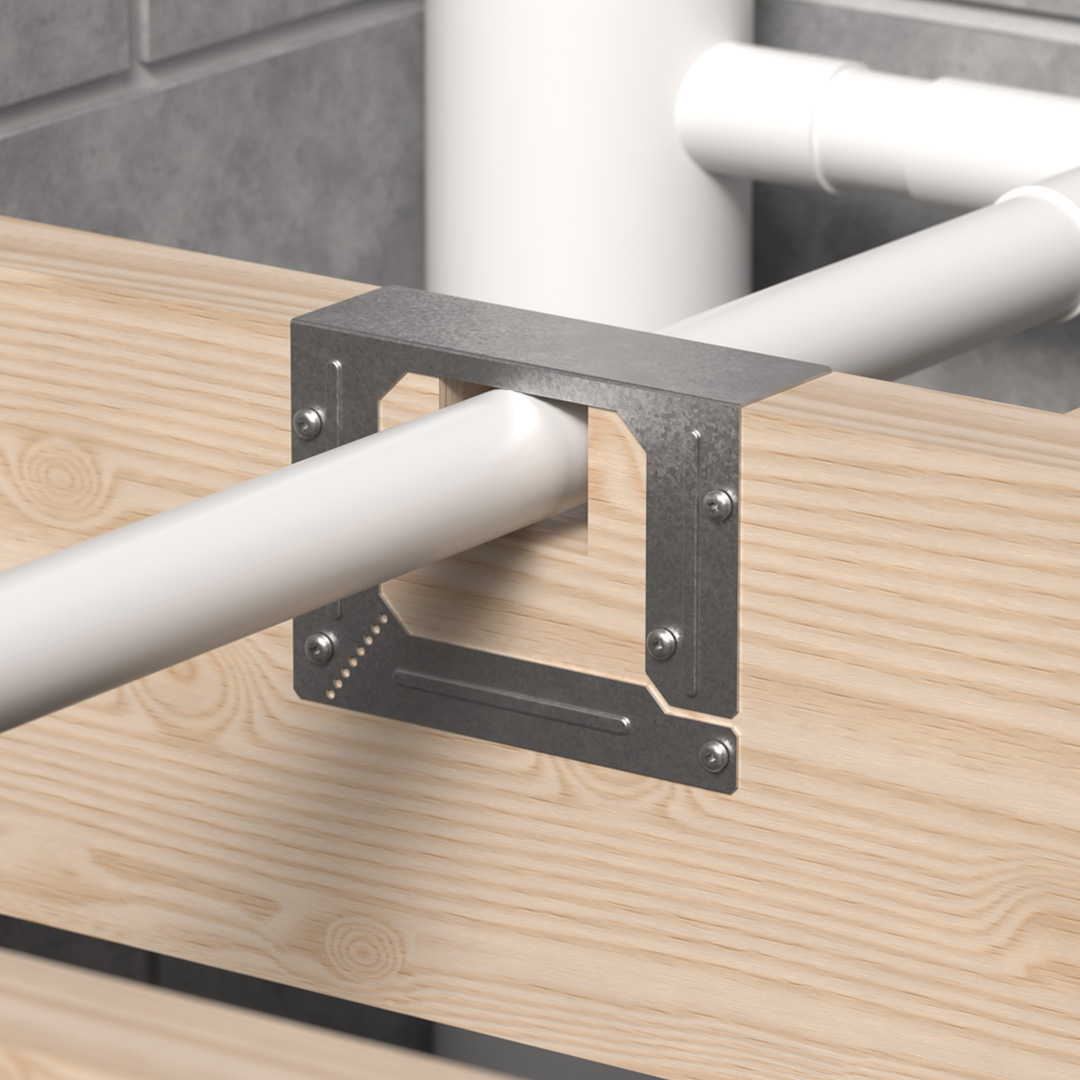

Step 4 - Bend the relief tab inwards against the joist and fasten the bracket into the face of the joist using the screws included in the kit.

Note: fill all 5mm holes with supplied fasteners.
