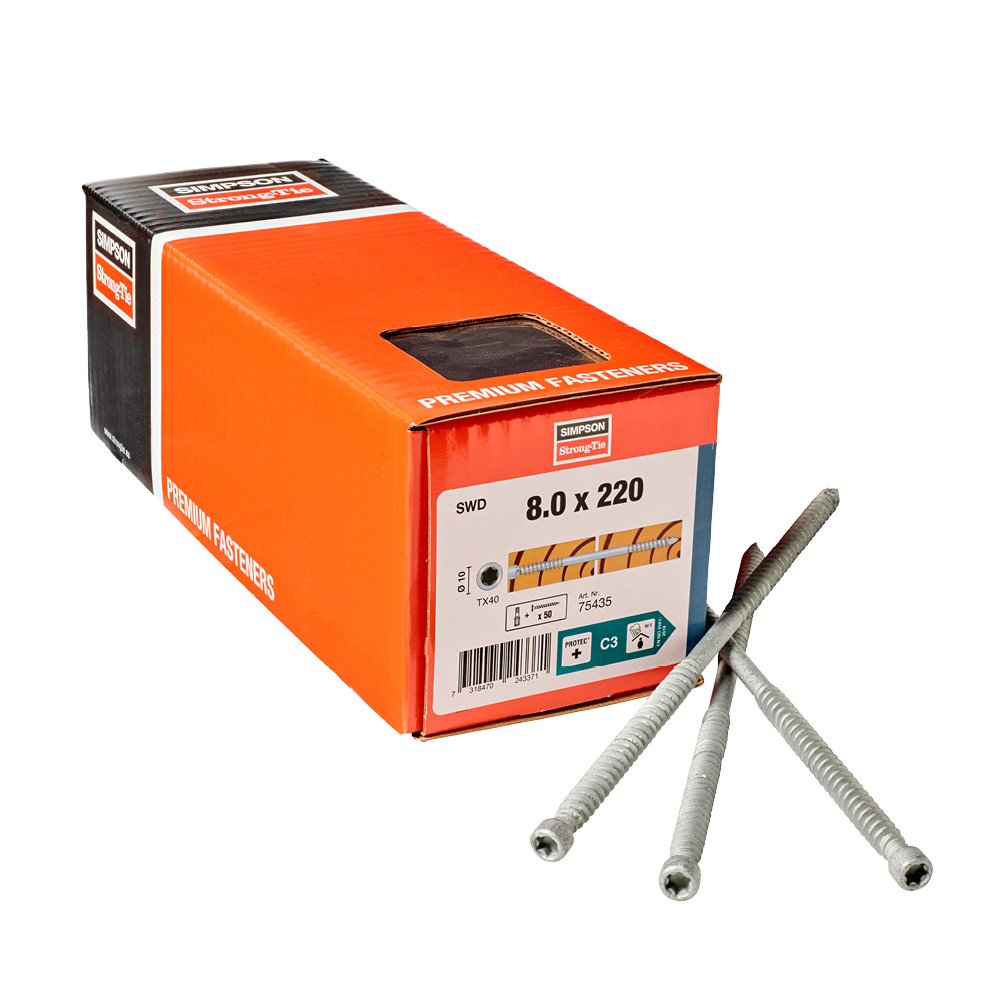

Structural Double Threaded Wood Screw

SWD is a construction screw designed to connect two timber members together. The small cap-style head and double thread creates a flexible, hidden assembly with high strength. The differentiated thread pitch creates a clamping effect, reducing the risk of gaps between the timber members.

Technical Data Sheet

CE Marking

ETA

EPD

Protec® +

Service class 2

Outdoor

Fastener Designer

SWD_SSTBP_homepage_PL_pl

SWD_SSTBP_homepage_LV_en

SWD_SSTBP_homepage_NO_no

SWD_SSTBP_homepage_DK_da

Product Details

Images

Features

CE marked to EN14592
Cap-style head
Double threaded
Chisel point

Material

Steel - Protec^®+ coating

Application

Common Applications

Timber to timber connections

Technical Data

Product dimensions

Dimensions

Reference	Fasteners Dimensions[mm]
	Item Code	Other		Product Dimensions[mm]
	Item Code	Qty per box	Stocked in UK	d[mm]	l[mm]	dh[mm]	d1[mm]	lg1[mm]	lg2[mm]	Driver Bit[mm]
SWD6.5X65	75425	50.0	Yes	6.5	65	8	4	28	21.5	T-30
SWD6.5X90	75426	50.0	Yes	6.5	90	8	4	40	33.5	T-30
SWD6.5X130	75427	50.0	Yes	6.5	130	8	4	40	33.5	T-30
SWD6.5X160	75428	50.0	Yes	6.5	160	8	4	65	58.5	T-30
SWD6.5X190	75429	50.0	Yes	6.5	190	8	4	80	73.5	T-30
SWD6.5X220	75430	50.0	Yes	6.5	220	10	4	95	88.5	T-30
SWD8.0X90	75431	50.0	Yes	7.8	90	10	5.4	40	31.5	T-40
SWD8.0X130	75432	50.0	Yes	7.8	130	10	5.4	40	31.5	T-40
SWD8.0X160	75433	50.0	Yes	7.8	160	10	5.4	65	56.5	T-40
SWD8.0X190	75434	50.0	Yes	7.8	190	10	5.4	80	71.5	T-40
SWD8.0X220	75435	50.0	Yes	7.8	220	10	5.4	95	86.5	T-40
SWD8.0X245	75436	50.0	Yes	7.8	245	10	5.4	107.5	99	T-40
SWD8.0X275	75437	50.0	Yes	7.8	275	10	5.4	107.5	99	T-40
SWD8.0X300	75438	50.0	Yes	7.8	300	10	5.4	135	126.5	T-40
SWD8.0X330	75439	50.0	Yes	7.8	330	10	5.4	135	126.5	T-40

Product characteristic properties

Reference	Screw Parameters
	Characteristic parameters
	Characteristic Yield Moment – My,ₖ[Nm]	Characteristic withdrawal parameter - fₐₓ,ₖ,₉₀°[N/mm²]	Characteristic head pull-through parameter - fₕₑₐd,ₖ[N/mm²]	Characteristic tensile capacity - fₜₑₙₛ,ₖ[kN]	Characteristic torsional strength - ftor,k[Nm]	Torsional ratio
SWD6.5X65	12.4	13.7	-	14.5	12.6	≥ 1,5
SWD6.5X90	12.4	13.7	-	14.5	12.6	≥ 1,5
SWD6.5X130	12.4	13.7	-	14.5	12.6	≥ 1,5
SWD6.5X160	12.4	13.7	-	14.5	12.6	≥ 1,5
SWD6.5X190	12.4	13.7	-	14.5	12.6	≥ 1,5
SWD6.5X220	12.4	13.7	-	14.5	12.6	≥ 1,5
SWD8.0X90	26.8	13.1	-	25.3	27.7	≥ 1,5
SWD8.0X130	26.8	13.1	-	25.3	27.7	≥ 1,5
SWD8.0X160	26.8	13.1	-	25.3	27.7	≥ 1,5
SWD8.0X190	26.8	13.1	-	25.3	27.7	≥ 1,5
SWD8.0X220	26.8	13.1	-	25.3	27.7	≥ 1,5
SWD8.0X245	26.8	13.1	-	25.3	27.7	≥ 1,5
SWD8.0X275	26.8	13.1	-	25.3	27.7	≥ 1,5
SWD8.0X300	26.8	13.1	-	25.3	27.7	≥ 1,5
SWD8.0X330	26.8	13.1	-	25.3	27.7	≥ 1,5

Certification

Declaration of Performance (DoP)

uk-dop-e21-0670-02-s-2.pdf

Show history

2022-08-26

uk-dop-e21-0670.pdf

European Technical Assessment (ETA)

eta-21-0670-2025-10-17.pdf

Show history

2021-12-09

eta210670-2021-12-09-cor-1.pdf

Environmental Product Declarations (EPD)

epd-certificate-sst-screws

CAD and BIM Library

ZIP Packages

2D
2D DWG ZIP DXF ZIP PDF ZIP

3D/3D Simplified
IFC ZIP SAT ZIP SKP ZIP STL ZIP
