ETFSS

Timber Frame Hold Down Strap

ETFSS hold down strap provides restraint against uplift to timber frame
structures keeping them firmly to the ground.

  • Quick and simple to install
  • One size strap suits cavities from 50 to 100mm
  • Meets NHBC Technical requirements
  • Meets NSAI Technical requirements
Technical Data Sheet
CE Marking
CE Marking
EPD
EPD

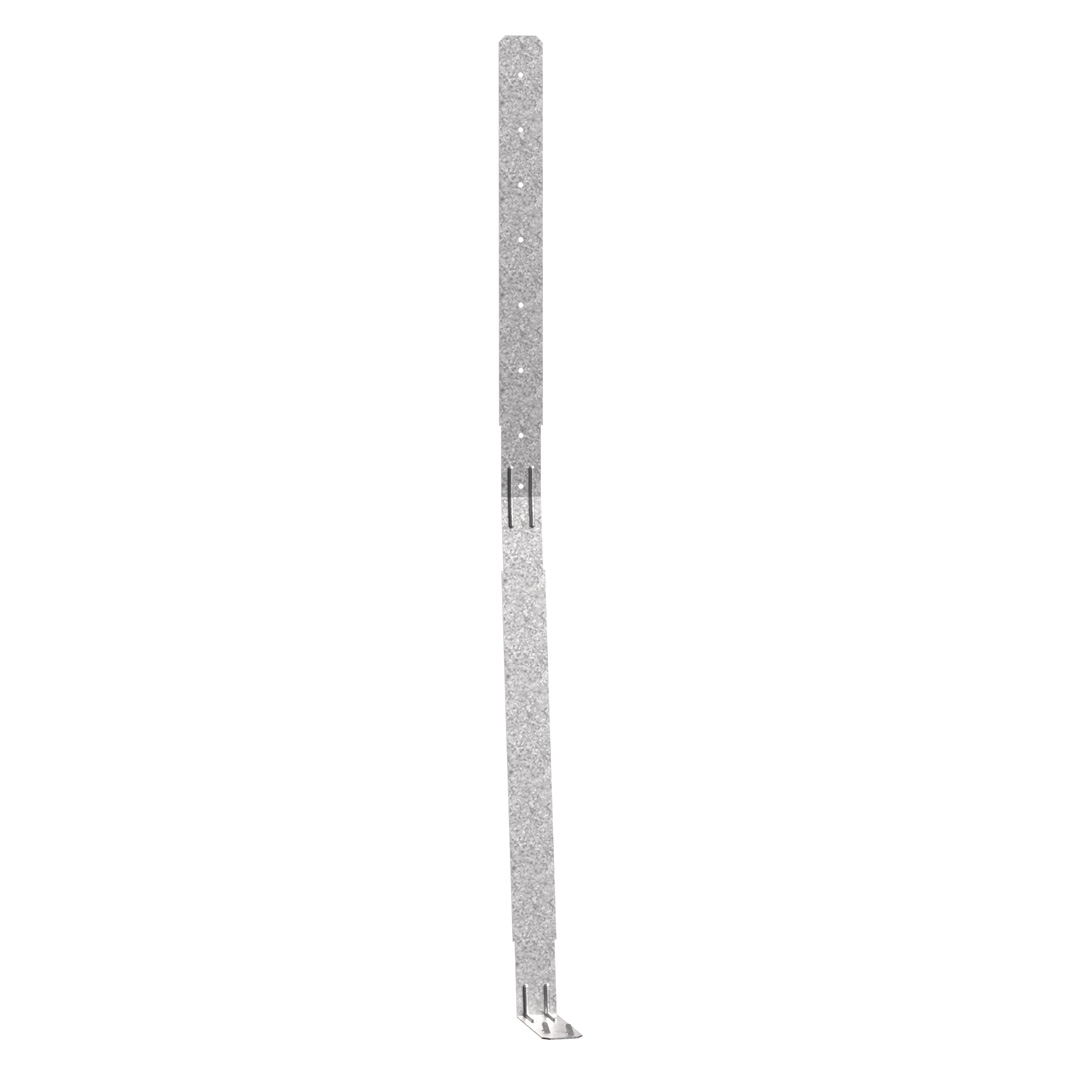

ETFSS main image

Product Details

Images


Features

Material

  • Stainless steel

Application

Installation

Use all specified fasteners. Verify that the header can take the required fasteners specified in the table.
Note: Use 3.35x50mm stainless steel annular ring shank nails.

Technical Data

Product Dimensions

Dimensions

Product Dimensions
ReferenceConnector Dimensions
Product Dimensions[mm]JoistFlange BOther
A[mm]B[mm]C[mm]D[mm]t[mm]ObroundTriangularRoundWeight[kg]
Ø4x6 PanØ4.1
ETFSS75723333801.22260.25
ETFSS0675533333801.22-40.191

Performance Values

ReferenceHoldowns capacity
Product Capacity
Fastener Qty
ETFSS (50mm Cavity)6.0
ETFSS (51-100mm Cavity)8.0
ETFSS06 (50mm Cavity)4.0
ETFSS06 (51-100mm Cavity)4.0

Certification

Declaration of Performance (DoP)

uk-ce-dop-h07-0001-02.pdf
Show history
uk-dop-h07-0001-pdf.pdf

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors

CAD and BIM Library

2D

ETFSS06

ETFSS

3D

ETFSS06

ETFSS

3D Simplified

ETFSS06

ETFSS

ZIP Packages
