DTHQ
Trim Head Decking Screw

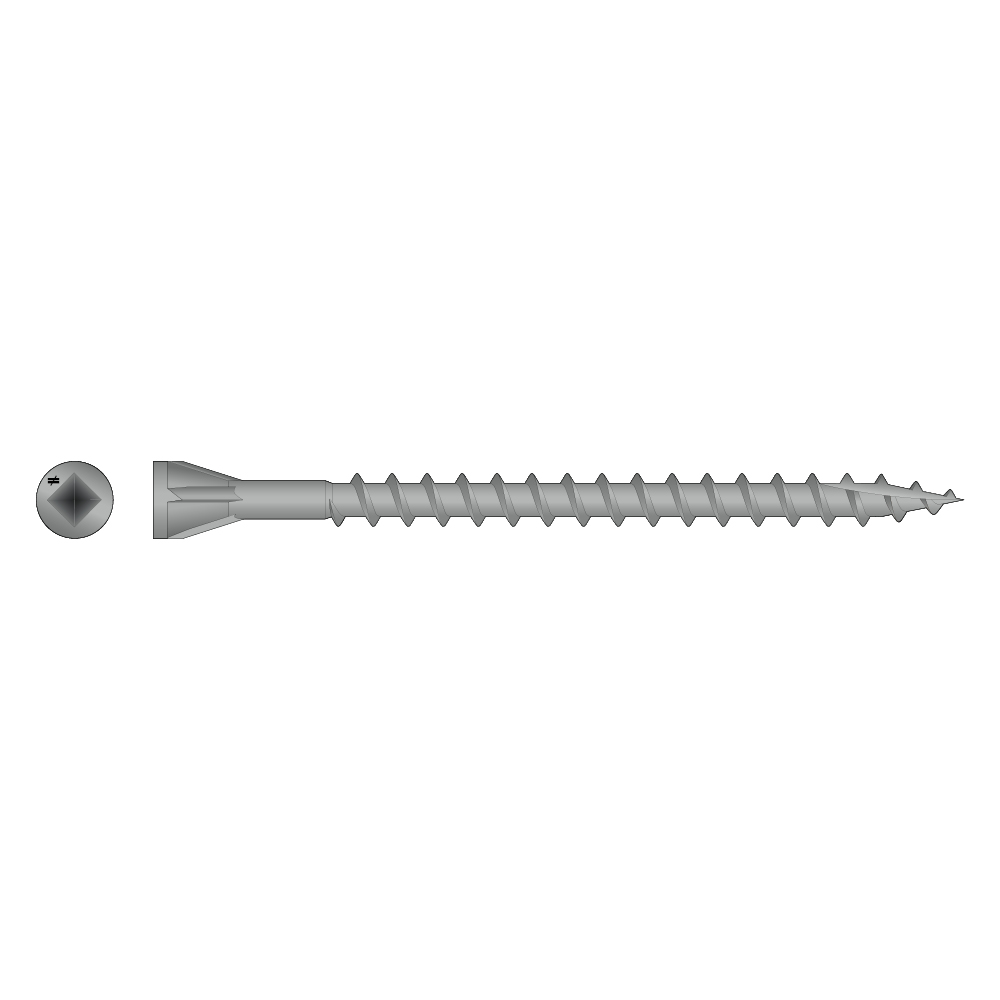

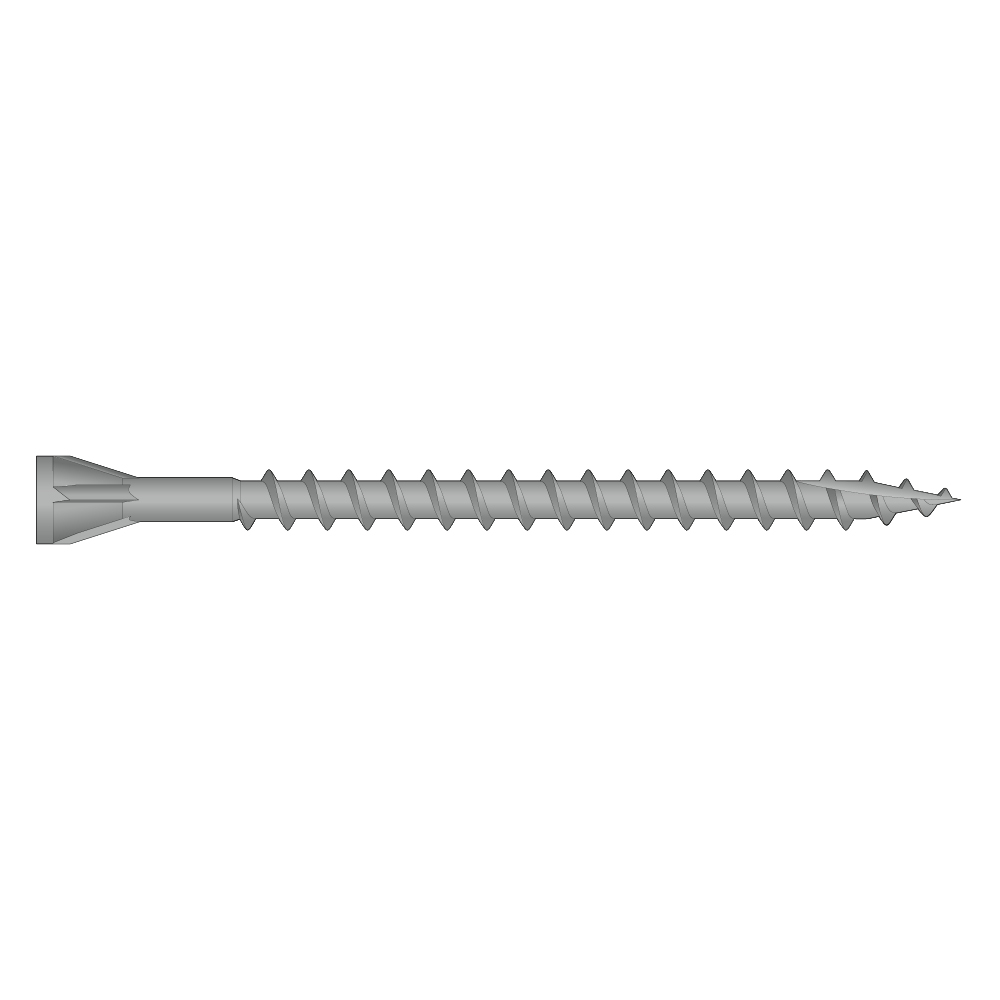

The DTHQ is a trim head screw with coarse thread suitable for timber to timber applications such as decking. It has a Type 17 point which eliminates the need for pre-drilling and reduces the installation torque. The trim head provides a neat finish when countersunk into the timber and the Quik Guard® coating allows the screw to be used in external environments.
Service class 2
Outdoor
EPD
Product Details
Images

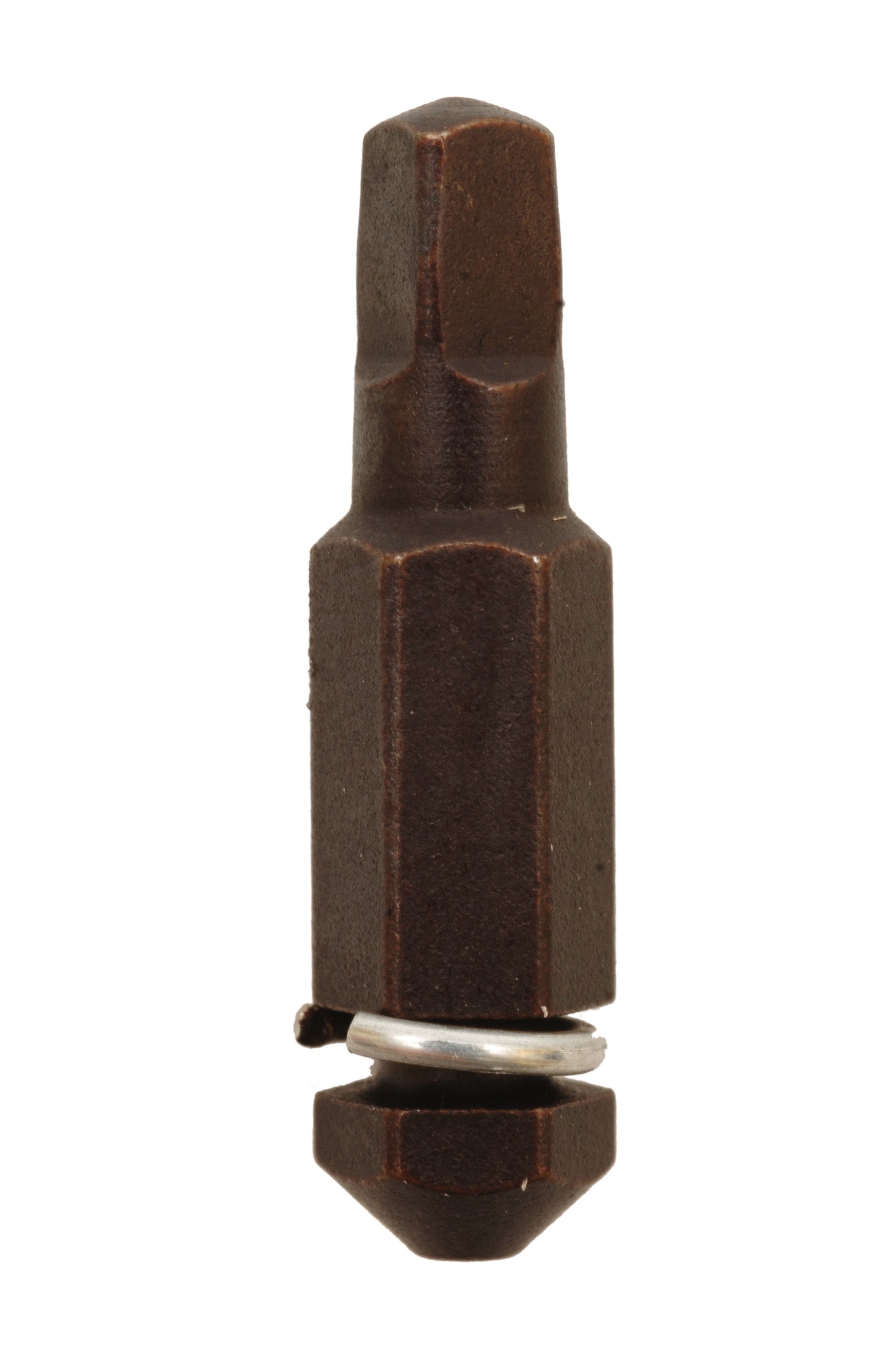

BIT2SUE
Features
Application
Technical Data
Product Dimensions UK

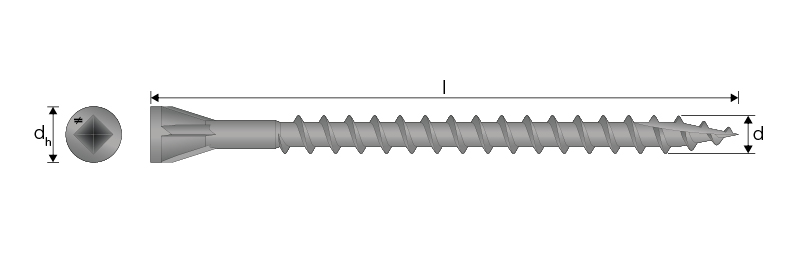

Dimensions
| Reference | Fasteners Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Product Dimensions[mm] | QD information | Other | |||||||
| dₕ[mm] | d[mm] | l[mm] | lg[mm] | Qty per Strip | Recommended RPM[tr/min] | Quik Drive Attachment | Qty per Box | Weight[kg] | |
| DTHQ51E | 6.2 | 4.2 | 51 | 37 | 30.0 | 2500.0 | QDPRO51E / QDPRO64E / QD76KE | 2000.0 | 6.6 |
| DTHQ64E | 6.2 | 4.2 | 64 | 50 | 30.0 | 2500.0 | QDPRO64E / QD76KE / QDPRO76SKE | 1500.0 | 6.2 |
| DTHQ76E | 6.2 | 4.5 | 76 | 55 | 30.0 | 2500.0 | QD76KE / QDPRO76SKE | 1000.0 | 6.2 |
